NORSELIGHT XS 500 R60 Manual de instrucciones

INSTALLATION & USER

MANUAL

SEARCHLIGHTS XENON R60

Technical Manual for

Xenon searchlight

□XS 500 R60

□XS 1000 R60

□XS 1600 R60

□XS 2000 R60

□XS 3000 R60

□1 x 230 VAC 50/60 Hz

□1 x 115 VAC 50/60 Hz

This manual refers to product:

Serial no.: ____________________

Controlled by: ____________________

Date: ____________________

Table of contents:

Introduction 5

1.0 General description 6

1.1 Options 7

2.0Technical data and dimensions 8

2.1 Speciﬁcations power supply 9

2.2 Overall searchlight dimensions & electrical cable dimensions 10

2.3 Cut / out main / slave panel 11

2.4 Overall dimensions power supply 12

3.0 Direction for use 17

3.1 Parameter setting for xbo HTP OFR 18

3.2 Program menu - Parameter setting 19

3.3 Operation modes 20

3.4 Program menu - Parameter mode setting 21

4.0 Electrical Installation 22

4.1 Searchlight XS 1000 with integrated Power supply - System Layout 23

4.2 Searchlight XS 500 - 3000 System Layout 24

___4.3 Panel R60, remote integrated Power supply 100-240V;50/60Hz 25

4.4 Power supply EX-30G/1 for 500W 26

4.5 Power supply PX-50 N for 1000W 27

4.6 Power supply NP-0725 for 500-1000W 28

4.7 Power supply N3-80-80E for 1600-2000W / N3-150E for 3000W 29

4.8 Power supply EX 100-D/1 for 1000-3000W 30

4.9 Installation, software settings 31

4.10 Hardware settings 32

4.11 Slave Panel 33

4.12 Settings / Joystick 34

5.0 Software userguide 35

5.1 Home menu 36

5.2 Settings / Sector limits / Sweep / Home 37

5.3 Searchlight help and information 38

5.4 Alarm handling 40

6.0 Maintenance 41

6.1 Spare Parts List 42

6.2 Lamp replacement 43

6.3 Battery (2008190) error and replacement 45

6.4 Battery replacement in the searchlight 46

6.5 Troubleshooting 47

7.0 Warranty 47

8.0 Dimensions 47

8.1 R60 Searchlight PLC B2 Motorhouse 48

8.2 Wiring PLC R60 for Motorhouse with integrated Power supply 49

8.3 R60 Searchlight PLC Output - B2 Motorhouse 50

8.4 Panel R60, remote 51

8.5 R60 Motorhouse B2 52

8.6 R60 Motorhouse B2 with PX-50 (1000W) 53

8.7 Wiring XS 500/1000 R60 with Power supply in Motorhouse 54

8.8 R60 XS 3000 Drum / Gear B2 55

8.9 R60 XS 500 - 2000 Drum / Gear B2 56

8.10 R60 Slave Panel B6 57

9.0 Network / IP addresses 58

Introduction:

For more than 90 years, Norselight have designed and manufactured lighting products for marine

vessels.

Through ongoing customer focused product development, Norselight continue

to deliver quality products as demanded both at sea and on the rugged coastlines of Norway.

This commitment to quality and expertise provides the foundation for Norselight to be possibly the

world’s leading supplier of maritime lighting.

However, in order to stay in front, Norselight would very much appreciate all comments that you

may have regarding our quality products or services.

Customer Service:

The Customer Service department of GLAMOX Production GmbH & Co. KG will be pleased to

help you when ordering spare parts, for maintenance and repair work as well as in case of

problems and questions.

Manufacturer: Customer Service contact:

GLAMOX Production GmbH & Co. KG GLAMOX Marine and Offshore GmbH

Glasower Weg 5 Tel. : +49 421 48 93-0

17166 Teterow E-Mail: [email protected]

Germany Internet: www.glamox.com/gmo

We would also like to use this opportunity to thank you for choosing Norselight.

1.0 General description:

Searchlight

The R60 searchlights XS 500-1000-1600-2000 and XS 3000

are made from seawater resistant aluminium, welded and ﬁnished with white powder coat.

The forks are made of stainless steel

• The lamp housing contains one lamp, ignitor, silverplated glass-reﬂector, hardened front-

glass, noise ﬁlters and a focus-motor for adjustment of the light beam.

• The motor housing contains a complete gear with motors for

horizontal and vertical movement, a thermostat driven heating

element and the electronic control system.

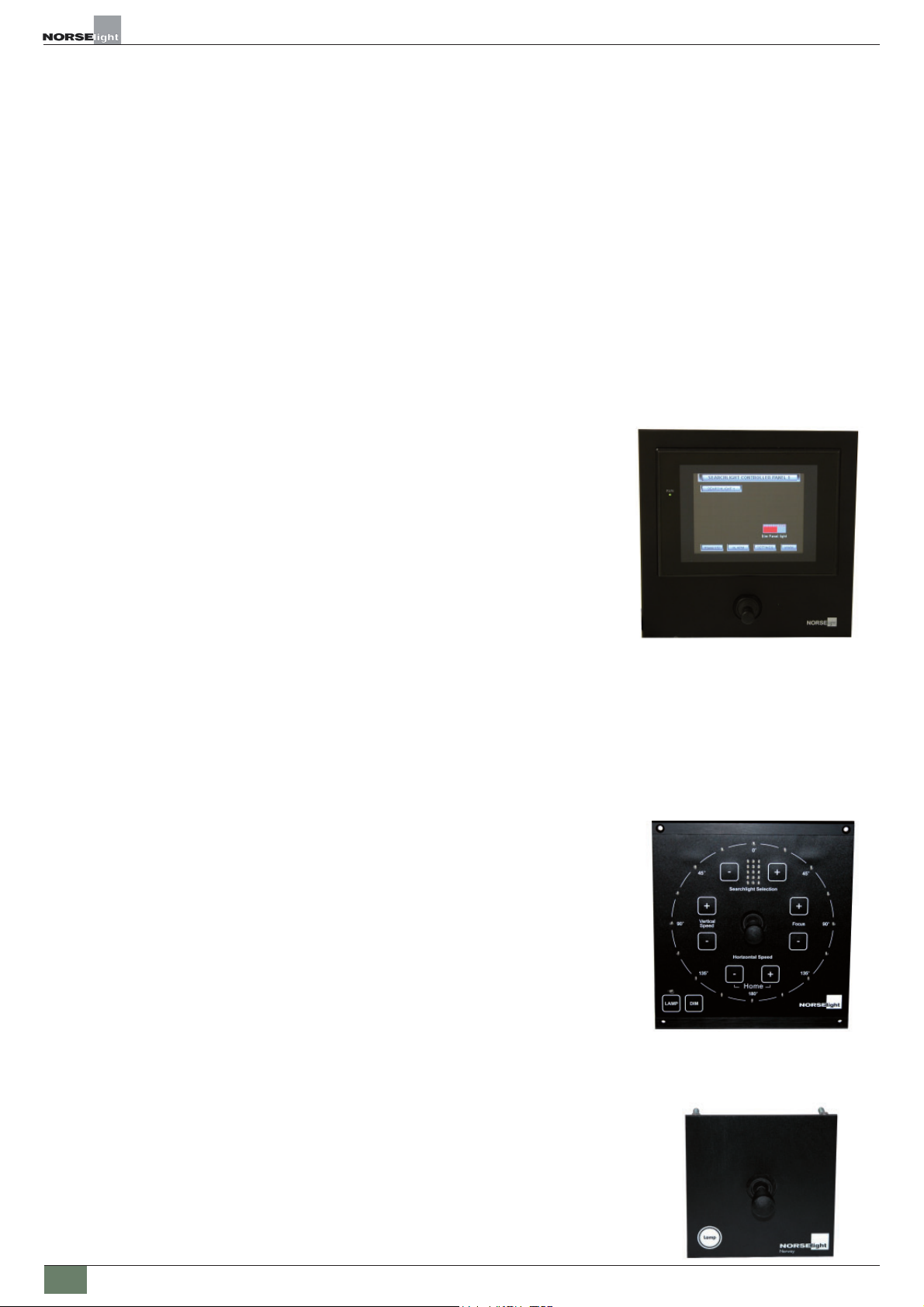

Control Panel

Main Operation Panel R60

it contains the following functions:

· BUS communication

· Lamp On/Oﬀ

· Joystick for horizontal and vertical movement

· Speed regulator for horizontal and vertical movement

· Focus +/- (light beam adjustment)

· Horizontal indicator for searchlight position 360° and vertical +/-30°

· Backlight intensity adjustable on Main Panel

· Adjustable limits for horizontal and vertical sectors

· Alarm menu

· Trouble shooting menu

· Help menu

· Hardware installation settings menu

· Designed for console or bulkhead mounting

· User deﬁned sweep and two home functions

Main Operation Panel R50/R60

it contains the following functions:

· Ready for max. 2 Slave Operation Panels (option)

· BUS communication

· Lamp On/Oﬀ

· Joystick for sweep and tilt, horizontal and vertical movement

· Speed regulator for sweep and tilt

· Focus +/- (light beam adjustment)

· LED Indication for searchlight position 360°

· Searchlight ID-number

· End position function

· Designed for console or bulkhead mounting from front

· DIM LED intensity on Main Operation Panel

Slave Operation Panel

It contains:

· Joystick and a button for lamp On/Oﬀ

· Designed for console or bulkhead mounting

1.1 Options

Software:

- Programmable dimming function of the panel

- Focus indicator

- Temperature alarm in drum

- Panel built in box or cabinet

Hardware:

- Other RAL colours

- Upside down mounting

- Pedestal standard and custom sizes on request

- Special cable glands on request

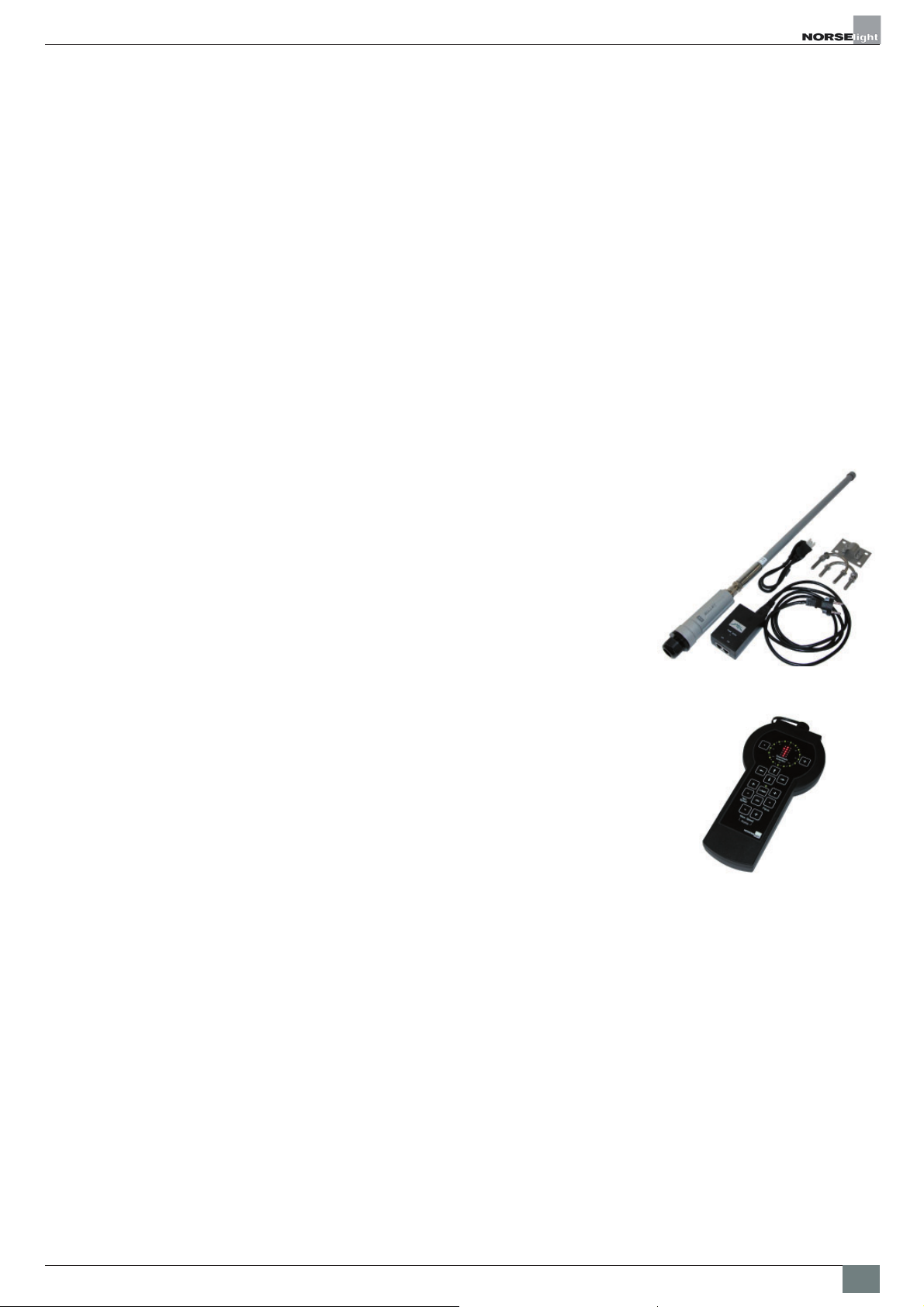

High Sensitive Receiver

The Access Point is a high sensitive receiver for the wireless panel build for maximum range

and durability. The Access Point communicate with the wireless bus, witch remotely controls the

searchlights with R50 motor unit. The control system is based on TCP/IP technology were serveral

diﬀerent Operator Panel can control separately up to 9 searchlights of Xenon or Halogen.

The system is connected to the same network through LAN switch to connect to a network of

searchlights. Control panels both hard wired and wireless, are ﬁtted into a standard solution.

Features and Beneﬁts

· Wireless receiver for SCS wireless Bus

· Bolt-on to Norselight´s network of searchlights

· Weatherproof Aluminium Casing, Compact and new design

· Based TCP/IP technology (Plug and play)

· Waterproof, quick disconnect RJ-45 connector

· Customer made for Oﬀshore

· Supports masts from 1 to 2” diameter

· 200m Area wireless coverage

· IP66, RoHs, FCC, CE, IC Complaint

· -40 to +80° operation temperature

Package Include

· 1x Wireless receiver unit

· 1x PoE Power supply

· 1x 7dBi wireless Antenna

· (Network cables, not included)

Wireless Operation Panel

It contains:

· Power On/OﬀButton

· Lamp On/Oﬀ

· Touch buttons for horizontal and vertical movement

· Speed regulator for horizontal and vertical movement

· Focus +/- (light beam adjustment)

· LED Indication for searchlight position 16 positions for 360°

· Display for searchlight ID-number

· End position indication

· Battery charger

2.0 Technical data and dimensions

General speciﬁcations searchlight unit:

Technical data – all XS models:

IP classiﬁcation 56

Maximum ambient temperature (°C) 50

Minimum ambient temperature (°C) -50

Horizontal movement 360º

Vertical movement +22° / -27°

Colour RAL 9016

Forks stainless steel

Article no: Model Watt Voltage Main body material

600201638

600201638 XS500 R60 230V 500 230 VAC Seawater resistant aluminium

600201639 XS500 R60 230V integr.PSU 500 230VAC Seawater resistant aluminium

600201338 XS1000 R60 230V 1000 230 VAC Seawater resistant aluminium

600201339 XS1000 R60 230V integr.PSU 1000 230 VAC Seawater resistant aluminium

600201438 XS1600 R60 230V 1600 230 VAC Seawater resistant aluminium

600201538 XS2000 R60 230V 2000 230 VAC Seawater resistant aluminium

600201238 XS3000 R60 230V 3000 230 VAC Seawater resistant aluminium

600209538 XS3000 R60 230V NR 3000 230 VAC Seawater resistant aluminium

Speciﬁcations Main Panel:

IP classiﬁcation IP65 (front)

Ambient temperature (°C) 0 - 50ºC

Input Voltage 24 VDC (20,4 to 27,6 VDC)

Connection 24V 2x max. 2,5mm²

Connection Bus LAN RJ45

Dimensions 230 x 230 x 54mm

Weight 1,6kg

Power consumption 15W

Speciﬁcations Slave Panel:

IP classiﬁcation IP65 (front)

Connection signals 6x max. 4mm²

Dimensions 96 x 96 x 44mm

Weight 40g

Speciﬁcations Wireless Panel:

IP classiﬁcation IP67

Speciﬁcations LAN switch:

IP classiﬁcation IP66

Input voltage 9,6 - 60 VDC

18 - 30 VAC

(redundant dual inputs)

2.1 Speciﬁcations power supply

EX-30 G/1 500W

Art No. 1009150

IP classiﬁcation IP20

Temperature ambient 0 - 40 ºC

Input Voltage 90 - 265 VAC; 1-phase

Cable input max Ø 8,5mm

Cable output (DC) max Ø 8,5mm

Cable remote signal max Ø 8,5mm

Dimensions 265 x 235 x 135mm

Weight 8kg

NP-0725 500-1000W

Art No. 1009158 / 8SL0018800 (with heat sink)

IP classiﬁcation IP20

Temperature ambient -30 ... 50 ºC

Input Voltage 90 - 264 VAC; single phase

Dimensions 180 x 254 x 82,5mm / 507 x 305 x 114mm (with heat sink)

Weight 3,35kg / 8,4kg (with heat sink)

PX-50N 1000W

Art No. 1009155 (115V) / 1009156 (230V)

IP classiﬁcation IP20

Temperature ambient 0 - 40 ºC

Input Voltage 100 - 132VAC; single phase

Input Voltage 208 - 230VAC; single phase

Cable input max Ø 24mm

Cable output (DC) max Ø 24mm

Cable remote signal max Ø 24mm

Dimensions 245 x 595 x 238mm

Weight 63kg

N3-80E 1600-2000W

Art No. 1009160

IP classiﬁcation IP20

Temperature ambient 0 - 40 ºC

Input Voltage 208 - 242 VAC; 3-phase

Cable input max Ø 27mm

Cable output (DC) max Ø 27mm

Cable remote signal max Ø 27mm

Dimensions 320 x 380 x 770mm

Weight 105kg

N3-150E 3000W

Art No. 1009166

IP classiﬁcation IP20

Temperature ambient 0 - 40 ºC

Input Voltage 208 - 242 VAC; 3-phase

Cable input max Ø 27mm

Cable output (DC) max Ø 27mm

Cable remote signal max Ø 27mm

Dimensions 320 x 380 x 770mm

Weight 123kg

EX-100D/1 1000-3000W

Art No. 1009165

IP classiﬁcation IP20

Temperature ambient -5 - 45 ºC

Input Voltage 185 - 265 VAC; single phase or double phase (for 115V)

Cable input max Ø 8/20 mm

Cable output (DC) max Ø 2 x 20mm

Cable remote signal max Ø 20mm

Dimensions 265 x 436 x 440mm

Weight 19,5kg

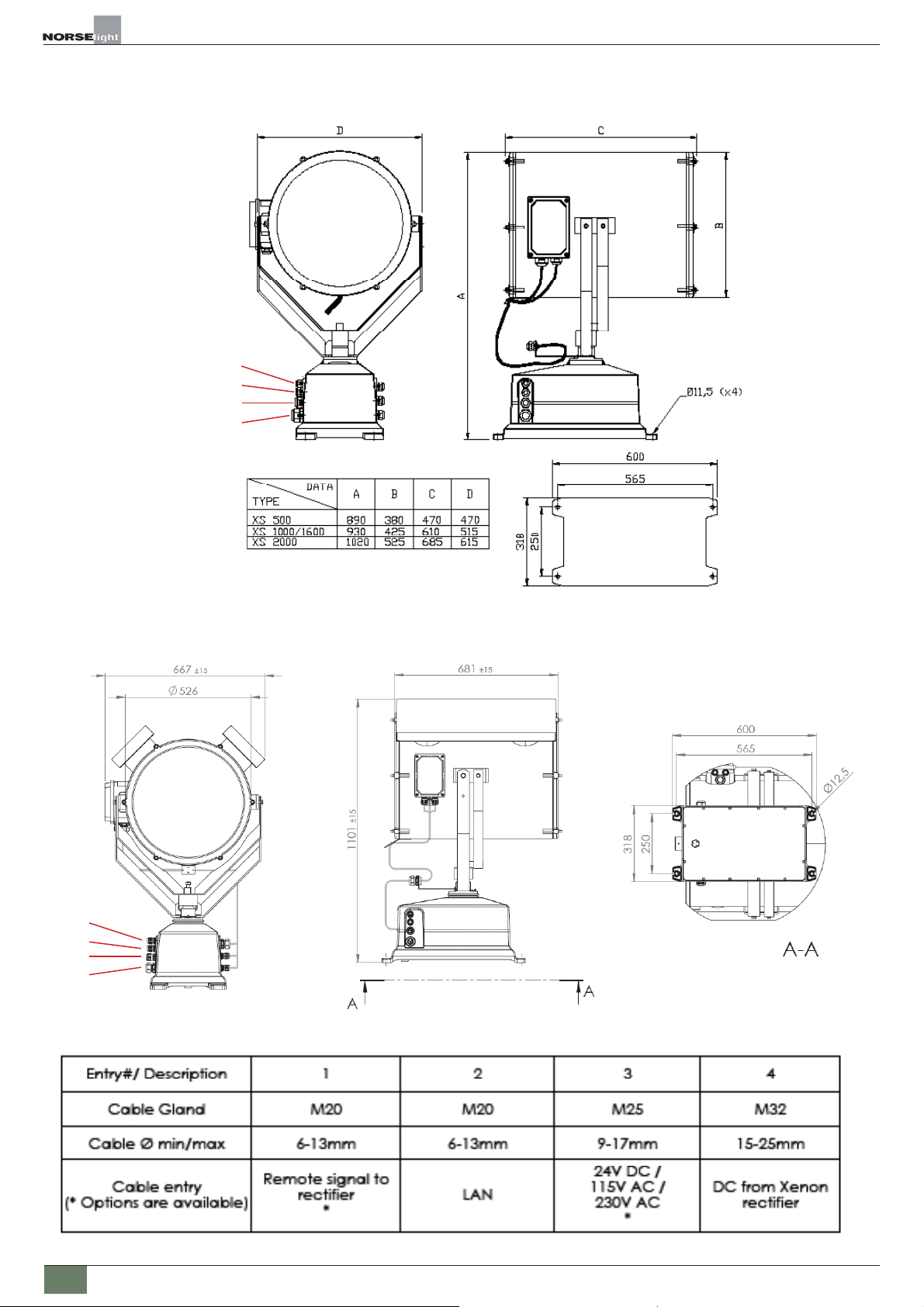

2.2 Overall searchlight dimensions & electrical cable dimensions

XS 500-2000:

XS 3000:

←Front of motorhouse

←Common for all

R60 models.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Foco de NORSELIGHT

NORSELIGHT

NORSELIGHT R60 Series Manual de instrucciones

NORSELIGHT

NORSELIGHT XENON SL40 R5 Manual de instrucciones

NORSELIGHT

NORSELIGHT HR 250 R20 Manual de usuario

NORSELIGHT

NORSELIGHT SH R50 BUS Manual de usuario

Manuales populares de Foco de otras marcas

VIZULO

VIZULO Micro Martin Guía del usuario

EuroLite

EuroLite LED IP FL-100 SMD Manual de usuario

Cooper Wheelock

Cooper Wheelock XB12 Manual de usuario

Allen + Roth

Allen + Roth 17624-000 Manual de usuario

ADJ

ADJ 4 STAGE PAK Manual de usuario

Cooper Lighting

Cooper Lighting EGL91SW233 Manual de usuario

Max

Max 37496 Manual de usuario

BEGA

BEGA 85 143 Manual de usuario

Beamz

Beamz 151.226 Manual de usuario

EuroLite

EuroLite LED IP FL-8 Manual de usuario

Ledj

Ledj PERFORMER 36 RGB Manual de usuario

Perel

Perel ELS3 Manual de usuario

Perel

Perel ELS3WD Manual de usuario

LumX

LumX LM 36130 Manual de usuario

Xtricity

Xtricity 4-80053 Manual de usuario

Stahl

Stahl 6521/4 Series Manual de usuario

Ecosense

Ecosense EcoSpec Manual de usuario

Ayrton

Ayrton minipanel FX Manual de usuario
