RIFF50501NM

OPERATING MANUAL

Sticker with serial number of appliance

Note!

This fridge-freezer is intended for use at home only.

The manufacturer reserves the right to introduce modications, which do not affect the

operation of the appliance. The changes in the equipment, as well as the inside and

outside decoration, which do not affect its functionality and safety are permissible.

Dear Customer,

This fridge-freezer is a combination of exceptional user-friendliness and excellent efciency. Prior

to dispatch, each unit was carefully checked for its safety and operating capabilities.

Before starting the appliance, please read this operating manual carefully.

GENERAL INFORMATION

TABLE OF CONTENTS

Construction and equipment of the appliance...........................................................................4

Guidelines concerning the safety of use...................................................................................6

Installation.................................................................................................................................8

Change in the door hinging.......................................................................................................10

Mounting in furniture................................................................................................................11

Operation and functions............................................................................................................12

Using the refrigerator efciently.................................................................................................15

Defrosting, washing and maintenance......................................................................................17

Trouble-shooting.......................................................................................................................19

Environmental protection..........................................................................................................21

Specication..............................................................................................................................22

CONSTRUCTION AND EQUIPMENT OF THE APPLIANCE

Example

Other elements

11 12

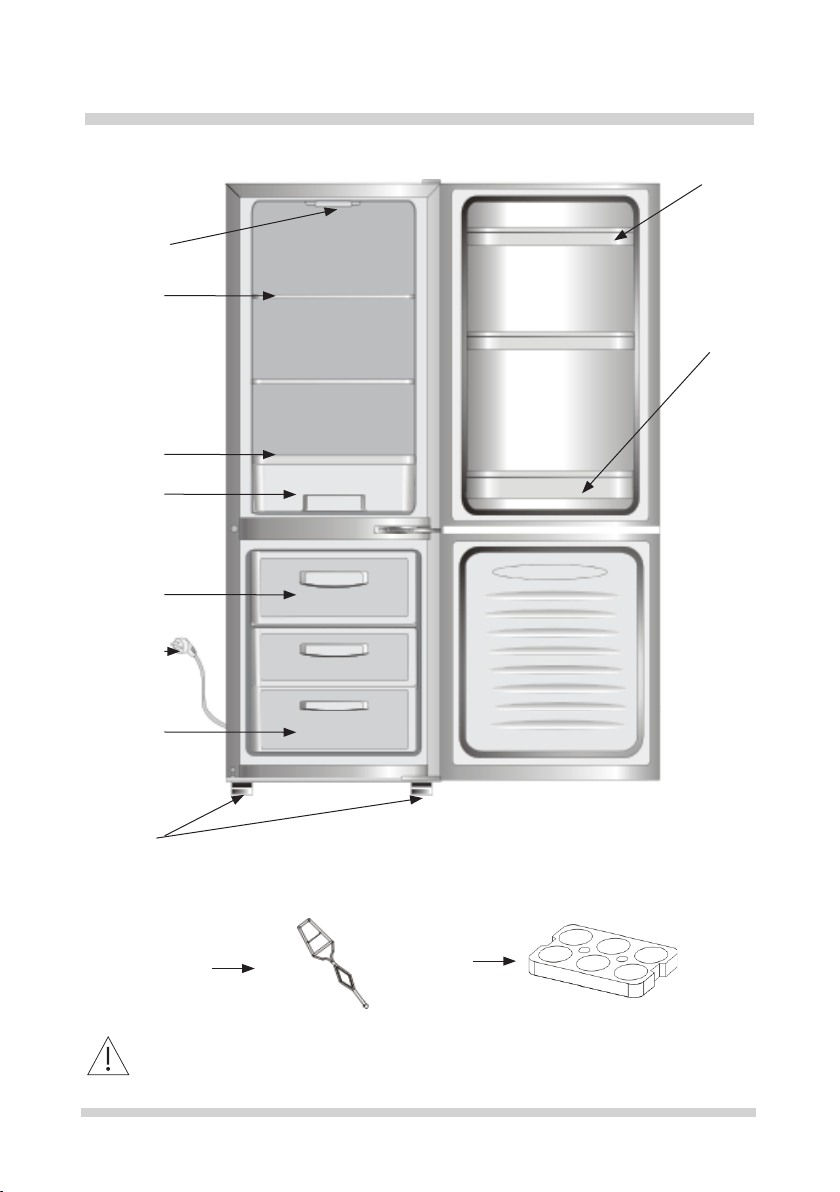

The accurate description of the equipment for the model of the fridge-freezer

purchased by you may be found in the table on next page.

1 Control panel

2Glass Shelf

3 Glass shelf above the vegetable compartment

4 Vegetable compartment

5Medium drawer

6 Cord with plug

7 Large drawer

8 Adjustable feet

9 Large door shelf

10 Medium door shelf

11 Cleaning plug

12 Egg tray

CONSTRUCTION AND EQUIPMENT OF THE APPLIANCE

Items of equipment RIFF50501NM

Equipment of the fridge

Glass shelf 3

Glass shelf above the vegetable compartment 1

Vegetable compartment 2

Medium door shelf 2

Large door shelf 1

Small door shelf 1

Cleaning plug 1

Wire bottle shelf 1

Egg tray 1

Lighting type LED

Equipment of the freezer

Drawer 4

Ice cube tray 1

GUIDELINES CONCERNING THE SAFETY OF USE

lThe Manufacturer shall not be held

liable for the damage arising from

the failure to observe the principles

contained in this manual.

lKeep this manual for future re-

ference, or to pass it over to the

possible next user.

lThis appliance is not intended for

use by persons (including children)

with limited physical, sensual or

psychical capabilities and persons

who lack experience or familiarity

with the appliance, unless attended

or in accordance with the operating

manual for the appliance delivered by

persons responsible for their safety.

lDo not allow unattended children

to use the appliance. Do not allow

them to play with the appliance.

They must not climb inside the

drawers and swing on the doors.

lThe fridge-freezer operates properly

at the N-ST ambient temperature.

Do not use it in the cellar, unheated

summer cottage during autumn and

winter.

lWhen placing, moving, lifting the

appliance, do not hold the door han-

dles, do not pull the condenser at the

rear part of the refrigerator and do not

touch the compressor unit.

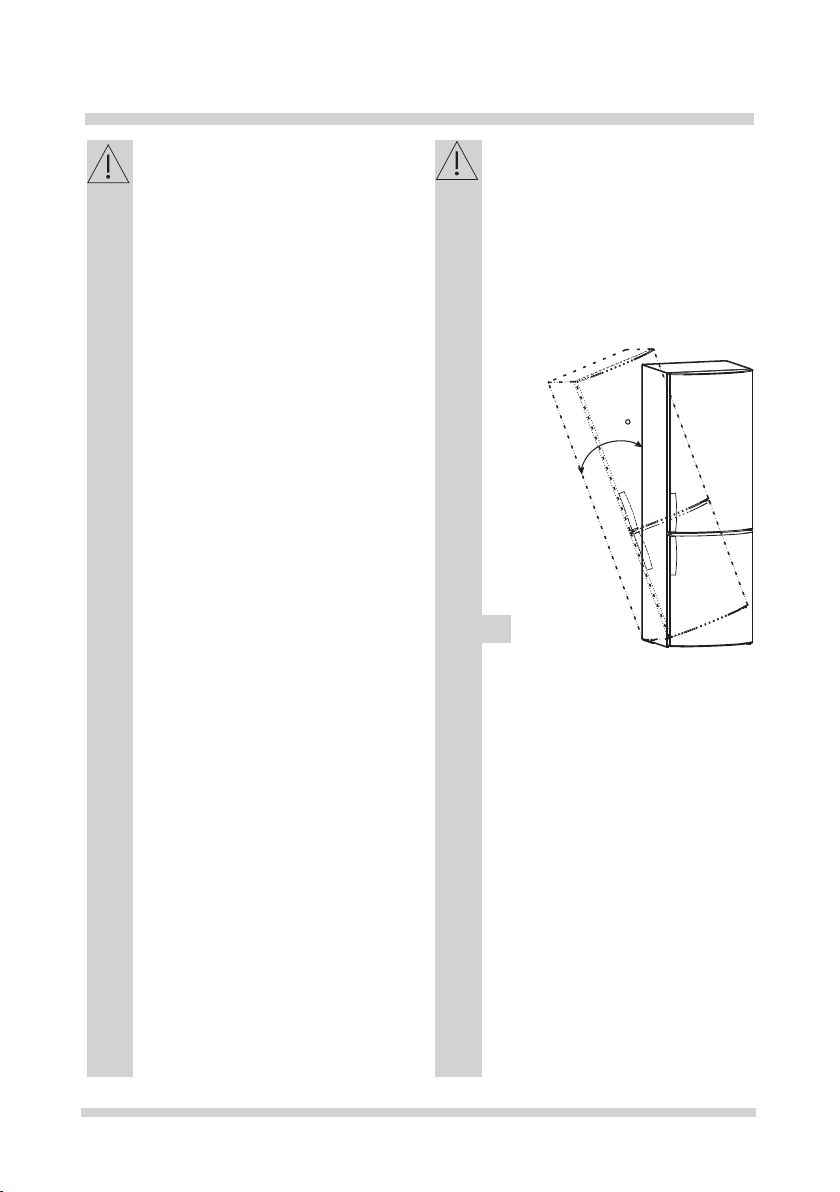

lWhen transporting, moving or

positioning the fridge-freezer do

not tilt it by more than 40° from

the vertical position. Should

such a situation occur, the ap-

pliance should be switched on

after minimum 2 hours from its

re-placement in the right position

(g. 1).

lPull the plug out from the mains

socket before each maintenance

activity. Do not pull the cord, but hold

the body of the plug instead.

lThe cracking-like sound, which the

appliance may emit is caused by

expansion and shrinking of parts as

a result of temperature variations.

lFor safety reasons do not repair the

appliance on your own. Repairs car-

ried out by persons who do not have

required qualications may constitute

a serious hazard for the user of the

appliance.

max 40

GUIDELINES CONCERNING THE SAFETY OF USE

lMake sure you do not damage the

cooling system by punching the re-

frigerant pipes in the evaporator or

breaking the pipes. The refrigerant

splashes are ammable. Rinse the

eyes with clean water and call for

medical assistance immediately

in case of their contact with the

refrigerant.

lAir the room in which the appliance

is placed for a few minutes (the size

of the room for a product containing

isobuthane/R600a must be at least

4m3) in case of damage to the co-

oling system.

lDo not refreeze the partly thawed

products.

lDo not store beverages in bottles

and cans, especially carbonated be-

verages in the freezer chamber. The

cans and bottles may explode.

lDo not put frozen products, ta-

ken out directly from the freezer

(lollies, ice cubes, etc.) into your

mouth, their low temperature may

cause severe frost-bite.

1.Take the product out of the package, re-

move the scotch tape protecting the door

and the equipment. The possibly remaining

adhesive stains may be removed with a mild

washing agent.

2. Do not throw away the polystyrene ele-

ments of the packaging. In the case of the

necessity to transport the fridge-freezer,

pack it in the polystyrene elements and lm,

as well as protect it with scotch tape.

3. Clean the interior surface of the fridge-

freezer and the elements of the equipment

with a washing agent dissolved in lukewarm

water, then wipe it dry.

4. Place the fridge-freezer on an even, at and

stable surface, in dry, aired and shadowy

room, far from heat source such as an oven,

cooktop, central heating radiator, central

heating pipe, hot water installation, etc.

Minimal distances from heat so-

urces

- from the electric gas and other ovens

- 30 mm,

- from oil or coal red ovens - 300

mm,

- from in-built ovens - 50 mm

If there is no possibility to ensure

the above-mentioned distances, provide an

appropriate insulation board.

INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE

Installation before using the applian-

ce for the rst time

INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE

It is prohibited to readjust or modify

any parts of the unit. It is crucial not

to damage the capillary tube visible

in the compressor recess. The tube

may not be bent, straightened or

wound.

If the capillary tube is damaged by

the user the guarantee will be void

(g. 4).

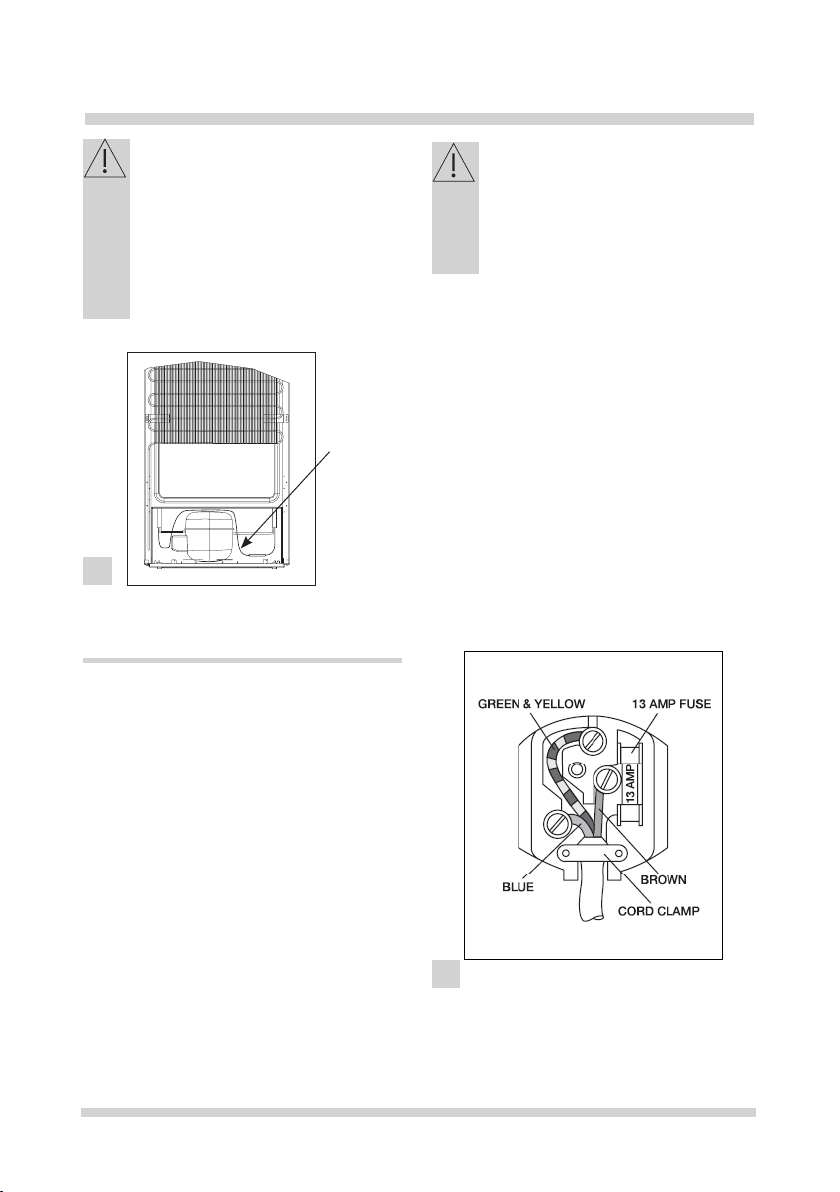

lThe data is provided on the rated plate

located at the bottom of the wall inside the

chamber.

Mains connection

lBefore the appliance is connected to the

mains, set the adjustment knob to the

“0” / "OFF" position.

lThe appliance is intended for connection to

alternating current. The connection values

for voltage (V) and frequency (Hz) are given

on the nameplate in the cabinet.Power must

be connected via a wall socket with switch.

The wall socket should be easily accessible.

All earthing requirements stipulated by the

local electricity authority must be observed.

The cabinet plug and wall socket should

then give correct earthing. If in doubt,

contact your local supplier or an authorised

electrician.

capillary

tube

This appliance must be earthed

The flexible cord (mains lead)

tted to this appliance has three

cores for use with a 3-pin 13-amp

plug. If a BS 1363 (13-amp) fused

plug is used, it should be tted

with a 13-amp fuse.

Important

The cores in this mains lead are coloured

in accordance with the following code:

GREEN-AND-YELLOW: EARTH

BLUE: NEUTRAL

BROWN: LIVE

These colours might not correspond with

the colour markings identifying the termi-

nals in your plug.

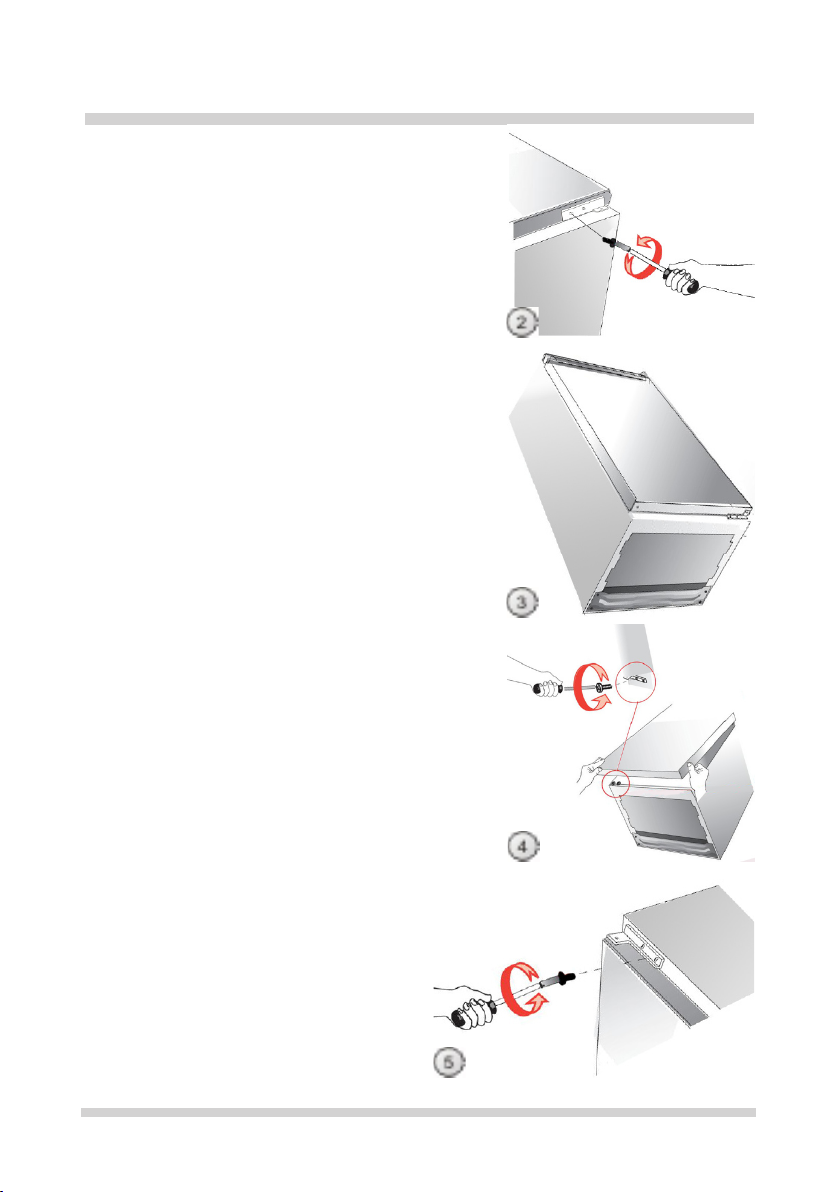

REVERSING THE DOOR OPENING DIRECTION

1. Before reversing the door opening direc-

tion, unplug the appliance and remove all

food.

2. Using a at screwdriver pry and remove

hinge caps.

3. Using a Phillips screwdriver remove the

door upper hinge while holding the door (Fig.

2).

4. Using a Phillips screwdriver remove the

middle hinge while holding the upper door*

5. Set the door aside in a safe place.

6. Tilt the appliance (up to 40 degrees) so as

to have sufcient access to the lower hinge

(Fig. 3).

7. Using a Phillips screwdriver remove lower

door hinge

8. Attach the lower hinge on the other side

(Fig. 4).

9. Position the door assembly in such a

way so that pin of the lower hinge is aligned

with the appropriate hole of the lower door

bracket.

10. Attach the middle hinge on the other side

of the appliance so that the lower pin of the

middle hinge is aligned with the appropriate

hole of the upper door bracket. Position the

second door assembly so that the upper pin

of the middle hinge is aligned with the appro-

priate hole of the lower door bracket.*

11. Attach the upper hinge so that the hinge

pin is aligned with the appropriate hole of the

upper door bracket.* (Fig. 5).

12. Check that doors are properly aligned

with the appliance body.

13. Replace the hinge caps.

14. Switch on the appliance as described in

the relevant section of its operating instruc-

tions.

* This action applies to appliances with both

refrigeration and freezer chambers.
