Norcold N621 - Manual de usuario
PARTS LIST
PART NO. 623422
NORCOLD 12/1/2010
N62/N82 SERIES
N62 SERIES
N621
N621F
N621SS
N623
N624
N82 SERIES
N821
N821BK
N821BKF
N821F
N821V
N822
N822F
N823
N824
N62/N82 SERIES PARTS LIST - PAGE 2
UPPER DOOR (FREEZER) - N62/N82 SERIES
NO. PART # DESCRIPTION N621 N621F
N623 N624
N821 N821F
N823 N824 N822 N822F
1623943 PANEL RETAINER-UPPER DOOR/PANEL/BLACK/SDL X X X
619558 PANEL RETAINER-UPPER DOOR/BLACK/WDL X X X
2 618511 HINGE-DOOR SIDE/TOP RH/BTM LH/BLACK/WDL ONLY X X X
3 619671 HINGE BUSHING-DOOR/WARM GRAY/WDL/SDL X X X
4
623945 DOOR ASSY-UPPER/PANEL/BLACK FRAME/SDL X X X
619627 DOOR ASSY-UPPER/PANEL/BLACK FRAME/WDL X X X
632732 DOOR ASSY-UPPER/WRAP/AT BLACK/SDL (SERIAL # 12965198 & BELOW) BK
634065 DOOR ASSY-UPPER/WRAP/ANCO BLACK/SDL (SERIAL # 12965199 & ABOVE) BK
632731 DOOR ASSY-UPPER/WRAP/AT-SS/SDL (SERIAL # 12965541 & BELOW) (USE 634062) SS
634062 DOOR ASSY-UPPER/WRAP/ANCO-SS/SDL (SERIAL # 12965542 & ABOVE) SS
5 618160 CAP-HINGE PLUG/BLACK X X X
6
619866 DOOR HANDLE ASSY-UPPER DOOR/RH SWING (SERIAL # 965168 & BELOW) X X
621465 DOOR HANDLE ASSY-UPPER DOOR/RH SWING/PLASTIC (SERIAL # 965169 & ABOVE) X X
621105 DOOR HANDLE ASSY-UPPER DOOR/RH SWING X
7622313 STORAGE LATCH-DOOR/WARM GRAY/PLASTIC HANDLE X X
619648 STORAGE LATCH-DOOR/WARM GRAY/METAL HANDLE X X X
8 618510 HINGE-DOOR SIDE/TOP LH/BTM RH/BLACK/WDL ONLY X X X
9 618618 RAIL-UPPER DOOR/WDL ONLY X X X
10 624863 BIN-DOOR SHELF/WHITE/SDL X X X
618619 BIN-DOOR SHELF/WHITE/WDL X X X
PART IS NO LONGER AVAILABLE
N62/N82 SERIES PARTS LIST - PAGE 3

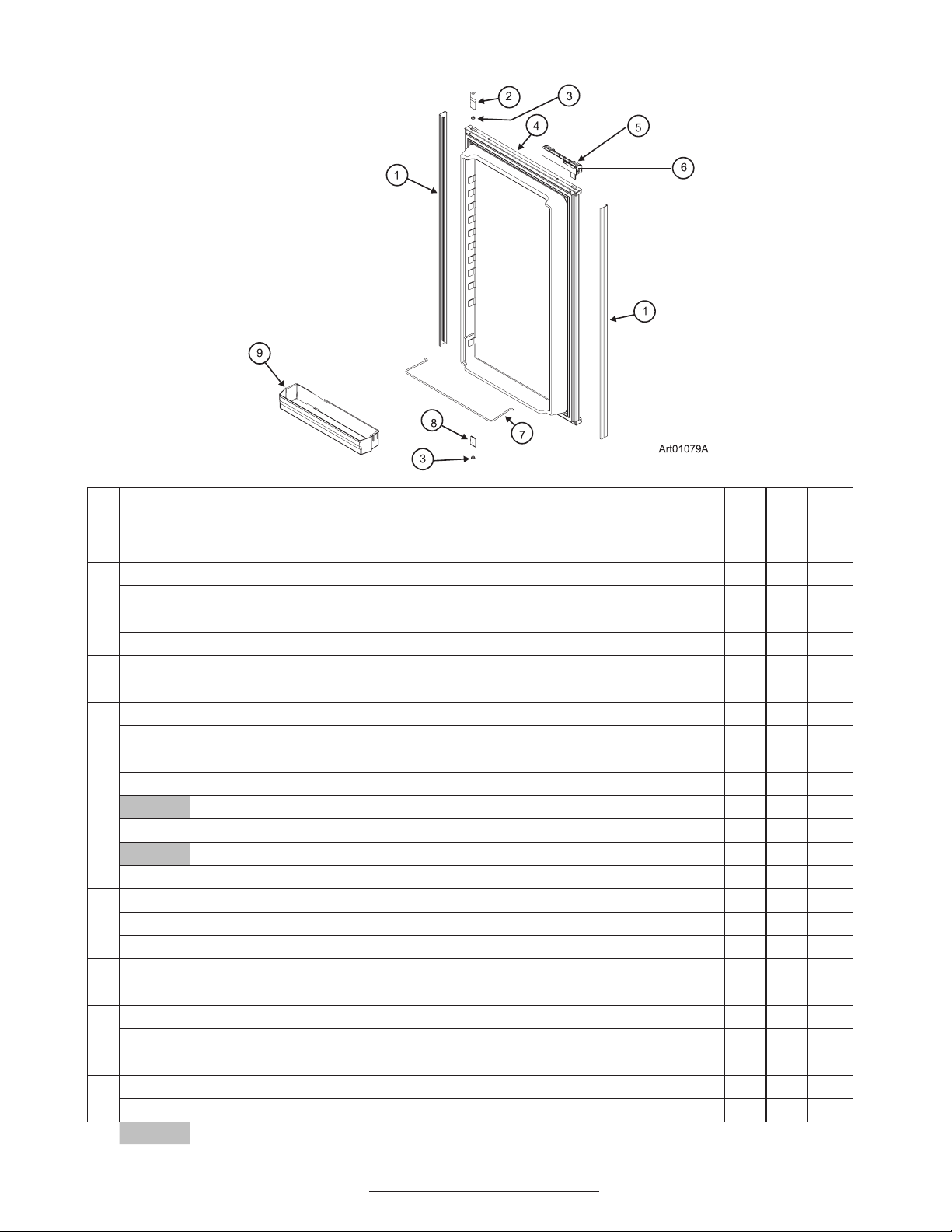

LOWER DOOR (FRESH FOOD) - N62/N82 SERIES
NO. PART # DESCRIPTION
N621
N621F
N623
N624
N821
N821F
N823
N824
N822
N822F
1
623948 PANEL RETAINER-LOWER DOOR/6’/BLACK/SDL X
623760 PANEL RETAINER-LOWER DOOR/8’/BLACK/SDL X X
619559 PANEL RETAINER-LOWER DOOR/6’/BLACK/WDL X
619560 PANEL RETAINER-LOWER DOOR/8’/BLACK/WDL X X
2 618511 HINGE-DOOR SIDE/TOP RH/BTM LH/BLACK/WDL ONLY X X X
3 619671 HINGE BUSHING-DOOR/WARM GRAY X X X
4
623955 DOOR ASSY-LOWER/6’/PANEL/BLACK FRAME/SDL X
623942 DOOR ASSY-LOWER/8’/PANEL/BLACK FRAME/SDL X X
619629 DOOR ASSY-LOWER/6’/PANEL/BLACK FRAME/WDL X
619631 DOOR ASSY-LOWER/8’/PANEL/BLACK FRAME/WDL X X
632738 DOOR ASSY-LOWER/8’/WRAP/AT BLACK/SDL (S/N 12965198 & BELOW) (USE 634067) BK
634067 DOOR ASSY-LOWER/8’/WRAP/ANCO BLACK/SDL (SERIAL # 12965199 & ABOVE) BK
632733 DOOR ASSY-LOWER/8’/WRAP/AT-SS/SDL (SERIAL # 12965541 & BELOW) (USE 634063) SS
634063 DOOR ASSY-LOWER/8’/WRAP/ANCO-SS/SDL (SERIAL # 12965542 & ABOVE) SS
5
619865 DOOR HANDLE ASSY-LOWER DOOR/RH SWING (SERIAL # 965168 & BELOW) X X
621469 DOOR HANDLE ASSY-UPPER DOOR/LH SWING/PLASTIC (SERIAL # 965169 & ABOVE) X X
621104 DOOR HANDLE ASSY-LOWER DOOR/RH SWING X
6622313 STORAGE LATCH-DOOR/WARM GRAY/PLASTIC DOOR HANDLE X X
619648 STORAGE LATCH-DOOR/WARM GRAY/METAL DOOR HANDLE X X X
7624866 WIRE-BIN/SDL X X X
618578 RAIL-LOWER DOOR/WDL X X X
8 618510 HINGE-DOOR SIDE/TOP LH/BTM RH/BLACK/WDL ONLY X X X
9624863 BIN-DOOR SHELF/WHITE/SDL X X X
618619 BIN-DOOR SHELF/WHITE/WDL X X X
PART IS NO LONGER AVAILABLE
N62/N82 SERIES PARTS LIST - PAGE 4

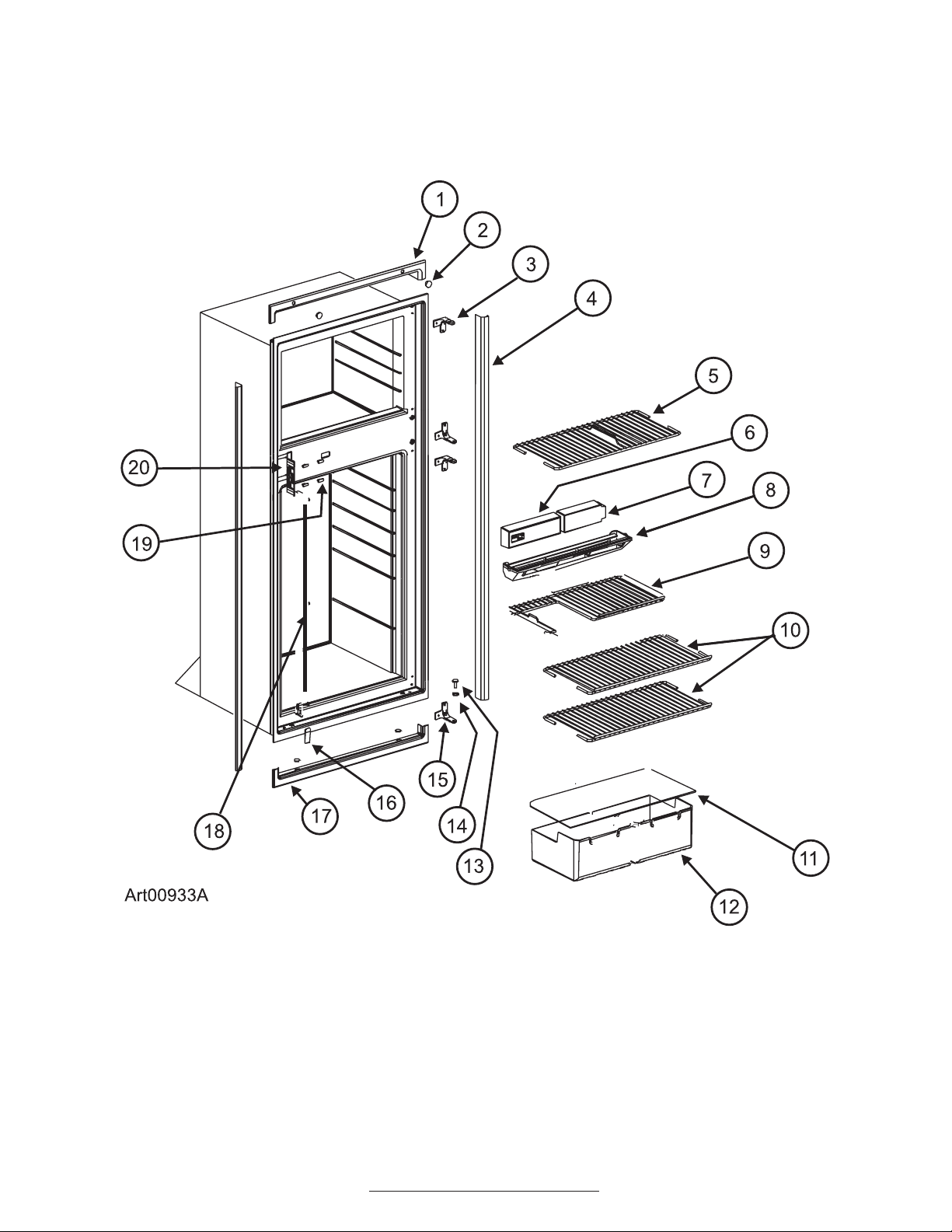

CABINET AREA (FRONT VIEW) - N62/N82 SERIES
N62/N82 SERIES PARTS LIST - PAGE 5
CABINET AREA (FRONT VIEW) - N62/N82 SERIES
NO. PART # DESCRIPTION N62 SERIES N82 SERIES
1 622319 TRIM PIECE ASSY-TOP/WITH INSERTS/BLACK X X
2 618170 HOLE PLUG-BLACK (2 PER CABINET) X X
3
623771 HINGE-CABINET/3 POINT/TOP RH/BTM LH/PANEL/BLACK/SDL X X
619335 HINGE-CABINET/3 POINT/TOP RH/BTM LH/PANEL/BLACK/WDL X X
624785 HINGE-CABINET/3 POINT/TOP RH/BTM LH/WRAP/BLACK/SDL X
4622295 TRIM PIECE FOAM TAPE ASSY-CABINET/SIDE/6’ (2 PER CABINET) X
622296 TRIM PIECE FOAM TAPE ASSY-CABINET/SIDE/8’ (2 PER CABINET) X
5 620250 SHELF-WIRE/FREEZER X X
6
628974 CONTROL ASSY-OPTICAL/BLACK (SERIAL# : N621/N821/N822=9126825 & ABOVE - N623/N823=8970881 &
ABOVE) X X
633292 KIT-CONTROLS ADAPTER (SERIAL#: N621/N821/N822=9126824 & BELOW - N623/N823=8970880 & BELOW) X X
7 619282 FRONT BOX-BLACK X X
8 623250 DRIP TRAY-INSIDE X X
9 620272 SHELF-WIRE/CUT OUT X X
10 620273 SHELF-WIRE/FULL 2 3
11 618158 CRISPER COVER-GLASS SHELF X X
12 618571 CRISPER-WHITE/FULL X X
13
618145 HINGE PIN-UPPER HINGE/BLACK/WDL/SDL X X
623899 HINGE PIN-UPPER/LOWER/BLACK/WDL/SDL X X
61550722 HINGE PIN-BOTTOM/WDL/SDL X X
14 619671 HINGE BUSHING-DOOR/WARM GRAY (4 PER REFRIGERATOR) X X
15
623772 HINGE-CABINET/3 POINT/TOP LH/BTM RH/PANEL/BLACK/SDL X X
619336 HINGE-CABINET/3 POINT/TOP LH/BTM RH/PANEL/BLACK/WDL X X
624786 HINGE-CABINET/3 POINT/TOP LH/BTM RH/WRAP/BLACK/SDL X
16 619301 COVER-HINGE HOLES/WHITE/3 POINT X X
17 622323 TRIM PIECE FOAM TAPE ASSY-CABINET/BOTTOM X X
18 618181 RETAINER-SHELF (SERIAL # 926963 AND BEFORE) X X
622033 RETAINER-SHELF (SERIAL # 926964 AND AFTER) X X
19 619561 HOLE PLUG-DIVIDER/WHITE (PRODUCED 03/12/98 TO 07/20/98) X X
620282 HOLE PLUG-DIVIDER/WHITE (PRODUCED 07/21/98 TO 02/14/99) X X
20 618167 STRIKE PLATE X X
622325 KIT-INSTALLATION (TRIM PIECES/SCREWS/PLUGS)(NOT SHOWN) X X
NOTE: IF THE CONTROL ASSY-OPTICAL HAS BEEN REPLACED WITH A KIT-CONTROL ADAPTOR, THE POWER BOARD MUST BE REPLACED WITH A
NEW KIT-CONTROL ADAPTER.
N62/N82 SERIES PARTS LIST - PAGE 6
CABINET AREA (REAR VIEW) - N62/N82 SERIES
NO. PART # DESCRIPTION N62 SERIES N82 SERIES
1 61686823 FINS X X
2 61695022 CAP-HEAT DEFLECTOR X X
3
621702 HEATER-AC (COOLING UNIT SERIAL# 11231023 & BELOW) X
HEATER-AC (COOLING UNIT SERIAL# 11232007 & BELOW) X
630811 HEATER-AC/BACKER (COOLING UNIT SERIAL# 11231024 & ABOVE) X
HEATER-AC/BACKER (COOLING UNIT SERIAL# 11232008 & ABOVE) X
4 61695322 BASE-BURNER BOX X X
5 61712637 COVER ASSY-BURNER BOX X X
6 622546 DRIP CUP-REAR X X
7 622390 DRAIN HOSE ASSY X
8 622391 DRAIN HOSE ASSY X
9 61505122 HOSE CLAMP (NOT USED WITH DRAIN HOSE ASSY 622390/622391) X X
10 632307 NSC SYSTEM PACK-COOLING UNIT (BACKER HEATER) X
11 632314 NSC SYSTEM PACK-COOLING UNIT (BACKER HEATER) X
NS 2M0802 THERMAL SWITCH/BRACKET ASSY (SEE NOTE) X X
NS 618111 BAFFLE DIFFUSER/WIRE ASSY-COOLING UNIT (NOT SHOWN) X X
NS 61695022 CAP-HEAT DEFLECTOR (NOT SHOWN) X X
NOTE: FOR COOLING UNITS WITH A THERMAL SWITCH.
N62/N82 SERIES PARTS LIST - PAGE 7
CONTROLS (REAR VIEW) - MODELS N62/N82 SERIES
NOTE: FOR MODELS MADE WITH A SEPARATE MANUAL SHUT OFF VALVE (SERIAL # 656979 & BELOW).
NO. PART # DESCRIPTION N62 SERIES N82 SERIES
1 618186 BASE-POWER BOARD X X
2 632168001 KIT-POWER BOARD SEE NOTE SEE NOTE
3 618185 COVER-POWER SUPPLY X X
4 621448 WIRE-WHITE/9”/GAS VALVE (2 PER ASSEMBLY) X X
5 61694022 BRACKET-MOUNTING/GAS VALVE X X
6 61594422 PRESSURE TAP X X
61445322 PLUG-1/8”/FOR PRESSURE TAP X X
7 621334 KIT-GAS VALVE/BRACKET/WIRES X X
8 61546822 CONNECTOR-MALE X X
9 61694622 UNION TUBE X X
10 621444 MANUAL SHUT OFF VALVE ASSY X X
11 618252 BURNER TUBE X X
12 621957 KIT-BURNER/ORIFICE ADAPTER ASSY X X
13 61554422 CORD-AC POWER/BLACK X X
14 61712637 COVER ASSY-BURNER BOX X X
15 61695322 BASE-BURNER BOX X X
NOTE: IF THE CONTROL ASSY-OPTICAL HAS BEEN REPLACED WITH A KIT-CONTROL ADAPTOR, THE POWER BOARD MUST BE REPLACED WITH A
NEW KIT-CONTROL ADAPTER.
N62/N82 SERIES PARTS LIST - PAGE 8
CONTROLS (REAR VIEW) - N62/N82 SERIES
NOTE: FOR MODELS PRODUCED WITHOUT A SEPARATE MANUAL SHUT OFF VALVE (SERIAL # 656980 & ABOVE)
NO. PART # DESCRIPTION N62 SERIES N82 SERIES
1
628674 BASE-POWER BOARD (SERIAL RANGE: N621/N821/N822=9126825 & ABOVE, N623/N823=8970881 & ABOVE) X X
618186 BASE-POWER BOARD (SERIAL RANGE: N621/N821/N822=9126824 & BELOW, N623/N823=8970880 & BELOW) X X
628661 POWER BOARD (SERIAL RANGE: N621/N821/N822=9126825 & ABOVE, N623/N823=8970881 & ABOVE) X X
2
632168001 KIT-POWER BOARD (SERIAL RANGE: N621/N821/N822=9126824 & BELOW, N623/N823=8970880 & BELOW) SEE NOTE SEE NOTE
628677 COVER-POWER BOARD (SERIAL RANGE: N621/N821/N822=9126825 & ABOVE, N623/N823=8970881 & ABOVE) X X
3 618185 COVER-POWER BOARD (SERIAL RANGE: N621/N821/N822=9126824 & BELOW, N623/N823=8970880 &
BELOW) X X
4 621448 WIRE-WHITE/9”/GAS VALVE (2 PER ASSEMBLY) X X
5 628993 BRACKET-MOUNTING/GAS VALVE X X
6621334 KIT-GAS VALVE/BRACKET/WIRES (9185698 & BELOW) X X
633726 GAS VALVE-SOLENOID (9185699 & ABOVE) X X
7 624682 BURNER TUBE-N8/N6 X X
8 621957 KIT-BURNER/ORIFICE ADAPTER ASSY X X
9 61554422 CORD-AC POWER/BLACK X X
10 61712637 COVER ASSY-BURNER BOX X X
11 61695322 BASE-BURNER BOX X X
12 61692222 ELECTRODE-SPARK/SENSE/SINGLE ELECTRODE/0.25” X X
NOTE: IF THE CONTROL ASSY-OPTICAL HAS BEEN REPLACED WITH A KIT-CONTROL ADAPTOR, THE POWER BOARD MUST BE REPLACED WITH A NEW
KIT-CONTROL ADAPTER.
N62/N82 SERIES PARTS LIST - PAGE 9
INTERIOR LIGHT/THERMISTER ASSY - N62/N82 SERIES
NO. PART # DESCRIPTION N62 SERIES N82 SERIES
1 61629722 LAMP BRACKET ASSY X X
2 632545 LAMP-DC LIGHT BULB X X
3 621827 COVER-LAMP BRACKET X X
4 633734 CLIP-THERMISTER MOUNTING/FIN X X
5 618548 LAMP THERMISTER WIRE ASSY X X
N62/N82 SERIES PARTS LIST - PAGE 10
FAN MODEL COMPONENTS - MODELS N621F, N821F, N821V, N822F
NOTE: LOWER FAN POSITION - MODELS WITH SERIAL # BELOW 9056492
PART # DESCRIPTION
N621F
N821F
N822F N821V
618857 BRACKET-DC FAN 1 1
619016 BRACKET-FAN SUPPORT 1 1
61417922 CABLE TIE-NYLON 3 3
618856 FAN-EXTERNAL DC 1
623442 FAN-EXTERNAL DC/HIGH VELOCITY 1
618093 THERMOSTAT-DC FAN/THERMO DISC 1 1
618950 WIRE MOUNT-ADHESIVE 2 2
621943 WIRE-60” (FAN MODELS) 1 1
621431 WIRE-AUXILLARY/BLACK/POSITIVE (+) 1 1
621430 WIRE-AUXILLARY/RED/NEGATIVE (-) 1 1
618700 WIRE-BLACK/24”/18 GA 1 1
618701 WIRE-RED/36”/18 GA 1 1
NOTE: LOWER FAN POSITION - MODELS WITH SERIAL # 9056492 TO 10089300
PART # DESCRIPTION
N621F
N821F
N822F N821V
618857 BRACKET-DC FAN 1 1
619016 BRACKET-FAN SUPPORT 1 1
61417922 CABLE TIE-NYLON 3 3
618856 FAN-EXTERNAL DC 1
623442 FAN-EXTERNAL DC/HIGH VELOCITY 1
618093 THERMOSTAT-DC FAN/THERMO DISC 1 1
618950 WIRE MOUNT-ADHESIVE 2 1
621943 WIRE-60” (FAN MODELS) 1 1
628758 WIRE-AUXILLARY/OUTPUT/BLACK 1 1
628759 WIRE-AUXILLARY/OUTPUT/RED 1 1
628999 WIRE-NEGATIVE/AUXILLARY TO Y CONNECTION 1 1
618701 WIRE-RED/36”/18 GA 1 1
NOTE: UPPER FAN POSITION - MODELS WITH SERIAL # ABOVE 10089300
PART # DESCRIPTION
N621F
N821F
N822F N821V
628747 BRACKET-DC FAN 1 1
61417922 CABLE TIE-NYLON 3 3
628685 FAN-EXTERNAL DC 1
623442 FAN-EXTERNAL DC/HIGH VELOCITY 1
618093 THERMOSTAT-DC FAN/THERMO DISC 1 1
618950 WIRE MOUNT-ADHESIVE 2 2
621943 WIRE-60” (FAN MODELS) 1 1
628758 WIRE-AUXILLARY/OUTPUT/BLACK 1 1
628759 WIRE-AUXILLARY/OUTPUT/RED 1 1
629883 WIRE ASSY 1 1
629882 WIRE ASSY 1 1
