PARTS LIST

9162

9163

9182

9182F

9183

PART NO.619701

NORCOLD 03/25/2008

9100 SERIES

9100 SERIES PARTS LIST - PAGE 2

DOOR - UPPER (FREEZER) - 9100 SERIES

NO. PART # DESCRIPTION 916 918

1 618128 PANEL RETAINER-UPPER DOOR X X

2 618511 HINGE-DOORSIDE/TOP RH/BTM LH/BLACK X X

3 618144 HINGE BUSHING-DOOR HINGE/BLACK X X

4 618205 DOOR LINER ASSY-UPPER/GRAY DOOR GASKET X X

620076 DOOR LINER ASSY-UPPER/WHITE DOOR GASKET (USE619627) X X

5 618160 CAP-HINGEPLUG/BLACK XX

6 619569 BOLT-CAP SHOULDER/TORX HEAD X X

7 618235 DOOR HANDLE ASSY-UPPER DOOR/RH SWING/BLACK (USE619574) X X

8 618119 STORAGELATCH-DOOR/BLACK (USE619648) X X

9 618510 HINGE-DOORSIDE/TOP LH/BTM RH/BLACK X X

10 618618 RAIL-UPPERDOOR XX

9100 SERIES PARTS LIST - PAGE 3

DOOR - LOWER (FRESH FOOD) - 9100 SERIES

NO. PART # DESCRIPTION 916 918

1 618132 PANEL RETAINER-LOWERDOOR X

618129 PANEL RETAINER-LOWERDOOR X

2 619569 BOLT-CAP SHOULDER/TORX HEAD X X

3 618511 HINGE-DOORSIDE/TOP RH/BTM LH/BLACK X X

4 618144 HINGEBUSHING-DOOR HINGE/BLACK X X

5 618210 DOOR LINERASSY-LOWER/6 FT/GRAY DOOR GASKET X

620077 DOOR LINERASSY-LOWER/6 FT/WHITE DR GASKET (USE619629) X

618270 DOOR LINERASSY-LOWER/8 FT/GRAY DOOR GASKET (USE630255) X

620081 DOOR LINERASSY-LOWER/8 FT/WHITE DR GASKET (USE619631) X

6 618230 DOOR HANDLEASSY-LOWER DOOR/RH SWING/BLACK (USE 619573) X X

7 618119 STORAGELATCH-DOOR/BLACK (USE619648) X X

8 618160 CAP-HINGEPLUG/BLACK XX

9 618510 HINGE-DOORSIDE/TOP LH/BTM RH/BLACK X X

10 618578 RAIL-LOWER DOOR XX

11 618619 BIN-DOOR SHELF/SMALL/WHITE(2 PER 916 & 3 PER918) 2 3

9100 SERIES PARTS LIST - PAGE 4

CABINET ASSEMBLY - FRONT VIEW - 9100 SERIES

9100 SERIES PARTS LIST - PAGE 5

CABINET ASSEMBLY - FRONT VIEW - 9100 SERIES

NO. PART # DESCRIPTION 916 918

1 618124 TRIM PIECE-CABINET/TOP/WITHOUT BRASS INSERTS X X

619687 TRIM PIECE ASSY-TOP/WITH INSERTS/BLACK (USE622319) X X

2 618170 HOLE PLUG-FOR TOP TRIM PIECE/BLACK X X

3 618171 COVER-HINGEHOLE/WHITE/2 POINT X X

619301 COVER-HINGEHOLE/WHITE/3 POINT X X

4 618988 HINGE-CABINET SIDE/FREEZER/SLOTTED/PAINTED X X

619336 HINGE-CABINET/3 POINT/TOP LH/BTM RH/BLACK X X

5 618988 HINGE-CABINET SIDE/FREEZER/SLOTTED/PAINTED X X

619335 HINGE-CABINET/3 POINT/TOP RH/BTM LH/BLACK X X

6 618133 TRIM PIECE-CABINET/SIDE/6' (USE622295) X

618134 TRIM PIECE-CABINET/SIDE/8' (USE622296) X

7 618620 SHELF-WIRE/FREEZER (USE620250) X X

8 618112 FRONT BOX XX

9 618588 CONTROL ASSY-OPTICAL (USE625386 FOR EG2/625387 FOR EG3) X X

10 618176 LOUVER-DRIP TRAY/WHITE(USE623250) X X

11 618137 DRIP TRAY-INSIDE(USE623250) XX

12 618624 SHELF-WIRE/CUT OUT (USE620272) X X

13 618589 SHELF-WIRE/FULL (USE620273) 23

14 618158 CRISPER COVER-GLASS SHELF XX

15 618571 CRISPER-WHITE/FULL XX

16 618145 HINGEPIN-DOOR XX

17 618144 HINGEBUSHING-DOOR HINGE/BLACK X X

18 618136 TRIM PIECE-CABINET/BOTTOM (USE622323) X X

19 618181 RETAINER-SHELF XX

20 61586722 BRACE-CABINET/BACK XX

21 618184 PLUG-FACADE/BLACK XX

619381 HOLEPLUG-DIVIDER/BLACK XX

22 618167 STRIKEPLATE-BLACK XX

9100 SERIES PARTS LIST - PAGE 6

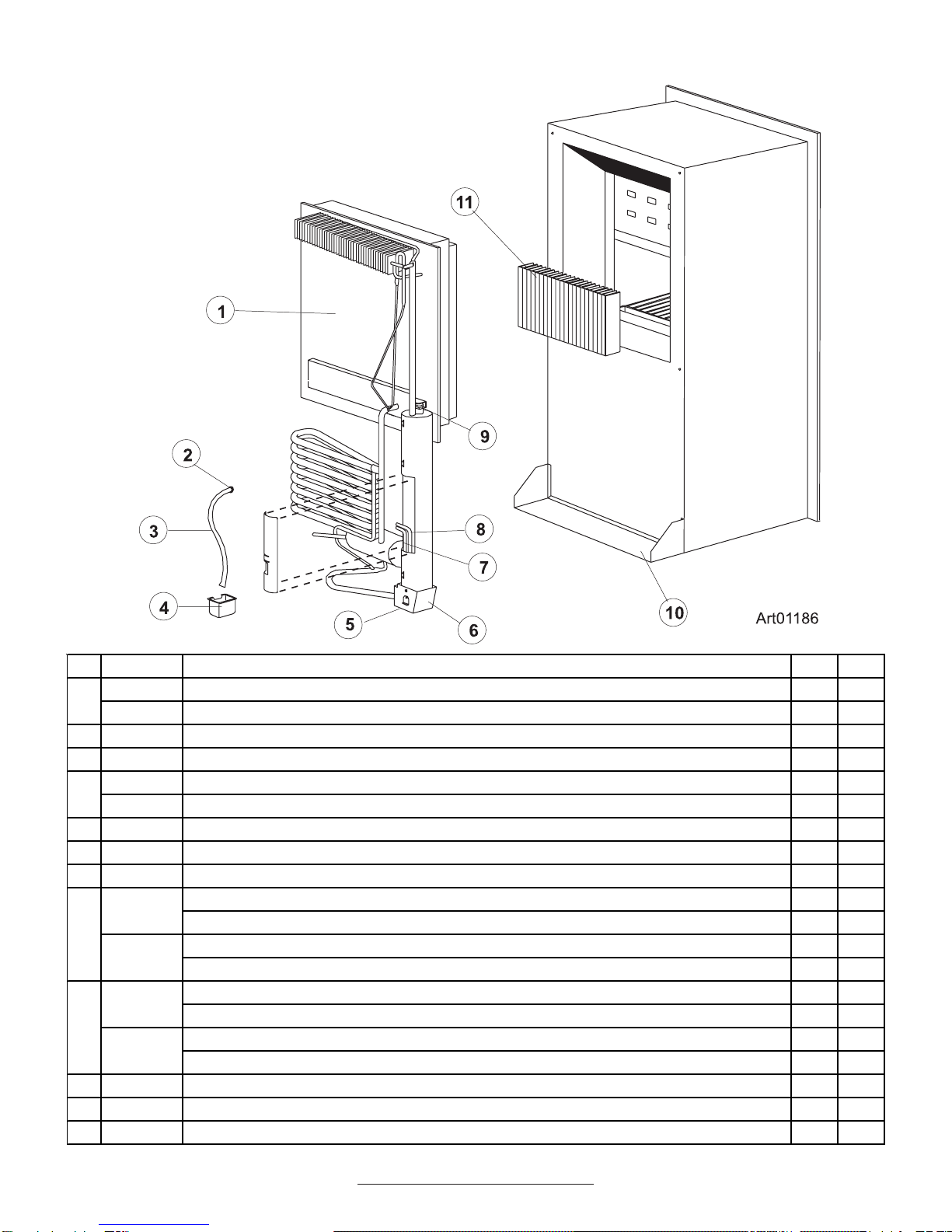

CABINET ASSEMBLY - REAR VIEW - COOLING UNIT AREA - 9100 SERIES

NO. PART # DESCRIPTION 916 918

1 632307 NSC SYSTEM PACK-COOLING UNIT (BACKER HEATER) X

632314 NSC SYSTEM PACK-COOLING UNIT (BACKER HEATER) X

NS 618111 BAFFLE DIFFUSER/WIRE ASSY-COOLING UNIT (NOT SHOWN) X X

2 61505122 HOSECLAMP XX

3 618217 DRAIN HOSE-26" (USE622390) X

618242 DRAIN HOSE-32" (USE622391) X

4 61710922 DRIP CUP-REAR/METAL (USE622546) X X

5 61712637 COVER ASSY-BURNER BOX XX

6 61695322 BASE-BURNER BOX XX

7 621702 HEATER-AC (COOLING UNIT SERIAL# 11231023 & BELOW) X

HEATER-AC (COOLING UNIT SERIAL# 11232007 & BELOW) X

630811 HEATER-AC/BACKER(COOLING UNIT SERIAL# 11231024 & ABOVE) X

HEATER-AC/BACKER(COOLING UNIT SERIAL# 11232008 & ABOVE) X

8 626832 HEATER-DC/ (COOLING UNIT SERIAL# 11231023 & BELOW) EG3

HEATER-DC (COOLING UNIT SERIAL# 11232007 & BELOW) EG3

630812 HEATER-DC/BACKER(COOLING UNIT SERIAL# 11231024 & ABOVE) EG3 EG3

HEATER-DC/BACKER(COOLING UNIT SERIAL# 11232008 & ABOVE) EG3

9 61695022 CAP-HEAT DEFLECTOR XX

10 61586722 BRACE-CABINET/BACK XX

11 61686823 FINS XX

9100 SERIES PARTS LIST - PAGE 7

CONTROLS - REAR VIEW - 9100 SERIES

NO. PART # DESCRIPTION 916 918

1 618186 BASE-POWER BOARD XX

2 618574 POWER BOARD-EG2 (USE625386) EG2 EG2

618575 POWER BOARD-EG3 (USE625387) EG3 EG3

3 618185 COVER-POWERSUPPLY XX

4 618287 WIRE-WHITE/6"/GAS VALVE(USE621448) X X

5 61694022 BRACKET-MOUNTING/GAS VALVE X X

6 61551822 GAS VALVE-ASCO (USE621444) XX

621444 KIT-GAS VALVE/BURNER TUBE ASSY X X

7 61546822 CONNECTOR-MALE(NOT SHOWN) XX

8 61694622 UNION TUBE (NOT SHOWN) XX

9 61694922 MANUAL SHUT OFF VALVE ASSY-KINCO BALON(USE621444) X X

10 61445322 PLUG-1/8"/FOR PRESSURETAP XX

11 61594422 PRESSURETAP XX

12 618252 BURNER TUBE XX

13 618283 ORIFICE-JEWELED/.015" (USE621957) X

618284 ORIFICE-JEWELED/.0155" (USE621957) X

14 61705222 BURNER ASSY-5 SLOT (USE621957) X X

15 61554422 CORD-AC POWER/BLACK XX

16 61712637 COVERASSY-BURNERBOX XX

17 61695322 BASE-BURNER BOX XX

18 61692222 ELECTRODE-SPARK/SENSE/SINGLEELECTRODE/0.25" X X

19 618516 DAUGHTER BOARD-EG3 (NOT SHOWN) (USE625387) EG3 EG3

NS 618606 WIRE-EG3/12 VOLT (NOT SHOWN) EG3 EG3

NS 618602 WIRE-EG3/GROUND (NOT SHOWN) EG3 EG3

NS 618605 WIRE-EG3/SENSE(NOT SHOWN) EG3 EG3

9100 SERIES PARTS LIST - PAGE 8

INTERIOR LIGHT & THERMISTER ASSEMBLY - 9100 SERIES

NO. PART # DESCRIPTION 916 918

1 61629722 LAMP BRACKET ASSY XX

2 61628922 LAMP-GE#214-2/DC LIGHT BULB XX

3 61627922 COVER-LAMP (USE621827) XX

4 61689122 CLIP-THERMISTER MOUNTING/FIN XX

5 618548 LAMP THERMISTER WIREASSY XX

9100 SERIES PARTS LIST - PAGE 9

FAN MODEL PARTS - 9182F

PART # DESCRIPTION 9182F

618857 BRACKET-DC FAN F

619016 BRACKET-FAN SUPPORT F

61417922 CABLETIE-NYLON F

618856 FAN-EXTERNAL DC F

618093 THERMOSTAT-DC FAN/THERMO DISC F

618950 WIREMOUNT-ADHESIVE F

618700 WIRE-BLACK/24"/18 GA F

619017 WIRE-BLACK/6"/18 GA F

618701 WIRE-RED/36"/18 GA F

618978 WIRE-RED/6"/18 GA/12V FAN F

618699 WIRE-RED/60"/18 GA/WITH FUSEHOLDER F
