75 W SOLAR PANEL
Instruction Manual
model no. 011-2033-4
Toll-free: 1-866-827-4985
IMPORTANT: Please read this manual carefully
before using this solar panel and save it for reference.
2
model no. 011-2033-4 | contact us: 1-866-827-4985
Table of ContentsFeatures
1. Charges 12 V batteries Designed for any rechargeable 12 V battery such as
those found in large vehicles, boats, RVs, cottages and
exterior lighting.
2. High-eciency crystalline
solar cells
Produces up to 75 W / 4.3 A of power under ideal
conditions.
3. Rugged aluminium frame Ideal for extended use.
4. Highly durable Shatterproof tempered glass.
5. Fully weatherproof Built for a variety of outdoor applications.
6. Discharge protected Built-in diode prevents battery discharge at night.
7. Easy installation Includes pre-drilled mounting holes to assist with
installation.
Features 2
Safety 3
Specifications 4
Know Your Solar Panel 4
Installation 5
Troubleshooting 6
Choosing Your Battery 7
Warranty 7
3
model no. 011-2033-4 | contact us: 1-866-827-4985
Safety
READ AND SAVE THESE INSTRUCTIONS!
WARNING:
Solar panels produce electricity. Be aware at all times of the risk of electrical
shock. Do not make any cuts or changes to the included wiring as this may
increase the risk of electrical short-circuits or electric shocks.
!
1. Avoid electrical hazards when installing, wiring, operating, and maintaining this
solar panel. This solar panel generates DC electricity when exposed to sunlight or
other light sources.
2. For use in 12 V systems only.
3. Observe proper polarity throughout entire power cable wiring route.
4. Work Safely. Do not wear jewellery when working with electrical or mechanical
equipment. Use protective eyewear when working with batteries or drills. Use
extreme caution when on ladders or on a roof.
5. Follow all safety precautions of the battery manufacturer (battery not included).
Some batteries can release flammable hydrogen gas. Do not produce sparks when
working in locations where flammable gases or vapours exist. Shield skin and eyes
from battery acid. Wash thoroughly with water if skin or clothing come in contact
with acid or any corrosive matter which may have accumulated on the battery.
Keep the terminals and casing clean.
6. Use of a charge controller (not included) is always recommended.
7. Do not attempt to charge non-rechargeable or frozen batteries.
4
model no. 011-2033-4 | contact us: 1-866-827-4985
1. Crystalline solar cells
2. Aluminium frame
3. 6’ (1.8 m) wire
4. Pre-drilled mounting holes
KNOW YOUR SOLAR PANEL
Before use of this product, familiarize yourself with all
operating features and safety rules.
1
SpecificationsKnow Your Solar Panel
Model 011-2033-4
Maximum Power (Pmax) 75 W
Rated Voltage (Vmp) 17.1 V
Rated Current (Imp) 4.3 A
Open Circuit Voltage (Voc) 21.5 V
Short Circuit Current (Isc) 4.8 A
1000 V
Maximum System Voltage 1000 V
Weight 11 lb 11 oz (5.3 kg)
Dimension (L x W x H) 29 3/4 x 26 x 1” (75.5 x 66 x 2.5 cm)
3
2
4
5
model no. 011-2033-4 | contact us: 1-866-827-4985

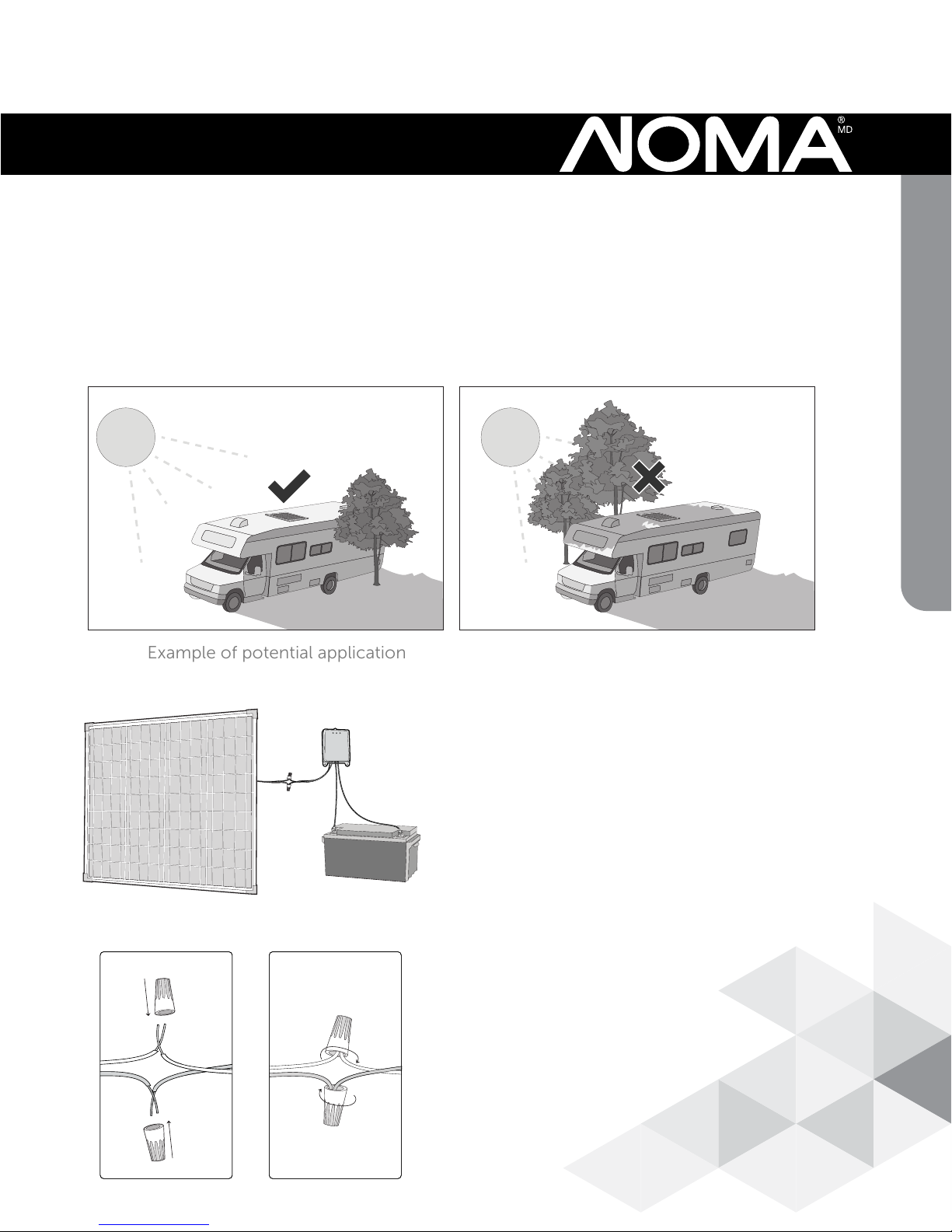

Installation
1
2
CHARGE
CONTROLLER
12V
not included
not included
The 75 W solar panel will require a solar charge
controller (not included) in order to charge a
12 V battery.
Always follow the instructions included with
the charge controller to ensure a safe battery
charging process.
Connect the red (positive) wire from the solar
panel to the positive terminal on the solar
charge controller. Make the same connection
on the black (negative) wire.
To connect these wires it is advisable to use a
wire nut connector (not included).
Ensure your solar panel is placed so that its exposure to sun is optimized.
Be aware of objects such as trees or property overhangs that may impede
the panel’s ability to generate a charge.
The frame of your solar panel has pre-drilled screw holes (see page 4) for easy
mounting onto any surface.
Installing Your Solar Panel
Connecting to Charge Controller
Example of potential application
6
model no. 011-2033-4 | contact us: 1-866-827-4985
Questions Answers
What can be done if the wires are too short? Contact the manufacturer for a list of
additional parts to purchase.
How do I know if the panel is producing
voltage?
Use a multimeter (not included) to
accurately read the panel’s voltage. Under
full sun the multimeter should read
18-22 V DC.
Does the solar panel drain the battery at
night?
The solar panel has integrated blocking
diodes to prevent any reverse charge at
night.
Can my panel be left outdoors without a
protective covering?
Yes, the solar panel has been
weatherproofed and can be mounted
outdoors without any additional
protection.
Can the solar panel overcharge my battery? Yes, but only if used without a charge
controller. Always use in conjunction
with an appropriately-sized solar charge
controller.
Can I run my 110 V appliances with my solar
power system?
Yes, you can run 110 V appliances with the
use of an inverter (not included) which
would attach to your battery to change the
battery’s 12 V (DC) energy into
110 V (AC).
What kind of battery can I recharge? See “Choosing Your Battery” on page 7.
Troubleshooting
CLEANING AND MAINTENANCE
Cleaning of the solar panel may be performed with a clean, damp cloth. Any other
maintenance to the unit should be performed by a qualified service professional or
contact our experienced customer service team for further instruction.
7
model no. 011-2033-4 | contact us: 1-866-827-4985
Choosing your battery involves some careful consideration. You can consult with a
local battery supplier or follow these simple guidelines.
• Choose only rechargeable 12 V batteries.
• SLA (Sealed Lead Acid), GEL, and AGM are all ideal choices. We do not advise
using lithium-ion batteries with this solar panel.
• ‘Deep Cycle’ or Marine batteries are optimum for solar-charging systems. They
allow discharge and recharge characteristics beyond a standard vehicle battery.
• Batteries are rated in amp-hours — this denes a battery’s ability to hold and release
its charge. The higher the amp-hour rating, the more power available.
Choosing Your Battery:
Choosing Your BatteryWarranty
This solar panel is covered by a twenty–five (25) year limited warranty of 80% of
power output, and must be tested under optimal conditions.
This Noma®product carries a five (5) year repair warranty against defects in
workmanship and materials. At its discretion, Noma Canada agrees to have any
defective part(s) repaired or replaced free of charge within the stated warranty
period, when returned with proof of purchase. This product is not guaranteed
against wear or breakage due to misuse and/or abuse.
8
model no. 011-2033-4 | contact us: 1-866-827-4985
Made in China
Imported by
Noma Canada
Toronto, Canada M4S 2B8
model no. 011-2033-4 | contact us: 1-866-827-4985
PANNEAU SOLAIRE DE 75 W
Guide d’utilisation
Numéro sans frais : 1 866 827-4985
IMPORTANT: Veuillez lire attentivement ce guide
d’utilisation avant d’utiliser ce panneau solaire et
conservez-le aux fins de consultation ultérieure.
N° de modèle : 011-2033-4
2
N° de modèle : 011-2033-4 | Communiquez avec nous au 1 866 827-4985
Table des matièresCaractéristiques
1. Charge des batteries de 12 V Conçu pour des batteries rechargeables de 12 V
telles que celles utilisées dans les grosses voitures, les
bateaux, les VR, les chalets et les luminaires d’extérieur.
2. Cellules solaires cristallines
à haut rendement
Elles génèrent jusqu'à 75 W/4,3 A dans des conditions
idéales.
3. Cadre en aluminium robuste Idéal pour une utilisation prolongée.
4. Très résistant Verre trempé incassable.
5. Entièrement résistant aux
intempéries
Construit pour diverses applications à l'extérieur.
6. Protection contre la
décharge
Diode intégrée empêchant la décharge de la batterie
la nuit.
7. Installation simple Comporte des trous de montage pré-percés pour
faciliter l’installation.
Caractéristiques 2
Sécurité 3
Fiche technique 4
Familiarisez-vous avec votre panneau solaire 4
Installation 5
Dépannage 6
Choisir votre batterie 7
Garantie 7
