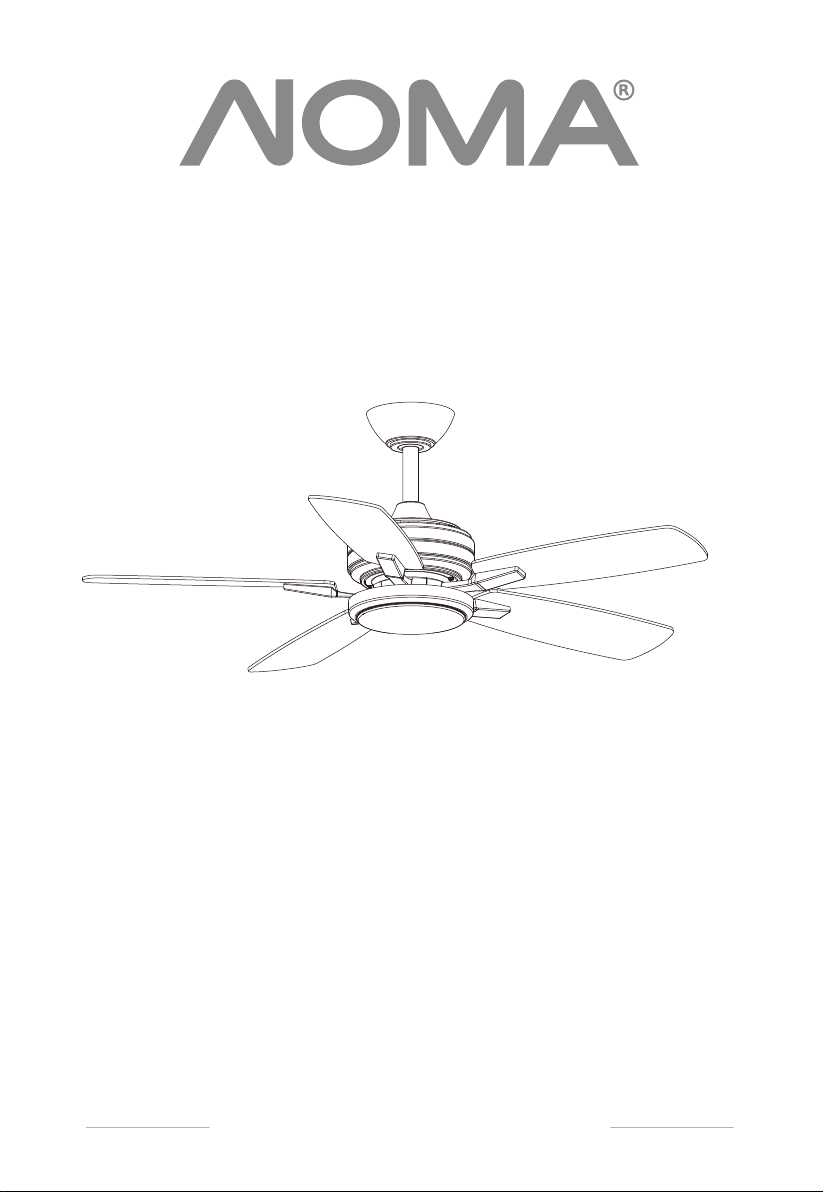

ASHTON 44” LED CEILING FAN
PRODUCT NO. 052-9603-8
USER MANUAL
READ AND SAVE THESEINSTRUCTIONS
TABLE OF CONTENTS
3
01. SAFETY/CAUTIONS
02. TOOLS REQUIRED
03. EXPLODED VIEW
04. ELECTRICAL SAFETY
05. ASSEMBLY
06. OPERATION
07. TROUBLESHOOTING
08. DYNAMIC BLADE BALANCING KIT
09. MAINTENANCE
10. WARRANTY & DISPOSAL
4
6
7
11
13
19
21
23
25
26
11. IC STATEMENT 27
4
SAFETY / CAUTIONS
SAFETY CONCERNS
•
•
•
•
•
•
•
•
•
•
TO REDUCE THE RISK OF ELECTRIC SHOCK, ENSURE ELECTRICITY HAS
BEEN TURNED OFF AT THE CIRCUIT BREAKER OR FUSE BOX BEFORE
BEGINNING.
ALL WIRING MUST BE IN ACCORDANCE WITH NATIONAL AND LOCAL
ELECTRICAL CODES. ELECTRICAL INSTALLATION SHOULD BE PERFORMED
BY A QUALIFIED LICENSED ELECTRICIAN.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO
NOT USE THIS FAN WITH ANY SOLID-STATE FAN-SPEED CONTROL
DEVICE. IT WILL PERMANENTLY DAMAGE THE ELECTRONIC CIRCUITRY.
CAUTION: TO REDUCE THE RISK OF PERSONAL INJURY, USE ONLY THE
SCREWS PROVIDED WITH THE OUTLET BOX.
THE OUTLET BOX AND SUPPORT STRUCTURE MUST BE SECURELY
MOUNTED AND CAPABLE OF RELIABLY SUPPORTING A MINIMUM OF
35 LB (15.9 KG). USE ONLY UL-LISTED OUTLET BOXES MARKED “FOR FAN
SUPPORT.”
THE FAN MUST BE MOUNTED WITH A MINIMUM OF 6’11’’(2.1M) FROM
THE TRAILING EDGE OF THE BLADES TO THE FLOOR.
AVOID PLACING OBJECTS IN THE PATH OF THE BLADES.
TO AVOID PERSONAL INJURY OR DAMAGE TO THE FAN AND OTHER
ITEMS, BE CAUTIOUS WHEN WORKING AROUND OR CLEANING THE
FAN.
DO NOT USE WATER OR DETERGENTS WHEN CLEANING THE FAN
OR FAN BLADES. A DRY DUST CLOTH WILL BE SUITABLE FOR MOST
CLEANING.
AFTER MAKING ELECTRICAL CONNECTIONS, SPLICED CONDUCTORS
SHOULD BE TURNED UPWARD AND PUSHED CAREFULLY UP INTO
THE OUTLET BOX. THE WIRES SHOULD BE SPREAD APART WITH THE
GROUNDED CONDUCTOR AND THE EQUIPMENT-GROUNDING
CONDUCTOR ON ONE SIDE OF THE OUTLET BOX AND THE
UNGROUNDED CONDUCTOR ON THE OTHER SIDE OF THE OUTLET BOX.
ALL SET SCREWS MUST BE CHECKED AND RE-TIGHTENED WHERE
NECESSARY BEFORE INSTALLATION.
5
01
•
•
•
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
AND PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED
“ACCEPTABLE FOR FAN SUPPORT” WITH THE SCREWS PROVIDED WITH
THE OUTLET BOX.
WARNING: TO AVOID RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS FLANGES) OR THE BRACKETS
WHILE BALANCING THE BLADES OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
AND PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED
“ACCEPTABLE FOR FAN SUPPORT” OF 35 LB (15.9 KG) OR LESS”
AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX.
MOST OUTLET BOXES COMMONLY USED FOR THE SUPPORT OF
LIGHT FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND MAY
NEED TO BE REPLACED. DUE TO THE COMPLEXITY OF THIS FAN, A
QUALIFIED LICENSED ELECTRICIAN IS STRONGLY RECOMMENDED FOR
INSTALLATION.
6
01 02
TOOLS REQUIRED
INSTALLATION PREPARATION
Flat-head
screwdriver
Cross-head
screwdriver
Safety glasses Pliers
Wire cutters Electrical tape Stepladder Wire strippers
6' 11"
(2.1 m)
30”
(76 cm )
To prevent personal injury and
damage, ensure that the hanging
location allows the blades a
clearance of 6' 11" (2.1 m) from the
floor and 30" (76 cm) from any wall or
obstruction.
This fan can be mounted with a
downrod on a regular (no-slope) or
vaulted ceiling, such as flush mount.
Blade Edge
Flush Mount
Installation
Downrod
Installation
Vaulted
ceiling angle
is not to
exceed 18°
7
03
EXPLODED VIEW
PACKAGE CONTENTS
07
10 11 12
15 16
03
09
14
05 06 08
Installation
Instruction
X 3
X 2
X 3
X 3
X 2
X 16X 3
X 1
X 16
X 5
8
03 EXPLODED VIEW
PACKAGE CONTENTS
01.
02.
03.
04.
05.
06.
07.
08.
HANGER BRACKET
CANOPY
CANOPY COVER
DOWNROD STAND COVER
DOWNROD, HANGER PIN
& LOCK PIN
FAN MOTOR ASSEMBLY
FAN BLADES (5 PCS)
BLADE BRACKETS (5 PCS)
09. LIGHT PLATE
11. REMOTE CONTROL
12. REMOTE CONTROL HOLDER
14. BLADE BALANCING KIT
15. INSTALLATION INSTRUCTIONS
10. 18 W LED ASSEMBLY
13. 12 V BATTERY
16. PARTS PACK CONTAINING:
3 x Wood Screws
2 x Machine Screws
3 x Flat Washers
3 x Spring Washers
2 x Star Washers
3 x Wire Nuts
1 x Blade Bracket Screw
16 x Blade Screws
16 x Fiber Washers
5 x Screw Retainers
9
03
EXPLODED VIEW
DETAIL
01.
02.
03.
04.
05.
06.
07.
08.
09.
10.
HANGER PIN
CANOPY
HANGER BALL
HANGER BRACKET
LIGHT PLATE
COLLAR
BLADE BRACKET
FAN BLADE
LOCK PIN
FAN MOTOR ASSEMBLY
11.
12.
13.
DOWNROD STAND COVER
DOWNROD
CANOPY COVER 18 W LED ASSEMBLY14.
10
03
13
11
01
09
10
02
03
04
07
05
06
08
12
14
