Service Manual for L1 and L2

Nokia XL Dual SIM

RM-1030, RM-1042

Key features



Fastlane to Android™ apps



Dual SIM support



5.0" Display



1 GHz Dual-core CPU



5 MP Camera

Version 1.0

CHECK THE REPAIR

POLICY BEFORE

PERFORMING ANY

MECHANICAL REPAIR ON

SERVICE LEVEL 1&2!

Exploded view Disassembly steps

Assembly hints Solder components Service devices

Product controls and interfaces Service concept Phone reset

More More

More More More

Service Manual Level 1 an

Nokia XL Dual SI

RM-1030, RM-1042

ersion 1.

Version histor

Version Date Description

1.0 29.04.2014 First published version

Service Manual Level 1 and 2

Nokia XL Dual SIM

RM-1030, RM-1042

Version 1.0

Exploded view

SIDE KEY FLEX

I0006

LIGHT SWAP PWB

I0007

FRONT CAMERA GASKET

I0013

A-COVER

I0003

EARPIECE

I0004

FRONT CAMERA

I0019

TOP FLEX

I0020

FLASH LENS ADHESIVE

I0015

VIBRA ADHESIVE

I0016

SENSOR SUPPORT GASKET

I0014

CAMERA

I0018

CAMERA RUBBER

I0017

DISPLAY

I0002

IHF FLEX

I0005

PMU SHIELDING LID

I0008

IHF SPEAKER

I0012

TYPE LABEL

I0009

B-COVER

I0023

SPEAKER GASKET

I0011

D-COVER

I0010

TOUCH PANEL

I0001

SCREW TORX+ SIZE 4

M1.4 X 3.55

I0022

SCREW TORX+ SIZE 4

M1.6 x 4.55

I0021

LIGHT SWAP PACKAGE

(I0007 - I0009)

D-COVER ASSEMBLY

(I0010 - I0016)

A-COVER ASSEMBLY

(I0001 - I0005)

Only available

as assembly

Not reuseable

after removal

Repair/swap

only in level 3

Service Manual Level 1 an

Nokia XL Dual SI

RM-1030, RM-1042

ersion 1.0

Disassembly steps

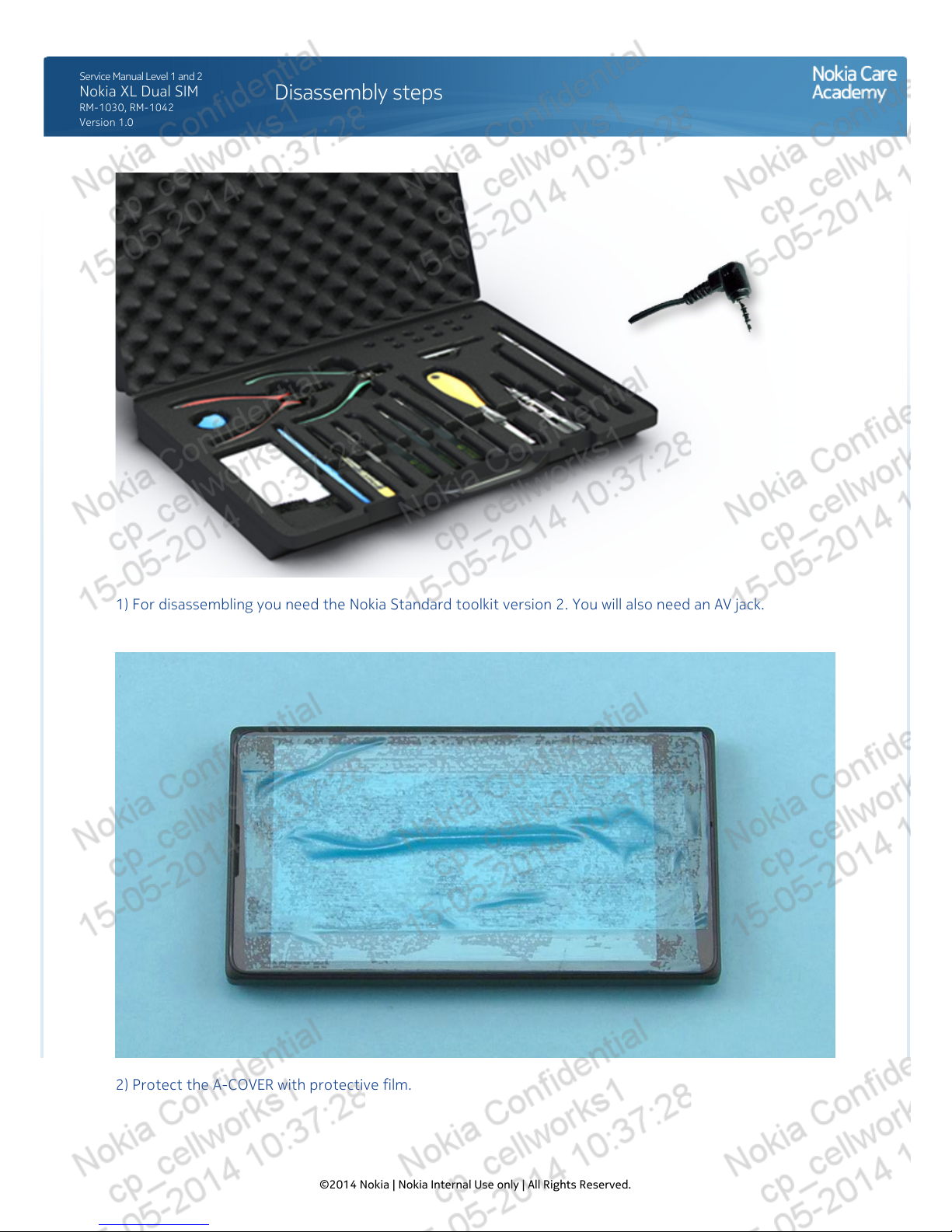

1) For disassembling you need the Nokia Standard toolkit version 2. You will also need an AV jack.

2) Protect the A-COVER with protective film.

3) Release the B-COVER by pushing down the bottom corners as shown.

4) Remove the B-COVER.

5) Unscrew the four Torx+ size 4 screws in the order shown. Do not use them again. Discard them.

6) Unscrew the eight Torx+ size 4 screws in the order shown. Do not use them again. Discard them.

7) Start releasing the D-COVER by first releasing the two shown clips on the left side of the device with the

SRT-6. Start from the top.

8) Then slide the SRT-6 along the bottom end and release the two shown clips.

9) Then open the two shown clips on the right side.

10) Then slide the SRT-6 along the top end and release the three shown clips.

11) Fold open the D-COVER as shown. Be careful not to damage the flexes.

12) Open the SIDE KEY FLEX connector with the SS-93. Be careful not to damage the connector or any

components nearby.
