Nokia Customer Care

ISSUE 1 11/04 Copyright © 2004 Nokia. All Rights Reserved.

5 - Disassembly Instructions

5-DisassemblyandReassembly

Instructions

RM-14

Nokia Customer Care Disassembly and Reassembly Instructions

2 COMPANY CONFIDENTIAL ISSUE 1 11/04

Copyright © 2004 Nokia. All Rights Reserved.

[This page left intentionally blank]

ISSUE 1 11/04 COMPANY CONFIDENTIAL 3

Copyright © 2004 Nokia. All Rights Reserved.

RM-14

Disassembly and Reassembly Instructions Nokia Customer Care

Table of Contents

Page No

Disassembly Instructions................................................................................... 5

Display Exchange Instructions........................................................................ 11

Reassembly Instructions.................................................................................. 13

RM-14

Nokia Customer Care Disassembly and Reassembly Instructions

4 COMPANY CONFIDENTIAL ISSUE 1 11/04

Copyright © 2004 Nokia. All Rights Reserved.

[This page left intentionally blank]

ISSUE 1 11/04 COMPANY CONFIDENTIAL 5

Copyright © 2004 Nokia. All Rights Reserved.

RM-14

Disassembly and Reassembly Instructions Nokia Customer Care

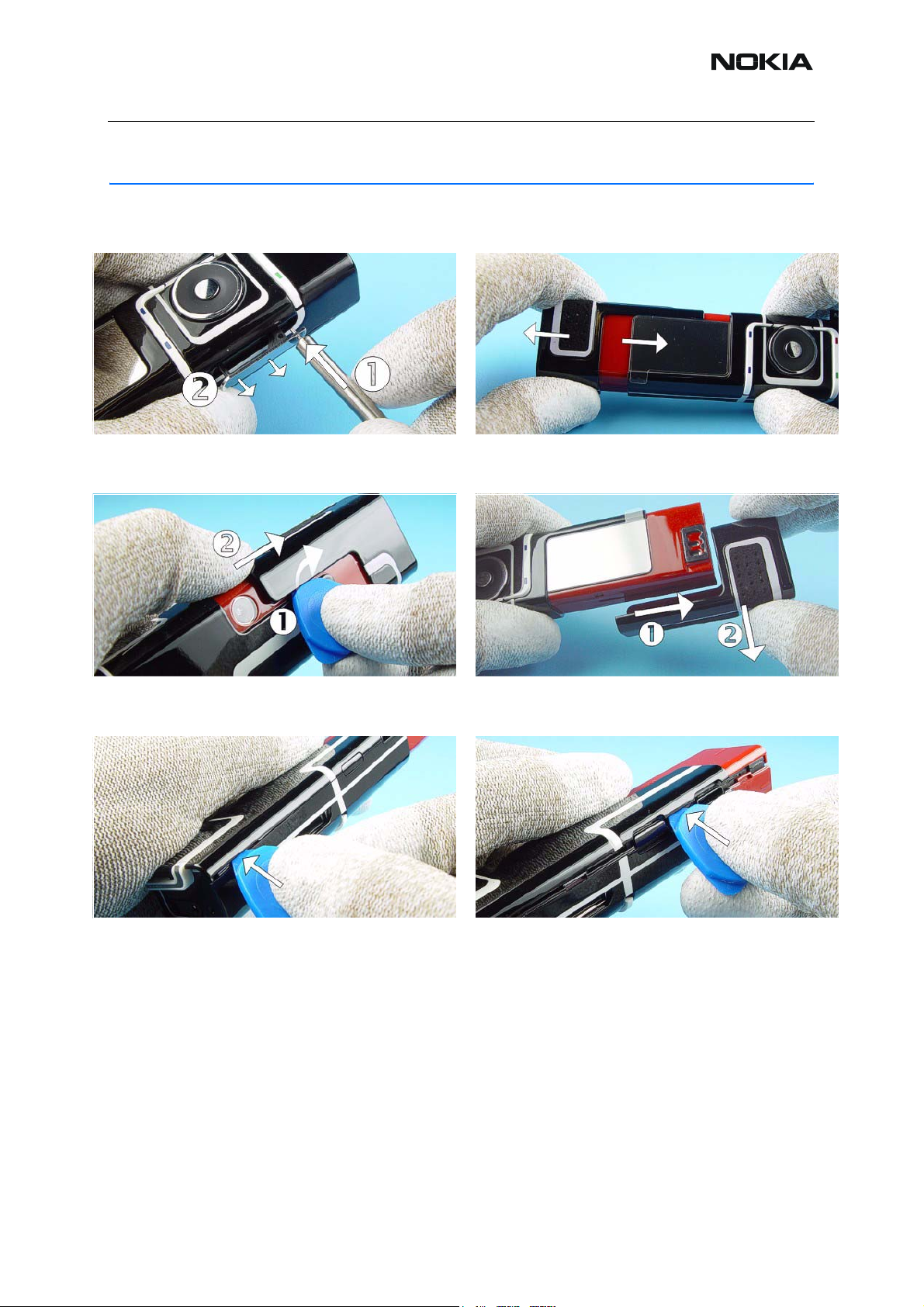

Disassembly Instructions

1.) Use the SIM tray release tool to open the SIM

Holder. 2.) Open the Slide Cover.

3.) Use the SRT-6 as a lever to remove the Slide

Cover. 4.) First shift the Slide Cover as far as it will go and

then remove it from its guide.

5.) Place SRT-6 between the A-Cover and B-Cover

and shift it along the edge. Use always a new A-

Cover and a new B-Cover when reassembling.

6.) Open the other snaps.

RM-14

Nokia Customer Care Disassembly and Reassembly Instructions

6 COMPANY CONFIDENTIAL ISSUE 1 11/04

Copyright © 2004 Nokia. All Rights Reserved.

7.) Separate the both covers from each other. 8.) The Keymat drops out when turning the A-Cover.

9.) Lift the modules from the B-Cover by using SRT-

6.10.) Protect the LCD Cell with a film.

11.) Use a slotted screwdriver to lift the Battery

Lock. 12.) Do the same on the other side.

13.) Remove the Locking Ring.14.) Remove the Battery.

ISSUE 1 11/04 COMPANY CONFIDENTIAL 7

Copyright © 2004 Nokia. All Rights Reserved.

RM-14

Disassembly and Reassembly Instructions Nokia Customer Care

15.) Unlock the UI Module by turning it a bit. 16.) Now, lift the UI-Module as shown in the picture.

Take care not to damage the Rotator Flex.

17.) Be carefully when removing the Rotator Flex.

Note the right position of the contacts when assem-

bling.

18.) Use a slotted screwdriver to open the C-Cover

clips.

19.) The same procedure on the other side. 20.) Move the C-Cover Assy a bit to the left as

shown in the picture.

21.) Turn over the C-Cover Assy carefully. Do not

damage the Flex Assy.22.) Open the Display Connector carefully by using

the SRT-6.

RM-14

Nokia Customer Care Disassembly and Reassembly Instructions

8 COMPANY CONFIDENTIAL ISSUE 1 11/04

Copyright © 2004 Nokia. All Rights Reserved.

23.) Release the Engine Module by bending slightly

both plastic battery guides of the D-Cover. 24.) Remove the Engine Module from the D-Cover.

For assembly only!

Put the Engine Module on the Pogo pins of the D-

Cover.

For assembly only!

Place the Engine Module in the clamps of the D-

Cover by pressing it slightly.

25.) Put the Engine Module in to the soldering jig. 26.) Use the SRT-10 to release the VGA Camera.

ISSUE 1 11/04 COMPANY CONFIDENTIAL 9

Copyright © 2004 Nokia. All Rights Reserved.

RM-14

Disassembly and Reassembly Instructions Nokia Customer Care

27.) Remove the VGA Camera by using the

corrugated tweezers. 28.) Release the snap of Earpiece Connector by

using the slotted screwdriver.

29.) Remove the Earpiece Connector

.

RM-14

Nokia Customer Care Disassembly and Reassembly Instructions

10 COMPANY CONFIDENTIAL ISSUE 1 11/04

Copyright © 2004 Nokia. All Rights Reserved.

For assembly only!

Place the Earpiece Connector in its guidance.

For assembly only!

Lock the snap of the Earpiece Connector by using a

slotted screwdriver. Take care of the Flex Assy.

30.) Remove the Earpiece.
