Nokia NSM-9DX Instrucciones de instalación

CCS Technical Documentation

NSM-9DX Series Transceivers

Issue 1 10/02 ¤Nokia Corporation

Disassembly Instructions

NSM-9DX

Disassembly Instructions CCS Technical Documentation

Page 2 ¤Nokia Corporation Issue 1 10/02

Table of Contents Page No

Disassembling the NSM-9NX Transceiver.................................................................... 3

CCS Technical Documentation Disassembly Instructions

NSM-9DX

Issue 1 10/02 ¤Nokia Corporation Page 3

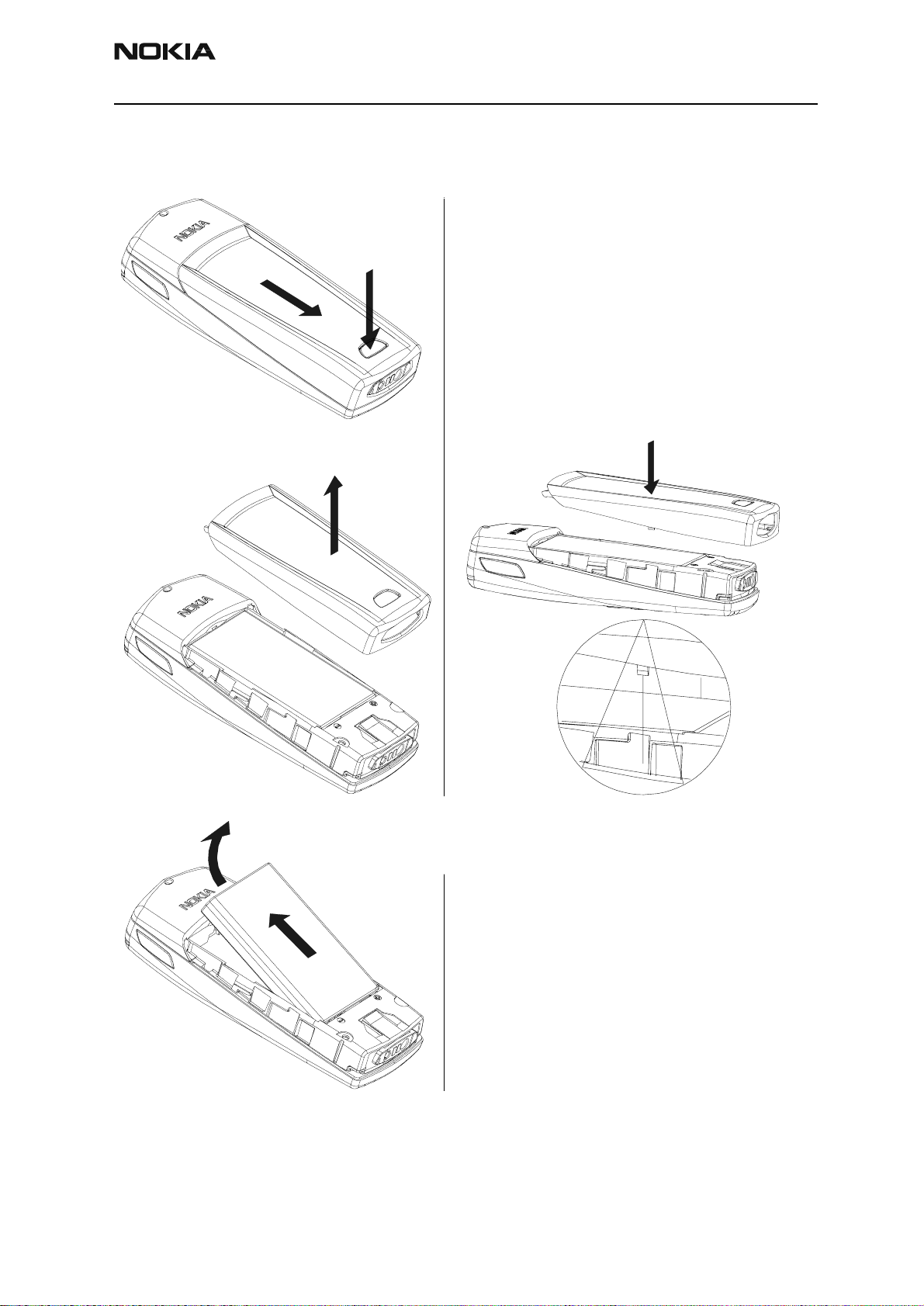

Disassembling the NSM-9NX Transceiver

Remove Battery cover.

Remove Battery.

In assembly note!

NSM-9DX

Disassembly Instructions CCS Technical Documentation

Page 4 ¤Nokia Corporation Issue 1 10/02

Remove A-cover.

Remove Keypad

(only if it is necessary to re

place keypad).

In assembly place A-cove

pins (4 pieces) in respecti

holes in the keypad.

CCS Technical Documentation Disassembly Instructions

NSM-9DX

Issue 1 10/02 ¤Nokia Corporation Page 5

Remove the 6 screws.

Drive size is torx plus 6.

Tightening torque is 17 Ncm.

Fastening order in the picture

in disassembly.

In assembly check that PWB is not

bent.

Note! Screws contain thread lock

ing compound. Used screws must

be scrapped and not used again.

Remove UI module.

1. Use plastic tweezers or similar

tool to gently press the UI module

locking snap.

Note locking snaps when assem

bling UI.

2. Carefully lift up the UI module.

2UI handling precautions!

Do not damage the following

items when handling the UI

module:

1. Speaker spring contacts.

2. LCD driver.

3. LCD contact pads.

4. UI PWB contact pads.

5. UI frame metal coating.

Note! Screws may be used a maximum of

four times before having to be scrapped

and not used again.

, and 1100rpm.

NSM-9DX

Disassembly Instructions CCS Technical Documentation

Page 6 ¤Nokia Corporation Issue 1 10/02

Remove speaker

(only if it is necessary to re

speaker).

Speaker can be lifted up u

straight-bladed screwdrive

shown in the picture.

Note! Do not touch speake

springs or membrane.

UI handling precautions!

1. Speaker spring contacts

2. LCD driver.

3. LCD contact pads.

4. UI PWB contact pads.

5. UI frame metal coating.

CCS Technical Documentation Disassembly Instructions

NSM-9DX

Issue 1 10/02 ¤Nokia Corporation Page 7

Remove System connector

Note! Do not damage the spring

contacts in the System connector.

Remove System Module

System Module handling pre

cautions!

Do not touch the following

spring contacts when handling

the module:

1. LCD connector.

2. Board to board connector.

1. 2.

NSM-9DX

Disassembly Instructions CCS Technical Documentation

Page 8 ¤Nokia Corporation Issue 1 10/02

Remove SIM cover

(only if it is necessary to replace SIM

cover).

3. Turn the SIM cover to upright

position.

4. Squeeze the SIM cover slightly

from the side to release the side

fixings one at the time.

1. Slightly lift the front edge of the

SIM cover to unlocked position

2. and slide it backwards.

55. Pull SIM cover out of B cover.

CCS Technical Documentation Disassembly Instructions

NSM-9DX

Issue 1 10/02 ¤Nokia Corporation Page 9

NSM-9DX No power and A-cover fit

If a “No power” problem is found, please check the A-cover fit. Below are pictures of

good fit and bad fit. The engine needs to be fully fitted into the A-cover and the phone

will power up. The covers are changeable. The A-cover power button does not match up

with the engine power switch when the fit is not correct.

Figure 1: Good fit

Figure 2: Bad fit

NSM-9DX

Disassembly Instructions CCS Technical Documentation

Page 10 ¤Nokia Corporation Issue 1 10/02

[ This page intentionally left blank. ]
