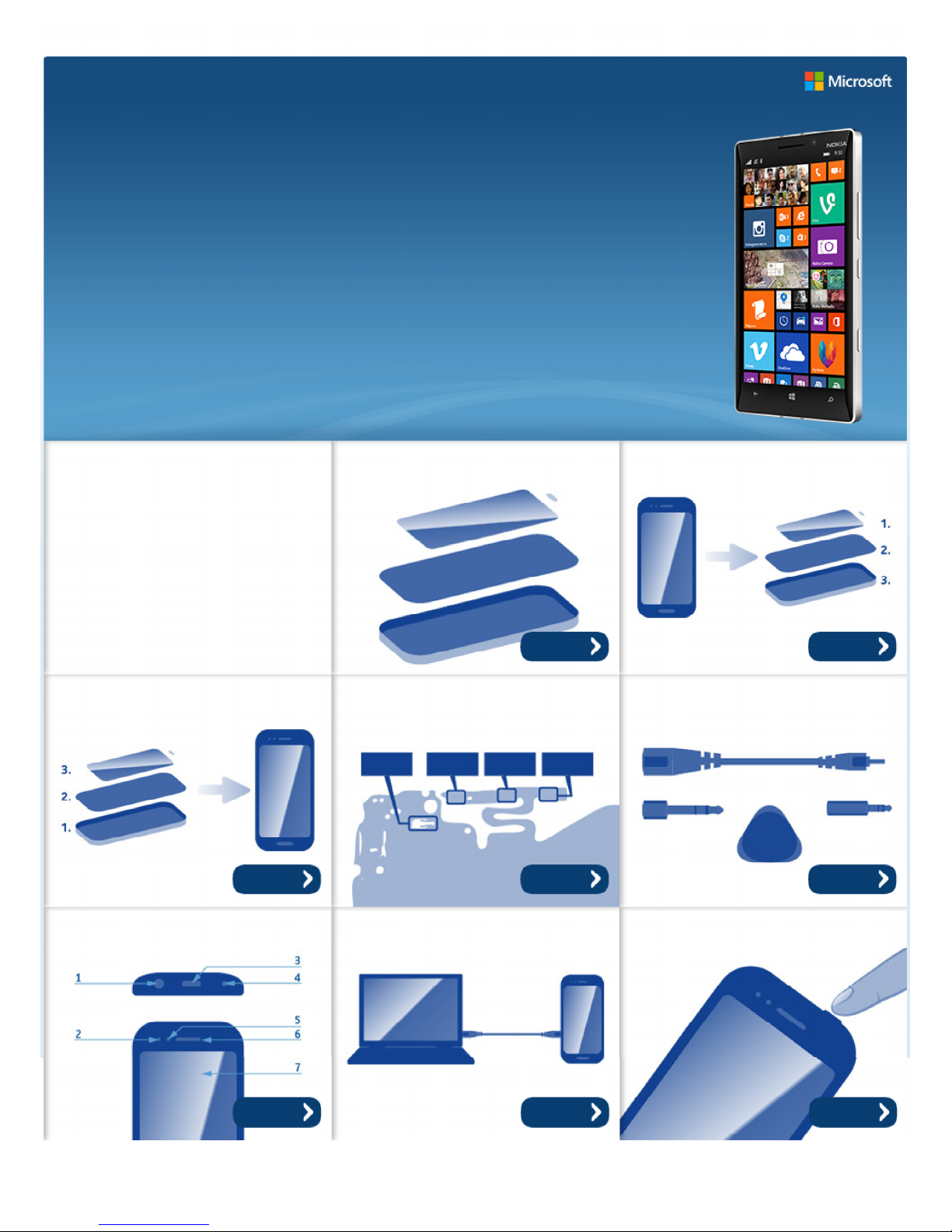

Service Manual for L1 and L2

Nokia Lumia 930

RM-1045

Key features



2.2 GHz Quad core processor



5" Full-HD OLED Display



32 GB Internal memory



20 MP Nokia PureView camera



Integrated wireless charging

Version 1.0

CHECK THE REPAIR

POLICY BEFORE

PERFORMING ANY

MECHANICAL REPAIR ON

SERVICE LEVEL 1&2!

Exploded view Disassembly steps

Assembly hints Solder components Service devices

Product controls and interfaces Service concept Phone reset

More More

More More More

Service Manual Level 1 an

Nokia Lumia 930

RM-1045

ersion 1.

Version histor

Version Date Description

1.0 29.05.2014 First published version

Service Manual Level 1 and 2

Nokia Lumia 930

RM-1045

Version 1.0

Exploded view

CHASSIS

I0004

HSJ ASSEMBLY

I0036

HSJ GASKET

I0037

JUMPER FLEX

I0026

MAIN ANTENNA LTE

COAX FLEX

I0005

VIBRA ASSEMBLY

I0019

DAUGHTER PWB GASKET

I0016

VIBRA BOOT

I0021

SIM TRAY

I0001

SKYPE CAMERA ASSEMBLY

I0017

EARPIECE

I0022

EARPIECE GASKET

I0015

JUMPER FLEX ADHESIVE

I0027

LABEL TRAY

I0024

WATER INGRESS LABEL

I0025

DAUGHTER PWB

I0035

LTE ADHESIVE

I0031

LIGHT SWAP PWB

I0038

LTE RF COAX CABLE

I0030

TYPE LABEL

I0040

SKYPE CAMERA WINDOW GASKET

I0018

CAMERA KEY

I0007

LOCK KEY

I0008

VOLUME KEY

I0009

SMALL BATTERY ADHESIVE

I0011

VIBRA FLEX ADHESIVE

I0020

PRIMARY MIC FLEX

I0012

PRIMARY MIC GASKET

I0013

MIMO COAX FLEX

I0028

BATTERY

I0032

HEAT SPREADER

I0039

BATTERY CONNECTOR STRAP

I0033

MIMO COAX FLEX ADHESIVE

I0029

CAMERA

I0023

BATTERY ADHESIVE

I0010

PRIMARY MIC FLEX

ADHESIVE

I0014

DISPLAY WINDOW

I0002

DISPLAY

I0003

MAIN ANTENNA VOICE

COAX FLEX

I0006

LIGHT SWAP PACKAGE

(I0038 - I0040)

CARE UI ASSEMBLY

(I0002 - I0016) 1

Only available

as assembly

Not reuseable

after removal

Repair/swap

only in level 3

1/2

SCREW TORX+ SIZE 4

M1.4 X 3.8

I0034

GPS/WLAN ANTENNA

I0042

LED FLASH

I0049

NFC ANTENNA

I0051

BACK COVER GASKET

I0048

FLASH ADHESIVE

I0047

MIMO ANTENNA

I0043

IHF SPEAKER ASSEMBLY

I0041

MAIN ANTENNA LTE

I0044

MAIN ANTENNA VOICE

I0045

WIRELESS CHARGING

ASSEMBLY

I0050

BACK COVER

I0046

ENGINE COVER ASSEMBLY

(I0041 - I0045)

BACK COVER ASSEMBLY

(I0046 - I0048)

Only available

as assembly

Not reuseable

after removal

Repair/swap

only in level 3

2/2

Service Manual Level 1 and 2

Nokia Lumia 93

-1045

Version 1.0

Disassembly steps

1) For disassembling you need the Nokia Standard toolkit version 2. You will also need the SS-311 back

cover release tool, the SS-319 RF-connector disassembly/assembly tool and an AV jack.

Note that the device shown in most of these pictures is the Nokia Lumia Icon. On those steps the spare

parts and the disassembly procedures are the same.

2) Protect the DISPLAY WINDOW with protective film.

3) Open the SIM TRAY with the SS-93 and pull it out.

4) At this point, if you only want to check the TYPE LABEL without having to disassemble the phone, you

can pull the LABEL TRAY out with the hook on the SIM TRAY.

5) Release the BACK COVER with the SS-311 from the shown corner.

6) Remove the BACK COVER.

7) Unscrew the TORX+ SIZE 4 screw on top of the BATTERY CONNECTOR STRAP. Do not use the screw

again. Discard it.

8) Remove the BATTERY CONNECTOR STRAP with tweezers.

9) Disconnect the BATTERY connector with the SS-93. Be careful not to damage the connector.

10) Unscrew the ten TORX+ SIZE 4 screws in the order shown. Do not use the screws again. Discard them.

11) Release the ENGINE COVER ASSEMBLY from the shown place with the SS-93.

12) Lift up and remove the ENGINE COVER ASSEMBLY top end first. Be careful not to damage the antenna

spring contacts on the bottom of the ENGINE COVER ASSEMBLY.
