Nokia C5-03 Manual de usuario

Nokia C5–03 User Guide

Issue 2.1

Contents

Safety 4

Battery removing 4

Get started 5

Insert the SIM card and battery 5

Insert a memory card 7

Remove the memory card 8

Charge the battery 9

Keys and parts 10

Switch the device on 11

Lock the keys and touch screen 11

Home screen 11

Access the menu 13

Touch screen actions 13

Change the ringing tone 14

Nokia services 14

About Nokia Store 15

Your device 15

Contacts bar 15

Find an item with adaptive search 15

Antenna locations 16

Offline profile 16

Shortcuts 17

Sensor settings and display rotation 17

Headset 17

Attach a wrist strap 18

Make calls 18

Calls 18

Write text 19

Virtual keyboard 19

Handwriting 20

Enter text with the virtual keypad 20

Touch input settings 22

Contacts 23

Save phone numbers and mail

addresses 23

Manage names and numbers 23

Assign default numbers and

addresses 24

Ringing tones, images, and call text for

contacts 24

Copy contacts 24

SIM services 25

Messaging 26

Messaging main view 26

Write and send messages 27

Receive messages 28

Multimedia messages 28

Data, settings, and web service

messages 29

Set up e-mail 29

Mailbox 30

Mail for Exchange 32

View messages on a SIM card 33

Service commands 33

Messaging settings 33

Music player 35

Play music 35

Create a playlist 36

Camera 37

Activate the camera 37

Image capture 37

Video recording 38

Gallery 38

View and organise files 38

View images and videos 39

Share online 39

About Share online 39

Subscribe to an online sharing service 40

Manage your accounts 40

Create a post 40

2Contents

Post files from Gallery 41

Nokia Video Centre 41

View and download videos 41

Video feeds 43

My videos 43

Copy your videos between your phone

and computer 44

Video centre settings 44

Internet 44

About the web browser 44

Browse the web 45

Add a bookmark 45

Subscribe to a web feed 45

Unreadable characters while browsing

the web 46

Positioning (GPS) 46

About GPS 46

About assisted GPS (A-GPS) 47

Hold your device correctly 47

Maps 47

Maps overview 47

View your location and the map 48

Map view 49

Change the look of the map 49

Download and update maps 50

About positioning methods 51

Find a location 52

View location details 52

Save or view a place or route 53

Send a place to a friend 53

Check in 54

Get voice guidance 54

Use the compass 55

Drive to your destination 56

Navigation view 57

Get traffic and safety information 57

Walk to your destination 58

Plan a route 58

Connectivity 60

Wireless LAN 60

Other applications 62

Clock 62

Calendar 63

Find help 64

In-device help 64

Support 65

Update phone software and

applications using your phone 65

Update phone software using your PC 65

Access codes 65

Nokia original accessories 66

Practical rules about accessories 66

Battery 67

Product and safety information 67

Index 85

Contents 3

Safety

Read these simple guidelines. Not following them may be dangerous or illegal. For

further info, read the complete user guide.

SWITCH OFF IN RESTRICTED AREAS

Switch the device off when mobile phone use is not allowed or when it may

cause interference or danger, for example, in aircraft, in hospitals or near

medical equipment, fuel, chemicals, or blasting areas. Obey all instructions

in restricted areas.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free to operate the vehicle while

driving. Your first consideration while driving should be road safety.

INTERFERENCE

All wireless devices may be susceptible to interference, which could affect

performance.

QUALIFIED SERVICE

Only qualified personnel may install or repair this product.

KEEP YOUR DEVICE DRY

Your device is not water-resistant. Keep it dry.

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen at high volume levels for

long periods. Exercise caution when holding your device near your ear while

the loudspeaker is in use.

Battery removing

Switch the device off and disconnect the charger before removing the battery.

4Safety

Get started

Insert the SIM card and battery

Safe removal. Always switch the device off and disconnect the charger before removing

the battery.

Important: This device is designed to be used with a standard SIM card (see figure)

only. Use of incompatible SIM cards may damage the card or the device, and may corrupt

data stored on the card. Please consult your mobile operator for the use of a SIM card

that has a mini-UICC cutout.

A SIM card may be already inserted in the device. If not, do the following:

1 Remove the back cover.

2 Remove the battery, if inserted.

3 Slide the SIM card holder, to unlock it.

Get started 5

4 Lift the SIM card holder up.

5 Make sure the contact area of the SIM card is facing toward the device, and slide the

SIM card into the SIM card holder.

6 Lower the SIM card holder into place. Slide the SIM card holder, to lock it.

7 Line up the battery contacts, and insert the battery.

6Getstarted

8 To replace the cover, direct the top locking catches toward their slots, and press

down until the cover locks into place.

If the SIM card is not properly in place, the device can only be used in the offline profile.

Insert a memory card

Use only compatible memory cards approved by Nokia for use with this device.

Incompatible cards may damage the card and the device and corrupt data stored on the

card.

1 Remove the back cover.

Get started 7

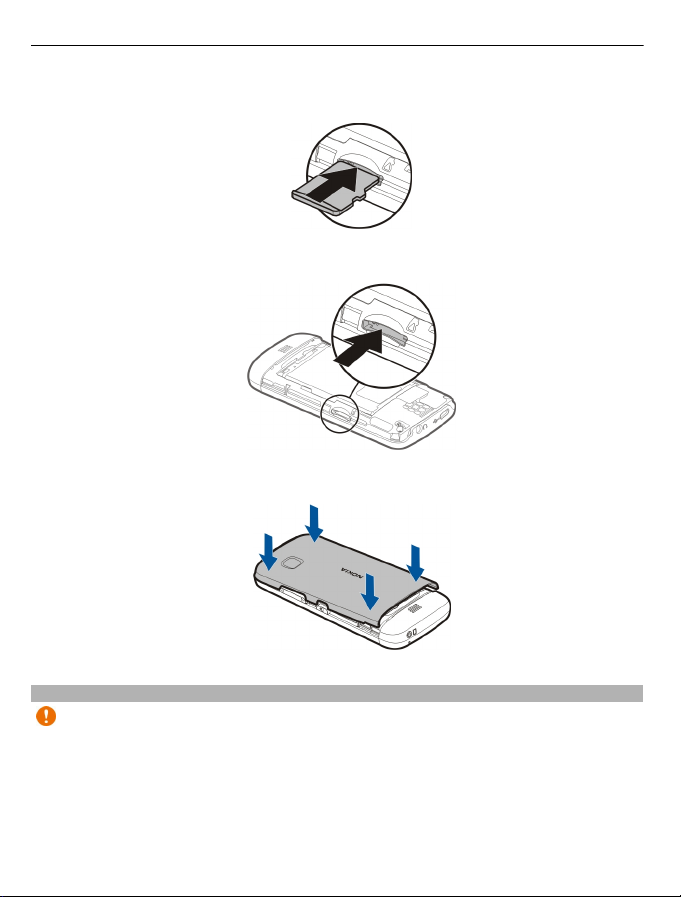

2 Make sure the contact area of a compatible memory card is facing down, and insert

the card into the memory card slot.

3 Push the card in, until it clicks into place.

4 Replace the back cover.

Remove the memory card

Important: Do not remove the memory card when an app is using it. Doing so may

damage the memory card and the device and corrupt data stored on the card.

1 If the device is switched on, before you remove the card, press the power key, and

select Remove memory card.

2WhenRemove memory card? Some applications will be closed. is displayed,

select Yes.

8Getstarted

3WhenRemove memory card and press 'OK' is displayed, remove the back cover

of the device, and push the card in, until you hear a click.

4 Pull out the memory card, and replace the back cover. If the device is switched on,

select OK.

Charge the battery

Your battery has been partially charged at the factory, but you may need to recharge it

before you can switch on your device for the first time. If the device indicates a low

charge, do the following:

1 Connect the charger to a wall outlet.

2 Connect the charger to the device.

3 When the device indicates a full charge, disconnect the charger from the device,

then from the wall outlet.

You do not need to charge the battery for a specific length of time, and you can use the

device while it is charging. If the battery is completely discharged, it may take several

minutes before the charging indicator appears on the display or before any calls can be

made.

Tip: Disconnect the charger from the wall outlet when the charger is not in use. A

charger that is connected to the outlet consumes power even when it is not connected

to the device.

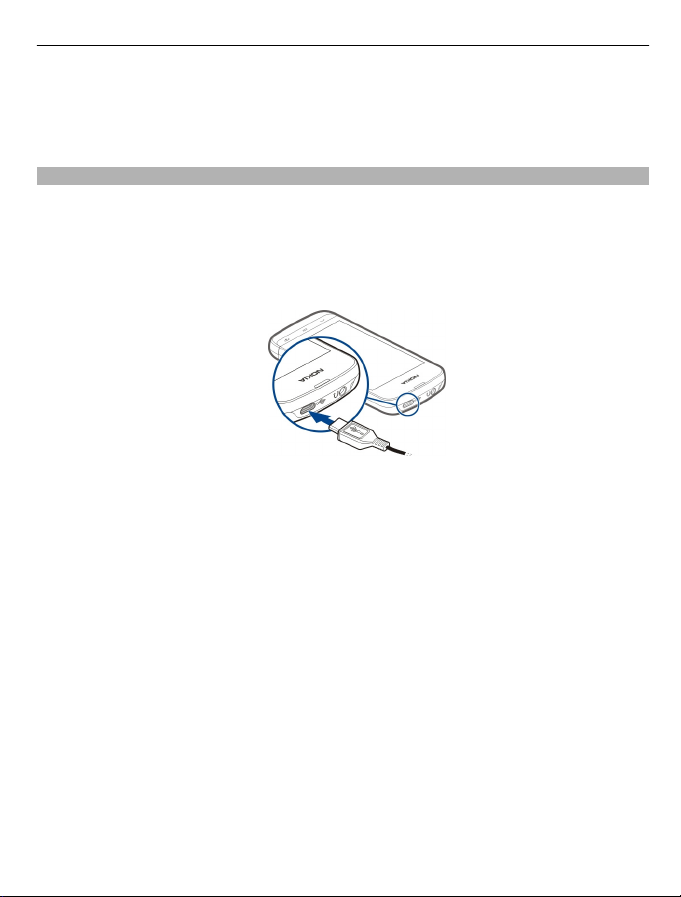

USB charging

You can use USB charging when a wall outlet is not available. Data can be transferred

while charging the device. The efficiency of USB charging power varies significantly, and

it may take a long time for charging to start and the device to start functioning.

1 Use a compatible USB data cable to connect your device to a compatible USB device.

Depending on the type of the device that is used for charging, it may take a while

for charging to start.

2 If the device is switched on, select the appropriate USB mode.

Get started 9

Only connect your device to products that have USB-IF logo.

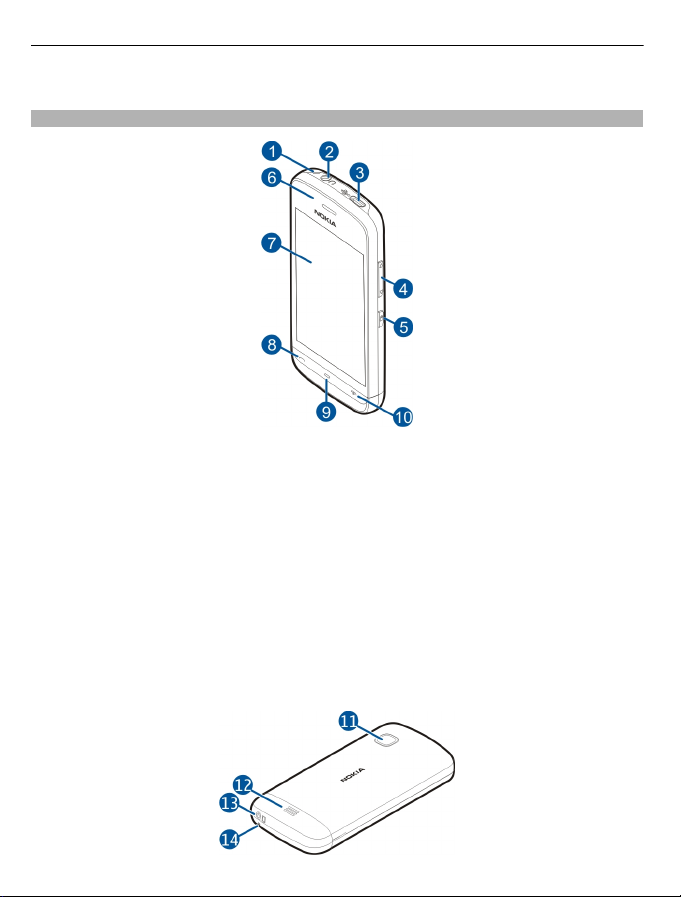

Keys and parts

1Wrist strap hole

2Nokia AV connector (3.5 mm)

3Micro USB connector

4Volume/Zoom key

5Lock key

6Earpiece

7Touch screen

8Call key

9Menu key

10 End/power key

11 Camera lens

12 Loudspeaker

13 Charger connector

14 Microphone

10 Get started
