PAMS Technical Documentation

NHM–7 Series Transceivers

Issue 2 01/2002 Nokia Corporation

General Information

NOKIA 8310 NOKIA 6500

NHM–7

General Information PAMS Technical Documentation

Page 2 Issue 2 01/2002

Nokia Corporation

CONTENTS

The Product 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Handportable 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Desktop Option for 8310 only 4. . . . . . . . . . . . . . . . . . . . . . . . . .

Full Car Kit CARK132 Option for 8310 only 5. . . . . . . . . . . . . .

Product and Module List 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Specifications of Transceiver NHM–7 7. . . . . . . . . . . . . .

NHM–7

General Information

PAMS Technical Documentation

Page 3

Issue 2 01/2002 Nokia Corporation

The Product

The NHM–7 is a dual band handportable mobile telephone for the

E–GSM 900 and GSM1800 networks. It is both GSM900 phase 2 power

class 4 transceiver (2W) and GSM1800 power class 1 (1W) transceiver.

The main transceiver features are:

– Integrated FM radio – Full graphic display

– GPRS – Integrated IR link & internal data

– Internal vibra – Plug & play HF support

– Plug–in SIM card below the back cover of the phone

– Back mounted antenna (no connection for external antenna)

– Jack style UI with two soft keys

Handportable

ACP–7E

ACP–7C

ACP–7X

ACP–7H

ACP–7A

ACP–7U

NHM–7

HDD–1

Item Name: Type code: Material code:

1. Transceiver See Product Variants

Standard battery Li–ion BLB–2 0271570

2. Headset HDD–1 0273302

3. Standard Charger (Euro plug) 207–253 Vac ACP–7E 0675144

4. Standard Charger (US plug) 108–132 Vac ACP–7U 0675143

Standard Charger (US plug) 198–242 Vac ACP–7C 0675158

5. Standard Charger (UK plug) 207–253 Vac ACP–7X 0675145

Standard Charger (UK plug) 180–220 Vac ACP–7H 0675146

6. Standard Charger (Australia) 216–264 Vac ACP–7A 0675148

NHM–7

General Information PAMS Technical Documentation

Page 4 Issue 2 01/2002

Nokia Corporation

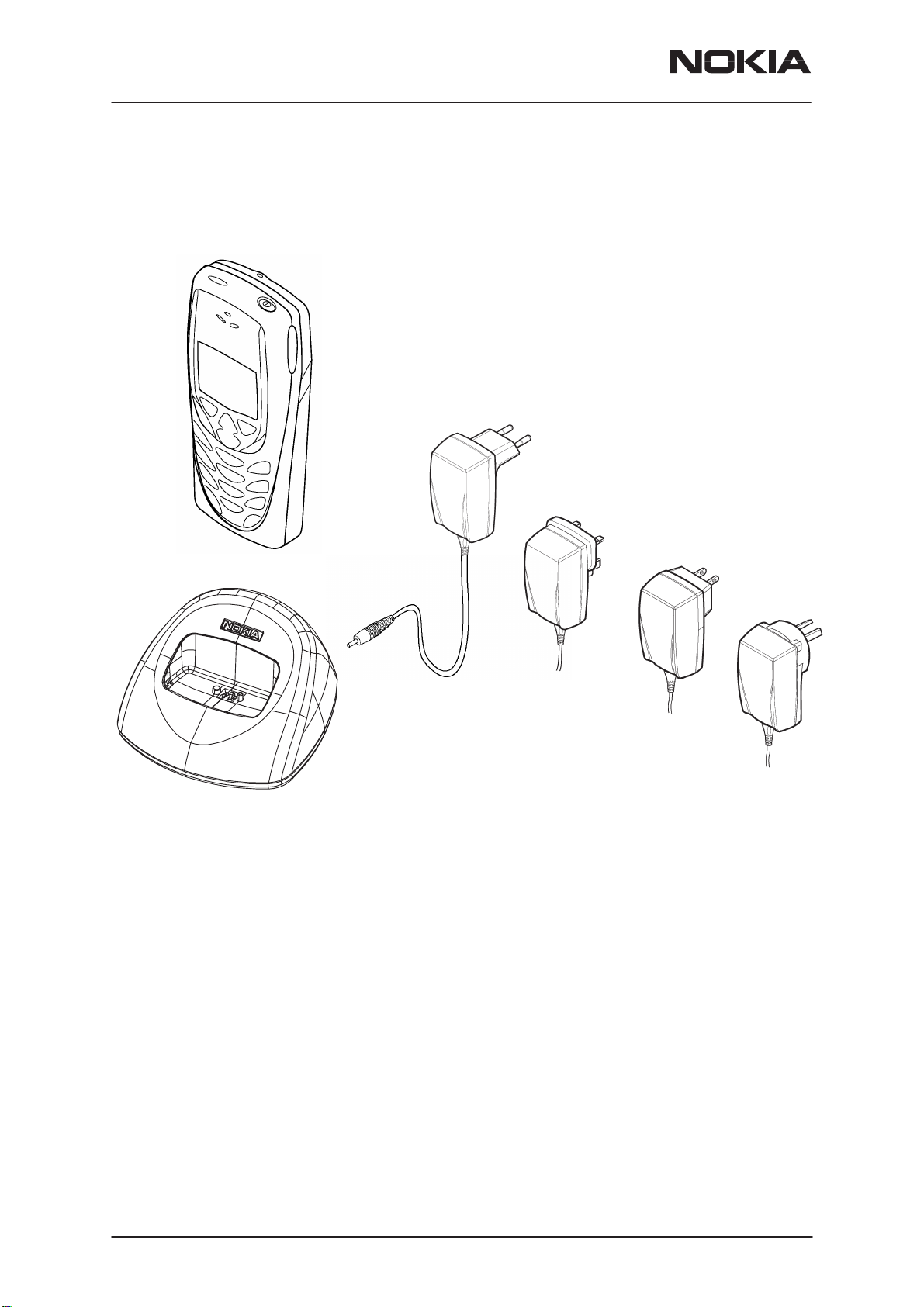

Desktop Option for 8310 only

The desktop option allows the user to charge the phone from the mains.

Besides these optional chargers also ACP–7 can be used.

4. 5.

ACP–8E

ACP–8K

ACP–8X

ACP–8U

ACP–8C

ACP–8A

DCD–1

1. NHM–7

Item Name: Type code: Material code:

1. Transceiver See Product Variants

2. Desk Stand DCD–1 0272865

3. Travel Charger Euro plug 90–264 Vac ACP–8E 0272169

Travel Charger Korea plug 90–264 Vac ACP–8K 0273111

4. Travel Charger UK plug 90–264 Vac ACP–8X 0272172

5. Travel Charger US plug 90–264 Vac ACP–8U 0675196

Travel Charger China plug 90–264 Vac ACP–8C 0675211

6. Travel Charger Australia plug 90–264 Vac ACP–8A 0271637

NHM–7

General Information

PAMS Technical Documentation

Page 5

Issue 2 01/2002 Nokia Corporation

Full Car Kit CARK132 Option for 8310 only

The CARK132 includes the following parts:

Advanced Active Car Holder MCC–5

Advanced HF Unit HFU–5

Power Cable PCH–4J

Mounting Plate MKU–1

Swivel Mount HHS–9

HF Microphone HFM–8

HF Speaker HFS–12

HHS-9

MKU–1

HFU-5

PCH-4J

MCC-5

HFM-8

HFS–12

AMD–2

Please, note that the items enclosed in broken-line (phone & antenna) are not sup-

plied with CARK132. The external antenna AMD–2 is recommended.

NHM–7

General Information PAMS Technical Documentation

Page 6 Issue 2 01/2002

Nokia Corporation

Product and Module List

Unit/type: Product code:

NHM–7 Transceiver See Product Vari-

ants

BLB–2 Standard Battery Li–ion 0271570

ACP–7E Standard Charger (EUR) 207–253 Vac 0675144

ACP–7U Standard Charger (US) 108–132 Vac 0675143

ACP–7C Standard Charger (US) 198–242 Vac 0675158

ACP–7X Standard Charger (UK) 207–253 Vac 0675145

ACP–7H Standard Charger (UK) 180–220 Vac 0675146

ACP–7A Standard Charger (AUS) 216–264 Vac 0675148

ACP–8E Travel Charger (EUR) 90–264 Vac 0272169

ACP–8K Travel Charger (Korea) 90–264 Vac 0273111

ACP–8X Travel Charger (UK) 90–264 Vac 0272172

ACP–8U Travel Charger (US) 90–264 Vac 0675196

ACP–8C Travel Charger (China) 90–264 Vac 0675211

ACP–8A Travel Charger (Australia) 90–264 Vac 0271637

LCH–9 Mobile Charger 0675120

PPH–1 Plug–in HF Car Kit 0272170

MBD–10 Mobile Holder 0272866 Eur/Afr

0273412 APAC

MKU–1 Mounting Plate 0620036

HHS–9 Swivel Mount 0620037

DCD–1 Desktop Stand 0272865

DDC–1 Battery Charging Stand 0272418

HFM–8 HF Microphone 0271503

HDD–1 Headset 0273302

HDC–5 Headset 0271467

HDE–2 Headset 0694075

LPS–3 Loopset 0272419

HFU–5 Advanced HF Unit

MCC–5 Advanced Active Car Holder

PCH–4J Power Cable

HFS–12 HF Speaker

NHM–7

General Information

PAMS Technical Documentation

Page 7

Issue 2 01/2002 Nokia Corporation

General Specifications of Transceiver NHM–7

Parameter Unit

Cellular system GSM900 and GSM1800

RX frequency band EGSM: 925 ... 935 MHz

GSM900 935 ... 960 MHz

GSM1800 1805 ... 1880 MHz

TX frequency band EGSM 880 ... 890 MHz

GSM900 890 ... 915 MHz

GSM1800 1710 ... 1785 MHz

Output power GSM900 * +5 ...+33 dBm / 3.2 mW ... 2 W

GSM1800 +0 ...+30 dBm / 1.0 mW ... 1 W

Duplex spacing GSM900 * 45 MHz GSM1800 95 MHz

Number of RF channels EGSM 50

GSM900 124

GSM1800 374

Channel spacing 200 kHz

Number of TX power levels GSM900 * 15 GSM1800 16

Sensitivity, static channel GSM900: –102 dBm

GSM1800: –102 dBm (norm. cond. only)

Frequency error, static channel < 0.1 ppm

RMS phase error < 5.0 o

Peak phase error < 20.0 o

*) applies also to EGSM

NHM–7

General Information PAMS Technical Documentation

Page 8 Issue 2 01/2002

Nokia Corporation

This page intentionally left blank.
