Nixie Clock Spectrum 18 Guía de configuración

Nixie Tube Clock ‘Spectrum 18’

Issue 2 (15 February 2015

www.pvelectronics.co.uk

- 1 -

Assembly Instructions

And

User Guide

Nixie Clock Type

‘Spectrum 18’

Nixie Tube Clock ‘Spectrum 18’

Issue 2 (15 February 2015

www.pvelectronics.co.uk

- 2 -

REVISION HISTORY

Issue

Number

Date Reason for Issue

2 15 Feb 2015 Errors in Resistor values corrected

Resistor networks not polarized

1 10 Feb 2015 New document

Nixie Tube Clock ‘Spectrum 18’

Issue 2 (15 February 2015

www.pvelectronics.co.uk

- 3 -

1. INTRODUCTION

Here are the key features of the SPECTRUM 18:

• Hours Minutes and Seconds display on Six IN-18 Nixie Tubes

• 40mm (1.5”) Digit height

• Noiseless Direct Drive giving optimum digit clarity

• Dedicated plug-in High Voltage Module (Included)

• Uses a Quartz Crystal Oscillator as the timebase

• 12 or 24 hour modes

• Programmable leading zero blanking

• Date display in either DD.MM.YY or MM.DD.YY or YY.MM.DD format

• Programmable date display each minute

• Scrolling display of date or standard display

• Alarm with programmable snooze period

• Optional DCF / MSF / GPS synchronisation with status indicator LED

• Dedicated DST button to switch between DST and standard time

• Supercapacitor backup. Keeps time during short power outages

• PIR Motion Sensor input and accessory available. Configurable timeout

period

• Temperature display in Celsius or Fahrenheit. Configurable. (every

minute/ every 10 minutes / every hour)

• Simple time setting using two buttons

• Programmable leading zero blanking

• Double dot colon neon lamps

• 11 colon neon modes including AM / PM indication (top / bottom or left /

right) railroad (slow or fast) etc.

• Seconds can be reset to zero to precisely the set time

• Programmable night mode - blanked or dimmed display to save tubes or

prevent sleep disturbance

• Rear Indicator LEDs dim at night to prevent sleep disturbance

• Weekday aware ‘Master Blank’ function to turn off HV/ tubes and LEDs on

weekends or during working hours

• Separate modes for colon neons during night mode

• Standard fading or crossfading with scrollback display modes

• ‘Slot Machine’ Cathode poisoning prevention routine

• Programmable RGB tube lighting – select YOUR favourite colour palette

• 729 colours possible. Have a different colour or your choosing every

hour or autochanging colours

• Configurable Auxiliary Alarm Output for activating additional peripherals

on Alarm

• Provision for adding switches for independently switching off RGB LEDs

and / or tubes

• Not AC frequency dependent – works in all countries

• All user preferences stored to non-volatile memory

Nixie Tube Clock ‘Spectrum 18’

Issue 2 (15 February 2015

www.pvelectronics.co.uk

- 4 -

1.4 SAFETY

DANGER: The clock pcb includes a switched-mode voltage booster

circuit. This generates nominally 170 Volts DC. Assembly may only be

undertaken by individuals who are suitably qualified and experienced in

electronics assembly and are familiar with safe procedures for working

with high voltages. If in doubt refer to a suitably qualified engineer

before proceeding.

The voltages generated by this circuit can give a potentially

LETHAL ELECTRIC SHOCK.

DISCLAIMER: This product is supplied as a kit of parts intended only for

suitably qualified electronic engineers who are suitably qualified and

experienced in electronics assembly and are familiar with safe

procedures for working with high voltages. The supplier his agents or

associates accept no liability for any damage injury or death arising from

the use of this kit of parts.

This is not a finished product and the person assembling the kit is

responsible for ensuring that the finished product complies with any

applicable local regulations governing electrical equipment eg. UL CE

VDE.

Nixie Tube Clock ‘Spectrum 18’

Issue 2 (15 February 2015

www.pvelectronics.co.uk

- 5 -

2. TOOLS AND EQUIPMENT REQUIRED

2.1 Tools required to assemble the PCB.

The following tools will be required to assemble the PCB:

- Soldering iron with a small tip (1-2 mm).

- Wire cutters to trim the excess component leads after soldering.

(TIP: A small pair of nail clippers works very well for this function).

- Wire strippers (TIP: A small pair of scissors is quite suitable).

- Multimeter for voltage tests and for identifying the resistors.

- A small hot air gun will be needed to shrink the heat shrink tubing

over the neon lamp wires.

2.2 Materials you will need.

Solder – lead / tin solder is highly recommended.

USE LEAD/ TIN SOLDER!

Lead free solder as now required to be used in commercial products in

Europe has a much higher melting point and can be very hard to work

with.

Desoldering wick (braid) can be useful if you accidentally create solder

bridges between adjacent solder joints.

2.3 Other items you will need.

The clock kit does not include a power adapter.

The following type of adapter should be obtained and used with the kit:

Output 12V DC regulated, minimum power output capability of 1A

Output plug: 2.1mm pin, centre positive.

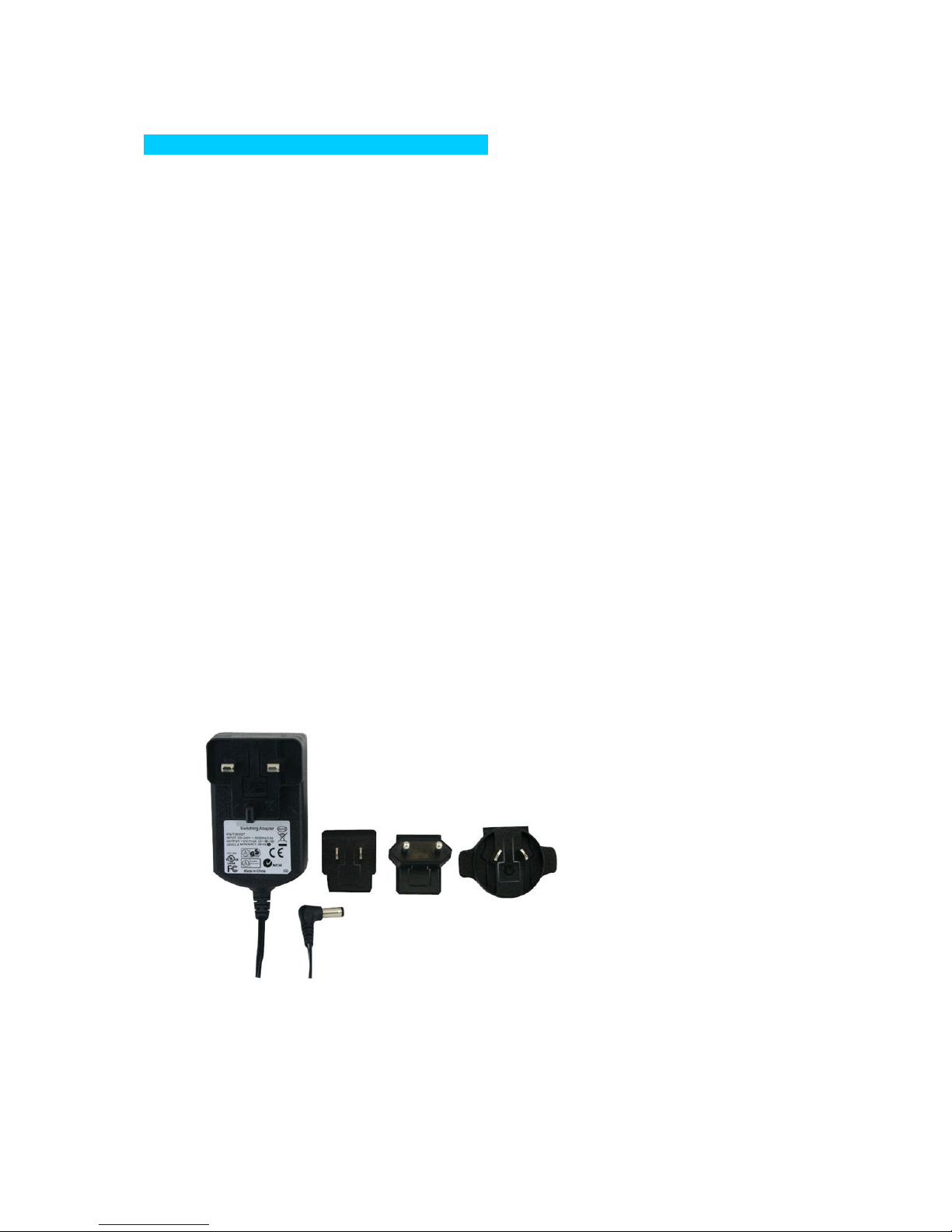

A suitable adapter is shown below:

Nixie Tube Clock ‘Spectrum 18’

Issue 2 (15 February 2015

www.pvelectronics.co.uk

- 6 -

3. LIST OF COMPONENTS

3.1 Table of Components – Driver Board

Circuit Designation Part Description

Resistors

R1 6.8 KΩ ¼ Watt

R2 – R7 10 KΩ ¼ Watt

R8 – R11 270 KΩ ¼ Watt

R12 – R14 270 Ω ¼ Watt

R15 6.8 KΩ ¼ Watt

R16 15 KΩ ¼ Watt

R17 – R19 270 Ω ¼ Watt

R20 6.8 KΩ ¼ Watt

RN1 – RN6 Quad Resistor Network 220Ω

Capacitors

C1 C2 220uF Electrolytic 16-25V

C3 10pF Ceramic

C4 15pF Ceramic

C5 100nF Ceramic

C6 0.1F or 0.22F Supercapacitor

C7 – C9 100nF

Transistors

Q1 MPSA42

Q2 – Q4 2N7000 MOSFET

Q15 MPSA42

Diodes

D1 – D3 1N5819

D4 5mm Yellow LED

D5 5mm Green LED

D6 5mm Yellow LED

RGB1 – RGB8 RGB 5mm LED common anode

Integrated Circuits

IC1 LM2576 5V voltage regulator

IC2 PIC16F1938 in socket

IC3 IC4 HV5622 in socket

IC5 DS18B20

Miscellaneous

L1 100uH inductor

AM1 PM1 AM2 PM2 6mm wire ended neon lamp

ALARM SET ADJ DST Miniature push button

IC2 Socket 28 Way narrow IC socket for IC2

IC3 IC4 Socket PLCC44 IC socket for IC3

J1 2.1mm PCB power socket

GPS / RFT and GPS2 Surface mount 3.5mm jack socket

PIR and PIR2 Surface mount 3.5mm jack socket

LS1 Piezo sounder

FUSE 500mA fuse

VR1 1KΩ Potentiometer

X1 32.768KHz watch crystal

HV Module High Voltage Module in header

Nixie Tube Clock ‘Spectrum 18’

Issue 2 (15 February 2015

www.pvelectronics.co.uk

- 7 -

3.2 Parts list / Packing Sheet - Component Bag

Part Description Quantity

Resistors

270 Ω ¼ Watt 6

6.8 KΩ ¼ Watt 3

10 KΩ ¼ Watt 6

15 KΩ ¼ Watt 1

270 KΩ ¼ Watt 4

220 Ω Resistor Network 6

Capacitors

10pF Ceramic 1

15pF Ceramic 1

100nF Ceramic 4

220uF 16-25V Electrolytic 2

0.1F or 0.22F 1

Transistors

MPSA42 2

2N7000 MOSFET 3

Diodes

1N5819 3

5mm Green LED 1

5mm Yellow LED 2

5mm RGB LED 6

Integrated Circuits

LM2576 5V voltage regulator 1

PIC16F1938 8-bit microcontroller 1

HV5622 2

DS18B20 1

Miscellaneous

100uH inductor 1

6mm wire ended neon lamp 4

Miniature push button 4

28 way narrow IC Socket for IC2 1

PLCC44 IC Socket 2

2.1mm PCB power socket 1

Surface mount 3.5mm jack socket 2

Piezo sounder 1

1A fuse 1

1KΩ Potentiometer 1

2 way header with jumper 1

6 way female header 0.1” 1

32.768KHz watch crystal 1

Nixie Tube Clock ‘Spectrum 18’

Issue 2 (15 February 2015

www.pvelectronics.co.uk

- 8 -

3.3 Parts list / Packing Sheet - Additional parts

• PCB

• 6 X 15mm M3 hex spacers with screws

• HV Module with male header and glue dot

• 2 X Glass neon covers

• 30cm Clear heat shrink insulation for neons

• 6 X Socket holders and 66 sockets

The resistors used in the kit are 1% tolerance metal film. They are

marked with 4 coloured bands to identify the value. However it is

sometimes unclear in which direction the bands should be read.

Therefore we recommend that the resistors be identified with a

multimeter.

Please note the fuse will look like one of the pictures below. It can

easily be confused for a capacitor. It is a self-resetting fuse.

3.4 Special Note:

Please note that several components can be possibly mounted on

either side of the PCB and white component print for the part is on

both sides of the PCB. This is to offer maxiumum flexibility of the

kit: For our clear cases most components will be soldered on the

top (tube) side of the PCB so they are visible on the finished clock.

However for the Viso case and for customers making their own

case it is possible to mount some of the taller components on the

bottom of the PCB so that the PCB can fit inside a case with the

tubes protruding. Please follow carefully the instructions. Unless

specified otherwise please solder all components on the top of the

PCB.

Nixie Tube Clock ‘Spectrum 18’

Issue 2 (15 February 2015

www.pvelectronics.co.uk

- 9 -

4. ASSEMBLY OF THE PCB

DUE TO PRODUCT DEVELOPMENT AND IMPROVEMENTS,

YOUR PCB MAY NOT LOOK EXACTLY LIKE THE ONE

PICTURED.

4.1 Assembly of the tube sockets

Remove the protective film from both sides of the six laser-cut

tube socket holders and identify the side that is engraved

‘SOCKETS THIS SIDE’.

For each socket holder you need to push in 11 socket receptacles.

Push them in from the ‘SOCKETS THIS SIDE’ side. Push them with

the 2 open jaws going in first. Look at the photo below.

Nixie Tube Clock ‘Spectrum 18’

Issue 2 (15 February 2015

www.pvelectronics.co.uk

- 10 -

Push all the sockets firmly into place until they stop. You will end

up with 6 socket assemblies. Put them to one side. Do not solder

them to the PCB yet.

4.2 Resistor Networks RN1 – RN6

Solder the 6 resistor networks on the bottom side of the PCB as

shown below. These parts are not polarized so the orientation

does not matter.
