IMPORTANT INFORMATION

Please read the separate Wii U Operations Manual and built-in electronic

manuals for a complete description of features and procedures.

After setup, select (Health & Safety Information) on the WiiU Menu to

read important information about the safe use of the Wii U system

and components.

If this product will be used by children, an adult should assist with setup and

conﬁguration of the system. The ability to use certain features or content can

be restricted by Parental Controls. See manuals for more information.

From setup to gameplay

Quick Start Guide

Basic Setup

Conﬁguring Your System

Using Game Discs

Getting Started: Check Set Contents

There are two versions of the Wii U™ system: the Basic Set and the Deluxe Set. See the diagrams below for

a list of components included in each set.

Wii U console (1)

[WUP-001(02)]

Wii U console (1)

[WUP-101(02)]

Wii U Console AC

Adapter (1)

[WUP-002(USA)]

Wii U Console AC

Adapter (1)

[WUP-002(USA)]

Wii U GamePad (1)

[WUP-010(USA)]

Wii U GamePad (1)

[WUP-010(USA)]

Wii U GamePad AC

Adapter (1)

[WUP-011(USA)]

Wii U GamePad AC

Adapter (1)

[WUP-011(USA)]

Sensor Bar (1)

[RVL-014]

Wii U GamePad

Stylus (1)

[WUP-015]

Wii U GamePad

Stylus (1)

[WUP-015]

Wii U GamePad

Cradle (1)

[WUP-014]

High Speed HDMI™

Cable (1)

[WUP-008]

High Speed HDMI

Cable (1)

[WUP-008]

Both sets include the following items:

• Quick Start Guide (1)

• Wii U Operations Manual (1)

• May include other printed materials

Please read the Wii U Operations Manual for details on

setup and use of these components.

Wii U GamePad

Stand (1)

[WUP-016]

WiiU Console

Stands (2)

[WUP-009]

Basic Set

Deluxe Set

Sensor Bar (1)

[RVL-014]

Console Setup and Connection Guidelines

Please use the following guidelines when setting up your system. After setup is complete, be sure to

select (Health & Safety Information) on the WiiU Menu to read important information about proper

use of the Wii U system and components.

• The console has intake and exhaust vents designed to maintain adequate ventilation. Do not operate

the console in any location where these vents may become covered or obstructed, for example, on

carpet or in a tightly enclosed space. Keep vents clear of any dust or other foreign material.

• Do not store the Wii U console in a humid place, on the ﬂoor, or in any location where it may collect

dirt, dust, lint, etc.

• Make sure all connections to the system are made carefully and inserted into the correct locations only.

Hold plugs straight when inserting them into sockets. Make sure that the AC-adapter plug is completely

inserted into the wall outlet.

• When disconnecting any plugs from the console or wall outlet, ﬁrst turn the Wii U console off. Then

carefully pull by the plug itself rather than by the cord.

• Do not expose the Wii U console, components, or accessories to extreme heat or cold.

• Do not locate the console on top of other AV equipment.

Basic Setup

First review the Console Setup and Connection Guidelines below, and then connect the included Wii U

GamePad AC adapter as shown in the illustration.

After conﬁrming that the battery LED is lit orange, proceed to

step

on the next page.

Before setting up your system, charge the Wii U GamePad

120V

The battery LED lights up orange during charging and will turn off

when the battery is fully charged.

When charging is complete, ﬁrst unplug the AC adapter from the AC

outlet, then unplug it from the controller by carefully pulling the plug

straight out from the controller.

For best results, charge in an area with a temperature of 50°-95°F

(10°-35°C).

The Wii U GamePad Cradle (Deluxe Set only) can also be used to charge the GamePad (see Charging the

Wii U GamePad in the Wii U Operations Manual).

Connecting the Console to a TV

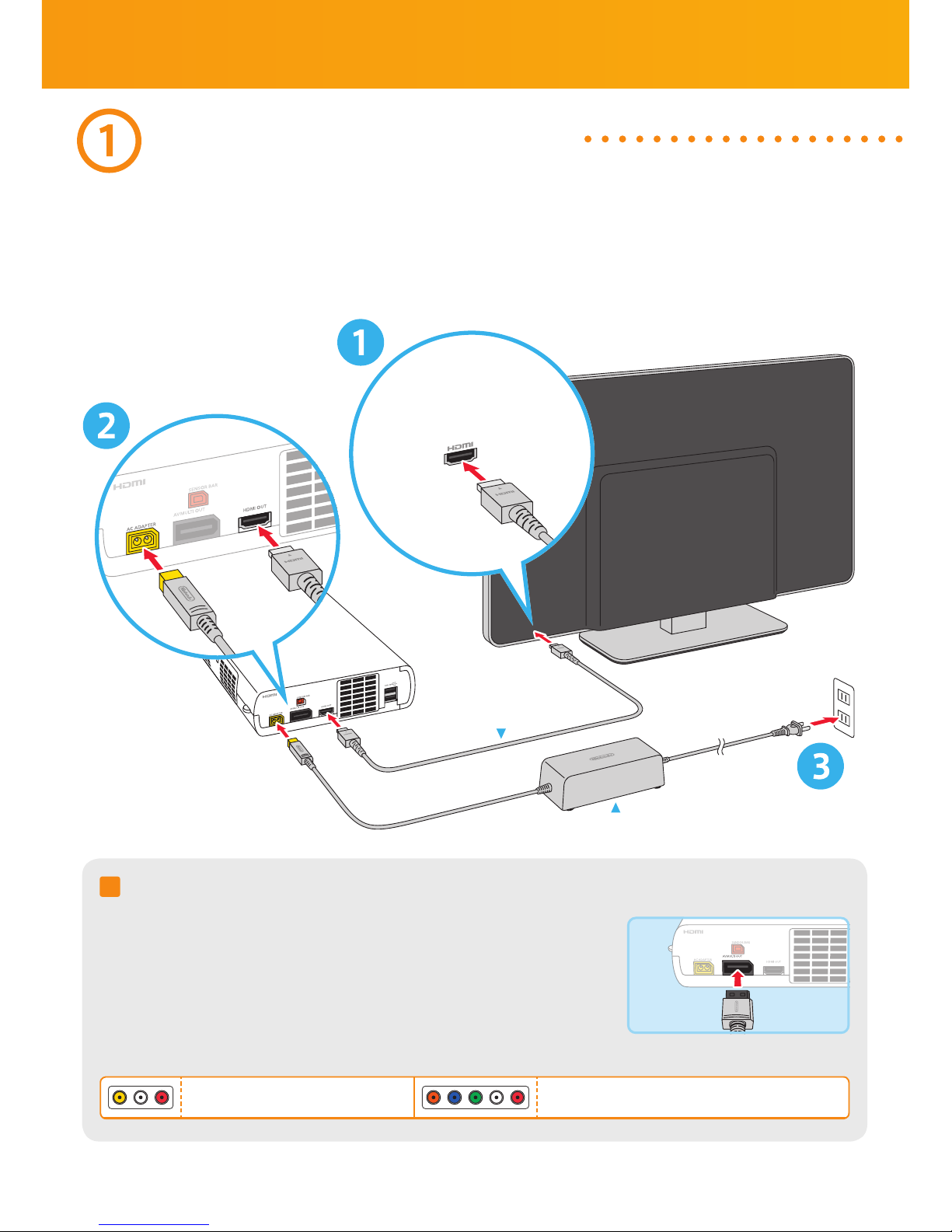

First make sure that your TV is turned off, then connect the HDMI cable and the AC adapter in the

order illustrated below.

• Place the WiiU console at least 4” (10 cm) away from walls or other surfaces that may block

ventilation.

• For best picture quality, use the included HDMI cable to connect your WiiU console to the TV.

AC Adapter

HDMI cable

120V

HDMI Port

If Your TV has No HDMI Port

Check the connections on your TV and then see the table below for other

cable options for connecting your Wii U console.

• Current Wii system owners can switch the cables plugged into the AV

Multi Out Connector on the back of the Wii console to the same

connector on the back of the Wii U system.

Optional cables (sold separately) compatible with Wii U:

Wii AV Cable [RVL-009] Wii Component Video Cable [RVL-011]

Placing the Console Vertically

Insert the tabs on the side of the console into the slots in the WiiU

console stands (Deluxe Set only).

IMPORTANT: Make sure the console stands do not cover the vents on

the side of the console.

Conﬁguring Your System

Placing the Sensor Bar

The sensor bar is required when using the Wii Remote™ or Wii Remote Plus controllers with your

Wii U system (some software titles do not require a sensor bar). Follow the instructions below to

install the sensor bar.

If you have a Wii system:

You can insert the sensor bar you are using with the Wii console into the

connector on the back of Wii U console.

If you don’t have a Wii system:

Please follow the steps below to set up the sensor bar that came with

your system.

Insert the sensor bar into the connector on the back of the Wii U console.

Remove the white mounting paper from the back of the sensor bar, and

then place the sensor bar either on the TV or under it (on the TV stand).

• Place the sensor bar laying ﬂat and jutting out a

little bit in front of the TV or the TV stand.

• Place the sensor bar as close as possible to the

screen.

• Place the sensor bar parallel to the TV screen,

and align the center of the sensor bar with the

center of the TV screen.

Placement Guidelines

When you use your WiiU system for the ﬁrst time, it will be necessary to pair the GamePad with your

console, and you will need to conﬁgure some initial settings such as the date, time, and the display setting

to use on your TV.

Turn the TV and WiiU console on, then select the

correct input setting for your TV or AV component

If you are using the HDMI cable, after changing the input setting

it may take a moment until an image is displayed on the TV

screen, depending on your TV model.

• If the console does not power on or the image does not

appear on the TV, check to make sure the console is con-

nected correctly. (See Connecting the Console to a TV on

the front side of this Quick Start Guide.)

• More information on input settings is available at

support.nintendo.com/consumer/inputselects.html

Turn the GamePad on

• If the unit is still charging (the battery LED is lit), operate

it with the AC adapter connected until the GamePad is

fully charged.

Pair the GamePad with the Wii U Console

Press the SYNC Buttons on the Wii U console and GamePad to pair them, as shown below.

Press the SYNC Button on the Wii U console.

Use the GamePad stylus to press the SYNC Button on the back of the controller.

Conﬁguring Your System

MAA-WUP-S-USZ/E-C0

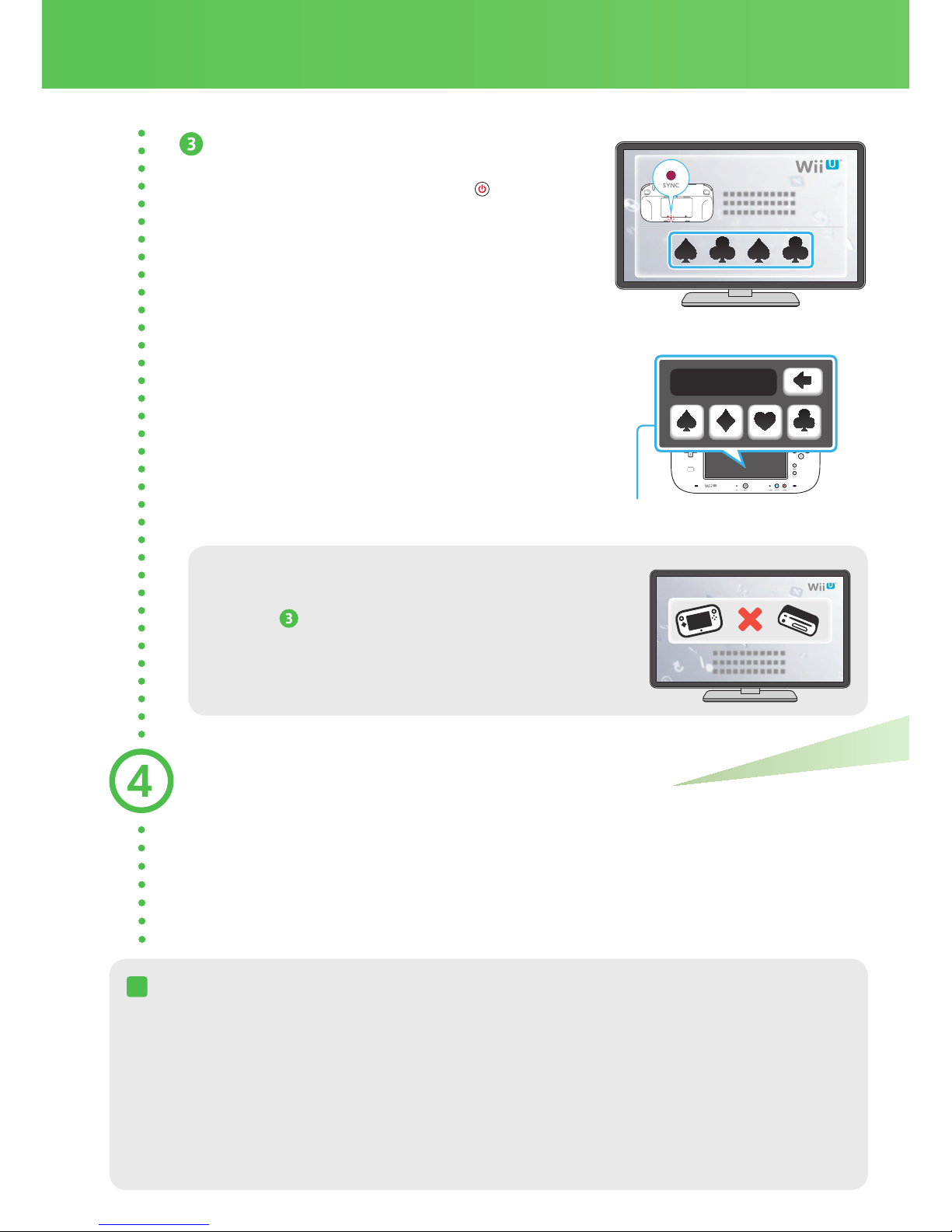

Enter the symbols shown on the TV screen in order,

starting from the left, on the GamePad.

• If the GamePad screen is off, press and then the

SYNC Button on the GamePad.

The pairing is completed when Wii U GamePad is

now ready to use appears.

If the symbol entry screen appears again, please check

the symbols that appear on the TV and carefully enter

them again.

If a screen like the one on the right is shown on the TV, press

the SYNC Button on the Wii U console again and start over

from step above.

• Make sure you are close enough to the console and move

closer if necessary.

Follow the On-Screen Instructions

Tap symbol to enter.

Examples of symbols

If you can't use the Touch Screen or it does not respond properly:

If a screen protector (optional accessory, sold separately) has been installed on the Touch Screen,

check to see if it is misaligned or if there are air bubbles, dirt, or dust trapped between the screen

protector and the surface of the screen.

Try removing it and using the Touch Screen again. If it operates correctly, either try reattaching the

screen protector, carefully following the instructions included with it, or avoid using one.

NOTE: If using an optional screen protector, please use Wii U GamePad screen protectors ofﬁcially

licensed by Nintendo.

The screen will display a description

of the setting you are currently

conﬁguring. You can scroll the

explanation on the TV

screen up or down.

The settings screen will appear on the GamePad screen. Tap the

selections to conﬁgure your settings.

You can also operate the screen with the following controls.

• L Stick: Item selection

• +Control Pad: Item selection

• A/B/X/Y Buttons: On-screen button selection

Main Settings

Date and Time

TV/TV Remote

Feature

Internet

Add User

(Settings)

Parental

Controls

When the Wii U Menu appears on the screen, settings are com-

plete (screen shown for illustration purposes only, actual screen

may vary.)

System settings can be changed later—please see the Wii U Operations Manual for more information.

You can use either Wii U or Wii Game Discs in the Wii U console.

• Tap (Health & Safety Information) on the WiiU Menu review to read important information about the

safe use of the Wii U system and components.

Pairing Wii Remote controllers with the Wii U Console

You can also use Wii Remote controllers to play

games on the Wii U (see game packaging and

manuals for more information). To use a Wii

Remote with your Wii U console, you must ﬁrst

pair it with the console.

Press the SYNC Button on the Wii U console and then the SYNC Button on the Wii Remote. Follow the

on-screen instructions to complete the process.

• Some models of the Wii Remote allow you to press the SYNC Button

without removing the Wii Remote jacket or battery cover, using a protrusion

on the wrist strap.

Insert a Game Disc

Insert a disc with the label side facing up. If the console is

placed in vertical orientation, insert a disc with the label side

facing to the right.

Tap the Software Icon

If you insert a Wii Game Disc, the Wii Menu will appear on

the screen.

For more information, see the manual for the game you

are playing.

In addition to disc-based software, the Wii U system lets you enjoy downloadable

software, the Internet, and many other entertainment choices.

Enjoy your Wii U system!

Using Game Discs

For Wii Owners:

Transferring data from Wii to Wii U

You can transfer software, saved game data, and other data from your Wii console to your Wii U console.

In addition to the Wii U system, you will need the following items before transferring:

• A Wii system

• An SD or SDHC Memory Card (with at least 512 MB of free space)

• A broadband Internet connection

NOTE: See the Wii Operations Manual - Channels & Settings for details on Internet connections for the

Wii console.

Data You Can Transfer

You can transfer the data shown at the

right only. All data that can be trans-

ferred will be transferred at one time, so

you are unable to select which data to

transfer.

Transferring Overview

After connecting both consoles to the Internet and downloading the free transfer software for each

system from the Wii Shop Channel, the data transfer is done using an SD card.

• Please review Transferring System Data in the Wii U Operations Manual for more information.

• Follow the detailed on-screen instructions in the transfer software to complete the operation.

Transferring the Data Using SD Cards

Downloading the Transfer Software

•

Wii Software Save Data

•

WiiWare and Save Data

•

Virtual Console titles and Save Data

•

Add-on Content

•

Wii Points

•

Wii Shop Channel Account Activity

Other •

Mii Characters

Otros manuales para Wii U Deluxe Set

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de consola de juegos de Nintendo

Nintendo

Nintendo 3DS Manual de usuario

Nintendo

Nintendo Switch Manual de funcionamiento

Nintendo

Nintendo Wii U Manual de usuario

Nintendo

Nintendo Switch Manual de usuario

Nintendo

Nintendo DS Lite Manual de usuario

Nintendo

Nintendo NES-001 - Entertainment System Game Console Manual de usuario

Nintendo

Nintendo Virtual Boy Manual de usuario

Nintendo

Nintendo LABO Manual de usuario

Nintendo

Nintendo Switch Manual de funcionamiento

Nintendo

Nintendo GameCube Modem Adapter Instrucciones de instalación

Nintendo

Nintendo Game Boy Advance Manual de usuario

Nintendo

Nintendo Switch OLED Manual de funcionamiento

Nintendo

Nintendo Wii U Manual de usuario

Nintendo

Nintendo DSI Manual de usuario

Nintendo

Nintendo RVL-001 - Wii Sports Pack Game Console Manual de usuario

Nintendo

Nintendo TETRIS Manual de usuario

Nintendo

Nintendo GameCube DOL-101 Manual de usuario

Nintendo

Nintendo Wii U Manual

Nintendo

Nintendo 3DS XL Manual de usuario

Nintendo

Nintendo TSC Manual de usuario

Nintendo

Nintendo Wii U Manual de usuario

Nintendo

Nintendo 3DS Manual de usuario

Nintendo

Nintendo Wii U Manual de instrucciones

Nintendo

Nintendo NES-001 - Entertainment System Game Console Manual del operador

Manuales populares de consola de juegos de otras marcas

Atari

Atari 2600 Manual de usuario

PLAYNETIC

PLAYNETIC GameNetic Manual de usuario

Sony

Sony SCPH-50008 Manual de usuario

Saitek

Saitek Alchemist Plus Manual de usuario

Sears

Sears Tele-Games 637.99743 Manual de usuario

AYANEO

AYANEO 2 Manual de usuario

Sony

Sony PlayStation 3 (Uncharted: Drake's Fortune Limited Edition... Manual de usuario

Mattel

Mattel My Meebas N2214 Manual de usuario

Entex

Entex PacMan2 Manual de usuario

Sega

Sega 32X Manual de usuario

Saitek

Saitek Cougar Manual de usuario

View-Master

View-Master Interactive Vision Diagrama de cableado

Sony

Sony SCPH-35003 GT Manual de usuario

Sony

Sony PSP go Manual de usuario

Sony

Sony PSVITA Manual de usuario

Excalibur

Excalibur ABC Wide 333 Manual de usuario

Microsoft

Microsoft XBOX Manual del propietario

LEXIBOOK

LEXIBOOK JL2700 Manual de usuario
