Ningbo AF-02G Guía rápida

Hot - Air Fryer

Operating and Safety Instructions

Model

：

AF-02G

- FOR INDOOR

HOUSEHOLD USE ONLY-

Specification & Feature:

-----Voltage:120V~ 60Hz

-----Wattage: 1400Watts

-----Capacity of basket: 2.6Litre

-----Adjustable temperature:170℉—400℉

----- Timer (0-60 min)

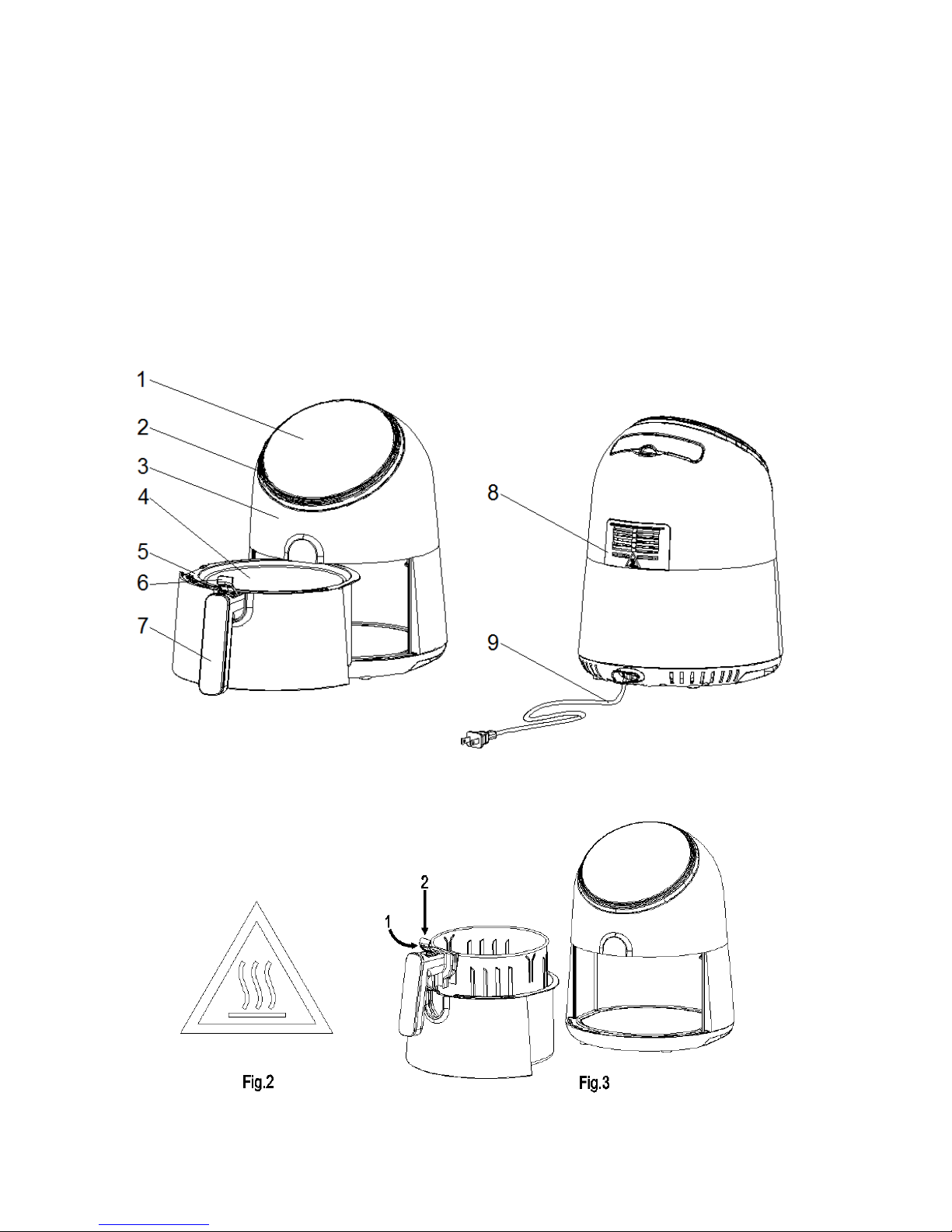

General description (Fig.1)

1. Control panel

2. Lid

3. Housing

4. Basket

5. Pan

6. Basket release button

7. Basket handle

8. Air outlet openings

9. Power cord

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed

including the following:

1. Read all instructions.

2. Do not touch hot surfaces.

3. To protect against electric shock do not immerse cord, plugs, or base in water or other

liquid.

4. WARNING: This electrical appliance contains a heating function. Surfaces, also different

than the functional surfaces, can develop high temperatures. Since temperatures are

Control panel

differently perceived by different persons, this equipment shall be used with CAUTION. The

equipment shall be touch only at intended handles and gripping surfaces, and use heat

protection like gloves or similar. Surfaces other than intended gripping surfaces shall get

sufficiently time to the cool down before getting touched.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or

taking off parts.

6. Type Y:If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualified persons in order to avoid a hazard.

7. The use of accessory attachments not recommended by the appliance manufacturer may

cause injuries.

8. Do not use outdoors

9. Do not let cord hang over edge of table or counter, or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Extreme caution must be used when moving an appliance containing hot oil or other hot

liquids.

12. Always attach plug to appliance first, then plug cord in the wall outlet. To disconnect, turn

any control to "off," then remove plug from wall outlet.

13. Do not use appliance for other than intended use.

14. The appliances are not intended to be operated by means of an external timer or separate

remote-control system.

SAVE THESE INSTRUCTIONS

This appliance is for HOUSEHOLD USE ONLY.

A short power supply cord Is provided to reduce the risk resulting from becoming entangled in

or tripping over a longer cord.

Longer detachable power-supply cords or extension cords are available and may be used if

care is exercised in their use.

No user-serviceable parts inside. Do not attempt to service this product.

POLARIZED PLUG

This appliance has a polarized plug, (one blade is wider than e other). As a safety feature to

reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one

way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a

qualified electrician. Do not attempt to defeat this safety feature or modify the plug in any

way. If the plug fits loosely into the AC outlet or if the AC outlet feels warm do not use that

outlet

Introduction

This all now Hot-air fryer provides an easy and healthy way of preparing your favorite

ingredients. By using hot rapid air circulation and a top grill, it is able to make numerous

dishes. The best part is that the Hot-air fryer heats food at all directions and most of the

ingredients do not need any oil.

Important

Please read this manual carefully before you use the appliance and save it for future

reference.

Danger

- Never immerse the housing, which contains electrical components and the heating elements,

in water or rinsing under the tap

- Avoid any liquid enter the appliance to prevent electric shock or short-circuit.

- Keep all ingredients in the basket or prevent any contact from heating elements.

- Do not cover the air outlet when the appliance is working.

- Fill the pan with oil may cause a fire hazard.

- Don't touch the inside of the appliance while it is operating.

Warning

-This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety.

- Check if the voltage indicated on the appliance fits the local mains voltage.

- Do not use the appliance if there is any damage on plug, mains cord or other parts.

- Do not go to any unauthorized person to replace or fix damaged main cord.

- Keep the mains cord away from hot surfaces.

- Do not plug in the appliance or operate the control panel with wet hands..

- Do not place the appliance against a wall or against other appliances. Leave at least 10cm

free space on the back and sides and 10cm free space above the appliance.

Do not place anything on top of the appliance.

- Do not use the appliance for any other purpose than described in this manual.

- Do not let the appliance operate unattended.

- During hot air frying, hot steam is released through the air outlet openings, Keep your hands

and face at a safe distance from the steam and from the air outlet openings.

Also be careful of hot steam and air when you remove the pan from the appliance.

-Any accessible surfaces may become hot during use (Fig.2)

- Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait

for the smoke emission to stop before you remove the pay from the appliance.

Caution

- Ensure the appliance in placed on a horizontal, even and stable surface.

- This appliance is designed for household use only. It may not suitable to be safely used in

environments such as staff kitchens, farms, motels, and other non-residential environments.

Nor is it intended to be used by clients in hotels, motels, bed and breakfasts and other

residential environments.

- If the appliance is used improperly or for professional or semi-professional purposes or if it is

not used improperly or for professional or semi-professional purposes or it is not used

according to the instructions in the user manual, the guarantee becomes invalid and we

could refuse any liability for damage caused.

-Always unplug the appliance while not using.

-The appliance needs approximately 30 minutes to cool down for handle or cleaning safely.

Automatic switch-off

This appliance is equipped with a timer, when the timer has counted down to 0, the appliance

produces a bell sound and switches off automatically. To switch off the appliance manually,

press the button “1” for more than 3 seconds (Fig.8).

Before first use

1. Remove all packaging materials

2. Remove any stickers or labels from the appliance

3. thoroughly clean the basket and pan with hot water, some washing-up liquid and a

non-abrasive sponge.

4.Wipe inside and outside of the appliance with a moist cloth.

This is an oil-free fryer that works on hot air, Do not fill the pan with oil or frying fat.

Preparing for use

1 Place the appliance on a stable, horizontal and even surface.

Do not place the appliance on non-heart-resistant surface.

2 Place the basket in the pan (Fig.3).

3 Pull the cord from the storage compartment which locates on the bottom of the appliance.

Do not fill the pan with oil or any other liquid.

Do not put anything on top of the appliance, the airflow will be disrupted and affects

the hot air frying result.

Using the appliance

The oil-free can prepare a large range of ingredients. The recipe booklet included helps you

get to know the appliance.

Hot air frying

1. Plug in the mains plug..

2. Carefully pull the pan out of the Hot-air fryer (Fig.4)

3. Put the ingredients in the basket. (Fig.5)

Note: Do not exceed the MAX indicator (see section "settings" in this chapter), as it

may effect the quality of the food.

4. Slide the pan back into the Hot-air fryer (Fig.6)

Noting to carefully align with the guides in the body of the fryer.

Never use the pan without the basket in it.

Caution: Do not touch the pan during and some time after use, as it gets very hot.

Only hold the pan by the handle.

5.Determine the required preparation time for the ingredient ( see section ‘Settings’ in this

chapter).

Add 3 minutes to the preparation time when the appliance is cold.

Note: If you want, you can also let the appliance preheat without any ingredients

inside. Then fill the basket and turn the timer knob to the required preparation time.

a. The timer starts counting down the set preparation time.

b. Excess oil from the ingredients is collected on the bottom of the pan.

6. Operate the control panel as follows(Fig 8)

Plug in the power，the power indicator will light up.（Button “1”）

Button 1 –Power Button

Once the Outer Basket and Fry Basket are properly placed in the main Unit housing, the

Power Button will be illuminated. Selecting the power button for 2 seconds will make the unit's

default temperature 200, while the cooking time will be set to 15 minutes. Selecting the Power

Button a second time will start the cooking process. Pressing the power button for 2 seconds

to close the entire device during cooking. All the lights go out, the fan stops working.

Note: During cooking, you can touch the button to control the pause and start of cooking.

Button 2 –Preset Button

Selecting the “ ” Preset Button enables you to scroll through the 8 popular food choices.

Once selected, the predetermined time and cooking temperature function begins.

Button 3&4 –Temperature Control Buttons

The + and – symbols enable you to add or decrease cooking temperature 10℉ at a time.

Keeping the button held down will rapidly change the temperature. Temperature Control range:

170℉-400℉ .

Button 5&6 –Timer Control Buttons

The + and – symbols enable you to add or decrease cooking time, one minute at a time.

Keeping the button held down will rapidly change the time. Time control range is 0 minutes to

60 minutes.

Indicator light “ 7 ”

Heating indicator

Fig.8

Indicator light “ 8 ”

Fan indicator

Indicator light “ 9 ”

Temperature indicator

Indicator light “ 10 ”

Timer indicator

Indicator light “ 11-18 ”

Recipe indicator

7.Some ingredients require shaking halfway through the preparation time (see section

“Settings” in this chapter). To shake the ingredients, pull the pan out of the appliance by the

handle and shake it. Then slide the pan back into the I fryer

Tip: To reduce the weight, you can remove the basket from the pan and shake the basket

only. To do so, pull the pan out of the appliance, place it on a heat-resistant surface and

press the button of handle. and lift the basket out of the pan(Fig.3)

8. When you hear the timer bell, the set preparation time has elapsed. Pull the pan out of the

appliance and place it on a the trial framework.

Note: You can also switch off the appliance manually. Press “1” Power' key 3 seconds, unit turns off.

9.. Check if the ingredients are ready.

If the ingredients are not ready yet, simply slide the pan back into the appliance and set the

timer to a few extra minutes.

10. To remove ingredients (e.g. fries), pull the pan out of the Hot-air fryer and place it on trial

framework, and press the basket release button and lift the basket out of the pan. (Fig.3)

Do not turn the basket upside down with the pan still attached to it, as any excess

oil that has collected on the bottom of the pan will leak onto the ingredients.

the pan and the ingredients are hot and hot fryer. Depending on the type of the

ingredients in the I fryer, steam may escape from the pan.

11. Empty the basket into a bowl or onto a plate.

Tip: To remove large or fragile ingredients, lift the ingredients out of the basket by a pair of

tongs

12. When a batch of ingredients is ready, the Hot-air fryer is instantly ready for preparing

another batch.

Settings

This table below will help you to select the basic settings for the ingredients.

Note: Keep in mind that these settings are indications. As ingredients differ in origin, size,

shape as well as brand, we cannot guarantee the best setting for your ingredients.

Because the Rapid Air technology instantly reheats the air inside the appliance instantly

Pull the pan briefly out of the appliance during hot air frying barely disturbs the process.

Tips

- Smaller ingredients usually require a slightly shorter preparation time than larger

ingredients.

- A larger amount of ingredients only requires a slightly longer preparation time, a smaller

amount of ingredients only requires a slightly shorter preparation time.

- Shaking smaller ingredients halfway through the preparation time optimizes the end result

and can help prevent unevenly fried ingredients.

- Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the Hot-air fryer

within a few minutes after you added the oil.

- Do not prepare extremely greasy ingredients such as sausages in the Hot-air fryer .

- Snacks that can be prepared in a oven can also be prepared in the Hot-air fryer

- The optimal amount for preparing crispy fries is 500 grams.

- Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also

requires a shorter preparation time than home-made dough.

- Place a baking tin or oven dish in the Hot-air fryer basket if you want to bake a cake or

quiche or if you want to fry fragile ingredients or filled ingredients

- You can also use the Hot-air fryer to reheat ingredients. To reheat ingredients, set the

temperature to 300℉ for up to 10 minutes.

Min-max

Amount

(g)

Time

(min.)

Temperat

ure

(℉)

Shake

Extra information

Potato & fries

Thin frozen fries

300-400

15-20

400

shake

Thick frozen fries

300-400

20-25

400

shake

Potato gratin

500

20-25

390

shake

Meat & Poultry

Steak

100-500

15-20

360

Pork chops

100-500

15-20

360

Hamburger

100-500

15-20

360

Sausage roll

100-500

13-15

390

Drumsticks

100-500

15-22

400

Chicken breast

100-500

15-20

360

Snacks

Spring rolls

100-400

8-10

390

shake

Use oven-ready

Frozen chicken nuggets

100-500

10-15

390

shake

Use oven-ready

Frozen fish fingers

100-400

15-20

400

Use oven-ready

Frozen bread crumbed

cheese snacks

100-400

8-10

360

Use oven-ready

Stuffed vegetables

100-400

10-15

320

Baking

Cake

300

10-15

360

Use baking tin

Tabla de contenidos

Manuales populares de Freidora de otras marcas

Innsky

Innsky 55SA1US Manual de usuario

Falcon

Falcon G350/11 Guía del usuario

GoWISE USA

GoWISE USA GW22612 Manual de usuario

Wolf

Wolf IF15/S Manual de usuario

Electrolux

Electrolux Thermetic 9CHG583284 Guía rápida

Gourmia

Gourmia GAF799 Manual de usuario

DeLonghi

DeLonghi D677UX Manual de usuario

SEVERIN

SEVERIN DEEP FRYER - Guía del usuario

Toastmaster

Toastmaster TMFG18-NAT Manual de usuario

Domo

Domo DO465FR Manual de usuario

Henny Penny

Henny Penny PFG-691 Manual de usuario

Farberware

Farberware FBW FT 43721 B Manual de usuario

GERMANICA

GERMANICA GEAF5L3LD Manual de usuario

Roller Grill

Roller Grill MF 120 R Manual de operación

Philips

Philips HD9211 Manual de usuario

Linea 2000

Linea 2000 Domo DO536FR Manual de usuario

Lakeland

Lakeland 31796 Manual de usuario

Dash

Dash Tasti-Crisp DFAF755 Manual de usuario
