Ninebot ONE Service Manual

Ninebot Americas

Important Safety Notices

Read and follow all safety notices:

To replace parts on the Ninebot ONE, you must read and follow all instructions and warnings in this

manual.

Always power off the Ninebot ONE before performing any maintenance or installing any part or

accessory. Always unplug the AC power cord before performing any maintenance or installing any part

or accessory.

Remove the Battery before performing any service on the Ninebot ONE.

Do not use the Battery if the exterior wrap/covering is broken or if the Battery emits an unusual odor,

smoke, or excessive heat, or leaks any substance. Avoid contact with any substance seeping from the

Battery. Batteries contain toxic and corrosive materials that could cause serious injury.

Observe and follow all safety information on the warning label found on the Battery.

Use only charging devices approved by Ninebot and never attempt to bypass or override their charging

protection circuits.

Do not wash the Ninebot ONE with a power washer or high pressure hose. Avoid exposure to heavy

downpours or extended periods of heavy rain (including during riding, storage, or while being

transported). Clean with soap and water and a soft cloth. Make sure that the Charge Port is dry before

you plug in the Power Cord.

Do not submerge the Ninebot ONE or Battery in water. If you suspect the Battery has been submerged

or experienced water intrusion, call Segway Technical Support immediately at 1-866-473-4929, prompt

#2. Until you receive further instructions, store the Ninebot ONE outdoors and away from flammable

objects.

As with all rechargeable batteries, do not charge near flammable materials. When charging, the

batteries heat up and could ignite a fire.

Always wear gloves when handling chemicals (such as lubricants, corrosion inhibitors, greases, or oils)

to reduce the potential for skin damage or irritation.

Failure to adhere to these warnings could lead to serious injury, death, fire, or damage to property.

2 / 20

CONTENTS

LED Shell Removal ............................................................................................................................................3

LED Strip Replacement .....................................................................................................................................5

Battery Removal ...............................................................................................................................................6

Control Board Replacement .............................................................................................................................8

Charging Port Replacement........................................................................................................................... 11

Handle Replacement ..................................................................................................................................... 13

Motor Replacement ...................................................................................................................................... 15

Motor Noise Troubleshooting ....................................................................................................................... 18

3 / 20

LED Shell Removal

1. Gently use a flathead screwdriver to release the locking tabs. Use your hands to pull the LED Shell

off of the Ninebot ONE.

Pay attention to the wires near the top of the Ninebot ONE. Be sure to replicate the original wiring

layout when re-installing the LED Shell.

4 / 20

2. The black shell has two LED strips. The front LED strip is connected to the connector marked with

"1" and the rear LED strip is connected to the connector marked with "2."

3. Reinstall the LED shell in the reverse order of removal.

5 / 20

LED Strip Replacement

If an LED strip is inoperable or damaged, replace it by following the steps below.

1. Remove the LED shell (see LED Shell Removal). Gently remove the damaged LED strip by pulling it

out in the direction indicated.

2. Remove the red backing tape from the new LED strip, then apply the LED strip as shown below.

2. LED strip installation is complete.

6 / 20

Battery Removal

1. Remove the LED Shell on the right side of the Ninebot ONE (see LED Shell Removal).

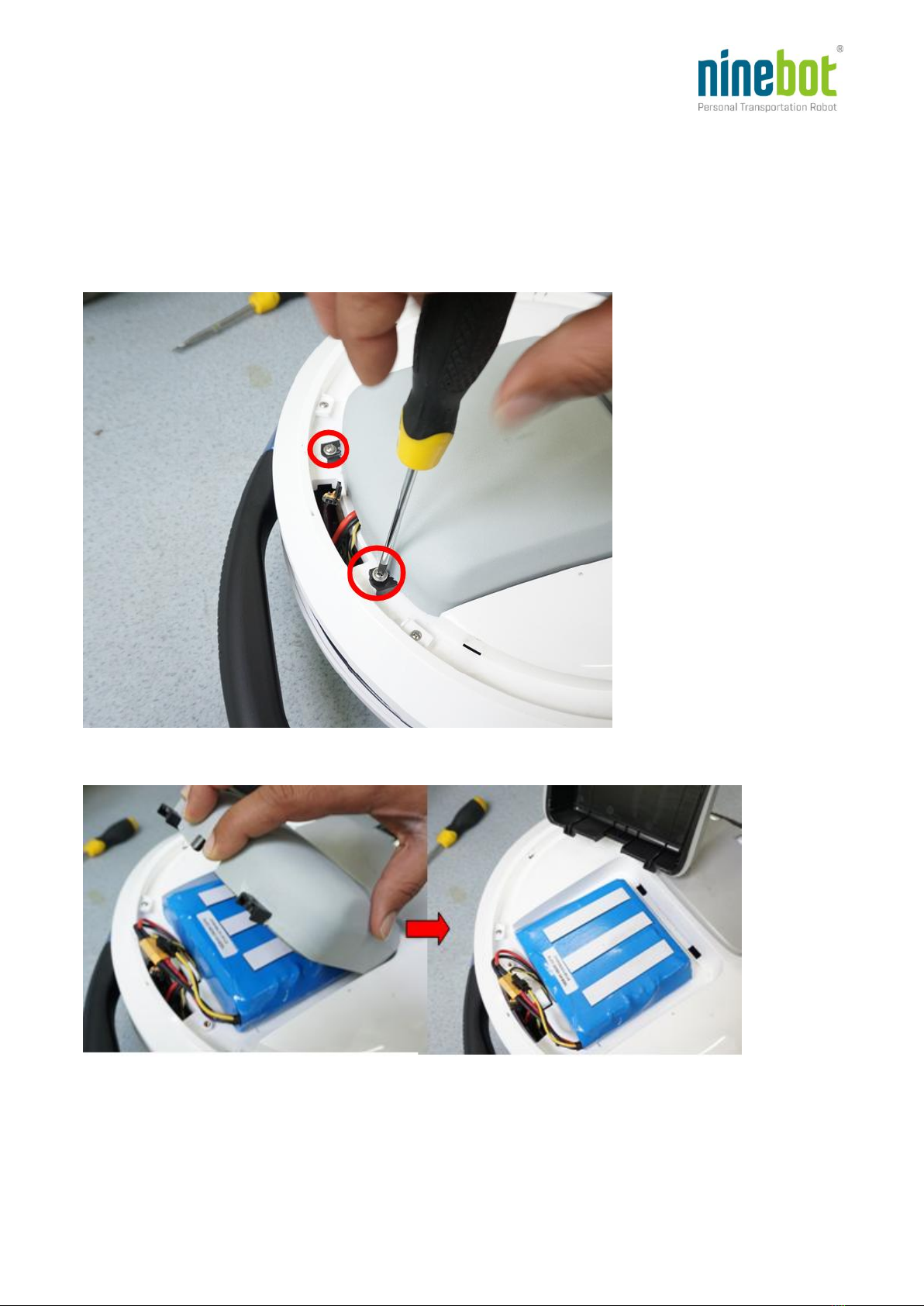

2. Open the battery compartment cover using a Phillips-head screwdriver to remove the two

screws.

2. Remove the battery compartment cover, paying attention to the wiring harness layout.

7 / 20

3. Disconnect the battery connectors as shown below.

4. Battery removal is complete. Reinstall in the reverse order of removal.

8 / 20

Control Board Replacement

1. Remove the LED shell on both sides of the Ninebot ONE (see LED Shell Removal).

2. Remove the battery (see Battery Removal).

2. Open the control board compartment cover using a Phillips-head screwdriver to remove the two

screws (left side of the Ninebot ONE).

2. Remove the control board compartment cover, then unplug the motor/control board cable.

9 / 20

3. After disconnecting the motor cable, use a Phillips-head screwdriver to remove the six screws

shown below.

4. After removing the screws, disconnect the power wire and take out all the wires from the white

protective clip, paying attention to the wiring harness layout.

10 / 20

5. Disconnect the power button wire.

6. Replace the control board in the reverse order of removal.
