SPECIFICATIONS SHEET

TSP-1

INTELLIPAD®CI KEYPAD ACCESSORY

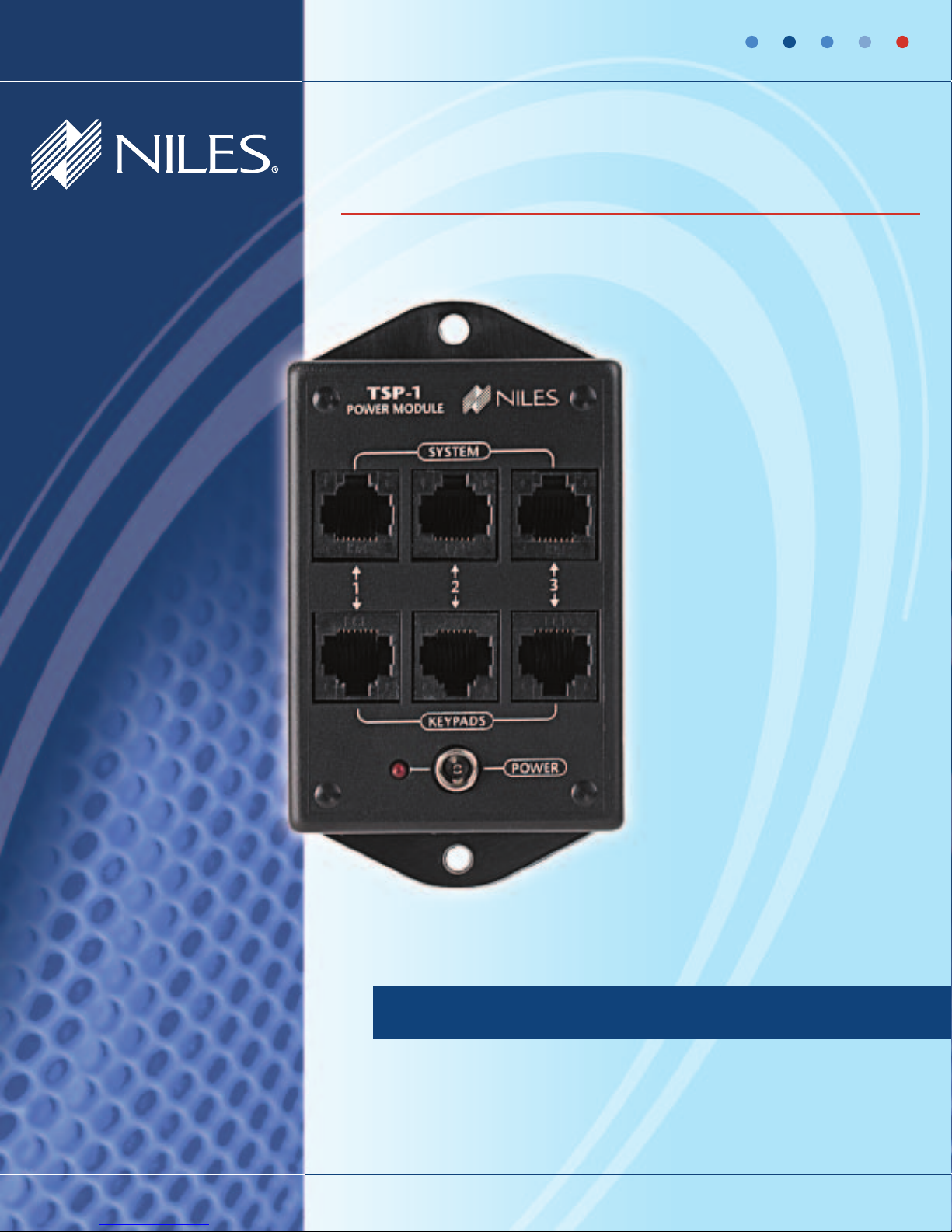

TSP-1 Touch Screen Power Module

MULTIZONE PRODUCTS

FEATURES

■Power module for use with Niles touch screen keypads

■Required for installations with four or more touch screens connecting to a single Niles MultiZone

Receiver or Preamplifier

■Powers up to three touch screens

■Includes UL-listed regulated in-line power supply with universal voltage capability

SPECIFICATIONS:

■Dimensions 2-1/2" wide x 3-1/2" high x 1-1/8" deep

Warranty: Two-year limited

TSP-1

Stock Number

FG01059

IntelliPad®Ci Keypads Accessories

NILES AUDIO CORPORATION 12331 S.W. 130 Street, Miami, FL 33186 Tel: 800.289.4434 – www.nilesaudio.com NATSP-1PDF

©2004 Niles Audio Corporation. All Rights Reserved. Niles and the Niles logo are registered trademarks of Niles Audio Corporation.

Product Detail

A TSP-1 connects to the zoned Keypad Input of a Niles MultiZone Control System and a touch screen keypad. Up to

three touch screen keypads may be connected to a TSP-1.

a

b

c

a

e

c

d

d

e

b

a

Close Up Detail

(a) Screw holes for mounting (screws

not included).

(b) Red LED Power indicator.

(c) Three system outputs connect the

TSP-1 to the Keypad input of Niles

MultiZone Control System.

(d) Three keypad inputs accept

connections from touch screen

keypads.

(e) Power jackprovided for connection

of the included DCpower adapter.

ConnectionDetail

(a) Niles ZR4630 MultiZone Control System.

(b) Cable for connection to aNiles MultiZone Control System.

(c) Output to Keypad Input of aNiles MultiZone Control System.

(d) Inputs from touch screen keypads.

(e) 16VDCin-line power adapter plugged into an unswitched ACoutlet.

Niles ZR-4630

(back)

Zone 1Zone 2Zone 3Zone 4Zone 5Zone 6

TSP-1

Keypad Inputs
