NightSearcher Hawk-Star X Manual de usuario

Hawk-Star

Hawk-Star X

Rechargeable LED

Searchlight

USER MANUAL

www.nightsearcher.co.uk

Parts

1 Narrow beam

2 Wide beam

3 On/Off/Mode Button

4 Adjustable stand

5 Battery status and charging indicator

6 Charging base

7 AC Charger

8 DC Charger

Page 2: Parts

Page 3-4: Quick start guide, Battery status indicators, Emergency Function

Page 5: Mounting the charging base, Attaching the shoulder strap

Page 6: Operating the Hawk-Star

Page 7: Specication

Page 8: Important warnings, Safe disposal of waste electrical products

Warranty terms

Thank you for purchasing the NightSearcher Hawk-Star/ Hawk-Star X rechargeable searchlight,

our latest innovation offering an all-in-one solution that combining a high performance

searchlight and powerful wide angled oodlight in a single lightweight, compact unit.

Important: Please read these instructions carefully to ensure the safe and

effective use of this product.

Index

* Optional shoulder strap is available.

1. Slide the Hawk-Star inside

the changing base, push until

it slots in the back and connects

with the charging ports.

Quick Start Guide - Charging

2. Connect the charger lead

into the input socket at the

back of the charging base.

3B. Plug the charger into a

suitable socket outlet. Turn switch

on. The indicator on the charger

will illuminate red when charging

and green when fully charged.

4. The battery indicator will illuminate from Red

(Low battery)---Amber---Green (fully charged).

The lights will turn off once fully charged. When

the Hawk-Star is charged unplug and remove

the charging lead. Recharge for 6.5 hours

HawkStar, and 8 hours HawkStar-X.

3A. Plug the vehicle charger into

the car cigarette socket. The indicator

on the charger will illuminate red when

charging and green when fully charged.

6. Once is the Hawk-Star is released slide the

searchlight out of the charging base.

The Hawk-Star is ready to be used.

Quick Start Guide - Charging Continued...

Please note:

The battery will reach optimum performance after

5 complete discharge/charge cycles.

5. To release the Hawk-Star from the charging base,

hold and pull the release levers towards you, use

your thumb to push the searchlight away from the

charging slot as shown in picture.

When the Hawk-Star is switched ON, the battery indicator will

illuminate for 5 seconds to show the battery status.

Green: Full Battery

Red: Low Battery

Amber: Half Battery

Battery Status Indicators

Emergency Function

The HawkStar/-X has an emergency function to automatically illuminate in the event of a

power cut. To use this function, turn the search light on and place in the charging base.

Switch on the charger, in the event of a power cut the HawkStar will illuminate to aid the

lights location.

Mounting The Charging Base The Hawk-Star is supplied with a charging base,

providing a convenient way to charge it. The base

can be used at on a desk, or xed on a wall or a

vehicle. The charging base has four mounting holes,

measurements are shown in Fig 1. Make sure the M5

xings screws used to mount the charging base, are

strong enough to support the weight of the Hawk-Star.

Take care not to over tighten the xings and mount on

a at/level surface, so the charge base isn’t distorted

or damaged.

74mm

137mm

31mm

42mm

105mm

194mm

NightSearcher Search Light

INSTALLATION DETAILS

DIRECTION OF TRAVEL

OF VEHICLE

MOUNT USING FOUR M5 FIXING SCREWS

HOLDER MAY BE MOUNTED

ON EITHER A HORIZONTAL

OF VERTICAL PANEL

74mm

137mm

31mm

42mm

105mm

194mm

NightSearcher Search Light

INSTALLATION DETAILS

DIRECTION OF TRAVEL

OF VEHICLE

MOUNT USING FOUR M5 FIXING SCREWS

HOLDER MAY BE MOUNTED

ON EITHER A HORIZONTAL

OF VERTICAL PANEL

74mm

137mm

31mm

42mm

105mm

194mm

NightSearcher Search Light

INSTALLATION DETAILS

DIRECTION OF TRAVEL

OF VEHICLE

MOUNT USING FOUR M5 FIXING SCREWS

HOLDER MAY BE MOUNTED

ON EITHER A HORIZONTAL

OF VERTICAL PANEL

Holder may be mounted on either a

horizontal or vertical panels.

Fig 1.

Attaching Shoulder Strap

A optional shoulder strap is available to

buy, making it comfortable to carry the

searchlight, whilst keeping your hands

free to perform other tasks. See Fig 2.

showing the tting and removing of the

strap.

Fig 2.

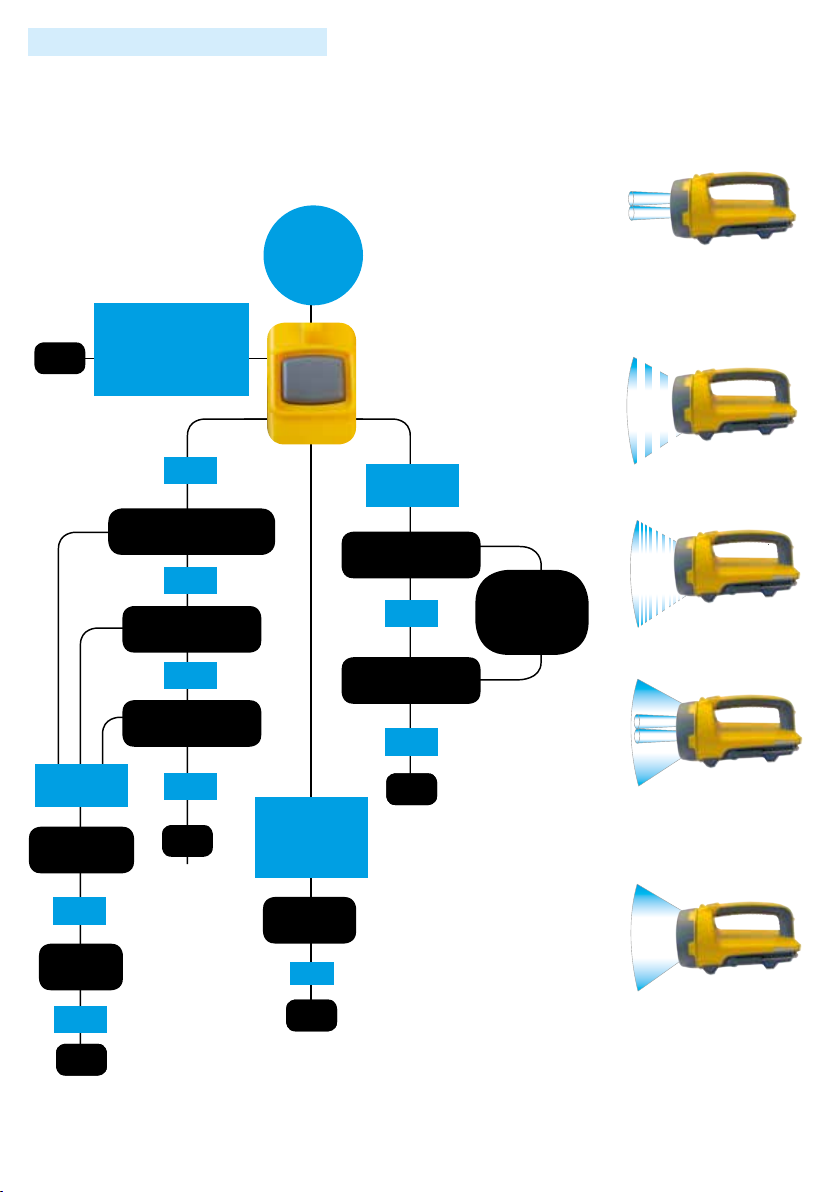

To switch ON, simply press the grey button and the Hawk-Star will default to Mode 1:

Full narrow light. It has 7 other light modes, please follow the diagram below to activate the

required light mode.

Hawk-Star Light Modes:

Operating The Hawk-Star

PUSH

OFF

7WIDE

80% BEAM

SOS

6BOOST

BEAM

PUSH

Off

OFF

MODE

BUTTON

1NARROW

100% BEAM

2NARROW

76% BEAM

5SOS

BEAM

Off

OFF

PUSH AND

HOLD

Narrow Light: 1100%

276%

348%

5SOS

4Strobe

Boost Light:

6Narrow Light

+ Wide Light

Wide Light: 780%

8 100%

9Dimmable 10-100%

PUSH

PUSH Off

OFF

PUSH

PUSH AND

HOLD

AFTER 5

SECONDS OF

USE, PUSH THE

MODE BUTTON IN

ANY LIGHT MODE

OFF

RAPID PRESS

3 TIMES

FROM

ANY MODE

3NARROW

48% BEAM

4STROBE

BEAM

8WIDE

100% BEAM

9PUSH

AND HOLD

TO DIM

LIGHT

Specification:

Mode Lumens Runtime Lumens Runtime

Boost Narrow + Wide beam 2,250 3hrs 30mins 4,200 4hrs 30mins

Search 100% 1,250 7hrs 2,200 7hrs 15mins

76% 950 8hrs 1,300 9hrs 45mins

48% 600 9hrs 30mins 900 12hrs 30mins

Flood 100% 1,000 6hrs 30mins 2,000 7hrs 30mins

80% 800 7hrs 30mins 1,250 9hrs 45mins

Charging time 6hrs 30mins 8hrs

IP Rating IP67 IP67

Battery 7.4V 6.6Ah Li-ion 7.4V 10.2Ah Li-ion

Impact Resistant 1.5 Metres 1.5 Metres

Supplied with AC Adaptor, Charging Base, Shoulder Strap and Vehicle charger

Product Code NSHAWKSTAR NSHAWKSTAR-X

Dimensions 250x(W)125x(D)120mm

Weight 1.0KG 1.1KG

Hawk-Star: Hawk-Star X:

• Read manual before use.

• Always use the charger supplied, never use a damaged charger or alternative charger.

• Disconnect from any power sources and switch off, before performing any routine cleaning

or maintenance.

• Leave servicing to a qualied person. In case of any problems or questions please contact

NightSearcher Limited or an authorised distributor.

• Do not shine the light directly into people’s eyes, as it may damage their eyesight.

• Keep out of reach of children.

Important Warnings

Safe disposal of waste electrical products and batteries

If at any time, you need to dispose of this product or parts of this product: please note

that waste electrical products and batteries should not be disposed of with ordinary

household waste. Recycle where facilities exist. Check with your local authority for

recycling advice. Alternatively, NightSearcher is happy to take receipt of this product at

end-of-life and will recycle it on your behalf.

All NightSearcher products have a 3-year standard warranty on all manufacturing defects and

1-year warranty on all rechargeable batteries from the date of purchase.

Extended Warranty: From 1st September 2018, customers have the option to

extend the warranty of the product to 5 years for manufacturing defects.

Registration of the product must be made within one month of purchase by

sending us an email sales@nightsearcher.co.uk. In the message please state in

your own words that you would like to register your NightSearcher product for the

extended warranty. To view NightSearcher’s warranty policy, please visit:

http://nightsearcher.com/en/warranty.html or scan the QR code.

Warranty:

NightSearcher Ltd

Unit 4, Applied House

Fitzherbert Spur

Farlington

Portsmouth

Hampshire

PO6 1TT, UK

Tel: 023 9238 9774

www.nightsearcher.co.uk

@NightSearcher

@NightSearcherltd

nightsearcher-limited

@nightsearcher-limited
