NexxTech 1511217 Manual de usuario

1511217

USB to HDMI®Adapter

User’s Manual

Table of Contents

Important Safety Instructions .......................................2

Precautions......................................................3

1. Introduction ...................................................4

Features.......................................................4

Package Contents ...............................................4

System Requirements ............................................5

LED Status .....................................................5

2. Installation ....................................................6

Hardware Connection.............................................6

Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-13

On Windows 7® (32/64 bit) ......................................7-8

On Windows Vista®...........................................9-10

On Windows XP®............................................. 11

On Mac (10.7) .............................................12-13

3. Using the Adapter..............................................13

On Windows...................................................13

Display Properties ............................................13

Extend Your Windows Desktop to Secondary Monitor (Default) .......14-16

Mirror Your Windows Desktop ...................................17

Set as Primary Monitor.........................................18

 CongurimgtheComponents..................................19-20

Fit to TV Function ...........................................21-22

 StandbyandHibernate,ShutDownandRestart .....................23

Inferred Modes ...............................................23

 DisconnectingtheAdapter ......................................24

 UsingDualAdapters...........................................24

On Mac.......................................................25

Managing Multiple Displays .....................................25

 SettingtheDisplayResolutionsandRotation .......................25

 SettingthePositionofDisplays ..................................25

Display Positions .............................................26

 SettingtheDisplaytoMirror/ExtendMode.........................26

 ChangingtheMainDisplay .....................................27

 ConguringtheDisplayfromtheMenuBar .........................27

 VerifyingtheDriverInstallation...................................28

 UninstalltheAdapterandDriver..................................29

4. Troubleshooting ...............................................30

5. Specications ...............................................31-32

7. FCC/Warranty .................................................33

• Readtheseinstructions.Allthesafetyandoperatinginstructionsshouldbereadbeforethisproductisoperated.

• Keeptheseinstructions.Thesafetyandoperatinginstructionsshouldberetainedforfuturereference.

• Heedallwarnings.Allwarningsontheapplianceandintheoperatinginstructionsshouldbeadheredto.

• Followallinstructions.Alloperatinganduseinstructionsshouldbefollowed.

• Donotusethisapparatusnearwater.Theapplianceshouldnotbeusednearwaterormoisture,forexample,inawetbasement

or near a swimming pool.

• Cleanonlywithdrycloth.

• Donotblockanyventilationopenings.Installinaccordancewiththemanufacturer’sinstructions.

• Donotinstallnearanyheatsourcessuchasradiators,heatregisters,stoves,orotherapparatus(includingampliers)that

produceheat.

• Donotdefeatthesafetypurposeofthepolarizedorgroundingplug.Apolarizedplughastwobladeswithonewiderthantheother.

Agroundingplughastwobladesandathirdgroundingprong.Thewidebladeorthethirdprongisprovidedforyoursafety.Ifthe

providedplugdoesnottintoyouroutlet,consultanelectricianforreplacementoftheobsoleteoutlet.

• Protectthepowercordfrombeingwalkedonorpinchedparticularlyattheplugs,conveniencereceptacles,andatthepointwhere

theyexitfromtheapparatus.

• Onlyuseattachments/accessoriesspeciedbythemanufacturer.

• Useonlywiththecart,stand,tripod,bracket,ortablespeciedbythemanufacturer,orsoldwiththeapparatus.

Whenacartorrackisused,usecautionwhenmovingthecart/apparatuscombinationtoavoidinjuryfromtip-over.

• Unplugtheapparatusduringlightningstormsorwhenunusedforlongperiodsoftime.

• Referallservicingtoqualiedpersonnel.Servicingisrequiredwhentheapparatushasbeendamagedinanyway,

suchaspowersupplycordorplugisdamaged,liquidhasbeenspilledorobjectshavefallenintotheapparatushasbeenexposed

torainormoisture,doesnotoperatenormally,orhasbeendropped.

• Pleasekeeptheunitinawell-ventilatedenvironment.

• WARNING:Toreducetheriskofreorelectricshock,donotexposethisapparatustorainormoisture.

 Theapparatusshallnotbeexposedtodrippingorsplashingandthatobjectslledwithliquids,suchasvases,shallnotbeplaced

ontheapparatus.

• WARNING:Themainpowerplugisusedasadisconnectdevice,thedisconnectdeviceshallremainreadilyoperable.

• WARNING:Toreducetheriskofelectricshock,donotremovecover(orback)astherearenouser-serviceablepartsinside.Refer

servicingtoqualiedpersonnel.

• WARNING:Thebatteriesshallnotbeexposedtoexcessiveheatsuchassunshine,reorthelike.

• Theapparatusshouldbeconnectedtoapoweroutletwithaprotectivegroundingconnection.

CAUTION

RISKOFELECTRICSHOCK

DO NOT OPEN

Thelightningashwitharrowheadsymbol,withinan

equilateraltriangleisintendedtoalerttheusertothe

presenceofuninsulated“dangerousvoltage”withinthe

productsenclosurethatmaybeofsufcientmagnitude

toconstituteariskofelectricshocktothepersons.

Theexclamationpointwithinanequilateral

triangleisintendedtoalerttheuserto

thepresenceofimportantoperatingand

maintenance(servicing)instructionsinthe

literatureaccompanyingtheappliance.

Important Safety Instructions

Pleasereadtheseprecautionsbeforeoperatingtheunit.

Placement

Avoidplacingtheunitinareasof:

• Directsunlightorheatingradiators,orclosedautomobiles.

• Hightemperature(over35˚C)orhighhumidity(over90%).

• Dustastheinternalpartsmaybeseriouslydamaged.

Non-use periods

Turntheunitoffwhennotinuse.Whenleftunusedforalongperiodoftime,theunitshouldbe

unpluggedfromthehouseholdACoutlet.

No ngers or other objects inside

• Touchinginternalpartsoftheunitisdangerousandmaycauseseriousdamagetotheunit.Do

notattempttodisassembletheunit.

• Donotputanyforeignobjectsonthedisctray.

Keep away from water/magnet

• Keeptheunitawayfromowervases,tubs,sinks,etc.Ifliquidsarespilledintotheunit,serious

damage could occur.

• Neverbringamagnetormagnetizedobjectneartheunit.

Stacking

• Placetheunitinahorizontalposition,anddonotplaceanythingheavyonit.

Condensation

Moisturemayformonthelensinthefollowingconditions:

• Immediatelyafteraheaterhasbeenturnedon.

• Inasteamyorveryhumidroom.

• Whentheunitissuddenlymovedfromacoldenvironmenttoawarmone.Ifmoistureformsinside

theunit,itmaynotoperateproperly.Inthiscase,turnonthepowerandwaitaboutonehourfor

themoisturetoevaporate.

If there is noise interference on the TV while a broadcast is being received

DependingonthereceptionconditionoftheTV,interferencemayappearontheTVmonitorwhile

youwatchaTVbroadcastandtheunitislefton.ThisisnotamalfunctionoftheunitortheTV.To

watchaTVbroadcast,turnofftheunit.

Precautions

1. Introduction

ThisUSBtoHDMI®Adapterenablesyoutoconnectmorethanonemonitor,LCDorprojectortoa

computerwithaUSB2.0port.FordesktopusersaddinganextramonitorviaUSBconnectioniseasier

thaneverwithouthavingtoinstallaninternalvideocard.Enjoythebenetsofanadd-onmonitor,

suchasmorevisibleapplicationsandalargerdisplayarea.Theadaptersupportshot-swappingandis

energy-efcient.

Features

• Add-onmonitor,LCDorprojectorthroughasingleUSB2.0port

• Hot-plug;addorremovemonitorwithoutsystemreboot

• Smallinsize,workswithallHDMI®displays

• Supportshighresolutionupto1920x1080

• ExtendandMirrormodesupport

• Resumesfromhibernationandsuspendmodes

• Supportsupto6USBdisplayadapterssimultaneously

Package Contents

Beforeinstallation,pleasechecktheitemsinthepackage.Thepackageshouldcontainthefollowing

items:

• USBtoHDMI®Adapterx1

• CD(DriverandUser’sManual)x1

• 1mUSBCablex1

• QuickInstallationGuidex1

System Requirements

TheminimumrequirementsforthePCare:

• SingleCoreCPU1.2GHzorhigher.Intel Pentium/Celeron,AMD K6/AthlonTM/DuronTM, or compatible

processor

• 512MBmemory

• AtleastoneUSB2.0port

• 30MBofavailablediskspace

• Windows®XP Home or Professional (including Table edition) SP2 or SP3, Windows Vista®SP1 or

SP2 (32-bit or 64-bit), and Windows®7 (32-bit or 64-bit).

• SupportsallIntel-basedMacs(includingSnowLeopard10.6.2,Leopard10.5.8,Tiger10.4.11).

• SuperVGA(800x600)orhigherresolutionmonitor

ToplayDVDsontheadapter-attachedmonitor,inadditiontotherequirementsabove,thefollowing

requirementsshouldalsobemet:

• DualcoreCPU2.0GHzprocessor

IfthePCspecicationisbelowthis,performancewillbelower(orCPUloadinghigherthanacceptable).

Windows®XP

For 1-2 monitors

ThismaynotprovidefullframerateDVDplaybackatfullscreen.

• 1.2GHzSingleCoreCPU

• 512MBmemory

For 3 monitors(1DVDvideowithotheropenapplications)

Willsupportonly1videoofDVDresolutionatfullscreen:

• 1.8GHzCPU

• 1GBmemory

For 6 screens(1DVDvideo):

• 1.6GHzCoreDuo

• 1GBmemory

LED Status

LED Colour Description

Link Green On for power on

Off for power off

2. Installation

Hardware Connection

Power LED HDMI®Connector

DC Power Jack

MiniUSBConnector



PowerButton



Optional - some

devices do not provide

thestandardpower

(0.5A)forUSB2.0

ports, and will require an

external power supply.

Driver Installation

On Windows®7 (32/64 bit)

Caution: DO NOT connect the USB to HDMI®Adapter to your computer before you install the

provided driver.

Followtheproceduresbelowtoinstallthedriverandthenconnecttheadapter:

1. InserttheprovidedCDintoyourdiscdriveand

installer program will run automatically. Please click

on Run Setup.exetoexecutetheinstallprogram.

Note:

Iftheinstallerprogramdoesn’trunautomatically,

pleaselocateanddouble-clickontheSetup.exelein

theDriverfoldertolaunchthesetupprogram.

If you encounter a User Account Control dialog

boxwhenattemptingtoinstallaprogram,enter

an administrator password or click Yestostartthe

installation.

2. WhenyouseetheLicense Agreement

screen prompted as below, click on

I AccepttoinstallthesoftwareforUSB

display adapter.



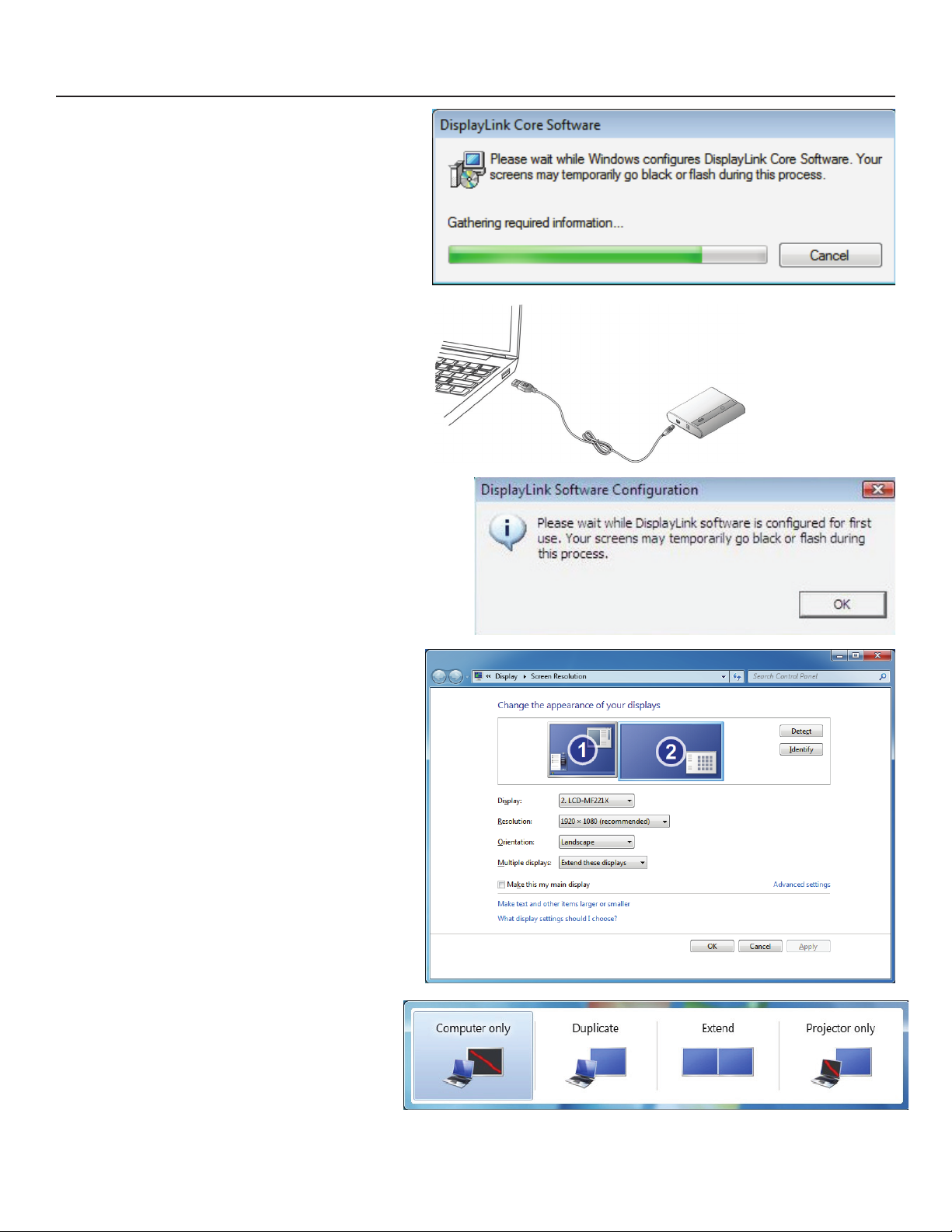

3. PleasewaitwhileWindowscongures

DisplayLink Core Software.

Your screens may temporarily go black or

ashduringthisprocess.

4. Whennished,theinstallationscreenwill

disappear and you will return

to your desktop.

5. ConnecttheUSBtoHDMI®Adapterto

your computer and monitor.

6. Whenyoupressthepowerbuttonondevice,the

following window will appear.

 PleasewaitwhileDisplayLinksoftware

isconguredforrstuse.Yourscreensmay

temporarilygoblackorashduringthisprocess.

Please click “OK”tostarttouseUSBtoHDMI®

Adapter.

7. Youcanchangetheappearanceofyour

displayswiththeWindowskey.Additional

controls are available in Windows®7:

Orientation (portrait, landscape, rotated

portrait, and rotated landscape).

8. Tocontrolthebehaviourofanattached

DisplayLink device (or screen), it

is possible to use Windows Key+P

todisplayamenu(andcyclethroughit)

toallow:

 DisconnectProjector,Duplicate,Extend,

ProjectorOnly.

*Actual strings depend on your

operation system. These screen shots

are from Windows®7 and might vary

slightly for each operation system.



On Windows Vista®(32/64 bit)

Caution: DO NOT connect the USB to HDMI®Adapter to your computer before you install the

provided driver.

Followtheproceduresbelowtoinstallthedriverand

thenconnecttheadapter:

1. InserttheprovidedCDintoyourdiscdriveand

installer program will run automatically. Please

click on Run Setup.exetoexecutetheinstall

program.

Note:

Iftheinstallerprogramdoesn’trunautomatically,

pleaselocateanddouble-clickontheSetup.exele

intheDriverfoldertolaunchthesetupprogram.

If you encounter a User Account Control dialog

boxwhenattemptingtoinstallaprogram,enteran

administrator password or click Allowtostartthe

installation.

2. WhenyouseetheLicense Agreement

screen prompted as below, click on

I AccepttoinstallthesoftwareforUSB

display adapter.



Tabla de contenidos

Manuales populares de Adaptador de otras marcas

PCB Piezotronics

PCB Piezotronics 090B274 Manual de usuario

Auvidea

Auvidea J20 Manual del producto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manual de usuario

Akribis

Akribis ITF-21-BISS-MIT Manual de usuario

Tenda

Tenda W54U Manual de usuario

ROHO

ROHO AGILITY Manual de usuario

PROLiNK

PROLiNK WN2001 Manual de usuario

Hawking

Hawking HUF2 Manual de usuario

Airlink101

Airlink101 AWLC4030 Manual de usuario

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manual de usuario

Philips

Philips SWA4554S/10 Manual de usuario

JVC

JVC TS-C9D2B Manual de instrucciones

NETGEAR

NETGEAR A6100 Manual de usuario

D-Link

D-Link DWA-121 Manual de usuario

Philips

Philips SWA2037 Manual de usuario

Basalte

Basalte 0610-20 Manual de usuario

Yealink

Yealink EHS40 Manual de usuario

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manual de usuario
