Nexgrill 720-0686 Manual de usuario

ITEM/ARTICLE/ARTICULO #0297983

STAINLESS STEEL CHARCOAL GRILL

BARBECUE AU GAZ EN ACIER INOXYDABLE

(page17 )

PARRILLA A DE ACERO INOXIDABLE (página33 )

MODEL/MODÈLE/MODELO #720-0686

K15Y08P-1

Example only: SERIAL # ________ MFG. DATE ________ PURCHASE DATE: _________

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-877-323-5263, 8 a.m. - 6 p.m., PST, Monday - Friday, 8 a.m. – 12 p.m.

Saturday.

WARNING

READ ALL INSTRUCTIONS AND WARNINGS

CAREFULLY. FAILURE TO FOLLOW PROPER

PROCEDURES AND WARNINGS MAY RESULT

IN SERIOUS INJURY AND PROPERTY DAMAGE

WARNING

FOR OUTDOOR USE ONLY

WARNING

This grill is not intended to be

installed in or on recreational

vehicles and/or boats.

Safety Information……………………………………………………..........................................3

Package Contents List……….……………………………………………………………………….5

Hardware Contents…….…………………. ……………………….…………….……………….....6

Preparation...............................................................................................................................6

Assembly Instructions…………………………………………………………………….…..……6

Operating Tips ……………………………………………………………….....…….……..........11

Charcoal Grill Information ………………………………………………………………….………14

Warranty……………………….………….…………………………………………..…………..….15

Replacement Parts List………………….…....……………………………………..…….….…….16

TABLE OF CONTENTS

SAFETY INFORMATION

WARNING – Hazards or unsafe

practices which COULD result in severe

personal injury or death.

CAUTION – Hazards or unsafe

practices which COULD result in minor

personal injury.

CAUTION

This unit is heavy. Two people required for safe

assembly.

Some parts may contain sharp edges. Wear

protective gloves if necessary.

Read and follow all safety statements, warning,

assembly instructions and use and care instructions

before attempting to assemble and use.

WARNING

If for any reason you do not understand any of these instructions, contact customer service at

1-877-323-5263.

WARNING

Keep a fire extinguisher near this unit at all times. WARNING

This grill is for outdoor use only, in well-ventilated

areas..

WARNING

The use of alcohol, prescription or non-prescription

drugs may impair the user’s ability to properly

assemble and safely operate this unit

WARNING

DO NOT Operate the unit near or under flammable

or combustible materials such as decks, porches or

carports. A minimum clearance of 36 in. (92 cm) is

recommended. DO NOT operate the unit under

overhead construction.

WARNING

This product is not to be used as a heater.

WARNING

Use caution when lifting and moving the unit to

avoid back strain or back injury. Use two people

to lift or move the unit. Do not move the unit

while it is in use.

WARNING

Operate the unit on a stable, level, non-

flammable surface such as asphalt, concrete or

solid ground. DO NOT operate the unit on

flammable material such as carpet or wood deck.

WARNING

DO NOT use this product in a manner other than

its intended a purpose. It is NOT intended for

commercial use. It is not intended to be installed or

used in or on a recreational vehicle and/or boats.

WARNING

Use caution when assembling and operating this

unit to avoid cuts and scrapes from edges.

WARNING

DO NOT Store this unit near gasoline or other

combustible liquids or where other combustible

vapors may be present.

WARNING

Carbon monoxide hazard.

Burning charcoal inside can kill you. It gives off carbon monoxide, which has no odor. NEVER burn charcoal

inside homes, vehicles or tents.

SAFETY PRACTICES TO AVOID INJURY

When properly cared for, your grill will provide safe, reliable service for many years. However, use extreme care

as the grill produces intense heat that can increase accident potential.

When operating this appliance, practice these basic safety precautions:

Do not repair or replace any part of the grill unless specifically recommended in this manual. All other service

should be referred to a qualified technician.

Do not install the grill in or on recreational vehicles and/or boats.

Do not leave children alone or unattended in an area where the grill is being used. Do not allow children to sit,

stand or play on or around the grill at any time.

Do not store items of interest to children around or below the grill or cart. Do not allow children to crawl inside

the cart.

Do not use aluminum foil to line the grill racks or grill bottom. This can severely upset combustion air flow or trap

excessive heat in the control area.

Do not use the grill to cook excessively fatty meats or other products, which promote flare-ups.

This unit is intended for outdoor use only.

Never use the grill in extremely windy conditions. If located in a consistently windy area (oceanfront,

mountaintop, etc.), a windbreak will be required. Always adhere to the clearance specifications

WARNING

DO NOT store or operate this product in an area

accessible to children or pets. Store this unit in a

dry, protected location.

WARNING

DO NOT leave the unit unattended while in use..

WARNING

The grill head is heavy and will require two or

more people to lift and position onto grill cart.

WARNING

DO NOT leave hot ashes unattended until the

rill cools com

letel

WARNING

DO NOT move the unit while in use or while ashes

are still hot. Allow the unit to cool completely before

moving or storing.

WARNING

NEVER use gasoline or other highly volatile

fluids as a starter.

WARNING

Always cook your food on the grade after the flame

is burned out.

WARNING

Dispose of cold ashes by wrapping them in a

heavy-duty aluminum foil and placing in a

noncombustible container. Make sure that there

are no other combustible materials in or near the

container.

WARNING

If you must dispose of ashes in less time than it

takes for the ashes to completely cool down, then

remove the ashes from the unit, keeping them in

the heavy-duty foil, and soak them completely with

water before disposing of them in a

noncomb

ustible container

WARNING

Allow the unit to cool completely before

conducting any routine cleaning or maintenance.

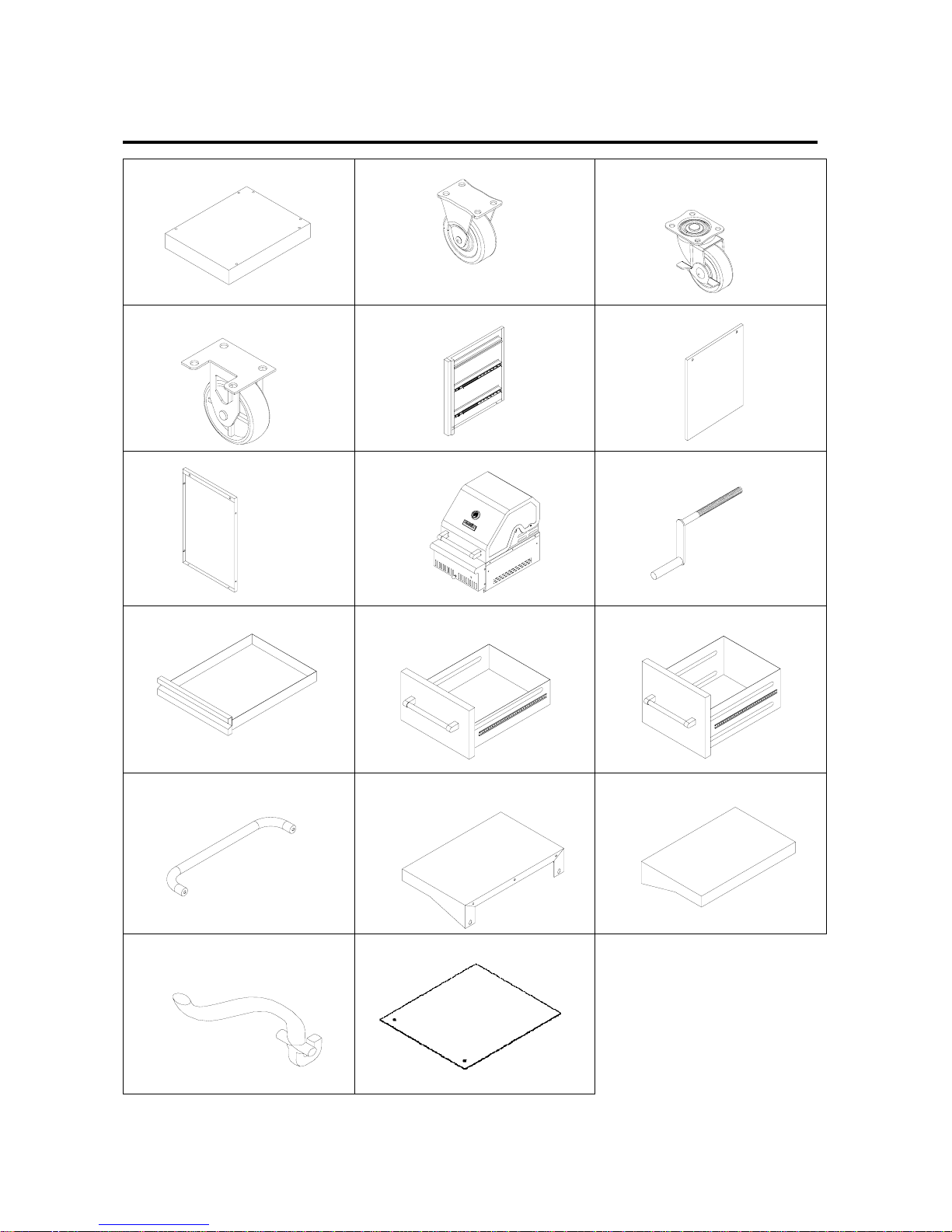

PACKAGE CONTENTS LIST

A. Bottom Panel -----------1pc

B. Caster ------------------2pcs C. Swivel Caster with brake--

1pc

D. Swivel Caster ----------1pc

E. Left Side Panel --------1pc

F. Right Side Panel---------1pc

G. Back Panel ----------1pc

H. Charcoal grill firebox with

main lid ---1pc

I. Crank Handle ----------1pc

J. Charcoal Tray ----------1pc

K. Drawer A ----------1pc .

L. Drawer B ----------1pc

M. Push Bar ----------------1pc

N. Side shelf, left-----------1pc

O. Side Shelf, right--------1pc

P．Grate Lifter--------------1pc

Q. Drawer clapboard ---------1 pc

Pack Description Required

for

assembly

Extra

hardware Total

AA 1/4-in. x 15-mm Truss Head Screw With Locking Washer (PDC) 22 2 24 pcs.

BB 1/4-in. x 12-mm Truss Head Screw With Locking Washer(Stainless

Steel) 18 2 20 pcs.

CC 5/32. x10mm Truss Head Screw With Locking Washer(Stainless Steel) 2 1 3 pcs.

DD 1/4-in. Flat Washer(PDC) 22 2 24 pcs.

Before beginning assembly, installation or operation of product, make sure all parts are present. Compare

parts with package contents list and diagram above. If any part is missing or damaged, do not attempt to

assemble, install or operate the product. Contact customer service for replacement parts.

yEstimated Assembly Time: 50 minutes

yTools Required for Assembly:

Phillips Screwdriver (not included) and Wrench (not included)

yNote: The right and left sides of the grill are designated as if you are standing and facing the grill.

1. Swivel Caster Assembly

Mount the caster onto the bottom panel (A) using sixteen

1/4-in. x15-mm truss head screw with locking washers (AA)

and sixteen 1/4-in. flat washers (DD).

Position the swivel caster with brake (C) under the left

rear of the cart bottom (A), and position the swivel caster

(D) under left front as shown in Fig. 1.

Position the two stationary casters (B) should be positioned

under the right side.

NOTE: Turn over the bottom panel to mount the cast.

HARDWARE CONTENTS

PREPARATION

ASSEMBLY INSTRUCTIONS

Fig. 1

AA BB CC DD

1/4-in.x15-mm truss head screw with locking

washers (AA) 16 x

1/4-in. flat washers (DD) 16 x

2. Side Panel Assembly

Use two 1/4-in.×12-mm truss head screw with locking

washers (BB) to connect the bottom of the left side

panel (E) to the bottom panel (A). Make the left side

panel flush with rear of bottom panel and tighten the

screws as shown in Fig. 2.

Repeat steps for the right side panel (F)

3. Back Panel Assembly

Remove the back panel (G) from the carton. Position the

back panel (G) with the flat side facing outward. Attach the

back panel to the bottom panel (A) with two 1/4-in. x 12-mm

truss head screw with locking washers (BB) as shown in Fig. 3

Use four 1/4-in.×12-mm truss head screw with

locking washers (BB) to connect the back panel (G)

to the right and left side panels as shown in Fig. 4

Fig. 4

Fig. 2

Fig. 3

1/4-in.×12-mm truss head screw with locking

washers (BB) 4 x

1/4-in.x12-mm truss head screw with

locking washers (BB) 2 x

1/4-in.x12-mm truss head screw with locking

washers (BB) 4 x

BB E

4. Drawer Clapboard assembly

Insert the drawer clapboard (Q) into the slot which under

the first line of glides, attached the clapboard with two

5/32-in. x 10-mm truss head screw with locking

washers (CC) as shown in Fig.5.

5. Firebox Assembly

Remove the firebox with main lid (H) from the carton

and carefully place onto the grill cart as shown in Fig. 6

Note: Take care when moving the firebox assembly

as the bottom flanges can be bent, which would misalign

the holes.

Attach the firebox with main lid (H) to the grill cart using

four 1/4-in. x 12-mm truss head screw with locking washers(BB)

Note: Two screws and two washers for each side of cart

as shown in Fig. 7.

Screw the back of firebox using two 1/4-in. x 12-mm truss

head screw with locking washers (BB) as shown in Fig. 7.

Note: To screw all the above screws from outside to inside.

Grill cart

Fig. 5

CAUTION The firebox with main lid is heavy

and will require two or more people to lift and

position onto grill cart. Failure to do so may result

in back injury.

1/4-in. x 12-mm truss head screw with

locking washer (BB) 6 x

Fig. 6

Grill cart

5/32-in.x10-mm truss head screw with

locking washers (CC) 2 x

Fig. 7

6. Charcoal Tray and Drawers Assembly

Insert the charcoal tray (J), drawer A (K) and drawer B

(L) to the glides. and then push them in as shown in Fig. 8.

7. Charcoal Handle Assembly

Remove the charcoal handle (I) from the carton, and then screw it

into the hole on the charcoal door by turning the handle clockwise

as shown in Fig. 9.

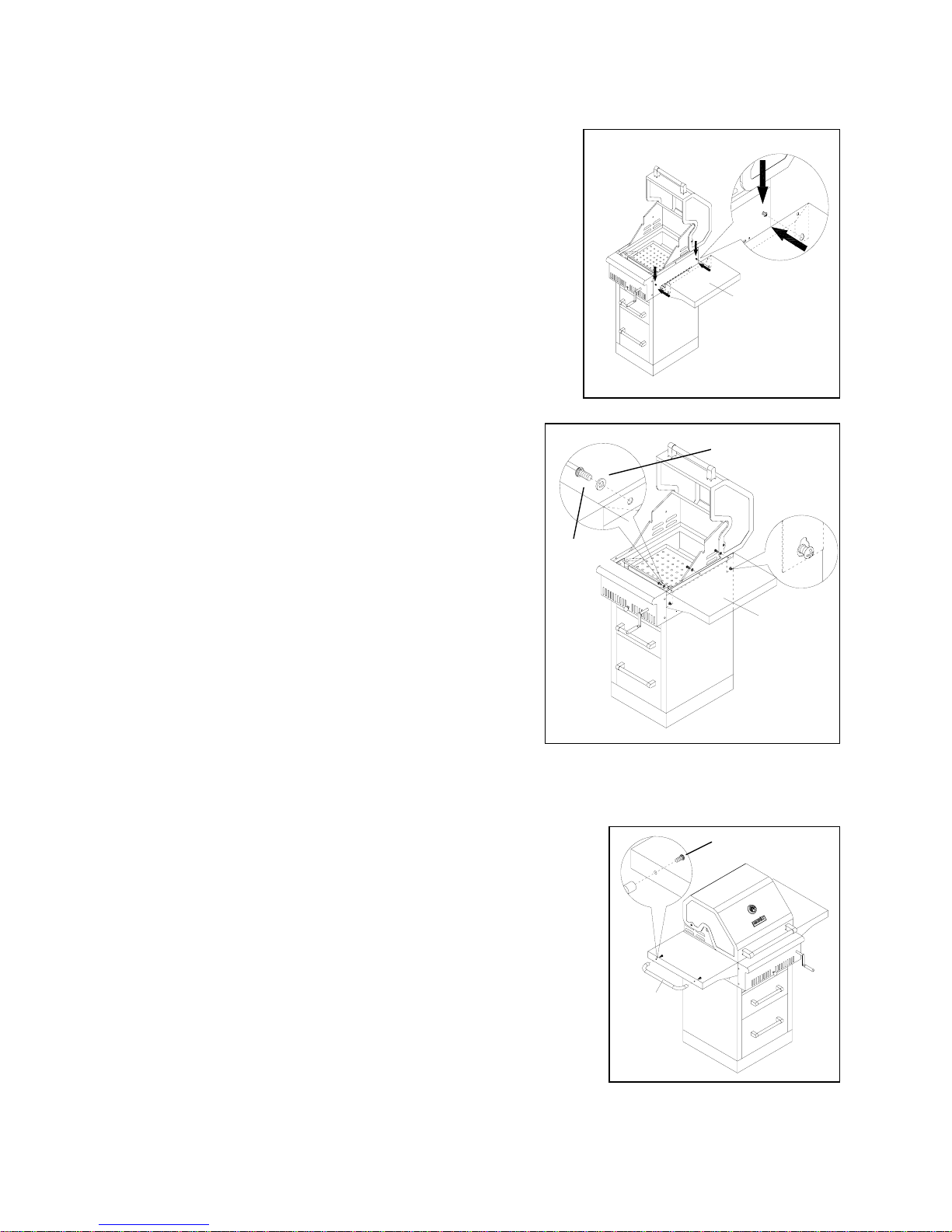

8. Right Side Shelf Assembly

Loose the two screws on the right panel of firebox as shown

in Fig.10.

Fig. 9

Fig. 10

Fig. 8

Align the bottom key holes on right side shelf (O) with two

loosened screws, and tighten these two screws as shown

in Fig. 11.

Use three 1/4-in. x 15-mm truss head screws with locking

washer (AA) and three 1/4-in. Flat Washer(DD), to keep

the right side shelf(O) in place.

Note: Screw the three 1/4-in. x 15-mm truss head

screws with locking washer (AA) to align the right side

shelf from inside to outside. Screw the two screws on the

right panel of firebox from outside to inside.

9. Left Side Shelf Assembly

Repeat step 8 for the left side shelf.

10. Push Bar Assembly

Take out the push bar (M) from carton, align it to the left

flange of left side shelf with two1/4-in. x 12-mm screw

with locking washers (BB) as shown in Fig. 13.

Note: These two screws are tighten from under the

left side shelf.

Fig. 13

Fig. 11

Fig. 12

1/4-in. x 15-mm truss head screw with locking

washer (AA) 3 x

1/4-in. Flat Washer(DD) 3 x

1/4-in. x 12-mm truss head screw with

locking washers (BB) 2 x

Tabla de contenidos

Otros manuales de Parrilla de Nexgrill

Nexgrill

Nexgrill 720-0670D Guía de referencia rápida

Nexgrill

Nexgrill 1902203 Manual de usuario

Nexgrill

Nexgrill G4NEX Manual de usuario

Nexgrill

Nexgrill 720-0607 Guía de referencia rápida

Nexgrill

Nexgrill 720-0125-LP Manual de usuario

Nexgrill

Nexgrill Oakford 1000 Manual de usuario

Nexgrill

Nexgrill 720-0433 Guía de referencia rápida

Nexgrill

Nexgrill 720-0830H Guía del administrador

Nexgrill

Nexgrill 720-0958HA Manual de usuario

Nexgrill

Nexgrill 730-0830MB Manual de usuario

Nexgrill

Nexgrill 720-0864R Manual de usuario

Nexgrill

Nexgrill DeLUXE 720-0896CG Manual de usuario

Nexgrill

Nexgrill 720-0896C Guía de instalación

Nexgrill

Nexgrill 720-0882BF Manual de usuario

Nexgrill

Nexgrill Evolution 720-0830HE Manual de usuario

Nexgrill

Nexgrill OAKFORD 790 Guía de referencia rápida

Nexgrill

Nexgrill 720-0925W Manual de usuario

Nexgrill

Nexgrill 720-0419 Guía de referencia rápida

Nexgrill

Nexgrill NEEVO 720-1055 Manual de usuario

Nexgrill

Nexgrill evolution infrared plus Manual de usuario

Nexgrill

Nexgrill 820-0007G Manual de usuario

Nexgrill

Nexgrill 720-0925P Manual de usuario

Nexgrill

Nexgrill 720-0864M Manual de usuario

Nexgrill

Nexgrill 720-0439 Guía de referencia rápida

Manuales populares de Parrilla de otras marcas

Orbegozo

Orbegozo GR 2300 Manual de usuario

bora

bora PT11 Manual de usuario

Klarstein

Klarstein 10031664 Manual de usuario

Garland

Garland MWE3W Manual de usuario

Char-Broil

Char-Broil 463722714 Manual de usuario

Kenmore

Kenmore 415.16123800 Manual de usuario

Camp Chef

Camp Chef PG24CLAU Manual de usuario

Tucker Barbecues

Tucker Barbecues GTR Series Instrucciones de montaje

Monogram

Monogram ZGG540NCP1SS Manual de usuario

Equipex

Equipex Sodir Savoy Manual de usuario

Gaggenau

Gaggenau VR 414 610 Manual de usuario

Miele

Miele KM 408-1 Manual de usuario

George Foreman

George Foreman GGR50B Manual de usuario

AOG

AOG T series Manual de usuario

Gorenje

Gorenje TG2000CB Manual de instrucciones

Weber

Weber Genesis Silver-B Permamount NG 051701 Manual de usuario

Glen

Glen SA 3037 Manual de usuario

Stalgast

Stalgast 9730100 Manual de usuario
