NewLine Q Series Manual de usuario

QUICK START GUIDE

SPRING 2022

Q Series Quick Start Guide

Turning On the Display

1. Press the Power button on the bottom right side of the display.

2. The button will change color from red to blue once the display is powered on.

Power Button

Turns the display on/off

Volume Button

Adjusts the sound

volume higher or lower

Brightness Button

Adjusts the brightness of

the screen higher or lower

Home Button

Takes you to the

Home Screen

Quick Settings Button

Bring up the quick

settings menu

Q Series Panel Front Buttons

Off On

The Home Screen Shortcuts

Q Series Quick Start Guide

OPS

Takes you to the internal PC (OPS), if

there is one connected to the display.

Screen Sharing

Takes you to the Newline Cast

wireless screen sharing app.

Whiteboard

Takes you to the embedded

Whiteboard.

Browser

Pulls up a web browser if the display is

connected to the Internet.

Apps

Lists all of the available apps

you can access and use on the

screen.

Add

Lets you customize and add icons to

the Home Page for easy access to your

favorite apps and sources.

End Session

Ends the session

and takes you back

to the Start Screen.

File Viewer

Takes you to

the Newline File

Commander, where

you can access and

preview les on local

and cloud storage

systems.

Source Preview

Tap the name of a

connected source,

and a preview of

that source will

appear in the

window. Tap the

preview and go

straight to that

source.

Settings

Adjust the panel

settings.

Internet Settings

Pulls up the

Ethernet settings

menu.

Shortcuts Menu

Menu that can be

customized with apps

of your choice.

Q Series Quick Start Guide

1. On the home screen, click the +Add button in the Shortcuts menu.

2. In the pop-up menu, select “Apps” on the right side of the menu.

3. Tap to choose which apps to add to the Shortcuts menu. A blue

check mark will apear in the upper right corner of the selected app.

4. Once you have chosen which apps to add, click the Xin the upper

right to exit. You can add up to ve apps to the Shortcuts menu.

Adding Home Screen Shortcuts

Volume Slider

Adjusts the sound volume

higher or lower.

Brightness Slider

Adjusts the brightness of the

screen higher or lower.

The Quick Settings Toolbar

The Quick Access Toolbar can be accessed by tapping the Quick Settings

button on the front of the panel or by swiping up with two ngers from the

bottom of the touch display.

Freeze - Freezes all activity on the

display. Tap anywhere on the display to

unfreeze.

Mute - Mutes the sound on the panel.

Tap again to unmute.

Wi-Fi - Turns the Wi-Fi on/off.

Classroom Tools - Opens the Classroom

Tools menu.

Sound Only - Turns off the panel

display, while leaving the sound on. Tap

anywhere on the display to turn display

back on.

Toolbar - Tap to hide or show the Quick

Access Toolbar.

Home Shortcut - Takes you to the main

Home Screen.

Sources - Takes you to the Source

Preview Screen.

Settings - Open the Settings menu.

Split Screen - Tap to select two apps to

use in Split Screen mode.

Palm Erase - Select to erase using your

palms.

Palm Rejection - Select to reject palm

contact with panel.

Screen Lock - Select to lock the screen.

Log Out - Logs out the current User.

The Quick Access Toolbar

Q Series Quick Start Guide

The Quick Access Toolbar can be

accessed by tapping the white circle

on either the left or right side of the

screen. To minimize the Quick Access

Toolbar, tap the button again. Annotation Shortcut

Brings up whiteboarding options on top of

whatever is on the current screen. Tap a

second time to save a screenshot.

Whiteboard Shortcut

Takes you to the whiteboarding screen, letting

you draw and takes notes instantly.

Home Shortcut

Takes you to the main Home Screen.

Back Shortcut

Goes back one screen or to the previous app.

Can also be used to exit an app.

OPS/Sources Shortcut

Takes you to the on-board computer (OPS).

Tap and hold to pull up additional icons that

can take you to the Sources menu, letting you

easily switch between available sources.

Apps Shortcut

Takes you to a list of all the

apps available on the panel.

Source Preview Shortcut

Shows which sources are connected to the

display.

Running Apps Shortcut

Pulls up all apps currently

running on the panel.

Quick Access Menu Button

Tap to open the Quick Access Menu.

Tap again to minimize the menu.

1. Any device currently connected to the display will light up in

white in the Source Preview window on the home screen.

2. Tap the icon of the Source you want to switch to.

3. The Source Preview window will show a preview of what is

currently on the screen of that connected device.

4. Tap the icon of the Source a second time or tap the Preview

window and you will be taken to that source.

5. Plugging your device into the front ports will automatically

bring up the device on screen.

To Access Any Source Connected to the Display

Switching Sources Accessing the Built-In OPS Computer

1. Turn on the display.

2. Touch the “Tap to Start” message on the rst screen.

3. Tap the “OPS” button on the home screen.

4. You will now be viewing and using the built-in OPS

Computer.

Bonus Tips:

You can also quickly navigate to different sources

using these icons on the oating menu on both

sides of the display:

Quick Access to the OPS

Quick Access to the Sources Page

Q Series Quick Start Guide

1. You will need an HDMI cable and a USB cable to connect a

computer.

2. Plug in one end of the HDMI cable into one of the HDMI ports.

3. Plug in one end of the USB cable into the matching port.

4. Take the other end of the HDMI port and plug it into the HDMI port

on your computer.

5. Take the other end of the USB port and plug it into the USB port on

your computer.

6. Once both cables have been plugged into the display and the

computer, the matching port should turn white on the Source

Preview on the Home Screen.

Connecting a Computer with USB & HDMI

The Front Ports

1. You will need a USB Type-C cable to connect a computer.

2. Plug in one end of the USB-C cable into the front USB-C port.

3. Take the other end of the USB-C port and plug it into the USB-C

port on your computer.

4. Once both cables have been plugged into the display and the

computer, the matching port should turn white on the Source

Preview on the Home Screen.

Connecting a Computer with USB-C

Switching Sources

There are ve ports located on the bottom left-hand side of the front of

the panel: USB Touch, HDMI, USB 3.0, USB Type-C, and mic-in.

Q Series Quick Start Guide

Installing the Wi-Fi Module

Caution

The Wi-Fi Module does not support hot plugging.

Therefore, you must insert or remove the Wi-Fi Module

when the display is powered off. Otherwise, the displays

or Wi-Fi Module may be damaged.

1. Unscrew the 2 screws on the Wi-Fi Module port and remove the

shielding cover.

2. Insert the Wi-Fi Module into the port on the rear of the panel until

rmly seated, using the 2 screws to secure it.

Q Series Quick Start Guide

Changing the Settings

1. In the upper right hand corner of the home screen select the

icon.

2. From the Settings menu, you can adjust things like the

Power settings, Internet Network settings, Date & Time, etc.

Changing Panel Themes

1. In the Settings menu select “Display & Theme”

2. Choose “Theme” from the menu options.

3. Choose the theme you would like to set on the panel Home Screen.

Launching Updates

Updates to Firmware and Apps launch automatically “over the air.”

A pop-up item will appear on the screen when the update is ready

to be downloaded.

Q Series Quick Start Guide

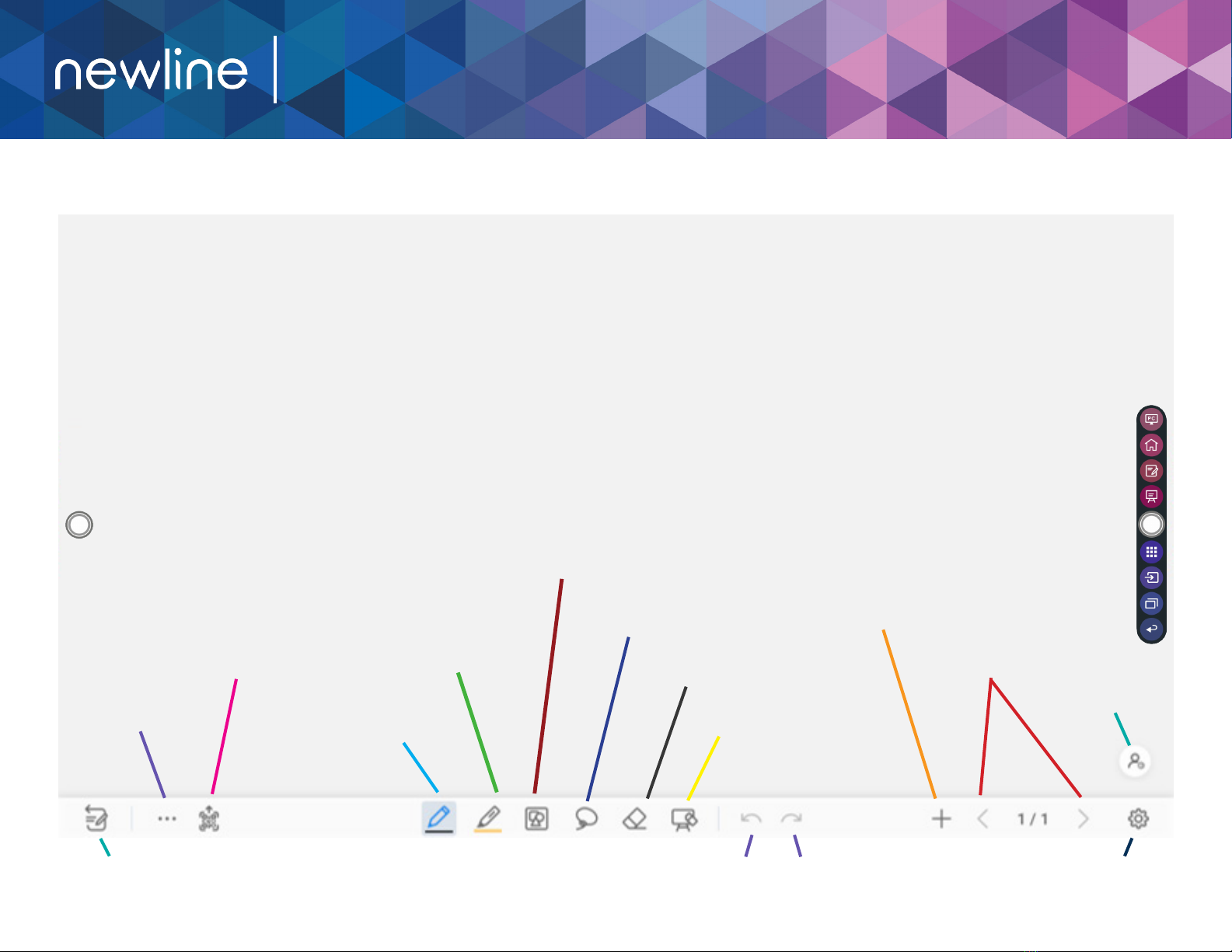

Whiteboard Tools

QR Code for saving &

sharing whiteboard

Pen tool

Highlighter tool

Insert shape

Lasso to

select items

Eraser

Clear whiteboard

Add whiteboard

page

Whiteboard page

navigation

Whiteboard

settings

Undo Redo

More options

& tools

Google account

sign-in

Switch between Screen

Annotation Mode
