Newland FM420 Manual de usuario

V1.0

FM420

Fixed Mount Barcode Scanner

Quick Start

Version Description Date

V 1.0

Support as from FM420 ﬁrmware V 3.06.021 and

higher.

19-10-2010

Revisions

Getting to Start

Unpacking.......................................... E-01

Main Unit........................................... E-01

Accessories........................................ E-02

Outline and Function ......................... E-03

Data Interface Deﬁnition ................... E-04

Speciﬁcation ...................................... E-05

Distance of Field................................ E-06

Dimentions of FM420 Unit ............... E-07

Connect FM420 to the Host .............. E-08

Programming Code

Query ................................................ E-09

Factory Default.................................. E-10

Reading Mode ................................... E-11

RS232 Programming ......................... E-12

USB Programming ............................ E-15

USB HID-KBW Programming.......... E-16

Beeper................................................ E-19

Line Feed and Carriage Return.......... E-20

1D Symbols ....................................... E-21

2D Symbols ....................................... E-26

Appendix

A. Testing Codes................................ E-28

B. Digit Code and Save ..................... E-29

C. Troubleshooting ............................ E-30

Content

E-01

请更换节标题

Getting to Start

FM420»

Unpacking

Unpack and check the main unit and accessories.In case there is any problem, please

contact with your dealer.

Main Unit

E-02

Getting to Start

Accessories

USB Cable»

Accessories

RS232 Cable + Power Adapter»

E-03

Getting to Start

Outline and Function

Indicator

Sensor Light

Illumination/Aiming Light

Lens

Note:

The scan window must be kept clean. Improper maintenance will breach the»

limited warranty.

Avoid rough objects not to damage or scratch the window.

Use brush to remove the stain.»

Use soft cloth (cloth for glasses) to clean.»

Prohibit spraying towards the window.»

Only use clean water as a cleanser.»

E-04

Getting to Start

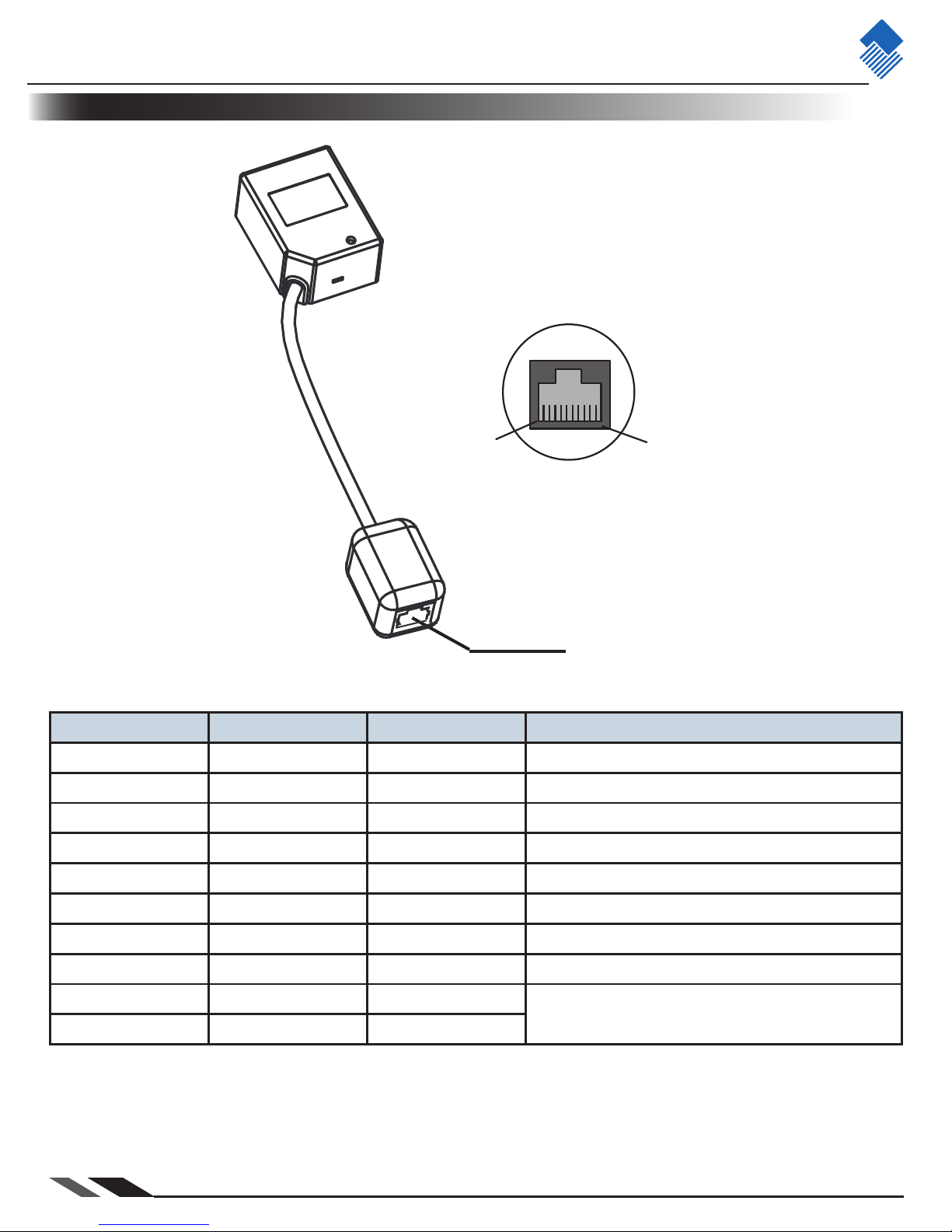

Data Interface Deﬁnition

PIN 1

PIN 10

Cable Slot

Pin Function Type Name

1 NC Null

2 NC Null

3 VCC P Power DC5V

4 TXD O Serial Port Output，RS232

5 RXD I Serial Port Input，RS232

6 NC Null

7 NC Null

8 GND P Ground

9 D- IO USB Data Signal

10 D+ IO

E-05

Getting to Start

Speciﬁcation

Pin Function Type Name

1 NC Null

2 NC Null

3 VCC P Power DC5V

4 TXD O Serial Port Output，RS232

5 RXD I Serial Port Input，RS232

6 NC Null

7 NC Null

8 GND P Ground

9 D- IO USB Data Signal

10 D+ IO

Image Capture Speciﬁcations

Image Sensor CMOS

Resolution 752*480

Interface RS232, USB

Barcode Scan Speciﬁcations

Symbols

2D PDF417, QR Code(Model 1/2), DataMatrix(ECC200, ECC000, 050,

080, 100,140),Aztec, Maxicode, etc.

1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar,

Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc

Precision ≥5mil

Depth of Scan Field 35mm-210mm

Print Contrast Ratio ≥30%

Sensitivity**

Roll 360°@ 0°Pitch and 0°Skew

Yaw (skew) ±60°@ 0°Roll and 0°Pitch

Pitch ±60°@ 0°Roll and 0°Skew

Illumination Speciﬁcations

Light Source LED (622 nm - 628 nm)

Light Intensity 330 LUX (130 mm )

Electrical and Mechanical Speciﬁcations

Power Consumption 2W

Voltage DC 5V (4.5-5.5)

Current

Working 400mA

Idle 78mA

Standby 18mA

Deep Sleep 800uA

Dimensions(L*W*H) 60.0 *50.0*26.0mm

Weight 70g

Environment Speciﬁcations

Operating Temperature -5℃- +45℃

Storage Temperature -40℃- +60℃

Humidity 5% - 95% (non-condensing)

Ambient Illumination 0 ~ 100,000 LUX

Certiﬁcates

FCC Part15 Class B, CE EMC Class B

**Test Condition:

Code39: 4 Bytes ; Resolution = 10mil; W:N = 3:1 ; PCS = 1.0 ;

Barcode Height = 12mm; Distance = 100mm; T=23°C; Illumination= 200 LUX

E-06

Getting to Start

Distance of Field

36°

0 50 100 150 200 250

55mm PDF417(10mil) 175mm

45mm Data Matrix(10mil）145mm

45mm QR Code(10mil）140mm

35mm Code39(10mil) 170mm

55mm Code39(15mil) 210mm

45mm Data Matrix(15mil）175mm

60mm PDF417(15mil) 205mm

50mm QR Code(15mil）175mm

E-07

Getting to Start

Dimentions of FM420 Unit

50mm

60mm

26mm

12mm 10mm

9mm

36mm

11 7mm.

M3 machine skew
