New Air AWR-460DB Manual de usuario

Manual v1.0

24” Built-in 46 Bottle Dual Zone

Wine Fridge

Refroidisseur à Vin de 46 Bouteilles

Avec Compresseur Intégré

Refrigerador de Vino Empotrable

de Doble Sección para 46 Botellas

AWR-460DB

OWNER’S MANUAL

Manuel de L'utilisateour

Manual del Propietario

www.newair.com 2

LANGUAGE INDEX

English Manual.......................................................................................... 3

Manuel en Français................................................................................. 18

Manual en Español.................................................................................. 34

www.newair.com 3

A Name You Can Trust

Trust should be earned and we will earn yours. Customer happiness is the focus

of our business.

From the factory to the warehouse, from the sales floor to your home, the

whole NewAir family promises to provide you with innovative products,

exceptional service, and support when you need it the most.

Count on NewAir.

As a proud NewAir owner, welcome to our family. There are no robots here,

real people shipped your product and real people are here to help you.

For questions regarding your product, please contact us at:

Call:

1-855-963-9247

Email:

support@newair.com

Online:

www.newair.com

Connect with Us:

Facebook.com/newairusa Instagram.com/newairusa

YouTube.com/newairusa Twitter.com/newairusa

www.newair.com 4

READ AND SAVE THESE INSTRUCTIONS.

TABLE OF CONTENTS

Specifications ....................................................................................................... 4

Safety Information & Warnings ........................................................................... 6

Parts List............................................................................................................... 7

Parts Diagram............................................................................................... 7

Assembly & Installation ....................................................................................... 8

Handle Assembly.......................................................................................... 8

Installation ................................................................................................... 8

Reversing The Door Swing ........................................................................... 9

Operating Instructions ....................................................................................... 10

How To Use The Buttons On The Display Panel......................................... 10

The Display Screen..................................................................................... 11

Cleaning & Maintenance.................................................................................... 13

Cleaning Your Cooler.................................................................................. 13

Moving Your Cooler ................................................................................... 13

Wine Storage Guide........................................................................................... 14

How Long Should I Store My Wine?........................................................... 14

Troubleshooting................................................................................................. 15

Limited Manufacturer’s Warranty ..................................................................... 17

SPECIFICATIONS

ODEL

AWR-460DB

OLTAGE

110~120V

URRENT

1.2A

FREQUENCY: 60Hz

OWER

ONSUMPTION

140W

TORAGE

APACITY

5.3 Cu. Ft.

TEMPERATURE RANGE:

40°F - 50°F (upper zone)

50°F - 66°F (lower zone)

EIGHT

104.5 lbs

UNIT SIZE (W X DX H):

22.50"D (24.00" w/handle) x

23.50"W x 33.00"H

www.newair.com 5

Take advantage of all the benefits product registration has to offer:

Service and Support

Diagnose troubleshooting and service issues faster and more accurately

Recall Notifications

Stay up to date for safety, system updates and recall notifications

Special Promotions

Opt-in for NewAir promotions and offers

Registering your product information online is safe & secure and takes less than

2 minutes to complete:

Alternatively, we recommend you attach a copy of your sales receipt below and

record the following information, located on the manufacturer’s nameplate on

the rear of the unit. You will need this information if it becomes necessary to

contact the manufacturer for service inquiries.

Date of Purchase: ___________________________________________

Serial Number: ____________________________________________

Model Number: ____________________________________________

newair.com/register

www.newair.com 6

SAFETY INFORMATION & WARNINGS

When using any electrical appliance, basic safety precautions

must be followed in order to reduce the risk of fire, electrical

shock and/or injury to persons or property. Be sure to read all

instructions before using this appliance and observe the

following safety tips:

Attention: To avoid the risk of child entrapment, do not allow children to

operate, play with, or crawl inside the unit. If the unit will not be used for an

extended period of time, remove the door and leave the shelves in place so that

children cannot crawl inside. Also remove the door when disposing of the unit.

Shock Hazard – Electrical Grounding Required

•Never attempt to repair or perform maintenance on the unit until the

electricity has been disconnected.

•Never remove the round grounding prong from the plug and never use a

two-prong grounding adaptor.

•Altering or cutting of power cord, removal of power cord, removal of power

plug, or direct wiring can cause serious injury, fire, and loss of property

and/or life, and will void the warranty.

•Never use an extension cord to connect power to the unit.

•Avoid operating this wine cooler in excessively moist or humid

environments.

Important Precautions:

•Do not lift unit by door handle.

•Never install or operate the unit inside cabinets or without proper

clearances.

•Failure to clean the condenser every six months can cause the unit to

malfunction.

•Allow unit temperature to stabilize for 24 hours before use.

•Do not block any internal fans.

•Keep the wine cooler away from hazardous materials or

combustible/flammable substances.

•Use only genuine supplier’s replacement parts. Imitation parts can damage

the unit, affect its operation or performance, and may void the warranty.

www.newair.com 7

PARTS LIST

When you receive your unit, carefully remove the exterior and interior

packaging. It is recommended that you retain the packaging for future use.

Check to make sure the following parts are included:

•5 Shelves

•Door handle and 2 screws

•1 instruction manual

PARTS DIAGRAM

1. Upper zone NTC

point

2. Upper zone Light

3. Upper zone Fan

4. Light switch

5. Lower zone

temperature

controls

6. Exhaust window

7. Upper zone

temperature

controls

8. Temperature

switch

9. Temperature

display

10. Lower zone NTC

point

11. Lower zone Fan

12. Lower zone Light

13. Shelf

14. Exhaust window

15. Exhaust window

16. Leveling Foot

17. Glass

18. Door seal

19. Handle

20. Lower Hinge

21. Lock

www.newair.com 8

ASSEMBLY & INSTALLATION

HANDLE ASSEMBLY

Tools Required for Assembly: Phillips screwdriver (not included)

Estimated Assembly Time: 5 minutes

Before installation, attach the handle to the front of the unit with the included

screws. It may be necessary to push aside the rubber seal on the inside of the

door to reveal the screw holes.

Caution: Avoid over-tightening the screws, or you may cause damage to the

unit.

INSTALLATION

Before connecting the appliance to a power source, let it stand

upright for approximately 24 hours. This will reduce the possibility of

a malfunction in the cooling system from handling during

transportation.

This appliance can either stand alone or be built in. The front grille must be

unobstructed.

Before operating your wine cooler for the first time, follow these steps:

•Clean the interior surface of the unit with lukewarm water and a soft cloth.

•Place the cooler on a level surface that will be strong enough to support

the unit when it is fully loaded. To level your cooler, adjust the front feet

located at the bottom of the unit.

•Install the cooler away from direct sunlight and heat sources such as

stoves, heaters, or radiators. Direct sunlight may affect the unit’s acrylic

coating, and nearby heat sources can increase electrical consumption.

Extreme cold or hot ambient temperatures may also prevent proper

performance.

www.newair.com 9

REVERSING THE DOOR SWING

The door hinge is on the left side by default. If you wish to reverse the swing so

that the door opens from the right, it is important to have at least one other

person to help. It is dangerous to try to reverse the door swing by yourself.

1. Unscrew the upper door hinge while the second person supports the door.

2. Remove the upper hinge and carefully lift the door off the bottom hinge.

3. Unscrew the bottom hinge and install it on the left side of the unit.

4. Flip the door around so that the handle is on the right side and slip the

door over the bottom hinge.

5. Reattach the door by screwing the top hinge into the holes provided on

the upper left surface of the unit. Make adjustments as necessary to be

sure the door is aligned properly.

www.newair.com 10

OPERATING INSTRUCTIONS

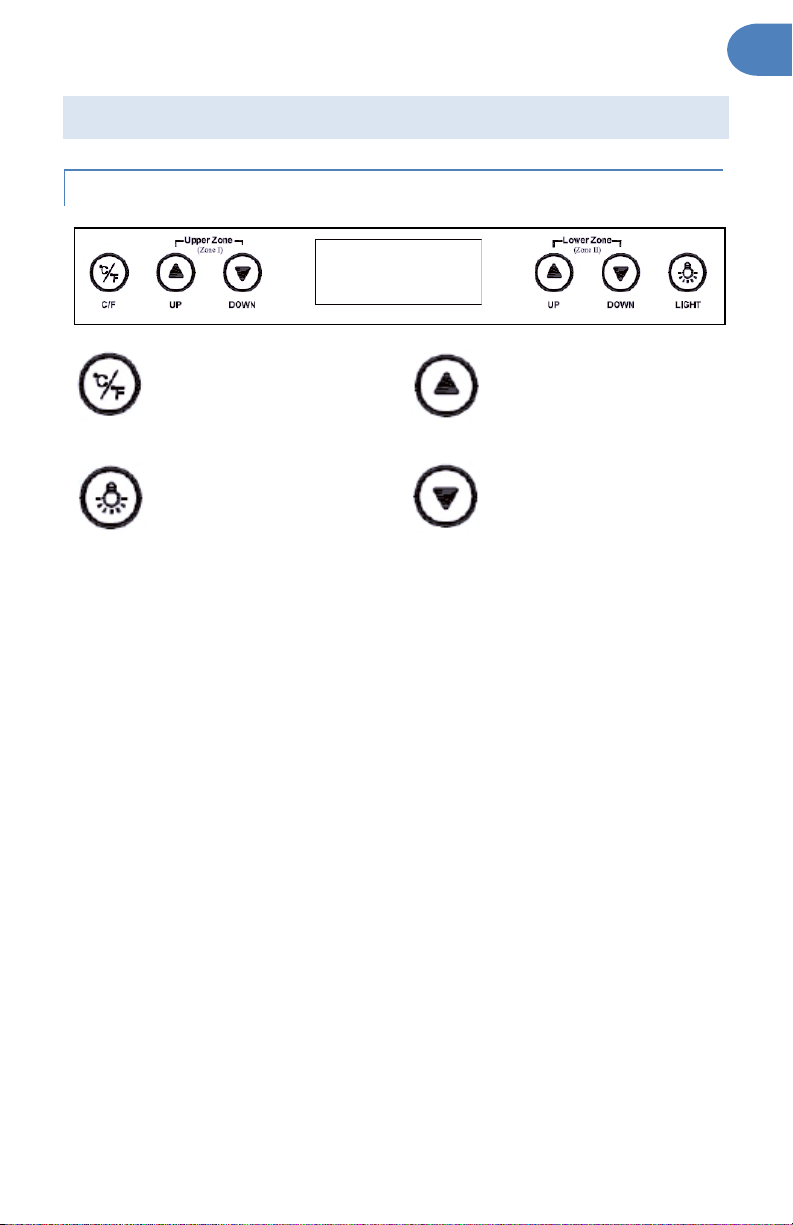

HOW TO USE THE BUTTONS ON THE DISPLAY PANEL

Select Celsius or

Fahrenheit temperature

scale.

Raise the desired

temperature. *

Turn the light on and off. Lower the desired

temperature. *

* To set the upper zone temperature, press the UP or DOWN button on the left

side of the control panel. The interior temperature of the upper zone can be

adjusted in increments of 1 degree between 40°F and 50°F (5° - 10°C).

* To set the lower zone temperature, press the UP or DOWN button on the

right side of the control panel. The interior temperature of the lower zone can

be adjusted in increments of 1 degree between 50°F and 66°F (10° - 18°C).
