GH602
User Manual
EN
Hob
GB
Contents
Safety information 2
Safety instructions 3
Product description 6
Daily use 6
Hints and tips 7
Care and cleaning 8
Troubleshooting 8
Installation 10
Technical data 15
Energy efficiency 16
GREAT BRITAIN – Customer Care and Service 16
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read the supplied
instructions. The manufacturer is not responsible for any injuries or damages
that are the result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a safe way and
understand the hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it appropriately.
•Keep children and pets away from the appliance when it operates or when
it cools down. Accessible parts are hot.
•If the appliance has a child safety device, this should be activated.
•Children shall not carry out cleaning and user maintenance of the
appliance without supervision.
•Children aged 3 years and under must be kept away from this appliance
when it is in operation at all times.
General Safety
•WARNING: The appliance and its accessible parts become hot during
use. Care should be taken to avoid touching heating elements. Children
less than 8 years of age shall be kept away unless continuously
supervised.
•Do not operate the appliance by means of an external timer or separate
remote-control system.
2
•WARNING: Unattended cooking on a hob with fat or oil can be dangerous
and may result in fire.
•NEVER try to extinguish a fire with water, but switch off the appliance and
then cover flame e.g. with a lid or a fire blanket.
•CAUTION: The cooking process has to be supervised. A short term
cooking process has to be supervised continuously.
•WARNING: Danger of fire: Do not store items on the cooking surfaces.
•Metallic objects such as knives, forks, spoons and lids should not be
placed on the hob surface since they can get hot.
•Do not use a steam cleaner to clean the appliance.
•If the supply cord is damaged, it must be replaced by the manufacturer, an
authorized Service or similarly qualified persons in order to avoid a
hazard.
•Where the appliance is directly connected to the power supply, an all-pole
isolating switch with a contact gap is required. Complete disconnection in
compliance with the conditions specified in overvoltage category III must
be guaranteed. The earth cable is excluded from this.
•When you route the mains cable, make sure that the cable doesn't come
into direct contact (for example using insulating sleeving) with parts that
can reach temperatures of more than 50°C above room temperature.
•WARNING: Use only hob guards designed by the manufacturer of the
cooking appliance or indicated by the manufacturer of the appliance in the
instructions for use as suitable or hob guards incorporated in the
appliance. The use of inappropriate guards can cause accidents.
Safety instructions
This appliance is suitable for the following markets: GB
Installation
Warning! Only a qualified person must
install this appliance.
Warning! Risk of injury or damage to the
appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instruction supplied with the
appliance.
• Keep the minimum distance from the other
appliances and units.
• Always take care when moving the appliance as it is
heavy. Always use safety gloves and enclosed
footwear.
• Seal the cut surfaces with a sealant to prevent
moisture to cause swelling.
• Protect the bottom of the appliance from steam and
moisture.
• Do not install the appliance adjacent to a door or
under a window. This prevents hot cookware to fall
from the appliance when the door or the window is
opened.
• If the appliance is installed above drawers make
sure that the space, between the bottom of the
appliance and the upper drawer, is sufficient for air
circulation.
• The underside of the appliance can get hot when in
use. If an oven has not been fitted underneath the
3
hob and underside of the appliance is accessible
and could allow a user or items stored beneath the
hob to come in direct contact with the underside of
the hob, an intermediate protection panel must be
fitted.
• Plywood or kitchen carcass material is acceptable
for the panel.
• The panel must be removable for servicing. Screws
used to fix the panel must be accessible after
installation.
Electrical Connection
Warning! Risk of fire and electrical
shock.
• All electrical connections should be made by a
qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make sure that
the appliance is disconnected from the power
supply.
• Make sure that the electrical information on the
rating plate agrees with the power supply. If not,
contact an electrician.
• Make sure the appliance is installed correctly. Loose
and incorrect electricity mains cable or plug (if
applicable) can make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure that a shock protection is installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if applicable)
does not touch the hot appliance or hot cookware,
when you connect the appliance to the near sockets
• Do not use multi-plug adapters and extension
cables.
• Make sure not to cause damage to the mains plug
(if applicable) or to the mains cable. Contact our
Authorised Service Centre or an electrician to
change a damaged mains cable.
• The shock protection of live and insulated parts
must be fastened in such a way that it cannot be
removed without tools.
• Connect the mains plug to the mains socket only at
the end of the installation. Make sure that there is
access to the mains plug after the installation.
• If the mains socket is loose, do not connect the
mains plug.
• Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting
cut-outs, fuses (screw type fuses removed from the
holder), earth leakage trips and contactors.
• The electrical installation must have an isolation
device which lets you disconnect the appliance from
the mains at all poles. The isolation device must
have a contact opening width of minimum 3 mm.
Gas connection
• All gas connections should be made by a qualified
person.
• Before installation, make sure that the local
distribution conditions (nature of the gas and gas
pressure) and the adjustment of the appliance are
compatible.
• Make sure that there is air circulation around the
appliance.
• The information about the gas supply is on the
rating plate.
• This appliance is not connected to a device, which
evacuates the products of combustion. Make sure to
connect the appliance according to current
installation regulations. Pay attention to
requirements regarding adequate ventilation.
Use
Warning! Risk of injury, burns and
electrical shock.
• Remove all the packaging, labelling and protective
film (if applicable) before first use.
• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not
blocked.
• Do not let the appliance stay unattended during
operation.
• Set the cooking zone to “off” after each use.
• Do not put cutlery or saucepan lids on the cooking
zones. They can become hot.
• Do not operate the appliance with wet hands or
when it has contact with water.
• Do not use the appliance as a work surface or as a
storage surface.
• When you place food into hot oil, it may splash.
Warning! Risk of fire and explosion
• Fats and oil when heated can release flammable
vapours. Keep flames or heated objects away from
fats and oils when you cook with them.
• The vapours that very hot oil releases can cause
spontaneous combustion.
• Used oil, that can contain food remnants, can cause
fire at a lower temperature than oil used for the first
time.
• Do not put flammable products or items that are wet
with flammable products in, near or on the
appliance.
4
Warning! Risk of damage to the
appliance.
• Do not keep hot cookware on the control panel.
• Do not let cookware to boil dry.
• Be careful not to let objects or cookware fall on the
appliance. The surface can be damaged.
• Do not activate the cooking zones with empty
cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Use only stable cookware with the correct shape
and diameter larger than the dimensions of the
burners.
• Make sure cookware is centrally positioned on the
burners.
• Make sure the flame does not go out when you
quickly turn the knob from the maximum to the
minimum position.
• Use only the accessories supplied with the
appliance.
• Do not install a flame diffuser on the burner.
• The use of a gas cooking appliance results in the
production of heat and moisture. Provide good
ventilation in the room where the appliance is
installed.
• Prolonged intensive use of the appliance may call
for additional ventilation, for example opening of a
window, or more effective ventilation, for example
increasing the level of mechanical ventilation where
present.
• This appliance is for cooking purposes only. It must
not be used for other purposes, for example room
heating.
• Do not let acid liquids, for example vinegar, lemon
juice or limescale remover, touch the hob. This can
cause matt patches.
• Discoloration of the enamel has no effect on the
performance of the appliance.
Care and cleaning
Warning! Do not remove the buttons,
knobs or gaskets from the control panel.
Water may get inside the appliance and
cause damage.
• Clean regularly the appliance to prevent the
deterioration of the surface material.
• Deactivate the appliance and let it cool down before
you clean it.
• Disconnect the appliance from the electrical supply
before maintenance.
• Do not use water spray and steam to clean the
appliance.
• Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use any abrasive
products, abrasive cleaning pads, solvents or metal
objects.
• Do not clean the burners in the dishwasher.
Disposal
Warning! Risk of injury or suffocation.
• Contact your municipal authority for information on
how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the
appliance and dispose of it.
• Flat the external gas pipes.
Service
• To repair the appliance contact an Authorised
Service Centre.
• Use original spare parts only.
5

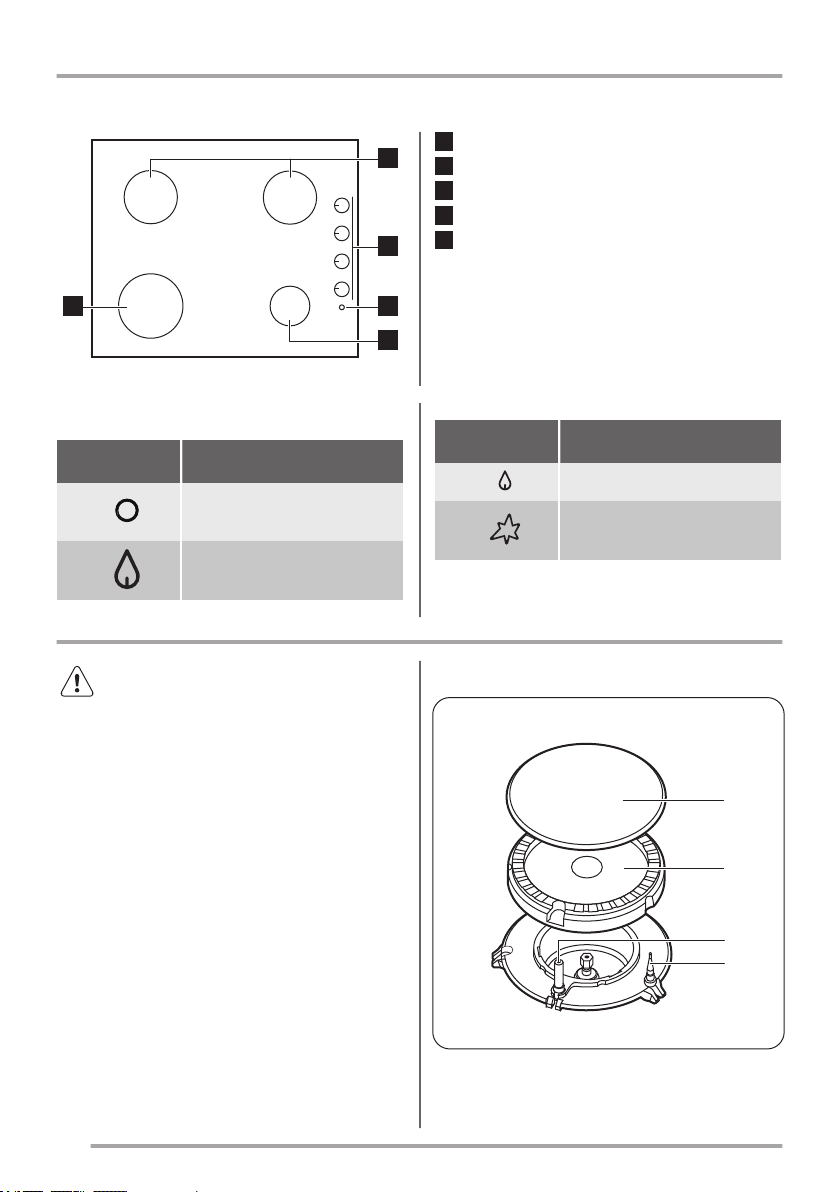

Product description
Cooking surface layout
4
52
1
3
1Auxiliary burner
2Rapid burner
3Semi-rapid burner
4Control knobs
5Button for the spark generator
Control knob
Symbol Description
no gas supply / off position
maximum gas supply
Symbol Description
minimum gas supply
ignition
Daily use
Warning! Refer to Safety chapters. Burner overview
A
B
D
C
A. Burner cap
B. Burner crown
6
C. Ignition candle
D. Thermocouple
Ignition of the burner
Always light the burner before you put on
the cookware.
Warning! Be very careful when you use
open fire in the kitchen environment. The
manufacturer declines any responsibility
in case of the flame misuse.
1. Push and hold the spark generator button.
2. At the same time push the control knob down and
turn it counterclockwise to the maximum gas supply
position ( ).
3. Release the spark generator button when burner
lights but keep the control knob on this position for
equal or less than 10 seconds; this will let
thermocouple to warm up. If not, the gas supply will
be interrupted.
4. Adjust the flame after it is regular.
If after some tries the burner does not
light, check if the crown and its cap are
in correct positions.
Warning! Do not keep the control knob
pushed for more than 15 seconds. If the
burner does not light after 15 seconds,
release the control knob, turn it into off
position and try to light the burner again
after minimum 1 minute.
Caution! In the absence of electricity
you can ignite the burner without
electrical device; in this case approach
the burner with a flame, turn the control
knob counter-clockwise to maximum gas
supply position and push it down. Keep
the control knob pushed for equal or less
than 10 seconds to let the thermocouple
warm up.
If the burner accidentally goes out, turn
the control knob to the off position and
try to light the burner again after
minimum 1 minute.
The spark generator can start
automatically when you switch on the
mains, after installation or a power cut. It
is normal.
Turning the burner off
To put the flame out, turn the knob to the off position
.
Warning! Always turn the flame down or
switch it off before you remove the pans
from the burner.
Hints and tips
Warning! Refer to Safety chapters.
Cookware
Caution! Do not use cast iron pans,
potstones, earthenware, grill or toaster
plates. The stainless steel can become
tarnished if it is too much heated.
Warning! Do not put the same pan on
two burners.
Warning! Do not put unstable or
damaged pots on the burner to prevent
from spill and injury.
Caution! Make sure that the bottoms of
pots do not stand above the control
knob, otherwise the flame heats the
control knob up.
Caution! Make sure that pot handles are
not above the front edge of the cooktop.
Caution! Make sure that the pots are
placed centrally on the burner in order to
get maximum stability and to get lower
gas consumption.
Diameters of cookware
Use cookware with diameters applicable
to the size of burners.
7
Burner Diameter of cook-
ware (mm)
Rapid 180 - 260
Semi-rapid 120 - 220
Burner Diameter of cook-
ware (mm)
Auxiliary 80 - 180
Care and cleaning
Warning! Refer to Safety chapters.
General information
• Clean the hob after each use.
• Always use cookware with clean bottom.
• Scratches or dark stains on the surface have no
effect on how the hob operates.
• Use a special cleaner applicable for the surface of
the hob.
Stainless steel
• Wash stainless steel parts with water, and then dry
them with a soft cloth.
• To remove burn food, fat and stubborn stains, let
them soak for a few minutes in a small amount of
mild detergent before cleaning.
• Use cleaning products designed specifically for
cleaning stainless steel in order to protect the steel
surfaces.
• Do not use cleaning products containing corrosive
chemicals such as chlorides, do not clean the
surface with disinfectants, stain or rust removers
and immersion cleaners.
Pan supports
The pan supports are not resistant to
washing in a dishwasher. They must be
washed by hand.
1. Remove the pan supports to easily clean the hob.
Be very careful when you replace
the pan supports to prevent the hob
top from damage.
2. The enamel coating occasionally can have rough
edges, so be careful when you wash the pan
supports by hand and dry them. If necessary,
remove stubborn stains with a paste cleaner.
3. After you clean the pan supports, make sure that
they are in correct positions.
4. For the burner to operate correctly, make sure that
the arms of the pan supports are aligned with the
centre of the burner.
Cleaning the hob
•Remove immediately: melted plastic, plastic foil,
sugar and food with sugar. If not, the dirt can cause
damage to the hob. Take care to avoid burns.
•Remove when the hob is sufficiently cool:
limescale rings, water rings, fat stains, shiny metallic
discoloration. Clean the hob with a moist cloth and
non-abrasive detergent. After cleaning, wipe the hob
dry with a soft cloth.
• To clean the enamelled parts, cap and crown, wash
them with warm soapy water and dry them carefully
before you put them back on.
Cleaning the spark plug
This feature is obtained through a ceramic ignition
candle with a metal electrode. Keep these components
well clean to prevent difficult lighting and check that the
burner crown holes are not obstructed.
Periodic maintenance
Speak to your local Authorised Service Centre
periodically to check the conditions of the gas supply
pipe and the pressure adjuster, if fitted.
Troubleshooting
Warning! Refer to Safety chapters.
8
What to do if...
Problem Possible cause Remedy
There is no spark when you try to
activate the spark generator.
The hob is not connected to an
electrical supply or it is connected
incorrectly.
Check if the hob is correctly connec-
ted to the electrical supply.
The fuse is blown. Make sure that the fuse is the cause
of the malfunction. If the fuse is
blown again and again, contact a
qualified electrician.
Burner cap and crown are placed in-
correctly.
Place the burner cap and crown cor-
rectly.
The flame extinguishes immediately
after ignition.
Thermocouple is not heated up suf-
ficiently.
After lightning the flame, keep the
spark generator activated for equal
or less than 10 seconds
The flame ring is uneven. Burner crown is blocked with food
residues.
Make sure that the injector is not
blocked and the burner crown is
clean.
If you cannot find a solution...
If you cannot find a solution to the problem yourself,
contact your dealer or an Authorised Service Centre.
Give the data from the rating plate. Make sure, you
operated the hob correctly. If not the servicing by a
service technician or dealer will not be free of charge,
also during the warranty period. The instructions about
the Service Centre and conditions of guarantee are in
the guarantee booklet.
9
Labels supplied with the accessories bag
Stick the adhesive labels as indicated below:
MOD.
PROD.NO.
SER.NO
DATA
MOD.
PROD.NO.
SER.NO
DATA
MOD.
PROD.NO.
SER.NO.
03 IT
MADE IN ITALY
TYPE
IP20
0049
A B C
A. Stick it on Guarantee Card and send this part (if
applicable).
B. Stick it on Guarantee Card and keep this part (if
applicable).
C. Stick it on instruction booklet.
Installation
Warning! Refer to Safety chapters.
Before the installation
Before you install the hob, write down the information
bellow from the rating plate. The rating plate is on the
bottom of the hob.
Model .......................................
PNC .........................................
Serial number ...........................
Important safety requirements
This hob must be installed in accordance with the Gas
Safety (Installation and Use) Regulations (Current
Edition) and the IEE Wiring Regulations (Current
Edition).
For appliances installed in the Republic of Ireland
please refer to NSAI- Domestic Gas Installation I.S. 813
Current Editions and the ETCI Rules for Electrical
Installations.
Provision for ventilation
Detailed recommendations are contained in the
following British Standards Codes Of Practice: B.S.
6172/B.S. 5440, Par. 2 and B.S. 6891 Current Editions.
The hob should not be installed in a bed sitting room
with a volume of less than 20 m³. If it is installed in a
room of volume less than 5 m³ an air vent of effective
area of 100 cm² is required. If it is installed in a room of
volume between 5 m³ and 10 m³ an air vent of effective
area of 50 cm² is required, while if the volume exceeds
11 m³ no air vent is required.
However, if the room has a door which opens directly to
the outside no air vent is required even if the volume is
between 5 m³ and 11 m³.
If there are other fuel burning appliances in the same
room, B.S. 5440 Part 2 Current Edition, should be
consulted to determine the requisite air vent
requirements.
For appliances installed in the Republic of Ireland
please refer to the NSAI- Domestic Gas Installation I.S.
813 Current Editions Table Four.
10
Otros manuales para GH602
1
Tabla de contenidos
Otros manuales de Quemador de Neue
