Netum NT-C6 Manual de usuario
WIRELESS
INVENTORY HANDHELD
USER’S Manual
CHAPTER I BRIEFING.............................................................................................................1
1.1 Package List.......................................................................................................................1
1.2 Safety Cautions..................................................................................................................1
1.3 Battery Charging...............................................................................................................1
1.4 Battery Installation...........................................................................................................2
1.5 Accessories.........................................................................................................................3
CHAPER II FUNCTIONS & OPERATIONS...........................................................................4
2.1 Overview............................................................................................................................4
2.2 Basic Operation.................................................................................................................4
2.2.1 Bootup.....................................................................................................................4
2.2.2 Shutdown ................................................................................................................4
2.2.3 Menu Desciption.....................................................................................................4
2.3 Main Functions..................................................................................................................5
2.3.1 Receiving/Shipping.................................................................................................5
2.3.2 Cycle Count ............................................................................................................5
2.3.3 Wireless Scan..........................................................................................................7
2.3.4 Search......................................................................................................................8
2.3.5 Download ................................................................................................................8
2.3.6 Settings....................................................................................................................8
2.3.7 Com-set ...................................................................................................................8
2.3.8 Advance...................................................................................................................9
CHAPER III PC APPLICATION............................................................................................10
3.1 Installation.......................................................................................................................10
3.2 Operation Description ....................................................................................................11
3.2.1 Update Program...................................................................................................11
3.2.2 Download Item File..............................................................................................12
3.2.3 Data Upload..........................................................................................................19
3.2.4 Data Query............................................................................................................20
3.2.5 Export File............................................................................................................20
3.2.6 Delete Data............................................................................................................24
WARRANTY.................................................................................................................................25
CONTENTS
User’s Manual for Handheld Page 1 of 27
1
CHAPTER I BRIEFING
1.1 Package List
1．Handheld 1 ;
2．USB mini-receiver 1;
3．Mini-USB cable 1;
4．Charger 1.
1.2 Safety Cautions
Please read the following concise rules. Violation of these rules may cause danger or
infringement of the law.
Boot in safety: Don’t switch on the handheld when wireless device is forbidden or
is to cause interference and danger.
Interference: all wireless devices may be subject to radio interference which may
affect their performance.
Fare use: the handheld can be only used in the purpose described in this manual.
Maintenance: only technically qualified person can disassemble the handheld.
Accessories and battery: use only approved accessories and battery. Don’t connect
to inconsistent products.
Water-proof: the handheld is not water-proof, please keep it dry.
Data backup: please make a backup for the data saved in the handheld.
Connection: If in need of connecting to other devices, please obtain necessary
safety instructions from their manual or manufacturer. Never connect to an
inconsistent device.
1.3 Battery Charging
1.3.1 battery icon：a battery icon displays on top right of the screen to show the
battery power. When the battery voltage is lower than 3.6V, the Handheld shuts
down automatically.
1.3.2 battery charging：simply plug one end of the charger into the power outlet
(AC110-240V) and the other end into the Handheld. In power-off condition, a battery
icon will blink on the screen. If the battery icon is at rest, it indicates that the battery
is full or the battery is not installed.
CAUTIONS：
(1) The Handheld accepts only authorized battery and charger;
(2) Battery may self-discharge. Please charge up the battery before use if the battery
stands idle for a long period;
(3) If a fully charged battery’s life goes short greatly, please replace the battery with a
User’s Manual for Handheld Page 2 of 27
2
new one;
(4) Do not impact，shock or throw the battery violently, or it may cause leakage, damage
or even explosion.
1.4 Battery Installation
1.4.1 Remove battery cover. Turn the Handheld to its back, put some stress on the
battery cover, then push it downward as following picture shows:
1.4.2 Load battery. Make sure the metal contacts on the battery and the Handheld are in
the same position as the following picture shows:
User’s Manual for Handheld Page 3 of 27
3

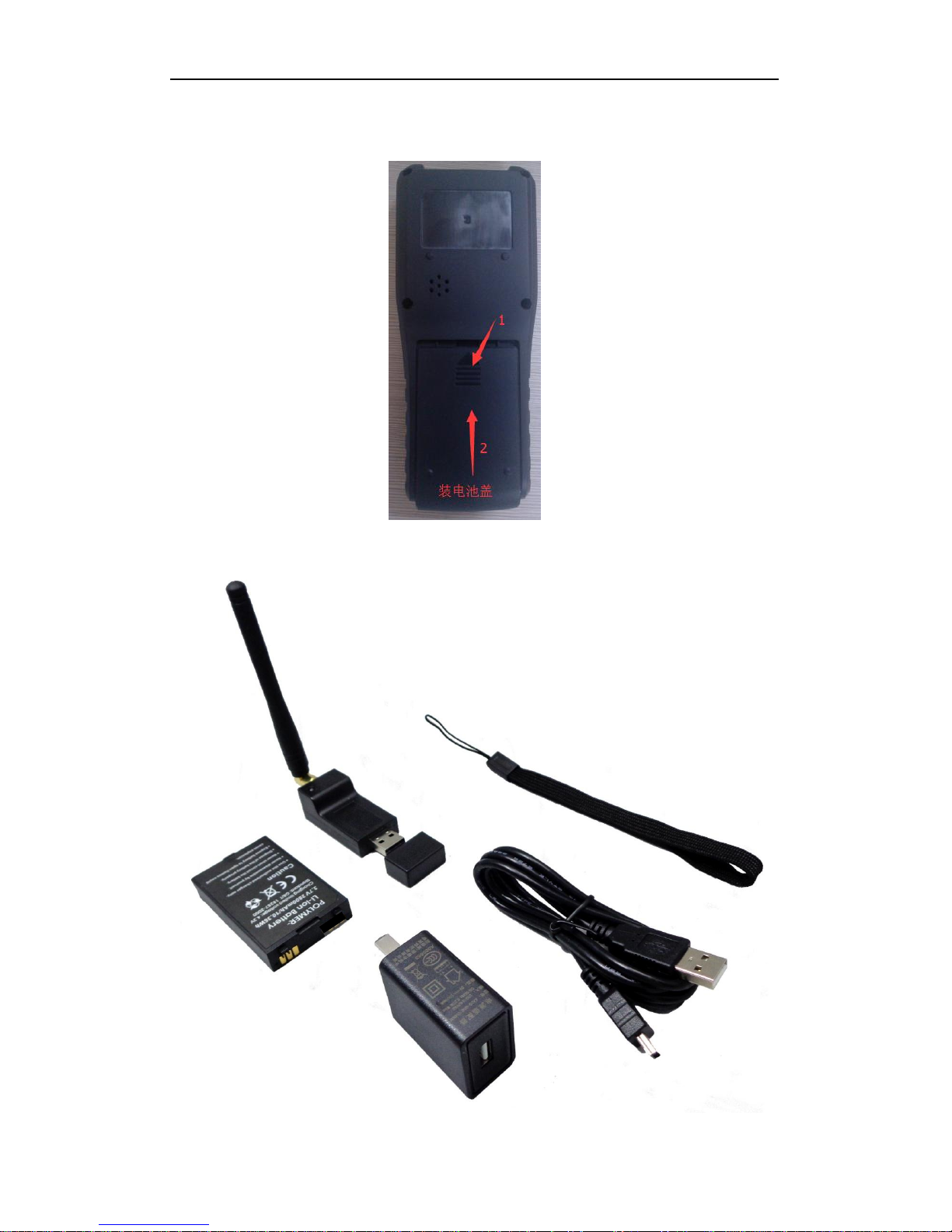

1.4.3 Refit battery cover. Put some stress on the cover to fit it back to its place, then
push upward as the following picture shows:
1.5 Accessories
receiver
battery
charger
cable
Wrist strap
User’s Manual for Handheld Page 4 of 27
4
CHAPER II FUNCTIONS & OPERATIONS
2.1 Overview
2.2 Basic Operation
2.2.1 Bootup
Make sure the battery is properly loaded and fully charged. Long press the power button
until the screen lights up.
2.2.2 Shutdown
Hold down the power button till the screen turns off.
2.2.3 Menu Desciption
1 2 34
Note: It is a shortcut pressing the keypad number to enter the corresponding menu item.
1．Signal strength
2．Time
3．Memory used
4．Battery level
User’s Manual for Handheld Page 5 of 27
5
2.3 Main Functions
2.3.1 Receiving/Shipping
Please refer to the following “Cycle Count”instruction. Operations are the same.
2.3.2 Cycle Count
a. In the main menu, select “Cycle Count”or press the number key 3 to enter the
operation page;
b. In the Scan page, press the SCAN button to start reading barcode or press F1 to input
Article# and F2 to input barcode manually;
c. If an item file has been imported, the corresponding item information will be
displayed as soon as the barcode is read;
d. Input quantity and press OK to save.
Data Upload: upload scanned data (sent or unsent) to computer text file, excel file or
the PC application. “unsent”refers to data that has never been sent to the
computer. “sent”refers to data that has been sent to the computer but can be sent
again. Press F1 to start a wireless transmission or F2 for a USB transmission.
Note: Data is received by the computer in two ways. One is going to where the cursor
locates (in an open text or word or excel file), the other is going to the PC
application. Please refer to chapter “3.2.3 Data Upload”for operation of sending
data to the PC application.
User’s Manual for Handheld Page 6 of 27
6
Transmission Setting: define the separator and/or terminator of the transmission data
(none, space, tab, CR, LF, comma and semicolon available) and specify
fields to be uploaded.
Note: use up or down arrow key to move among options and OK to confirm selection.
Then use left or right arrow keys to change status and OK to confirm.
eg. The separator is set to be comma and the terminator “CR”, and fields to be
uploaded are barcode, quantity and time, then it should look like this in a txt file:
Note: upload setting and fields setting are valid only in wireless transmission to
computer txt or excel file.
Advanced Functions：
1) Bill No.: when it is enabled, multiple bills, warehouse, shops management is
supported;
2) LOT #: when it is enabled, multiple lot number management is supported. It is very
useful in the pharmaceutical industry. When the barcode is read, press the left or
right arrow key to select the corresponding lot number:
3) Edit Lot: when it is enabled, the user may change the error lot number manually;
4) Edit price: when it is enabled, the user can change manually the default price to the
actual price at the time of sale;
5) Unicity: it is usually applied to manage serial number. When it is enabled, a
notification will come ask the user if it is allowed to process repeat barcode;
User’s Manual for Handheld Page 7 of 27
7
6) UNK item: when it is enabled, the user can decide whether to process the unknown
items or not (new item or item missing in the item file). Otherwise, unknown item is
forbidden.
2.3.3 Wireless Scan
a. Establish communication between the Handheld and the Receiver.
b. create/open a text file on the computer and place the cursor in the blanks;
c. In the handheld main menu, select “Wireless scan”“1.scan”, then press the SCAN
User’s Manual for Handheld Page 8 of 27
8
button to start reading barcodes. When the signal is good, the scanned data will be
uploaded right away to the computer and show up at where the cursor locates. With
no signal or weak signal, the data will be automatically saved in the handheld and
uploaded to the computer when the signal restores.
Note: only barcode will be displayed when using the Wireless Scanner function.
Data upload: upload data sent or unsent to the computer PC Software or text/excel file.
Unsent data refers to those that has never been sent to the computer and sent data are
those that has been sent to the computer but can be sent again. Press F1 to start
wireless transmission or F2 for a cable transmission to the PC Software.
Header & Trailer: This option allows you to append a header and/or a trailer to the
barcode. Header or trailer characters include space, tab, carriage return, linefeed,
comma and semicolon. Default is none. Use the left / right arrow key to switch among
characters and OK to confirm.
2.3.4 Search
Input or scan Art# or barcode to look up item information, then press F3 to look up Lot#.
Use up or down arrow keys to view if there are more than one Lot#. If the screen says
“Item not found, try again!”, it means the item is missing in the item file.
2.3.5 Download
Item file download must work together with the PC application. Please refer to chapter
“3.2.2 Download Item File”for details.
2.3.6 Settings
basic settings：set date, time, auto power off time and standby time.
Use up or down arrow keys to move among options and OK to confirm.
Then input characters with the button and OK to save.
2.3.7 Com-set
normal mode: one receiver to multiple handheld
