NETGEAR RN12P0610 - ReadyNAS 3200 Manual de usuario

202-10541-01

v1.1

July 2009

NETGEAR, Inc.

350 East Plumeria Drive

San Jose, CA 95134 USA

ReadyNAS 3200

Hardware Manual

v1.1, July 2009

Technical Support

Registration on the website or over the phone is required before you can use our telephone support service. The phone

numbers for worldwide regional customer support centers are on the Warranty and Support Information card that came

with your product.

Go to http://kbserver.netgear.com for product updates and Web support.

Trademarks

NETGEAR, the NETGEAR logo, ReadyNAS, X-RAID, X-RAID2, FrontView, RAIDar, RAIDiator, Network Storage

Processor, and NSP are trademarks or registered trademarks of NETGEAR, Inc. Microsoft, Windows, Windows NT and

Vista are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or

trademarks of their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to

make changes to the products described in this document without notice.

NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit

layout(s) described herein.

Certificate of the Manufacturer/Importer

It is hereby certified that the ReadyNAS 3200 Network Attached Storage System has been suppressed in accordance

with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for

example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please

refer to the notes in the operating instructions.

The Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market

and has been granted the right to test the series for compliance with the regulations.

Bestätigung des Herstellers/Importeurs

Es wird hiermit bestätigt, daß dasReadyNAS 3200 Network Attached Storage System gemäß der im BMPT-AmtsblVfg

243/1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte

(z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der

Betriebsanleitung.

Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt

gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen.

Voluntary Control Council for Interference (VCCI) Statement

This equipment is in the Class A category (business use only) and conforms to the standards set by the Voluntary Control

Council for Interference by Data Processing Equipment and Electronic Office Machines aimed at preventing radio

interference in such residential areas. When used near a radio or TV receiver, it may become the cause of radio

interference. Read instructions for correct handling.

v1.1, July 2009

iii

Product and Publication Details

Model Number: 3200

Publication Date: July 2009

Product Family: Network Storage

Product Name: ReadyNAS 3200 Network Attached Storage System

Home or Business Product: Business

Language: English

Publication Part Number: 202-10541-01

Publication Version Number: 1.1

v1.1, July 2009

Contents

About This Manual

Conventions and Formats ................................................................................................vii

User Manual Revision History .........................................................................................viii

Chapter 1

Getting Started

Control Panel, Status Displays, Ports, and Drive Bays ..................................................1-1

Front Panel ...............................................................................................................1-1

Disk Tray, Status Lights, Release, and Tray Handle, ...............................................1-2

Rear Panel ...............................................................................................................1-3

Safety Warning ...............................................................................................................1-3

Rack Mount Setup ..........................................................................................................1-4

Rack Mounting Considerations ................................................................................1-4

Electrical Safety Precautions ...................................................................................1-5

General Safety Precautions .....................................................................................1-5

Electrostatic Discharge (ESD) Precautions ..............................................................1-6

Rack Mount Precautions ..........................................................................................1-7

Choosing a Setup Location ......................................................................................1-7

Preparing for Setup ..................................................................................................1-8

Installing the System into a Rack .............................................................................1-8

Initial Setup, Default IP Address, and Login Password ................................................1-10

Chapter 2

Diagnostics and Maintenance

Identifying Control Panel Diagnostic and Status Information ..........................................2-1

Performing System Shutdown ........................................................................................2-3

Using the Power Switch ...........................................................................................2-3

Using the FrontView Browser User Interface ...........................................................2-4

Understanding the System Diagnostics Boot Menu .......................................................2-4

Using the OS Reinstall Option to Reinstall the Firmware ...............................................2-5

Using the Boot Menu to Format a RAID Volume ............................................................2-7

vi Contents

v1.1, July 2009

Adding or Replacing Disks ...........................................................................................2-11

Adding a New Disk .................................................................................................2-11

Failed Disk Notification ...........................................................................................2-13

Choosing a Replacement Disk ...............................................................................2-13

Replacing a Failed Disk .........................................................................................2-13

Replacing System Components ...................................................................................2-15

Accessing the Inside of the System .......................................................................2-15

Replacing a System Fan ........................................................................................2-16

Replacing a Power Supply .....................................................................................2-18

Replacing the Onboard Battery ..............................................................................2-19

Appendix A

Default Settings and Specifications

vii

v1.1, July 2009

About This Manual

The NETGEAR® ReadyNAS 3200 Hardware Manual describes the hardware features of a

ReadyNAS 3200 system. It also provides procedures for using the system diagnostics boot menu,

and procedures for adding, replacing or formatting disks. The information in this manual is

intended for readers with intermediate computer and networking skills.

Conventions and Formats

The conventions, formats, and scope of this manual are described in the following paragraphs:

•Typographical Conventions. This manual uses the following typographical conventions:

•Formats. This manual uses the following formats to highlight special messages:

Italic Emphasis, books, CDs, file and server names, extensions

Bold User input, IP addresses, GUI screen text

Fixed Command prompts, CLI text, code

italic URL links

Note: This note highlights information of importance or special interest.

Tip: This note highlights a procedure that will save time or resources.

Warning: This note warns against a malfunction or damage to the equipment.

ReadyNAS 3200 Hardware Manual

viii About This Manual

v1.1, July 2009

User Manual Revision History

Danger: This safety warning warns against personal injury or death.

Part Number Version

Number Publication

Date Description

202-10541-01 1.0 June 2009 First publication

202-10541-01 1.1 July 2009 Updated with safety compliance information and component

replacement topics.

ReadyNAS 3200 Hardware Manual

Getting Started 1-1

v1.1, July 2009

Chapter 1

Getting Started

This chapter provides an overview of the unit’s physical features.

Topics discussed in this chapter include:

•“Control Panel, Status Displays, Ports, and Drive Bays”

•“Safety Warning”

•“Initial Setup, Default IP Address, and Login Password”

•“Safety Warning”

•“Rack Mount Setup”

Control Panel, Status Displays, Ports, and Drive Bays

This section introduces the ReadyNAS control panel, status display, ports, and drive bays.

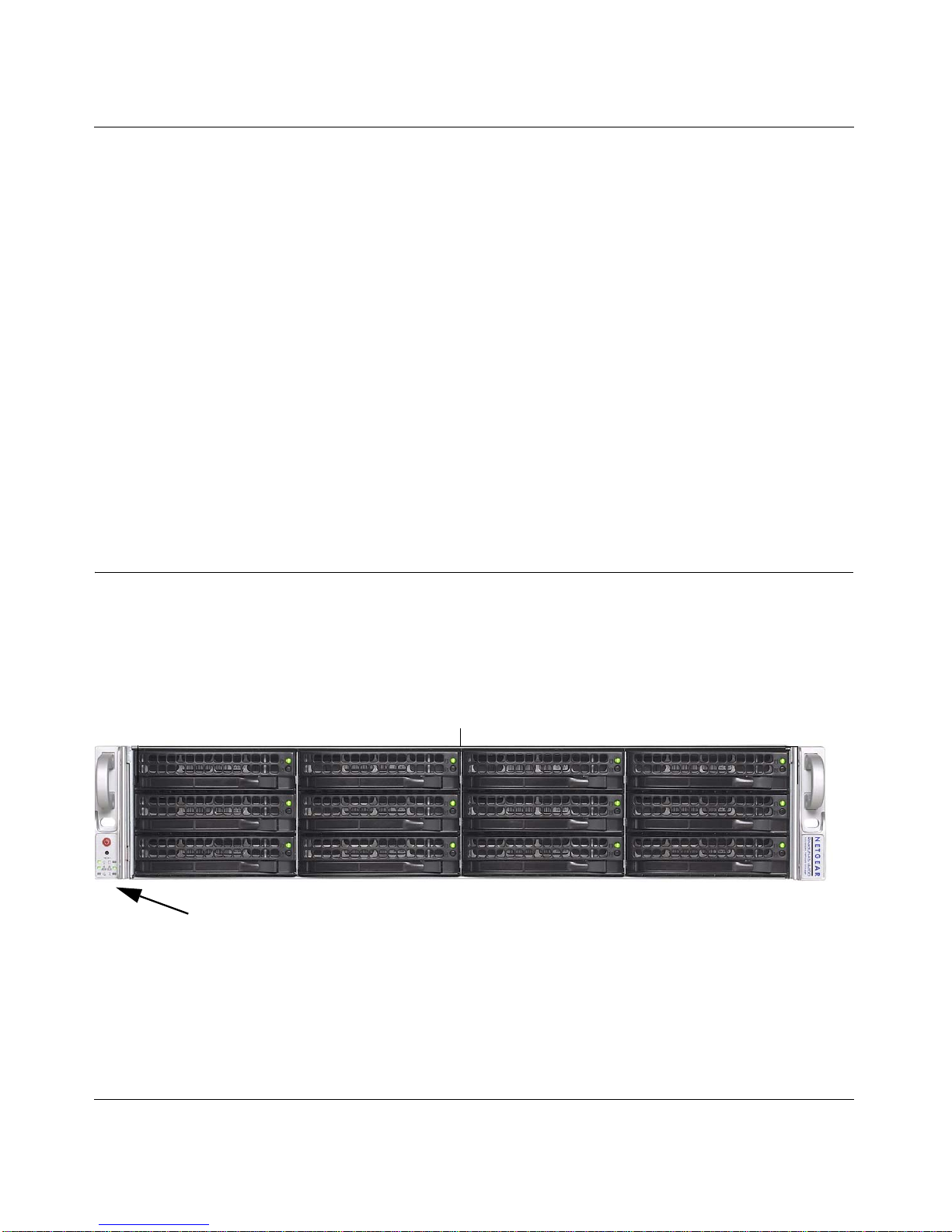

Front Panel

1. Twelve drive bays with hot pluggable disk trays that each include two status lights.

2. Control panel with status lights.

• Power and reset buttons.

• Power, LAN, disk, and fan status lights.

Figure 1-1

ReadyNAS 3200 Hardware Manual

1-2 Getting Started

v1.1, July 2009

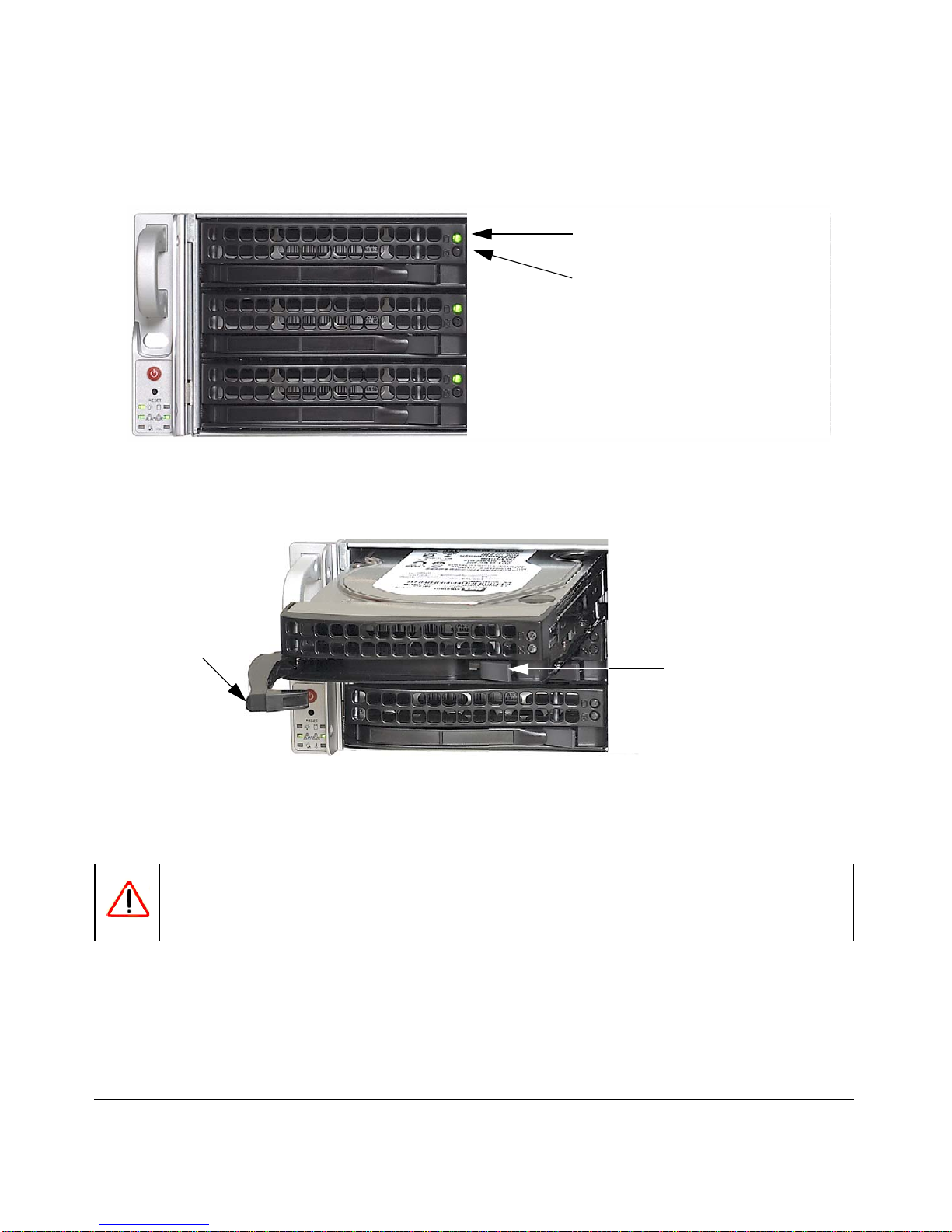

Disk Tray, Status Lights, Release, and Tray Handle,

The disk tray features a push switch activated pop-out tray handle.

Figure 1-2

Figure 1-3

Warning: Regardless of how many hard drives are installed, all drive trays must remain

in the drive bays to maintain proper airflow.

Disk failure light

Disk present and activity light

Disk tray release

push switch

Disk tray

handle
