NetApp StorageGRID Webscale SG6000 Series Manual de usuario

SG6000 storage appliances

StorageGRID

NetApp

March 03, 2022

This PDF was generated from https://docs.netapp.com/us-en/storagegrid-116/sg6000/sg6060-

overview.html on March 03, 2022. Always check docs.netapp.com for the latest.

Table of Contents

SG6000 storage appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê1

SG6000 appliances: Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê1

Installation and deployment overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê12

Prepare for installation (SG6000). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê14

Install hardware (SG6000) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê29

Configure hardware (SG6000) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê45

Deploy appliance Storage Node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê84

Monitor storage appliance installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê88

Automate appliance installation and configuration (SG6000) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê89

Overview of installation REST APIs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê97

Troubleshoot hardware installation (SG6000) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê99

Maintain SG6000 appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê106

SG6000 storage appliances

SG6000 appliances: Overview

The StorageGRID SG6000 appliances are integrated storage and computing platforms

that operate as Storage Nodes in a StorageGRID system. These appliances can be used

in a hybrid grid environment that combines appliance Storage Nodes and virtual

(software-based) Storage Nodes.

The SG6000 appliances provide the following features:

•Available in two models:

◦SG6060, which includes 60 drives and supports expansion shelves.

◦SGF6024, which offers 24 solid state drives (SSDs).

•Integrate the storage and computing elements for a StorageGRID Storage Node.

•Include the StorageGRID Appliance Installer to simplify Storage Node deployment and configuration.

•Include SANtricity System Manager for managing and monitoring the storage controllers and drives.

•Include a baseboard management controller (BMC) for monitoring and diagnosing the hardware in the

compute controller.

•Support up to four 10-GbE or 25-GbE connections to the StorageGRID Grid Network and Client Network.

•Support Federal Information Processing Standard (FIPS) drives. When these drives are used with the

Drive Security feature in SANtricity System Manager, unauthorized access to data is prevented.

SG6060 overview

The StorageGRID SG6060 appliance includes a compute controller and a storage

controller shelf that contains two storage controllers and 60 drives. Optionally, 60-drive

expansion shelves can be added to the appliance.

SG6060 components

The SG6060 appliance includes the following components:

Component Description

Compute controller SG6000-CN controller, a one-rack unit (1U) server

that includes:

•40 cores (80 threads)

•192 GB RAM

•Up to 4 × 25 Gbps aggregate Ethernet bandwidth

•4 × 16 Gbps Fibre Channel (FC) interconnect

•Baseboard management controller (BMC) that

simplifies hardware management

•Redundant power supplies

Storage controller shelf E-Series E2860 controller shelf (storage array), a 4U

shelf that includes:

•Two E-Series E2800 controllers (duplex

configuration) to provide storage controller failover

support

•Five-drawer drive shelf that holds sixty 3.5-inch

drives (2 solid-state drives, or SSDs, and 58 NL-

SAS drives)

•Redundant power supplies and fans

Optional: Storage expansion shelves

Note: Expansion shelves can be installed during

initial deployment or added later.

E-Series DE460C enclosure, a 4U shelf that includes:

•Two input/output modules (IOMs)

•Five drawers, each holding 12 NL-SAS drives, for

a total of 60 drives

•Redundant power supplies and fans

Each SG6060 appliance can have one or two

expansion shelves for a total of 180 drives.

SG6060 diagrams

This figure shows the front of the SG6060, which includes a 1U compute controller and a 4U shelf containing

two storage controllers and 60 drives in five drive drawers.

Callout Description

1 SG6000-CN compute controller with front bezel

2 E2860 controller shelf with front bezel (optional

expansion shelf appears identical)

3 SG6000-CN compute controller with front bezel

removed

4 E2860 controller shelf with front bezel removed

(optional expansion shelf appears identical)

This figure shows the back of the SG6060, including the compute and storage controllers, fans, and power

supplies.

Callout Description

1 Power supply (1 of 2) for SG6000-CN compute

controller

2 Connectors for SG6000-CN compute controller

3 Fan (1 of 2) for E2860 controller shelf

4 E-Series E2800 storage controller (1 of 2) and

connectors

5 Power supply (1 of 2) for E2860 controller shelf

This figure shows the back of the optional expansion shelf for the SG6060, including the input/output modules

(IOMs), fans, and power supplies. Each SG6060 can be installed with one or two expansion shelves, which

can be included in the initial installation or added later.

Callout Description

1 Fan (1 of 2) for expansion shelf

2 IOM (1 of 2) for expansion shelf

3 Power supply (1 of 2) for expansion shelf

SGF6024 overview

The StorageGRIDSGF6024 includes a compute controller and a storage controller shelf

that holds 24 solid state drives.

SGF6024 components

The SGF6024 appliance includes the following components:

Component Description

Compute controller SG6000-CN controller, a one-rack unit (1U) server

that includes:

•40 cores (80 threads)

•192 GB RAM

•Up to 4 × 25 Gbps aggregate Ethernet bandwidth

•4 × 16 Gbps Fibre Channel (FC) interconnect

•Baseboard management controller (BMC) that

simplifies hardware management

•Redundant power supplies

Component Description

Flash array (controller shelf) E-Series EF570 flash array (also known as a

controller shelf), a 2U shelf that includes:

•Two E-Series EF570 controllers (duplex

configuration) to provide storage controller failover

support

•24 solid state drives (also known as SSDs or flash

drives)

•Redundant power supplies and fans

SGF6024 diagrams

This figure shows the front of the SGF6024, which includes a 1U compute controller and a 2U enclosure

containing two storage controllers and 24 flash drives.

Callout Description

1 SG6000-CN compute controller with front bezel

2 EF570 flash array with front bezel

3 SG6000-CN compute controller with front bezel

removed

4 EF570 flash array with front bezel removed

This figure shows the back of the SGF6024, including the compute and storage controllers, fans, and power

supplies.

Callout Description

1 Power supply (1 of 2) for SG6000-CN compute

controller

2 Connectors for SG6000-CN compute controller

3 Power supply (1 of 2) for EF570 flash array

4 E-Series EF570 storage controller (1 of 2) and

connectors

Controllers in SG6000 appliances

Each model of the StorageGRID SG6000 appliance includes an SG6000-CN compute

controller in a 1U enclosure and duplex E-Series storage controllers in a 2U or 4U

enclosure, depending on the model. Review the diagrams to learn more about each type

of controller.

All appliances: SG6000-CN compute controller

•Provides compute resources for the appliance.

•Includes the StorageGRID Appliance Installer.

StorageGRID software is not preinstalled on the appliance. This software is retrieved from

the Admin Node when you deploy the appliance.

•Can connect to all three StorageGRID networks, including the Grid Network, the Admin Network, and the

Client Network.

•Connects to the E-Series storage controllers and operates as the initiator.

This figure shows the connectors on the back of the SG6000-CN.

Port Type Use

1 Interconnect ports 1-4 16-Gb/s Fibre Channel

(FC), with integrated

optics

Connect the SG6000-CN

controller to the E2800

controllers (two

connections to each

E2800).

2 Network ports 1-4 10-GbE or 25-GbE, based

on cable or SFP

transceiver type, switch

speed, and configured link

speed

Connect to the Grid

Network and the Client

Network for StorageGRID.

3 BMC management port 1-GbE (RJ-45) Connect to the SG6000-

CN baseboard

management controller.

4 Diagnostic and support

ports

•VGA

•Serial, 115200 8-N-1

•USB

Reserved for technical

support use.

5 Admin Network port 1 1-GbE (RJ-45) Connect the SG6000-CN

to the Admin Network for

StorageGRID.

Otros manuales para StorageGRID Webscale SG6000 Series

Tabla de contenidos

Otros manuales de Almacenamiento de NetApp

NetApp

NetApp AFF A900 Manual

NetApp

NetApp FAS9500 Manual

NetApp

NetApp AFF A700s Manual de usuario

NetApp

NetApp FAS22 Series Manual de usuario

NetApp

NetApp AFF A400 Manual

NetApp

NetApp NearStore R100 Manual de usuario

NetApp

NetApp FAS2240-2 Manual de usuario

NetApp

NetApp AltaVault Cloud Integrated Storage 4.1 Instrucciones de instalación y mantenimiento

NetApp

NetApp FAS8700 Hoja de instrucciones

NetApp

NetApp DS2246 Manual

NetApp

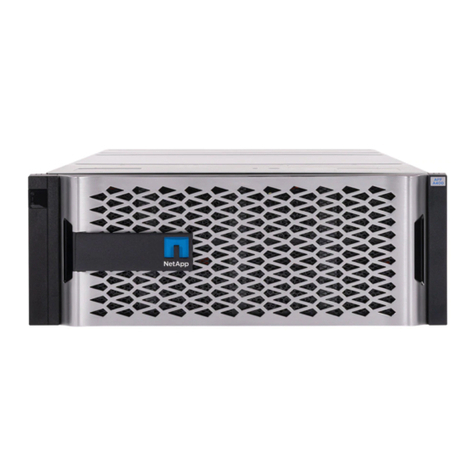

NetApp AFF A400 Manual de usuario
