AFF A800 Systems

Installing and setting up the system

You can choose from different content formats to guide you through the installation and setup of your new system.

Note: If needed, before you begin the installation and setup of your new system, you can familiarize yourself with the process

by reviewing the

Installation and setup high-level workflow

on page 2

Installation and setup PDF poster

Step-by-step instructions with live links to additional content.

Installation and setup PDF poster

on page 2

Installation and setup videos

Procedure overviews for system cabling and System Manager Guided Setup.

Installation and setup videos

on page 3

Installation and setup guide

Step-by-step instructions with live links to additional content, animated cabling and searchable content.

Installation and setup guide

on page 3

Web: www.netapp.com • Feedback: [email protected]

Installation and setup high-level workflow

Before you begin the installation and setup of your new system, you can familiarize yourself with the installation process.

Installation and setup PDF poster

You can use the PDF poster to install and set up your new system. The PDF poster provides step-by-step instructions with live

links to additional content.

Access the

Installation and Setup Instructions

PDF poster:

AFF A800 Systems Installation and Setup Instructions

2AFF A800 systems: Installing and setting up

Installation and setup videos

You can watch these videos for an overview of the installation and setup of your new system.

Video one of two: Hardware installation and cabling

The following video shows how to install and cable your new system.

NetApp video: AFF A800 Systems: Installation and Setup Instructions

Video two of two: Performing end-to-end software configuration

The following video shows end-to-end software configuration for systems running ONTAP 9.2 and later.

NetApp video: Software configuration for vSphere NAS datastores for FAS/AFF systems running ONTAP 9.2

Installation and setup guide

You can use this guide to install and setup your new system. The procedures in this guide provide step-by-step instructions with

live links to additional content, and animated cabling.

Steps

1. Preparing for installation on page 3

2. Installing the hardware on page 5

3. Cabling controllers to your network on page 6

4. Completing system setup and configuration on page 8

Preparing for installation

To install your AFF A800 system, you need to create an account, register the system, and get license keys. You also need to

inventory the appropriate number and type of cables for your system and collect specific network information.

Before you begin

You need to have access to Hardware Universe for information on your site requirements as well as additional information on

your configured system.

NetApp Hardware Universe

You need to provide the following at your site:

• Rack space for the storage system

• Screwdriver

• Additional networking cables to connect your system to your network switch and Microsoft Windows client

• A client with a USB/serial connection and access to a web browser to configure your system

Steps

1. Unpack the contents of all boxes.

2. Record the system serial number from the controller module.

Installation and setup videos 3

SSN: XXYYYYYYYYYY

3. Set up your account:

a. Login to your existing account or create an account.

NetApp Support Registration

b. Register your system.

NetApp Product Registration

c. Get your license keys.

NetApp Software License Search

4. Inventory and make a note of the number and types of cables you received.

The following table identifies the types of cables you might receive. If you receive a cable not listed in the table, refer to the

Hardware Universe to locate the cable and identify its use.

NetApp Hardware Universe

Type of cable... Part number and length Connector type For...

100 GbE cable X66211A-05 (112-00595),

0.5m HA interconnect

X66211A-05 (112-00595),

0.5m;

X66211-1 (112-00573), 1m

Cluster interconnect

network

X66211-2 (112-00574), 2m;

X66211-5 (112-00576), 5m

Data

10 GbE cable X6566B-3-R6 (112-00300),

3m;

X6566B-5-R6 (112-00301),

Data

25 GbE cable X66240A-2 (112-00598),

2m;

X66240A-5 (112-00600),

RJ-45 (order dependant) Not applicable Management

Fibre Channel X66250-2 (112-00342) 2m;

X66250-5 (112-00344) 5m;

X66250-15 (112-00346)

15m;

X66250-30 (112-00347)

30m

4AFF A800 systems: Installing and setting up

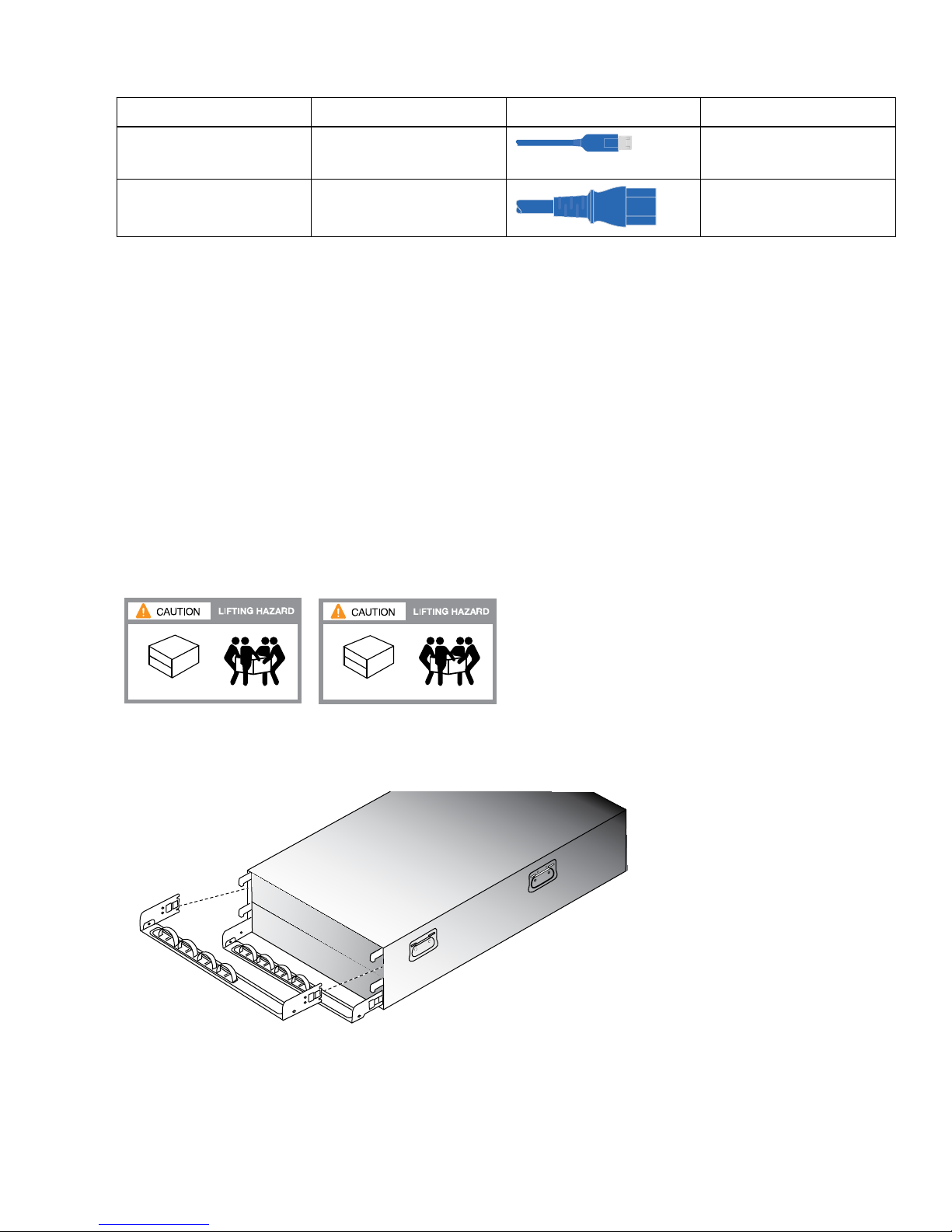

Type of cable... Part number and length Connector type For...

Micro-USB console cable Not applicable Console connection during

software setup

Power cables Not applicable Powering up the system

5. Download and complete the

Cluster configuration worksheet

Cluster Configuration Worksheet

Installing the hardware

You need to install your system in a 4-post rack or NetApp system cabinet, as applicable.

Steps

1. Install the rail kits, as needed.

Installing SuperRail into a four-post rack

2. Install and secure your system using the instructions included with the rail kit.

Note: You need to be aware of the safety concerns associated with the weight of the system.

24 SSDs

119.2 lbs (54.2 kg)

48 SSDs

132.4 lbs (60.2 kg)

3. Attach cable management devices (as shown).

Cable

management

device

4. Place the bezel on the front of the system.

Installing the hardware 5

Cabling controllers to your network

You can cable the controllers to your network by using the two-node switchless cluster method or by using the cluster

interconnect network.

Choices

• Cabling a two-node switchless cluster on page 6

• Cabling a 100 GbE cluster interconnect network on page 7

Cabling a two-node switchless cluster

Management network, data network, and FC ports on the controllers are connected to switches. The HA interconnect and cluster

interconnect ports are cabled on both controllers.

Before you begin

See your network administrator for help connecting to the switches.

Steps

1. Cable your system by following the tabulated steps:

Note: Steps 4 and 5 are optional and configuration dependent.

Note: As you insert the connector, you should feel it click into place; if you do not feel it click, remove it, turn it around

and try again.

X1147A X1147A X1147A X1147A

X1135A X1135A X1135A

To 10GbE

data network

switches

To management

network switches

To 10GbE data

network switches

To fibre channel

switches

To fibre channel

switches

Step Perform on each controller Ports used

Cable the HA interconnect ports. • e0b to e0b

• e1b to e1b

Cable the cluster interconnect ports. • e0a to e0a

• e1a to e1a

6AFF A800 systems: Installing and setting up

Step Perform on each controller Ports used

Cable the management ports to the management network switches. • e0M

• BMC

Cable the data ports to the data network switches. • e2a through e2d

• e3a through e3d

Cable the Fibre Channel ports to the FC switches. • 4a through 4d

• 5a through 5d

DO NOT plug the power cords in at this point. Not applicable.

2. To complete setting up your system, see

Completing system setup and configuration

on page 8

Cabling a 100 GbE cluster interconnect network

Cluster interconnect, management network, data, and Fibre Channel ports on the controllers are connected to switches while the

HA interconnect ports are cabled on both controllers.

Before you begin

See your network administrator for help connecting to the switches.

Steps

1. Cable your system by following the tabulated steps:

Note: Steps 4 and 5 are optional and configuration dependent.

Note: As you insert the connector, you should feel it click into place; if you do not feel it click, remove it, turn it around

and try again.

X1147A X1147A X1147A X1147A

X1135A X1135A X1135A

To 10GbE

data network

switches

To management

network switches To cluster

interconnect

switches

To cluster

interconnect

switches

To cluster

interconnect

switches

To 10GbE data

network switches

To fibre

channel

switches

To fibre

channel

switches

5To cluster

interconnect

switches

Cabling controllers to your network 7

Step Perform on each controller Ports used

Cable the HA interconnect ports • e0b to e0b

• e1b to e1b

Cable the cluster interconnect ports to the 100 GbE cluster interconnect

switches.

• e0a

• e1a

Cable the management ports to the management network switches • e0M

• BMC

Cable the data ports to the data network switches • e2a through e2d

• e3a through e3d

Cable the Fibre Channel ports to the FC switches • 4a through 4d

• 5a through 5d

DO NOT plug the power cords in at this point. Not applicable.

2. To complete setting up your system, see

Completing system setup and configuration

on page 8

Completing system setup and configuration

You must cable and configure your Windows client before you complete your AFF A800 system setup and configuration.

Steps

1. Cable and configure your client:

a. Connect the console cable to the client and the console port on the controller module using the console cable that came

with your system.

X1147A X1147A X1147A X1147A

X1135A X1135A X1135A

X1135 A

X1135 AX1135 A X1135A

X1147 A X1147A X1147AX1147 A

Client

b. Connect the client to the switch on the management subnet.

8AFF A800 systems: Installing and setting up

X1147A X1147A X1147A X1147A

X1135A X1135A X1135 A

X1135 A

X1135 AX1135 A X1135A

X1147 A X1147A X1147AX1147 A

Management

subnet

Client

c. Assign a TCP/IP address to the client, using one that is on the management subnet.

d. Set the console port on the client to 115,200 baud with N-8-1.

Note: See your client's online help for how to configure the console port.

2. Plug the power cords into the power supplies, and then connect them to power sources on different circuits.

3. Assign an initial node management IP address to one of the nodes.

If the management network has

DHCP... Then...

Configured Record the IP address assigned to the new controller modules.

Not configured a. Open a console session using PuTTY, a terminal server, or the equivalent for your

environment.

Note: Check your client's online help if you do not know how to configure PuTTY.

b. Enter the management IP address when prompted by the script.

4. Using System Manager on your client, configure your cluster:

a. Point your browser to the node management IP address (from Step

Note: The format for the address is https://x.x.x.x.

b. Configure the system using the data you collected in the

Cluster configuration worksheet

Cluster Configuration Worksheet

No part of this document covered by copyright may be reproduced in any form or by any means—graphic, electronic, or

mechanical, including photocopying, recording, taping, or storage in an electronic retrieval system—without prior written

permission of the copyright owner.

Software derived from copyrighted NetApp material is subject to the following license and disclaimer:

THIS SOFTWARE IS PROVIDED BY NETAPP "AS IS" AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, WHICH ARE HEREBY DISCLAIMED. IN NO EVENT SHALL NETAPP BE LIABLE FOR

ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING,

BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR

PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER

IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY

OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

NetApp reserves the right to change any products described herein at any time, and without notice. NetApp assumes no

responsibility or liability arising from the use of products described herein, except as expressly agreed to in writing by NetApp.

The use or purchase of this product does not convey a license under any patent rights, trademark rights, or any other intellectual

property rights of NetApp.

The product described in this manual may be protected by one or more U.S. patents, foreign patents, or pending applications.

RESTRICTED RIGHTS LEGEND: Use, duplication, or disclosure by the government is subject to restrictions as set forth in

subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.277-7103 (October 1988)

and FAR 52-227-19 (June 1987).

Trademark information

NETAPP, the NETAPP logo, and the marks listed on the NetApp Trademarks page are trademarks of NetApp, Inc. Other

company and product names may be trademarks of their respective owners.

http://www.netapp.com/us/legal/netapptmlist.aspx

How to send comments about documentation and receive

update notifications

You can help us to improve the quality of our documentation by sending us your feedback. You can receive automatic

notification when production-level (GA/FCS) documentation is initially released or important changes are made to existing

production-level documents.

If you have suggestions for improving this document, send us your comments by email.

[email protected]

To help us direct your comments to the correct division, include in the subject line the product name, version, and operating

system.

If you want to be notified automatically when production-level documentation is released or important changes are made to

existing production-level documents, follow Twitter account @NetAppDoc.

You can also contact us in the following ways:

• NetApp, Inc., 495 East Java Drive, Sunnyvale, CA 94089 U.S.

• Telephone: +1 (408) 822-6000

• Fax: +1 (408) 822-4501

• Support telephone: +1 (888) 463-8277

10 AFF A800 systems: Installing and setting up

Otros manuales para AFF A800

Tabla de contenidos

Otros manuales de Almacenamiento de NetApp

NetApp

NetApp FAS8300 Manual de usuario

NetApp

NetApp AFF A200 Manual de usuario

NetApp

NetApp SteelStore 30 Series Manual de usuario

NetApp

NetApp SolidFire C-Series Manual

NetApp

NetApp AFF A200 Manual del operador

NetApp

NetApp FAS2240-2 Manual de usuario

NetApp

NetApp H600S Series Manual

NetApp

NetApp SG1000 Manual de funcionamiento

NetApp

NetApp FAS22 Series Manual de usuario

NetApp

NetApp FAS2500 Manual de uso y cuidado

NetApp

NetApp E Series Instrucciones de uso

NetApp

NetApp StorageGRID Webscale SG6000 Series Manual de funcionamiento

NetApp

NetApp StorageGRID SD100 Manual de usuario

NetApp

NetApp FAS8200 Series Manual de usuario

NetApp

NetApp FAS9500 Hoja de instrucciones

NetApp

NetApp StorageGRID Webscale 10.4 Manual del producto

NetApp

NetApp SOLIDFIRE Manual de usuario

NetApp

NetApp E Series Manual de usuario

NetApp

NetApp FAS8700 Hoja de instrucciones

NetApp

NetApp FAS26 Series Manual

NetApp

NetApp FAS8200 Series Manual

NetApp

NetApp AFF A320 Manual de usuario

NetApp

NetApp FAS9500 Manual de usuario

NetApp

NetApp AFF A900 Manual

Manuales populares de Almacenamiento de otras marcas

QNAP

QNAP TS 32PXU Series Manual de usuario

LaCie

LaCie RUGGED RAID Manual de usuario

Freecom

Freecom CLS DOCK Manual de usuario

PNY

PNY Attache P-FD64MBATT3 Manual de usuario

HP StorageWorks MSL2024 Manual de usuario

OLT

OLT 6x6 Maximizer Manual de usuario

Transcend

Transcend JetFlash 160 Manual de usuario

LaCie

LaCie RUGGED MINI Manual de usuario

Thunderbolt

Thunderbolt 600 Manual de usuario

Panasonic

Panasonic LB-DH8 series Manual

Intel

Intel RAID High Availability Manual de usuario

LaCie

LaCie 12big Thunderbolt 3 Manual de usuario

Spectra Logic

Spectra Logic T-Series Spectra T50e Manual de usuario

Panasonic

Panasonic LKM-F931-1 Manual de usuario

Tabernus

Tabernus Enterprise Erase E2400 Manual de usuario

Rocstor

Rocstor COMMANDER 3F series Manual de usuario

HP P9000 Manual de usuario

Western Digital

Western Digital Ultrastar Data60 Manual de usuario
