M1500 / M1500T

15.0” XGA TFT NEMA 4/12

Flat Panel Monitor

User’s Guide

Revision List

WARRANTY

Nematron warrants to Customer that the Products will be free from defects in material and

workmanship under normal use and service for a period of two years from date of invoice. Customer’s

exclusive remedy for breach of this warranty is that Nematron will either (i) repair or replace, at its option,

any Product which fails during the warranty period because of such defect (if Customer promptly reported

the failure to Nematron in writing) or, (ii) if Nematron is unable to repair or replace, Nematron will refund

the purchase price of the Product upon its return to Nematron. This warranty does not apply to any

Product which has been subjected to misuse, abnormal service or handling, or which has been altered or

modified in design or construction, or which has been serviced by anyone other than Nematron. The

warranty set forth herein is in lieu of, and exclusive of, all other warranties, express or implied.

Document No. DOC-IWS-712B M1500 / M1500T User Manual

Released 6-2008

Revision Number

Description of Change

Release Date

Initial Release

9-2006

Added Windows Vista driver to list of supported drivers, Added

notes to driver list, Changed Logo, Corrected H X W Reversals on

page 5

4-2007

Added DVI functionality, UL Hazardous Locations Notes and

Warnings

6-2008

Nematron reserves the right to make changes in specifications described herein at any time without

notice in order to improve design and reliability. Nematron does not assume any responsibility for

the use of any circuitry described; no circuit patent licenses are implied. Nematron assumes no

responsibility for damage caused by misuse or improper use of its products.

Table of Contents

WARRANTY..............................................................................................................................................2

Table of Contents ......................................................................................................................................3

Chapter 1 - Introduction ................................................................................................................................4

Features.....................................................................................................................................................4

Supported PC Video Modes......................................................................................................................4

Specifications ............................................................................................................................................5

DISPLAY................................................................................................................................................5

TOUCH SCREEN (Optional) .................................................................................................................5

PHYSICAL .............................................................................................................................................5

ELECTRICAL.........................................................................................................................................5

ENVIROMENTAL...................................................................................................................................6

AGENCY................................................................................................................................................6

Front and Side Views of Monitor ...............................................................................................................7

Chapter 2 - Installation of Monitor.................................................................................................................8

Cutout Pattern for M1500 / M1500T Monitor.............................................................................................8

Mounting Clip Installation ..........................................................................................................................9

Connecting Power ...................................................................................................................................10

Connection of VGA and Touch Screen Cables.......................................................................................11

Turning on the Computer and Monitor ....................................................................................................11

Selection of PC Video Settings ...............................................................................................................12

Installing the Touch Screen Driver Software...........................................................................................12

Chapter 3. - Monitor OSD and Settings ......................................................................................................13

On Screen Display (OSD) Controls.........................................................................................................13

Button and LED Functions.......................................................................................................................14

OSD Menus and Settings........................................................................................................................15

MAIN MENU ........................................................................................................................................15

BRIGHTNESS/CONTRAST.................................................................................................................15

COLOR ................................................................................................................................................17

POSITION............................................................................................................................................18

SETUP.................................................................................................................................................20

OSD Message Displays...........................................................................................................................22

OUT OF FREQUENCY........................................................................................................................23

NO SIGNAL .........................................................................................................................................23

POWER SAVER MODE ......................................................................................................................23

PROCESSING AUTO CONFIGURATION...........................................................................................24

Appendix .....................................................................................................................................................25

VGA Pin Assignment...............................................................................................................................25

DVD-D…………………………………………………………………………………………………………..25

Analog 15- Pin D-Sub..........................................................................................................................26

Touch Screen Pin Assignment................................................................................................................27

Serial RS-232.......................................................................................................................................27

USB......................................................................................................................................................27

Chapter 1 - Introduction

The M1500 is a high performance 15” color TFT flat panel monitor specifically designed for harsh

industrial environments including Class I & II, Division 2 Hazardous Locations. The M1500 accepts

standard analog VGA input and can display all VESA video modes up to 1280 x 1024 at 75Hz with 16

million colors. An optional 5-wire analog touch screen is available that offers both RS-232 and USB

interface capability. The monitor is housed in a heavy duty steel chassis with a powder coated machined

aluminum bezel. The monitor is certified to NEMA 4/4X/12 standards, is UL/CUL listed, meets CE

requirements and is RoHS compliant. Panel mounting is simplified using convenient mounting clips

instead of conventional studs. Options include: a 5-wire analog resistive touch screen, a 304 stainless

steel bezel and 24 volt DC input power. All monitors are shipped with a power input wiring receptacle,

VGA cable, touch screen cable (if equipped), mounting hardware, manual and driver software.

Features

UL 508 and UL 1604 listed for Hazardous Locations: Class I, Division 2, Groups A, B, C, D and

Class II, Division 2, Groups F and G

NEMA 4/4X/12 front bezel

2-Year warranty

RoHS Compliant

Integral 100 -240 VAC power supply

Simplified installation with no studs

Thin design –Only 2.4” behind bezel

Accepts analog 15-pin Video input

VESA compliant –all modes up to SXGA, 75Hz

Optional 5-wire resistive touch screen with both RS-232 and USB interface

Optional 304 stainless steel front bezel

Optional 24 VDC input power

Supported PC Video Modes

Note: The above highlighted PC display modes produce the best image quality on the M1500.

Mode

Dot Clock

(MHz)

Horizontal Freq

(KHZ)

Vertical Freq (Hz)

H Sync

Polarity

V Sync

Polarity

640 x 350 @ 70Hz

25.144

31.430

70.000

640 x 400 @ 70Hz

28.287

31.430

70.000

720 x 400 @ 70Hz

28.287

31.430

70.000

640 x 480 @ 60Hz

25.175

31.469

59.940

640 x 480 @ 72Hz

31.500

37.861

72.809

640 x 480 @ 75Hz

31.500

37.500

75.000

800 x 600 @ 56HZ

36.000

35.156

56.250

800 x 600 @ 60Hz

40.000

37.879

60.317

800 x 600 @ 72Hz

50.000

48.077

72.188

800 x 600 @ 75Hz

49.500

46.875

75.000

1024 x 768 @ 60Hz

65.000

48.363

60.005

1024 x 768 @ 70Hz

75.000

56.476

70.070

1024 x 768 @ 75Hz

78.750

60.023

75.030

1280 x1024 @ 60Hz

108.000

63.981

60.020

1280 x 1024 @ 75Hz

135.000

79.976

75.035

Specifications

DISPLAY

TOUCH SCREEN (Optional)

Touch Screen Technology

5- Wire Analog Resistive

Interface

USB 1.1 and Serial RS-232

Resolution

4096 x 4096

Positional Accuracy (Maximum Error)

.18”

Positional Accuracy (Standard Deviation of Error)

<.08”

Expected Life

>35,000,000 Activations

PHYSICAL

Over All Monitor Dimensions (H x W x D)

12.80” x 15.80” x 2.65”

Cutout Dimensions (H x W)

12.00” x 15.00”

Weight

12.5 lbs

Shipping Weight

15 lbs

ELECTRICAL

AC Input Voltage

100 –240 VAC, 50/60 Hz

AC Input Current

.5A Maximum

DC Input Voltage (Optional)

18 –36 VDC

DC Input Current (Optional)

.75 A Max @ 24VDC

Input Power

≤20W

Display Size (Active Area H x V)

11.97” x 8.98”

Native Resolution

XGA, 1024 x 768

VESA Modes Supported

Up to 1280 x 1024 @75Hz

Displayable Colors

16M

Brightness, Typical

250 Nit

Contrast Ratio, Typical

550:1

Horizon/Vertical View Angle, CR>5, Typical

160/140

Backlight Life

40,000 hrs, Minimum

Display Input Signal

Analog 15-Pin D-Sub

ENVIROMENTAL

Operating Temperature

0C to 50C

Operating Humidity

20% to 80% RH, noncondensing

Operating Shock

15g peak acceleration, 11msec

Operating Vibration 5-2000 Hz

0.006” peak to peak, 1g max

Operating Altitude

Sea level –10,000 feet

AGENCY

Front Panel NEMA Rating

NEMA 4/4X/12, IP65

FCC

47 CFR, Part 15, Class A

EU CE Marking Compliance

CE, EN 55022: Class A,

EN 61000-3-2: Class A,

EN 61000-3-3, EN 61000-6-2,

Safety Agency Approvals

UL 508 Listed, UL 1604 Listed*, cUL

Listed CSA C22.2, #142, CSA

C22.2, #143*

* Class I Division 2, Groups A, B, C, D; Class II, Division 2, Groups F and G

WARNING –EXPLOSION HAZARD –SUBSTITUTION OF COMPONENTS MAY

IMPAIR SUITABILITY FOR CLASS I, DIVISION 2

NOTE: SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS A, B, C AND D

HAZARDOUS LOCATIONS, OR NONHAZARDOUS LOCATIONS ONLY

123

15.80"

2.40"

2.65"

12.80"

1.17"

3.95"

Front and Side Views of Monitor

15.0"

±.02"

12.0"

±.02"

Chapter 2 - Installation of Monitor

This monitor is intended to be mounted in and used where NEMA 4 and NEMA 12 type

enclosures are employed. Enclosures made of heavier gauge metal work better because they won’t

deform or bend as easily when the monitor’s sealing gasket is compressed. The monitor meets NEMA

4/12 sealing specifications when properly installed in an approved NEMA enclosure constructed from 14-

gauge or heavier steel. The monitor uses “U”-shaped clips and a special gasket to achieve the proper

seal.

When selecting an enclosure remember to allow adequate space around the rear of the monitor

for good air flow. Do not block air flow from below or above the monitor. If possible mount the monitor in a

vertical orientation. The monitor is designed to work in environments up to 50 degrees Centigrade.

Remember to account for heat dissipated from other equipment that may be inside the same enclosure.

To install the monitor, make a cutout according to the diagram below in one of the walls of your

NEMA enclosure. Next hold the monitor in place while you install the mounting clips. Tighten the clips

to the point were the back of the monitor’s front bezel just begins to contact the front of the NEMA

enclosure. The use of an adjustable torque driver is recommended. The screws should be tightened to 8

inch-pounds. Tighten the clips in a cross pattern. This will help to develop an even pressure on the

sealing gasket. DO NOT OVER TIGHTEN AS DAMAGE CAN RESULT IN THE MONITOR CAUSING

LOSS OF SEALING INTEGRITY.

Cutout Pattern for M1500 / M1500T Monitor

UPMENU DOWNSELECT POWER

FRONT PANEL

OF NEMA

ENCLOSURE

TIGHTEN TO 8

INCH-POUNDS

COMPRESSABLE NEMA

SEALING GASKET

.25" THICK MONITOR

FRONT BEZEL

MAXIMUN ALLOWABLE

PANEL THICKNESS

CUT AWAY

.325"

FRONT PANEL OF

NEMA ENCLOSURE

MOUNTING CLIP

WITH 10x32 SCREW

Mounting Clip Installation

REAR VIEW OF PANEL

MOUNTED MONITOR

321

31 2

TOP VIEW

FRONT VIEW

PHOENIX CONTACT P.N. 1777992

Connecting Power

The M1500 monitor is powered from 100-240 VAC, 50/60 Hz or optionally from 24 VDC. Damage

will occur if 100-240 VAC power is connected to an M1500 equipped with the 24 VDC input power

option. M1500’s equipped with the 24 VDC option will have a “-24” suffix in their model number such as

M1500-24 or M1500T-24.

Because the M1500 is UL 1604 listed for Hazardous Location use, (Class I Division2, Groups A,

B, C, D; Class II Division 2 Groups F and G: Temperature Code T4A), it has no power switch for switching

off supplied power. Please read the functional description of the POWER button on page 12.

Consideration should be give to the installation of an appropriately rated external power switch if the

application requires powering off the M1500.

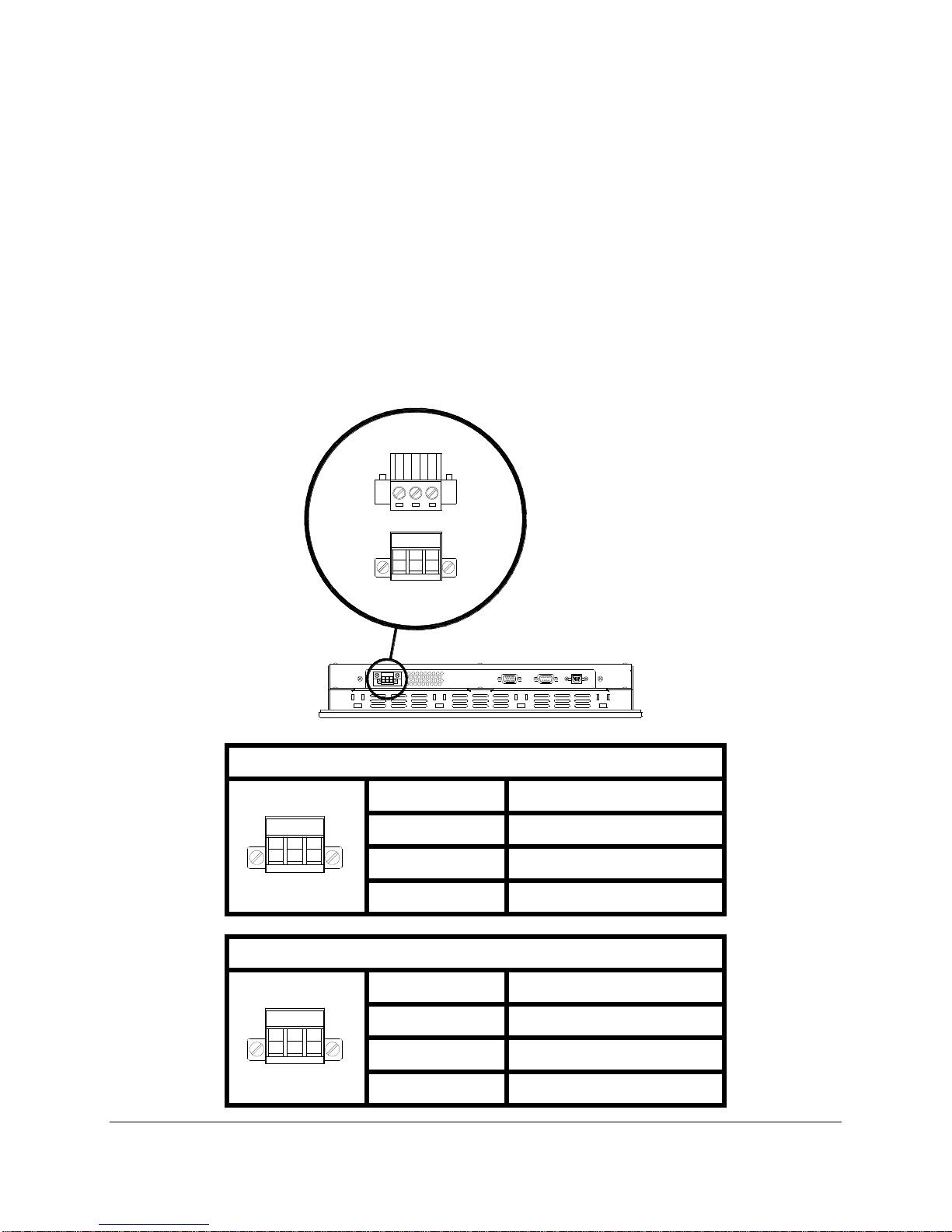

Power is connected to the M1500 through a removable Phoenix Contact plug (Phoenix Contact

P.N. 1777992) that allows for screw termination of field wiring. The use of 18 AWG or greater (12 AWG

maximum) is recommended. Connect the field wiring according to the appropriate table below. After the

connections are made, make sure the plug retention screws (the two screws shown in the “Front View”

below) are securely tightened. This will prevent the plug from pulling out.

100 VAC –240 VAC INPUT (1.0 Amps Min)

PIN No.

Definition

AC Line Input

AC Neutral Return

Protective Earth Ground

18 VDC –36 VDC INPUT (2 Amps Recommended)

PIN No.

Definition

+DC Input

-DC Return

Protective Earth Ground

31 2

Otros manuales para M1500

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de Nematron

Nematron

Nematron M1500 Manual de usuario

Nematron

Nematron Nematron M1900 Manual de usuario

Nematron

Nematron LM9001 Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
