Telephone User Guide

NEC SL1100

Phone: 07 5478 2000 Fax: 07 5478 2611

172 Brisbane Road, Mooloolaba, Qld 4557

WILDWOOD (AUST) PTY LTD ACN 096 593 878 ABN 61 096 593 878

Quick Reference Guide

NEC SL1100

Function Function Description

*GREEN LED Your Call

RED LED Somewhere else in uilding (on another handset)

SOLID RED OR GREEN Station with call in progress or with a call on exclusive hold

SLOW FL SHING LED A call that has een placed on hold

F ST FL SHING LED An incoming call

* NSWER C LL If your handset rings on incoming calls, lift handset

If your handset does not ring, Lift Handset and press the line utton

If your handset does not ring, Lift Handset and press P/U soft button x 2

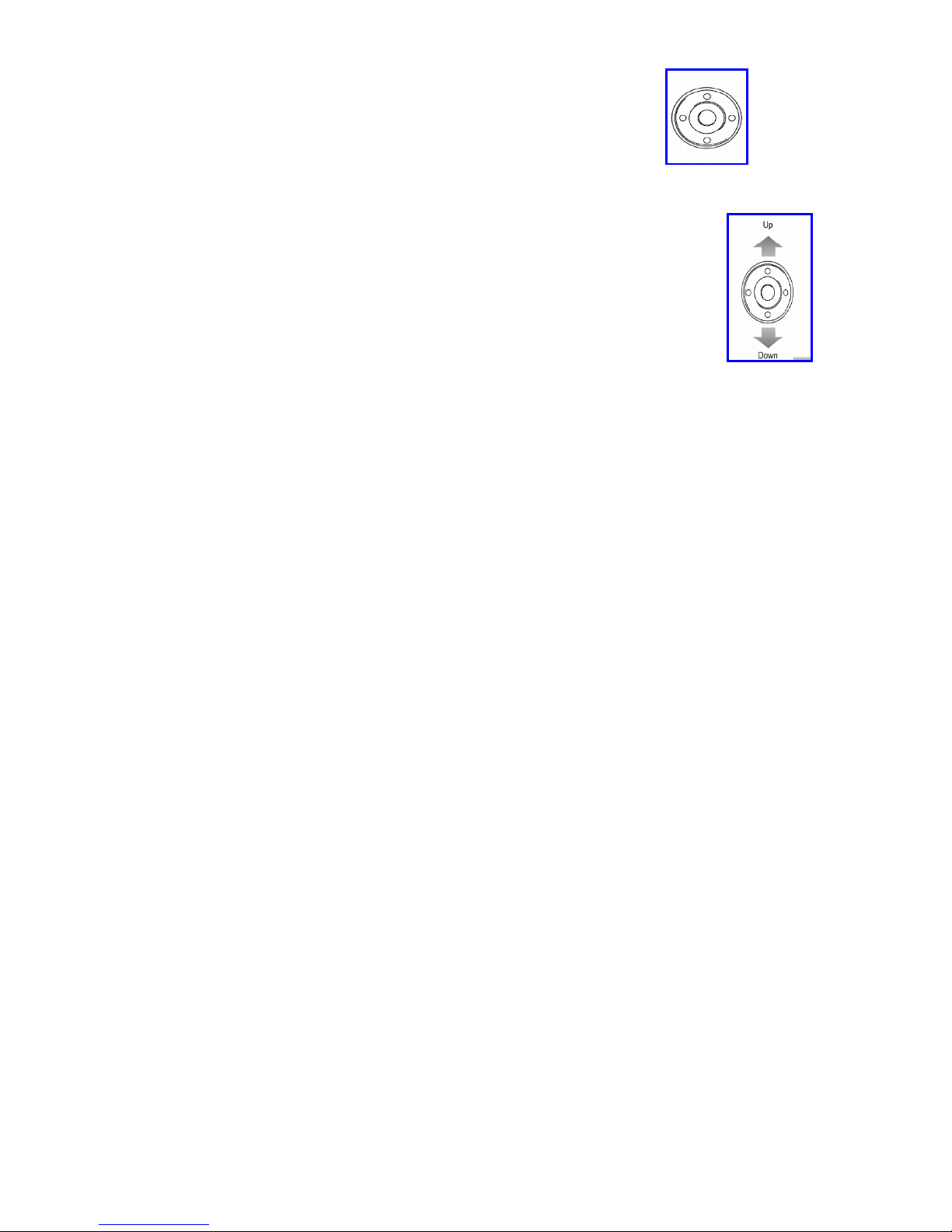

*VOLUME CONTROL

USING THE UP/DOWN BUTTON



Handset Receiver volume press up/down utton in off hook status or during

call



Ring volume press up/down utton when station is ringing.



Speaker volume press up/down utton during speakerphone operation or

during the call

*MIC / MICROPHONE The microphone On/Off for hands free is set to ON by default

LED on MUTE utton shows the status of the uilt-in microphone

Red light off indicates Microphone is active

Red light on indicates MUTE is active

H NDSET - - - - - - - - - - -

RING - - - - - - - - -

SPE KER



*M KE C LL Internal Calls



Hands free Press one-touch utton for extension



Or Lift handset and press one-touch utton for extension

External Calls

Lift handset or for hands free press Speaker



Press “0” then dial phone num er

*HOLD To place a call on hold:



Press Hold utton once.

To place a call on hold using Park buttons (if assigned):



Press the first availa le Park utton once.

*TR NSFERRING C LLS To Transfer a call to another extension:



Press Hold to put the call on hold



Dial Extension num er or press one-touch utton,



Announce call



Press Transfer OR Advise of line num er



Hang up. Call is transferred.

To transfer calls from a cordless phone:



While speaking on an outside line:



Press Recall button

(which puts the call on hold),



Dial Extension num er,



Announce the call and hang up.

*TR NSFERRING TO

VOICEM IL To transfer a call to a person’s voice mail:



While speaking to the outside line



Press Hold



Dial Person’s extension num er



Press “8” (Voicemail will respond)



Press Transfer



Hang Up

*TR NSFER OFFSITE

Transfer an incoming line to another outside line

While talking to the incoming call



Press Hold utton



Dial “0” for an outside line



Dial Phone num er



Announce call



Press Transfer utton



Hang Up

NOTE: While call is active, 2 lines on the phone system will be held up.

*REDI L To dial the last number phoned:



Press Redial button without lifting handset redial



The last dialled number will be on



the screen



Press Redial again to call num er

Scroll through previous called number using the up

and down functions on the jogdial button. When you see

the desired number on the screen, press redial again

to call the number

*CORDLESS PHONE To make calls –



Press Talk/on or green phone utton,



dial 0, then



dial Phone number

To answer calls,



press talk/on or green phone utton sym ol when ringing

To Transfer calls –



Press Recall/Flash to Hold.



Dial Extension number, announce,

*INTERN L P GING To make an internal page through all desktop handsets:



Lift handset



Press Page soft utton



Press InPg soft utton



Press “0” which is group no 1 for all internal page



Make announcement



Hang up gently

(Note: This feature is announcement only-extensions cannot reply)

*EXTERN L P GING To make an external page through a Paging Horn:



Lift Handset



Dial 703



Press “0” (for all Zones)



Make nnouncement and replace handset

(Note: This feature only works if an external speaker is installed)

*CONFERENCE C LLS To set up a Conference Call:

While on an Outside call or connected to your first party



Press Conf Button under screen, hear dialtone



Dial an outside line or second party extension

When called party answers:



Press dd utton under screen

(Repeat steps 2-4 to add more parties. Maximum of 16 internal or external

parties can e conferenced).



Press DD under display



Press Begin to start conference

*MISSED C LLS Missed (unanswered) calls on your handset are in the call log (CL)



Press utton under CL on display 



Press utton under “Unan”



Scroll Using up / down on jog dial utton



Lift Handset to call – Handset will dial automatically



Press DEL soft utton to delete



Press Store soft utton to save

*SET INTERCOM TO EITHER

RINGING OR H NDSFREE To select your intercom to be hands free:



Press Speaker



Dial 721



Press Speaker to hang up

To select your intercom to be ringing:



Press Speaker



Dial 723



Press Speaker to hang up

*SELECT BLE RING TONES To CH NGE your Extension’s incoming ring tones:



Press Speaker button



Dial 720



Dial 1 to set intercom ring, or 2 to set external call ring



Dial Code for the ring pattern you wish to hear:

1 = High 5 = Ring Tone 2

2 = Mid Range 6 = Ring Tone 3

3 = Low 7 = Ring Tone 4

4 = Ring Tone 1 8 = Ring Tone 5



Press Speaker to Hang Up

To Listen to the Incoming ring choices



Press Speaker and Dial 711



Dial 1 to listen to intercom ring



Dial 2 to listen to external call ring

Then for INTERCOM



Dial 1-8 Code for ring pattern

Or for EXTERN L C LL



Dial 1-3 (ring) 4-8 (melody)



Press Speaker to Hang up

*ST TION N ME SSIGNMENT

To assign a name to your extension number:



Press Speaker



Dial 700



Press Hold



Enter your Name - up to 12 digits

(## for space. # etween digits on same utton)



Press Hold



Press Speaker to hang up

To program any extension’s name:



Press Speaker



Dial 700



Enter Extension Number to e named



Enter the Name – up to 12 digits



Press Hold



Press Speaker to hang up

*C LL FORW RD LL

C LLS TO NOTHER

EXTENSION OR OFF-SITE To set via menu on the screen:



Press MENU Soft Button



Dial 60



Press SELECT



Press Press NEXT to find condition for CFWD



Press SELECT



Press Set Soft Button



Dial “0” for an off-site number, then dial the number

(eg: 0, 0418710111)



Press Speaker utton to hang up

To deactivate:



Press MENU Soft Button



Dial 60



Press SELECT



Press Press NEXT to find condition for CFWD



Press SELECT



Press CANCEL Soft Button

*C LL FORW RD YOUR

H NDSET TO VOICEM IL

IF BUSY/NOT NSWERING



Press MENU Soft Button



Dial 60



Press SELECT



Press Press NEXT to find condition for CFWD



Press SELECT



Press Set Soft Button



Dial 200



Press Speaker utton to hang up

To deactivate:



Press MENU Soft Button



Dial 60



Press SELECT



Press Press NEXT to find condition for CFWD



Press SELECT



Press CANCEL Soft Button

*DO NOT DISTURB To ctivate



Press DND Button



Press Set Soft Button



Press ll Soft Button

To Deactivate



Press DND utton



Press CNCL Soft Button



Lift and replace handpiece

*B CKGROUND MUSIC Can e played through telephone speaker

To set and cancel



Press Speaker



Press 725



Press Speaker

* L RM CLOCK To activate an alarm:



Press Speaker



Dial 727



Dial larm Type 1 – Sounds Only Once

2 – Sounds each day at preset time



Dial larm time (24 hour clock) (A confirmation tone will e heard)



Press Speaker to hang up

To silence an alarm:



Press Exit

To check a programmed alarm time:



Press Help utton



Dial 727



Dial alarm type 1 or 2

The programmed time displays



Press EXIT

To cancel an alarm:



Press Speaker



Dial 727



Dial alarm type 1 or 2



Dial 9999



Press Speaker to hang up

*CH NGING THE TIME/D TE



Press Menu soft utton



Press Next to find ADMIN



Press SELECT (time displays, use NEXT for Date)



Press SELECT



Change Time / Date as required



Press SAVE soft utton



Press EXIT utton

INTERRUPT C LL * Note - Will not work if called station has CFW B/N activated

(Tone override) To send signals to an extension busy on a call:



Dial Extension that is usy



press # When you hear the usy tone

(The called extension hears call alert notification, press the

hold utton and oth parties are connected.)

B RGE IN (INTERRUPT C LL)* Note - Must

be activated in programming



Lift Handset



Dial 710



Dial Busy Extension

(The extension user will hear a warning tone).

ROOM MONITOR Room monitor lets an extension listen to the sounds in co-workers area, for

example, a receptionist could listen for sounds in the warehouse when it’s

left unattended.

N TE:

(A Room monitor button must be programmed. Room monitor must be

activated at the extension initiating the monitor and at the extension that is to be

monitored. ou can only listen to one extension at a time.)

To activate Room Monitor from initiating extension:



Press Room Monitor button



Dial Extension number you are at

( ou can place and answer calls whilst monitor is active)

To activate Room Monitor from extension to be monitored:



Press Room Monitor utton



Dial Extension number you are at

*SYSTEM SPEED DI LLING

To Store Common Speed-dial numbers:

Use WEBPRO on PC if the phone system is connected to your network

IP address:-

Password:-

IMPORT NT NOTE:- When using WebPro DO NOT USE THE BROWSER B CK ND FORW RD BUTTONS

T TOP LEFT OF THE SCREEN – Use the tiny blue arrows on the right hand side of the WEBPRO panel.

To store manually:



Press Speaker utton.



Dial 753



Dial Speed Dial Code - System 001 to 999



Dial Telephone Number you want to store (no leading 0 required).



Press HOLD.



Enter Name of the company or person using the uttonpad.

(## for space, # to move cursor if two digits on same utton)



Press HOLD.



Press Speaker to hang up.

*DIRECTORY DI LLING fter your system speed dials are loaded you can access the phone

directory:



Press  on the Jog Dial







THEN



Use the Jog dial utton top and ottom to scroll through the list



When the correct name is on the display lift handset or press speaker to dial

the num er

*****Shortcut*****

When you access the telephone book



Dial The first letter of the name you are looking for



Press The jog dial up and down to scroll through names

eginning with that letter.



Press rrow up or down to scroll through the list



Lift Handset or press Dial Soft Button or press Speaker to place call

PROGR MMING ONE TOUCH BUTTONS

Program One Touch Buttons for External Phone Numbers:



Press SPK



Dial 751



Press BUTTON you wish to program



Enter 01



Enter 0 for an outside line



Enter Phone number



Press HOLD



Press SPK

Program Function Buttons for Internal Extensions:



Press SPK



Dial 751



Press BUTTON you wish to program



Enter 01



Enter Extension Number



Press HOLD



Press SPK

Program Function Buttons for all other features:



Press SPK button



Dial 751.



Press Button you want to program.



Enter 2-digit button function (see next page)



Press HOLD



Press SPK

Otros manuales para SL1100

Tabla de contenidos

Otros manuales de Teléfono de NEC

NEC

NEC NDK 900 Manual de usuario

NEC

NEC Ranger DK-616 Manual de usuario

NEC

NEC UNIVERGE SL2100 Manual de usuario

NEC

NEC Xen Topaz Manual de usuario

NEC

NEC UNIVERGE UM8500 Manual de usuario

NEC

NEC Portrait 308 Manual del propietario

NEC

NEC DS1000 Manual del propietario

NEC

NEC DT730G (CG): ITL-12CG-3 Manual de usuario

NEC

NEC Univerge SV9100 Manual de usuario

NEC

NEC UNIVERGE NEAX 2000 IPS Manual de usuario

NEC

NEC AT-55 Manual de usuario

NEC

NEC Xen Master Manual de instrucciones

NEC

NEC DT330 Manual de usuario

NEC

NEC XN120 Vision Manual de usuario

NEC

NEC Univerge SV9100 Manual de usuario

NEC

NEC DS2000 IntraMail Manual de usuario

NEC

NEC XN120 Vision Manual del propietario

NEC

NEC Univerge SV8100 Guía de configuración

NEC

NEC Univerge SV9100 Hoja de información del producto

NEC

NEC 2000IVX Manual de usuario

NEC

NEC Ranger D-824 Manual

NEC

NEC XN120 Vision Manual de usuario

NEC

NEC DT300 Series Manual de usuario

NEC

NEC i-Series Alphanumeric Display Manual del propietario

Manuales populares de Teléfono de otras marcas

GE 2-9480 Manual de usuario

Geemarc

Geemarc PHOTOPHONE 155 Manual de usuario

D-Link

D-Link DWR-720/PW Manual de usuario

Interquartz

Interquartz Gemini IQ333 Manual de usuario

SSS Siedle

SSS Siedle HT 840-0 Manual de usuario

Motorola

Motorola TITANIUM Manual de usuario

Panasonic

Panasonic ICX Manual de usuario

LG H870DS Manual de usuario

Samsung

Samsung GT-I9500 Manual de usuario

AT&T

AT&T Trimline 205 Manual de usuario

Selta

Selta zenyth 600 Manual de usuario

Doro

Doro AFTI 20 Manual de usuario

UNIQCELL

UNIQCELL A1 Manual de usuario

Panasonic

Panasonic KX Series Manual de usuario

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manual de usuario

BT Decor 425 Manual de usuario

Teledex

Teledex PEARL Manual de usuario

Ericsson

Ericsson Dialog 3213 Manual de usuario
