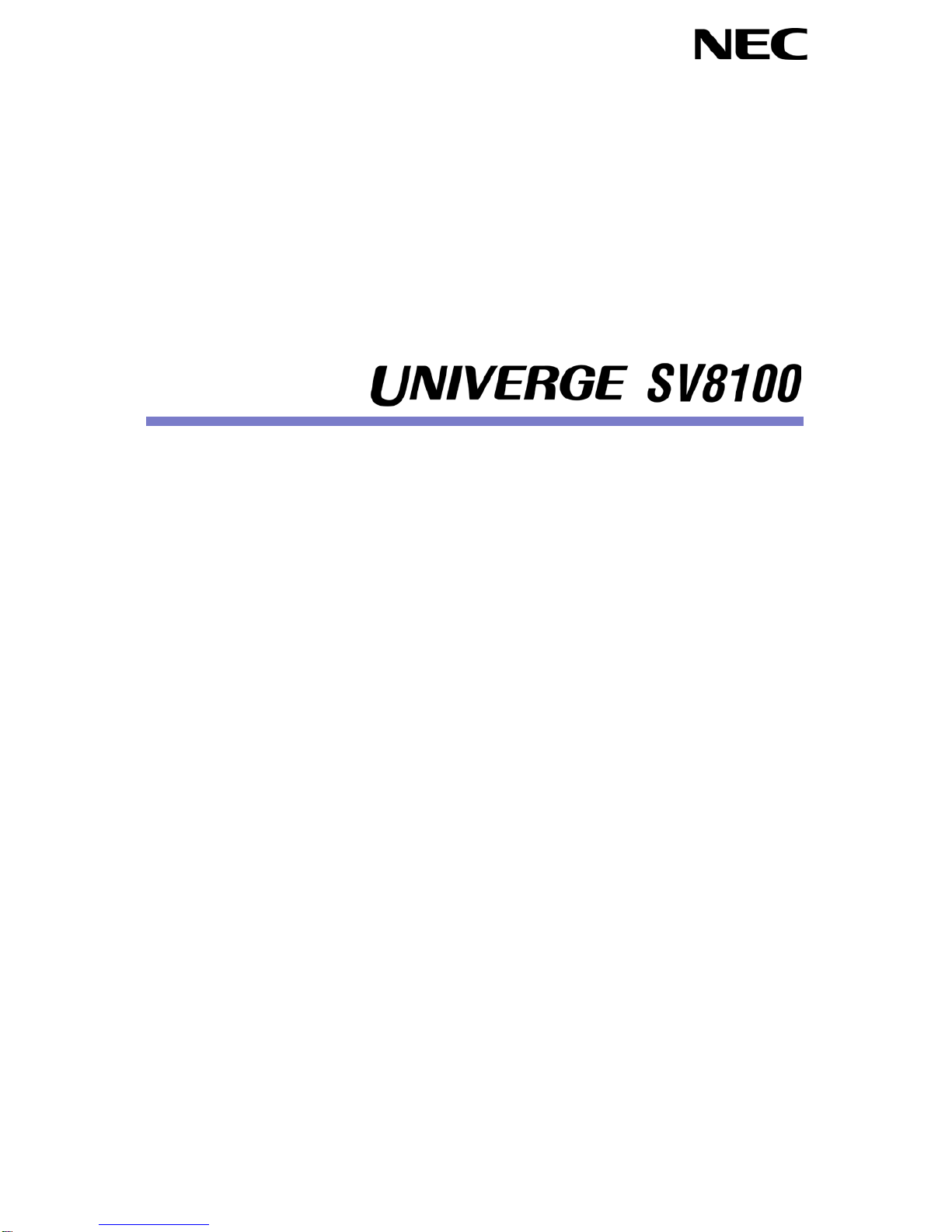

NEC Univerge SV8100 Manual de usuario

Features and Specifications Manual

Doc. No. 10534

Issue 1.0

NEC shall not be liable for any direct, indirect, consequential or incidental damages

about the use of this equipment, manual or any related materials.

The information in this technical manual is advisory in nature and is subject to

change. NEC may make improvements and changes in the products described in

this manual without notice.

Changes is periodically made to the information in the new editions. Efforts have

been made to ensure that the contents of this manual are correct. Should you find

any error, NEC welcomes your comments to improve our communications. Please

contact NEC on 1800 036 136.

Contents of this manual are subject to change without prior notice at the discretion

of NEC Australia Pty Ltd.

This document has been prepared for the use of employees and customers of NEC

Australia Pty Ltd and may not be reproduced without prior written approval of NEC

Australia Pty Ltd.

NEC Australia Pty Ltd

633 – 647 Springvale Road

Mulgrave Vic 3170

Before Reading this Manual

This manual provides detailed information for each of the system’s features. If you are not familiar

with the features, the Table of Contents provides a list of the features and where to find the feature

within the manual.

GENERAL INFORMATION

Congratulations! You have purchased the NEC UNIVERGE SV8100 System.

The UNIVERGE SV8100 system is a feature-rich key system that provides many features including

Automatic Call Distribution, IP Station and IP Trunk support, ISDN compatibility, PBX compatibility,

TAPI compatibility, Voice over Internet Protocol and Uniform Call Distribution.

The UNIVERGE SV8100 system meets the customer needs today, and as business expands, the

system can be expanded to grow as well.

The UNIVERGE SV8100 system has a set of manuals that provide all the information necessary to

install and support the system. This preface describes these manuals.

SUPPORTING DOCUMENTS

UNIVERGE SV8100 General Description Manual

This Manual provides general information about the system, its features, system configuration and

standards. This manual provides an overview of the UNIVERGE SV8100 system and can be used to

present information to potential customers.

SV8100/SV8300 System Hardware Manual

The System Hardware Manual is provided for the system installer. This manual has detailed

instructions for installing the SV8100/SV8300 Chassis, Blades, Multiline Terminals, and optional

equipment.

UNIVERGE SV8100 Programming Manual

This manual provides instructions for programming the UNIVERGE SV8100 system using a Multiline

Terminal or PC.

Preface

SECTION 1ELECTROMAGNETIC INTERFERENCE (EMI)

WARNING

This is a Class A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequate measures.

SECTION 2INCIDENCE OF HARM

If the System is malfunctioning, it may also be causing harm to the telephone network.

The Telephone system should be disconnected until the source of the problem can be

determined and until repair has been made. If this is not done, the Network Provider

may temporarily disconnect the service.

SECTION 3HEARING AID COMPATIBILITY

The NEC Multiline Terminals that are provided for this system are hearing aid

compatible. The manufacturer of Single Line Telephones for use with the system must

provide notice of hearing aid compatibility to comply with ACA Technical Standards.

SECTION 4SERVICE REQUIREMENTS

WARNING

This equipment must only be installed and maintained by service

personnel.

In the event of equipment malfunction, all repairs must be performed by an

authorised dealer of NEC Australia Pty Ltd or by NEC Australia Pty Ltd. It is

the responsibility of users requiring service to report the need for service to

one of NEC Australia Pty Ltd authorised agents or to NEC Australia Pty Ltd.

SECTION 5COMPLIANCE INFORMATION

This equipment has been tested to comply with all relevant ACA Technical

Standards.

To be compliant to Australian Standard ACIF S004:2001, Warning: Small metal objects

such as staples and pins may be caught and held in the earpiece and that the user

should be aware and careful to prevent any accident from such an event.

The UNIVERGE SV8100 KSU must be permanently connected to protective earth.

Regulatory

SECTION 6VOICE ANNOUNCEMENT/MONITORING

CAUTION

The use of monitoring, recording or listeningdevices to eavesdrop, monitor,

retrieve or record telephone conversations or other sounds activities,

whether or not contemporaneous with its transmission may be illegal in

certain circumstances under federal or state laws. Legal advise should be

sought prior to implementing any practice that monitors or records any

telephone conversation. Some federal and state laws require some form of

notification to all parties to the telephone conversation, such as using a

beep tone or other notification methods, or require the consent of all parties

to the telephone conversation, prior to monitoring or recording a telephone

conversation. Some of these laws incorporate strict penalties.

SECTION 7MUSIC ON HOLD

IMPORTANT NOTE

In accordance with Australian Copyright Law, a license may be required

from The Australian Performing Right Association Limited (APRA), or other

similar organisation, when radio or TV broadcasts are transmitted through

the Music On Hold feature of this telecommunication system. NEC

Australia Pty Ltd hereby disclaims any liability arising out of the failure to

obtain such a license.

SECTION 8ULREGULATORY INFORMATION

This equipment has been listed by Underwriters Laboratories and complies with all

applicable requirements of the standard for telephone equipment UL 1459.

SECTION 9BATTERY DISPOSAL AND SAFETY

The UNIVERGE SV8100 system includes the batteries listed below. When disposing of

these batteries from system chassis, blades or external battery boxes, the

maintenance personnel must comply with applicable Federal and State regulations

regarding proper disposal procedures.

IMPORTANT SAFEGUARDS FOR BATTERY DISPOSAL

DO NOT PLACE USED BATTERIES IN YOUR REGULAR TRASH!

THE PRODUCT YOU PURCHASED CONTAINS A LITHIUM OR SEALED

LEAD ACID BATTERY. LITHIUM OR SEALED LEAD ACID BATTERIES

MUST BE COLLECTED, RECYCLED OR DISPOSED OF IN AN

ENVIRONMENTALLY SOUND MANNER.

The incineration, landfilling or mixing of disposable batteries with the municipal solid

waste stream may be PROHIBITED BY LAW in most areas. Contact your local solid

waste management officials for other information regarding the environmentally sound

collection, recycling and disposal of the battery.

CAUTION

Danger of explosion if batteries are incorrectly installed. Replace only with

the same or equivalent type of battery as indicated throughout this manual.

Unit Name Type of Battery Quantity

CD-CP00-XX Lithium 1

CD-VM00 Lithium 1

CHS2U INT BATT (Optional) Sealed Lead Acid 2

CHS LARGE BATT BOX

(Optional) Sealed Lead Acid 1 BAT Box = 3 sets of [2 x 12V-7AH]

1 BAT Box = 6 sets of [2 x 12V-7AH]

1 BAT Box = 9 sets of [2 x 12V-7AH]

1 BAT Box = 12 sets of [2 x 12V-7AH]
