NEC PA500U Series Manual de usuario

NEC Display Solutions of America, Inc.

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount Rev 1.5

www.necdisplay.com PA500U/PA500X/PA550W/PA600X Page 1 of 13

Contents

Product Description, Lens Specs, Screen/Aspect Ratio

NotesandFormulas Pg 1

Distance Charts and Formulas Pg 2-4

Ceiling Mount/Desktop Installation Pg 5

Lens Shift Adjustable Range Pg 6

CabinetDimensions Pg 7

CabinetDimensions Pg 8

Cabinet Dimensions (Terminal Cover) Pg 9

Lens Dimensions (Optional) Pg 10-11

Ceiling Mount Dimensions and Input Panel Pg 12

Control Codes Pg 13

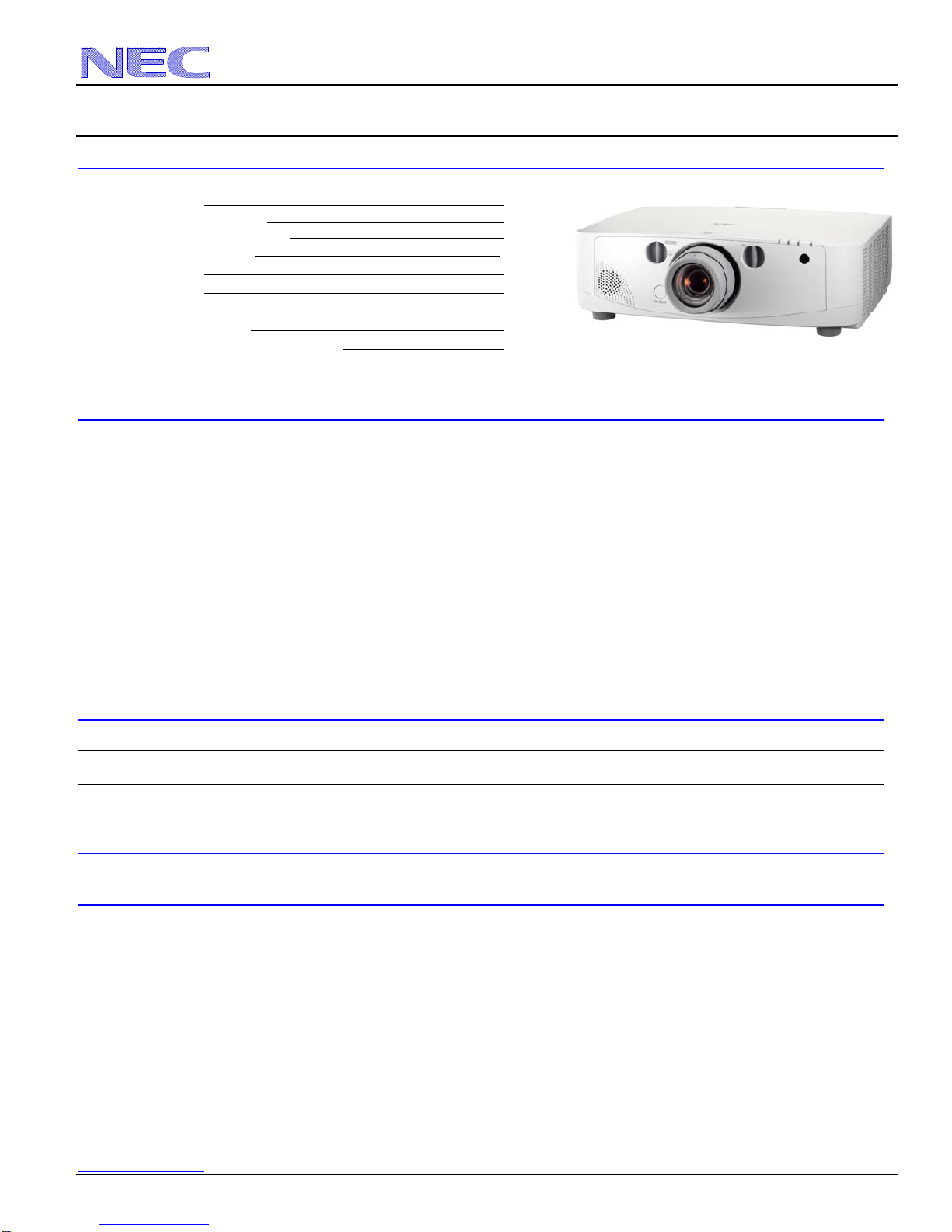

Product Description

Type: 3 panel LCD projector, Dimensions: 19.7”(W) x 6.5”(H) x 14.4”(D)

0.79 p-Si TFT w/MLA (PA500X/PA600X)

0.75p-SiTFTw/MLA(PA550W) Weight: PA500X/550W/600X: 17.0 lbs

0.76p-SiTFTw/MLA(PA500U) PA500U: 17.2lbs.

Resolution: 1024x768(4:3) Brightness: PA500X: 5000 Lumens

1920 x 1200 (16:10) PA500U: 5000 Lumens

PA550W: 5500 Lumens

Fan Noise: PA500X: 38 dB / 31dB @ 1 meter PA600X: 6000 Lumens

PA500U: 38 dB / 32dB @ 1 meter

PA550W: 38 dB / 31dB @ 1 meter

PA600X: 38 dB / 31dB @ 1 meter

Power Consumption: PA500X/PA550W: 464W (max) BTU’s: PA500X/PA550W: 1583 BTU/hour

PA600X: 464W (max) PA600X: 1583 BTU/hour

PA500U: 477W (max) PA500U: 1628 BTU/hour

Network Ready, integrated wired and wireless adapter

Manual: Lens Shift, Horizontal & Vertical /Zoom/ Focus

Lens Specifications

NP11FL: Throw Ratio: ~ 0.8:1 Focal Length: 13.2mm NP14ZL: Throw Ratio: 2.97 -4.79:1 Focal Length: 48.5 - 77.6mm

Screen Sizes: 60”-150” F/#:2.3 Screen Sizes: 60” - 200” F/#:2.2

NP12ZL: Throw Ratio: 1.19 - 1.56:1 Focal Length: 19.4 – 25.3mm NP15ZL: Throw Ratio: 4.70 - 7.02:1 Focal Length: 76.6 - 116.5mm

Screen Sizes: 40” - 200” F/#:2.2 _________ Screen Sizes: 80” - 200” F/#:2.2

NP13ZL: Throw Ratio: 1.50 - 3.02:1 Focal Length: 24.4 – 48.6mm

Screen Sizes: 40” - 200” F/#:1.7

Screen/Aspect Ratio

4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed

scaling technology. Menu selections have settings for each screen type and aspect ratio control for each source type.

Notes

For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table..

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary 5%.

NEC Display Solutions of America, Inc.

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount Rev 1.5

www.necdisplay.com PA500U/PA500X/PA550W/PA600X Page 2 of 13

Formulas: 4:3 Aspect Ratio (PA500X/PA600X—XGA)

The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size

varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to

calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2 and 3:

Projection Formulas: Definitions: 4:3 Screen Formulas:

NP11FL: C = 0.827W – 1.374 W = Image Width W = H x 4/3

NP12ZL: C(Wide) = 1.214W – 1.794 ------ C(Tele) = 1.578W – 1.794 H = Image Height (size) H = W x 3/4

NP13ZL: C(Wide) = 1.524W – 1.974 ------ C(Tele) = 3.043W – 1.972 C = Throw distance Diagonal = W x 5/4

NP14ZL: C(Wide) = 3.034W – 4.844 ------ C(Tele) = 4.855W – 4.844

NP15ZL: C(Wide) = 4.797W – 7.630 ------ C(Tele) = 7.291W – 7.630

Note: Tilting the front of the projector up or down by more than 45° from level could reduce lamp life by up to 20%.

Distance Chart for popular 4:3 screens

Rear Lens

NP11FL

Diagonal Width(W) Height (H) 0.8:1

inches inches inches inches

40 32 24 25.09 37.05 - 48.7 46.8 - 95.40 92.2 150.5

60 48 36 38.32 56.48 - 74.0 71.2 - 144.09 140.8 - 228.2 222.5 - 342.3

67 53.6 40.2 42.95 63.28 - 82.8 79.7 - 161.13 157.8 - 255.4 249.4 - 383.2

72 57.6 43.2 46.26 68.13 - 89.1 85.8 - 173.30 169.9 - 274.8 268.5 - 412.3

84 67.2 50.4 54.20 79.79 - 104.2 100.4 - 202.52 199.0 - 321.4 314.6 - 482.3

90 72 54 58.17 85.61 - 111.8 107.8 - 217.12 213.6 - 344.7 337.6 - 517.3

100 80 60 64.79 95.33 - 124.4 119.9 - 241.47 237.9 - 383.6 376.0 - 575.7

120 96 72 78.02 114.75 - 149.7 144.3 - 290.16 286.4 - 461.2 452.7 - 692.3

150 120 90 97.87 143.89 - 187.6 180.9 - 363.19 359.2 - 577.8 567.9 - 867.3

180 144 108 NA 173.02 - 225.4 217.5 - 436.22 432.1 - 694.3 683.0 - 1042.3

210 168 126 NA 202.16 - 263.3 254.1 - 509.25 504.9 - 810.8 798.1 - 1217.3

240 192 144 NA 231.29 - 301.2 290.6 - 582.28 577.7 - 927.3 913.3 - 1392.2

270 216 162 NA 260.43 - 339.1 327.2 - 655.32 650.5 - 1043.8 1028.4 - 1567.2

300 240 180 NA 289.57 - 376.9 363.8 - 728.35 723.3 - 1160.4 1143.5 - 1742.2

400 320 240 NA 386.69 - 503.2 485.7 - 971.79 966.0 - 1548.8 1527.3 - 2325.5

500 400 300 NA 483.81 - 629.4 607.6 - 1215.23 1208.8 1937.2 1911.0 - 2908.8

Screen Size (4:3)

4.70 - 7.20:1

NP12ZL NP13ZL NP14ZA NP15ZL

2.97 -4.79:1

ZoomLenses

1.19 - 1.56:1 1.50 - 3.02:1

inchesinches inches inches

NEC Display Solutions of America, Inc.

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount Rev 1.5

www.necdisplay.com PA500U/PA500X/PA550W/PA600X Page 3 of 13

Formulas: 16:10 Aspect Ratio (PA550W—WXGA)

The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size

varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to

calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2 and 3:

Projection Formulas: Definitions: 16:10 Screen Formulas

NP11FL: C = 0.819W – 1.354 W = Image Width W = H x 16/10

NP12ZL: C(Wide) = 1.203W – 1.794 ------ C(Tele) = 1.564W – 1.794 H = Image Height (size) H = W x 10/16

NP13ZL: C(Wide) = 1.510W – 1.974 ------ C(Tele) = 3.014W – 1.972 C = Throw distance Screen Diagonal = W x 18.868/16

NP14ZL: C(Wide) = 3.005W – 4.844 ------ C(Tele) = 4.808W – 4.844

NP15ZL: C(Wide) = 4.751W – 7.630 ------ C(Tele) = 7.221W – 7.630

Distance Chart for popular 16:10 Screens (WXGA)

Rear Lens

NP11FL

Diagonal Width(W) Height (H) 0.8:1

inches inches inches inches

40 34 21 26.49 39.1 - 51.4 49.4 - 100.5 N/A N/A N/A N/A

60 51 32 40.42 59.6 - 78.0 75.0 - 151.7 148.4 - 240.4 234.7 360.6

67 57 36 45.33 66.8 - 87.4 84.1 - 169.8 166.4 - 269.2 263.2 404.0

72 61 38 48.61 71.6 - 93.6 90.1 - 181.9 178.5 - 288.4 282.2 432.9

84 71 45 56.80 83.6 - 109.3 105.2 - 212.0 208.5 - 336.5 329.7 - 505.1

90 76 48 60.89 89.6 - 117.1 112.8 - 227.1 223.5 - 360.6 353.4 - 541.2

100 85 53 68.26 100.5 - 131.1 126.4 - 254.2 250.6 - 403.8 396.2 - 606.2

120 102 64 82.18 120.9 - 157.7 152.0 - 305.5 301.7 - 485.6 477.0 - 728.9

150 127 79 102.66 151.0 - 196.8 189.8 - 380.8 376.8 - 605.8 595.7 - 909.4

180 153 95 NA 182.3 - 237.5 229.1 - 459.2 454.9 - 730.8 719.3 - 1097.2

210 178 111 NA 212.3 - 276.6 266.8 - 534.5 530.0 - 851.0 838.0 - 1277.7

240 204 127 NA 243.6 - 317.3 306.1 - 612.9 608.2 - 976.0 961.6 - 1465.5

270 229 143 NA 273.7 - 356.4 343.8 - 688.2 683.3 - 1096.2 1080.3 - 1646.0

300 254 159 NA 303.8 - 395.5 381.6 - 763.6 758.4 - 1216.4 1199.1 - 1826.5

400 339 212 NA 406.0 - 528.4 509.9 - 1019.8 1013.9 - 1625.1 1603.0 - 2440.3

500 424 265 NA 508.3 - 661.3 638.3 - 1276.0 1269.3 2033.7 2006.8 - 3054.1

ZoomLenses

1.19 - 1.56:1 1.50 - 3.02:1

Screen Size (16:10)

4.70 - 7.20:1

NP12ZL NP13ZL NP14ZA NP15ZL

2.97 -4.79:1

NEC Display Solutions of America, Inc.

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount Rev 1.5

www.necdisplay.com PA500U/PA500X/PA550W/PA600X Page 4 of 13

Formulas: 16:10 Aspect Ratio (PA500U—WUXGA)

The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size

varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to

calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2 and 3:

Projection Formulas: Definitions: 16:10 Screen Formulas

NP11FL: C = 0.807W – 1.354 W = Image Width W = H x 16/10

NP12ZL: C(Wide) = 1.185W – 1.794 ------ C(Tele) = 1.541W – 1.794 H = Image Height (size) H = W x 10/16

NP13ZL: C(Wide) = 1.488W – 1.974 ------ C(Tele) = 2.970W – 1.972 C = Throw distance Screen Diagonal = W x 18.868/16

NP14ZL: C(Wide) = 2.961W – 4.844 ------ C(Tele) = 4.737W – 4.844

NP15ZL: C(Wide) = 4.681W – 7.630 ------ C(Tele) = 7.115W – 7.630

Distance Chart for popular 16:10 Screens (WUXGA)

Rear Lens

NP11FL

Diagonal Width(W) Height (H) 0.8:1

inches inches inches inches

40 34 21 26.08 38.5 - 50.6 48.6 - 99.0 N/A N/A N/A N/A

60 51 32 39.80 58.6 - 76.8 73.9 - 149.5 146.2 - 236.7 231.1 360.6

67 57 36 44.65 65.8 - 86.0 82.8 - 167.3 163.9 - 265.2 259.2 404.0

72 61 38 47.87 70.5 - 92.2 88.8 - 179.2 175.8 - 284.1 277.9 432.9

84 71 45 55.94 82.3 - 107.6 103.7 - 208.9 205.4 - 331.5 324.7 - 505.1

90 76 48 59.98 88.3 - 115.3 111.1 - 223.7 220.2 - 355.2 348.1 - 541.2

100 85 53 67.24 98.9 - 129.2 124.5 - 250.5 246.8 - 397.8 390.3 - 606.2

120 102 64 80.96 119.1 - 155.4 149.8 - 301.0 297.2 - 478.3 469.8 - 728.9

150 127 79 101.14 148.7 - 193.9 187.0 - 375.2 371.2 - 596.8 586.9 - 909.4

180 153 95 NA 179.5 - 234.0 225.7 - 452.4 448.2 - 719.9 708.6 - 1097.2

210 178 111 NA 209.1 - 272.5 262.9 - 526.7 522.2 - 838.3 825.6 - 1277.7

240 204 127 NA 239.9 - 312.6 301.6 - 603.9 599.2 - 961.5 947.3 - 1465.5

270 229 143 NA 269.6 - 351.1 338.8 - 678.2 673.2 - 1079.9 1064.3 - 1646.0

300 254 159 NA 299.2 - 389.6 376.0 - 752.4 747.3 - 1198.4 1181.3 - 1826.5

400 339 212 NA 399.9 - 520.6 502.5 - 1004.9 998.9 - 1601.0 1579.2 - 2440.3

500 424 265 NA 500.6 - 651.6 628.9 - 1257.3 1250.6 2003.6 1977.1 - 3054.1

Screen Size (16:10)

4.70 - 7.20:1

NP12ZL NP13ZL NP14ZA NP15ZL

2.97 -4.79:1

ZoomLenses

1.19 - 1.56:1 1.50 - 3.02:1

Note: For screen sizes not indicated in projection tables, refer to formulas above respective charts.

NEC Display Solutions of America, Inc.

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount Rev 1.5

www.necdisplay.com PA500U/PA500X/PA550W/PA600X Page 5 of 13

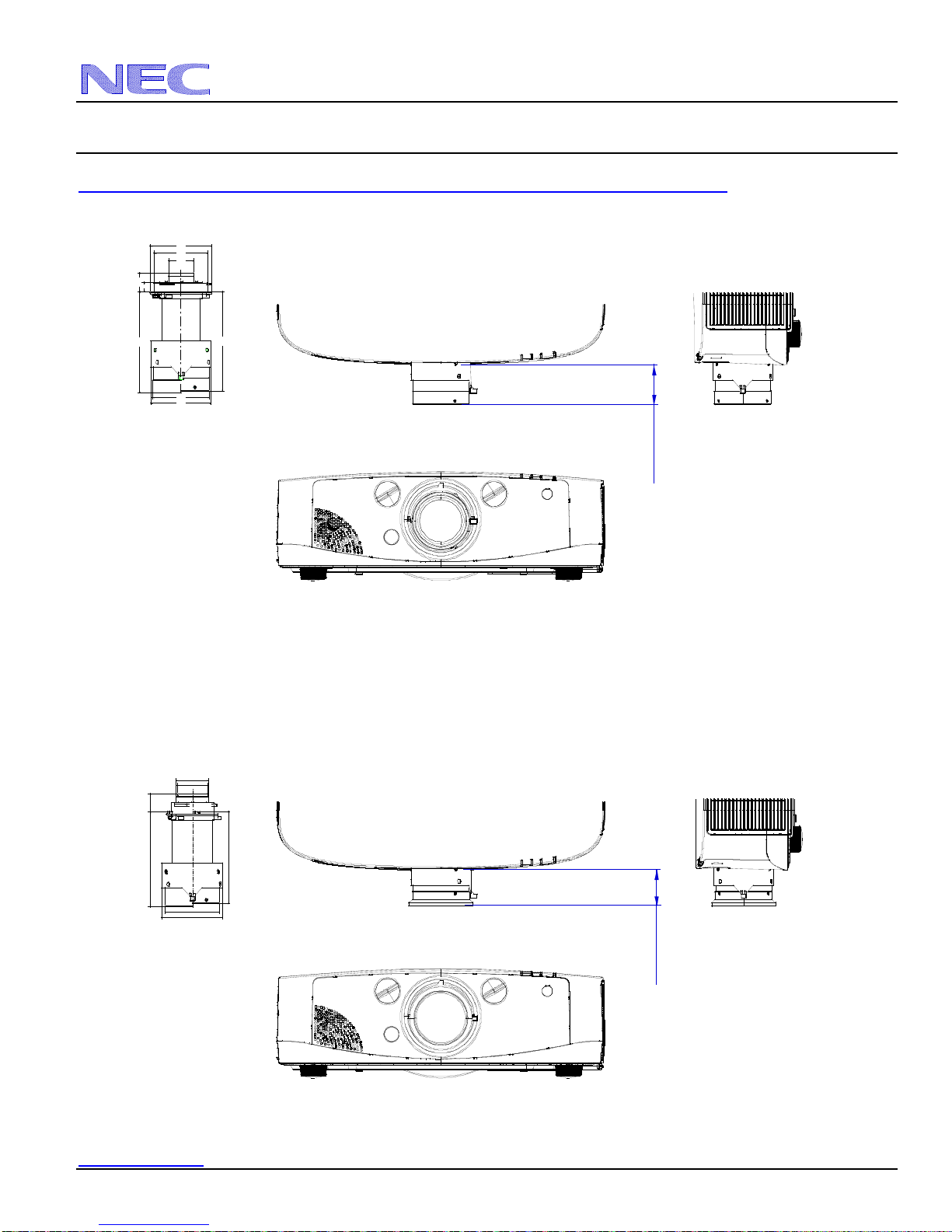

CeilingMountInstallation

Desktop Installation

Note: Lens Shift Feature is not available to NP11FL. This lens should only be used for “zero degree”/”no-offset” applications. See

below

Shift Range

Screen Center

Shift Range

Screen Center

0.1H

6.92

No Offset From Mount Pipe

Screen Center

3.53

NEC Display Solutions of America, Inc.

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount Rev 1.5

www.necdisplay.com PA500U/PA500X/PA550W/PA600X Page 6 of 13

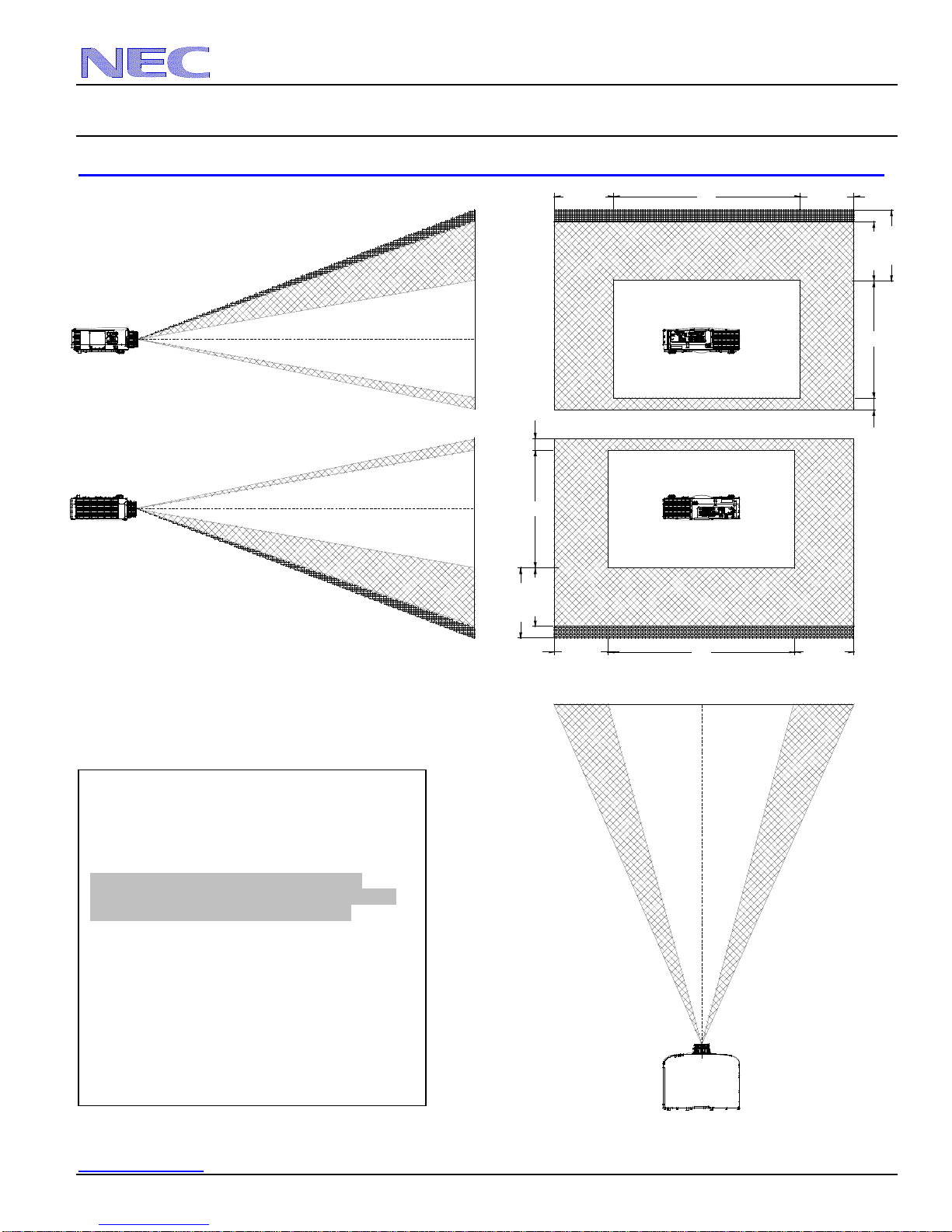

Lens Shift Adjustable Range

0.3W

Lens Shift Range for Desktop and Ceiling Mount

Application

The diagram below shows the location of the image

position in the lens. The lens can be shifted within

the shaded area as shown using the normal

projection position as a starting point.

Note: Lens shift feature is not available with

NP11FL (rear lens). NP11FL should be used only

for “zero degree” / “no-offset” applications.

Maximum Possible Range for NP12ZL, NP13ZL,

NP14ZL, NP15ZL:

Towards ceiling/floor: 0.5H (0.6H for PA550W)

Away from ceiling/floor: 0.1H

Right: 0.3W

Left: 0.3W

(W: width of projected image, H: height of projected

image)

Note: Horizontal lens shift range for the PA500U is

0.15W at a 200” projected image with NP13ZL

0.3WW

0.6H

0.5H

0.1H

0.3W0.3W W

0.6H H0.5H

CEILING FRONT

DESKTOP FRONT

VERTICAL

HORIZONTAL

NEC Display Solutions of America, Inc.

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount Rev 1.5

www.necdisplay.com PA500U/PA500X/PA550W/PA600X Page 7 of 13

Cabinet Dimensions

The following diagrams show the cabinet dimensions for the PA500U/PA500X/PA550W/PA600X.

Dimensions are in inches. For millimeters multiply by 25.4.

Note: Dimensions below shown with the NP13ZL lens

NEC Display Solutions of America, Inc.

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount Rev 1.5

www.necdisplay.com PA500U/PA500X/PA550W/PA600X Page 8 of 13

Cabinet Dimensions

NEC Display Solutions of America, Inc.

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount Rev 1.5

www.necdisplay.com PA500U/PA500X/PA550W/PA600X Page 9 of 13

Optional Terminal Cover (Part #: NP02CV)

NP13ZL & NP02CV

17.99

NP13ZL

NP02CV

6.0

5.9

3.6

4.0

0.5

1.1

2.1

3.2

3.6

I00820

A123456

NEC Display Solutions of America, Inc.

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount Rev 1.5

www.necdisplay.com PA500U/PA500X/PA550W/PA600X Page 10 of 13

Optional Lens Dimensions (NP11FL and NP12ZL)

NP11FL

NP12ZL

2.35 ~2.46

2.13 ~2.18

81B1

00001

1.1±0.3

Ø3.3

Ø3.6

Ø1.9

5.6

5.4

3.6

78A3

12345

3.2

5.9

6.0 1.1

3.6

0.6

1.5

3.4

Otros manuales para PA500U Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Proyector de NEC

NEC

NEC PA600X Series Manual de usuario

NEC

NEC MT1065 - MultiSync XGA LCD Projector Manual de usuario

NEC

NEC NC1700L Manual de usuario

NEC

NEC MultiSync VT540 Manual de usuario

NEC

NEC VT650 Guía de instalación y uso

NEC

NEC P502WL Manual de usuario

NEC

NEC NP3150 Series Manual de usuario

NEC

NEC NP216 Series Manual de usuario

NEC

NEC P502W Manual de usuario

NEC

NEC NP61 Series Manual de usuario

NEC

NEC PA1705UL-W Manual de usuario

NEC

NEC NP500 XGA Manual de usuario

NEC

NEC VT480 Series Manual de usuario

NEC

NEC NP-P451X Manual de usuario

NEC

NEC NP41 - TECHNISCHE DATEN Manual de usuario

NEC

NEC VT490 Manual de usuario

NEC

NEC VT595 Series Manual de usuario

NEC

NEC MultiSync XG-1352 Manual de usuario

NEC

NEC Showcase Series HT1100 Manual de usuario

NEC

NEC HT1000 Series Manual de usuario

NEC

NEC NP-PX750U Manual de usuario

NEC

NEC NP600 Series Manual de funcionamiento

NEC

NEC NP3151W WXGA Manual de usuario

NEC

NEC Nighthawk XT4100 Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario
