NEC Display Solutions of America, Inc.

NP901W Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com NP901W Page 1 of 6

Contents

Product Description, Lens Specs, Notes____________ Pg 1

Formulas, Distance Charts; 16:10 on 16:10 screen Pg 2

16:10 on a16:9 screen Pg 3

4:3 on a 16:9 screen Pg 4

InstallationDiagrams Pg 5

Cabinet Dimensions Pg 6

Cabinet Dimensions cont Pg 7

Ceiling Mount Dimensions and Input Panel Pg 8

Control Codes Pg 9

Product Description

Type: 3 panel LCD projector, Brightness: 2000 ANSI Lumens

0.56”p-SiTFTw/MLA Dimensions: 12.2”(W) x 4.9”(H) x 11.4”(D)

Resolution: 1280x800 Weight: 8.16lbs

Fan Noise: 35 dB / 29dB @ 1 meter BTU’s: 1055 BTU/hour

Power Consumption: 310W (max)

Lens Specifications

Throw Ratio: 1.5 – 1.8:1 (for 100” diagonal) Focal Length: 17.74mm – 21.30mm

Offset Angle: 8.4° - 10.0° (for 100” diagonal) F/#: 1.70 – 1.90

Screen Sizes: 21” - 300” diagonal (4:3) Manual Focus/Manual Zoom

Notes

For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table.

•All calculations are based on 4:3 aspect ratio.

•Distances are in inches, for millimeters multiply by 25.4.

•Distances may vary ±5%.

NEC Display Solutions of America, Inc.

NP901W Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com NP901W Page 2 of 6

Formulas

The Projection Formulas use the image width for calculation. Image height is the same for all aspect ratios, only horizontal image

size varies when using a 16:10 aspect ratio screen. For proper projector placement, determine the image width for a desired screen

size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the image width “W” for a 16:10 aspect ratio image

in the Projection Formulas.

Refer to the diagrams (page 5) and charts below for popular screen sizes 16:10 screens:

Definitions: 16:10 Screen Formulas:

W = Image Width W = H x 16/10

H = Image Height (size) H = W x 10/16

B = Vertical distance between lens center and screen center Screen Diagonal = W x 18.868/16

C = Throw distance

D = Vertical distance between lens center and screen top

(screen bottom for desktop application)

Projection Formulas:

B= 0.271W

C(wide) = 1.4477W – 1.823

C(tele) = 1.7386W – 1.820

D= -0.040W

α(wide) = tan¯¹ (B/C(wide))

α(tele) = tan¯¹ (B/C(tele))

Note: Tilting the front of the projector or down by more than 45° from level could reduce lamp life by up to 20%.

Distance Chart for popular 16:10 screens

Diagonal Width(W) Height (H)

inches inches inches inches

85 72 45 20 102 - 123 10.8 - 9.0

92 78 49 21 112 - 134 10.8 - 9.0

98 83 52 23 119 - 143 10.8 - 9.0

102 86 54 23 123 - 148 10.7 - 9.0

111 94 59 25 134 - 162 10.7 - 9.0

113 96 60 26 137 - 165 10.7 - 9.0

123 104 65 28 149 - 179 10.7 - 9.0

125 106 66 29 151 - 182 10.7 - 9.0

147 125 78 34 179 - 215 10.7 - 9.0

149 126 79 34 181 - 218 10.7 - 8.9

213 181 113 49 260 - 313 10.7 - 8.9

255 216 135 59 311 - 374 10.7 - 8.9

-5

-7

-9

-4

-3

Image Size (16:10)

on a (16:10) screen BC

w ide - tele Dα

w ide - tele

Note: For screen sizes not indicated on the projection tables, use the formulas on page above.

NEC Display Solutions of America, Inc.

NP901W Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com NP901W Page 3 of 6

Formulas

The Projection Formulas use the image width for calculation. Image height is the same for all aspect ratios, only horizontal image

size varies when using a 16:10 aspect ratio screen. For proper projector placement, determine the image width for a desired screen

size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the image width “W” for a 4:3 aspect ratio image in

the Projection Formulas.

Refer to the diagrams (page 5) and charts below for popular screen sizes 16:9 screens:

Definitions: 16:9 Screen Formulas:

W = Image Width W = H x 16/9

H = Image Height (size) H = W x 9/16

B = Vertical distance between lens center and screen center Screen Diagonal = W x 18.358/16

C = Throw distance

D = Vertical distance between lens center and screen top

(screen bottom for desktop application)

Projection Formulas:

B= 0.273W

C(wide) = 1.448W – 1.823

C(tele) = 1.7399W – 1.820

D= -0.042W

α(wide) = tan¯¹ (B/C(wide))

α(tele) = tan¯¹ (B/C(tele))

Note: Tilting the front of the projector or down by more than 45° from level could reduce lamp life by up to 20%.

Distance Chart for popular 16:10 aspect ratios on a 16:9 screen

Diagonal Width(W) Height (H) Diagonal Width(W) Height (H)

inches inches inches inches inches inches inches

49 43 24 45 38 24 10 54 - 65 10.8 - 9.0

73 64 36 68 58 36 16 82 - 98 10.8 - 9.0

92 80 45 85 72 45 20 102 - 123 10.8 - 9.0

100 87 49 92 78 49 21 112 - 134 10.8 - 9.0

106 92 52 98 83 52 23 119 - 143 10.8 - 9.0

110 96 54 102 86 54 24 123 - 148 10.7 - 9.0

120 105 59 111 94 59 26 134 - 162 10.7 - 9.0

122 107 60 113 96 60 26 137 - 165 10.7 - 8.9

133 116 65 123 104 65 28 149 - 179 10.7 - 8.9

135 117 66 125 106 66 29 151 - 182 10.7 - 8.9

159 139 78 147 125 78 34 179 - 215 10.7 - 8.9

161 140 79 149 126 79 35 181 - 218 10.7 - 8.9

230 201 113 213 181 113 49 260 - 313 10.7 - 8.9

275 240 135 255 216 135 59 311 - 374 10.7 - 8.9

-9

-4

-5

-8

-5

-3

-4

-2

-3

inchesinches inches

w ide - tele D

w ide - tele

Screen Size (16:9) Image Size (16:10)

on a (16:9) screen B

Note: For screen sizes not indicated on the projection tables, use the formulas on page above.

NEC Display Solutions of America, Inc.

NP901W Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com NP901W Page 4 of 6

Formulas

The Projection Formulas use the image width for calculation. Image height is the same for all aspect ratios, only horizontal image

size varies when using a 16:10 aspect ratio screen. For proper projector placement, determine the image width for a desired screen

size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the image width “W” for a 4:3 aspect ratio image in

the Projection Formulas.

Refer to the diagrams (page 5) and charts below for popular screen sizes 16:9 screens:

Definitions: 4:3 Screen Formulas:

W = Image Width W = H x 4/3

H = Image Height (size) H = W x 3/4

B = Vertical distance between lens center and screen center Screen Diagonal = W x 5/4

C = Throw distance

D = Vertical distance between lens center and screen top

(screen bottom for desktop application)

Projection Formulas:

B= 0.327W

C(wide) = 1.737W – 1.823

C(tele) =2.085W – 1.820

D= -0.050W

α(wide) = tan¯¹ (B/C(wide))

α(tele) = tan¯¹ (B/C(tele))

Note: Tilting the front of the projector or down by more than 45° from level could reduce lamp life by up to 20%.

Distance Chart for popular 4:3 aspect ratios on a 16:9 screen

Diagonal Width(W) Height (H) Diagonal Width(W) Height (H)

inches inches inches inches inches inches inches

49 43 24 40 32 24 10 54 - 65 10.8 - 9.0

73 64 36 60 48 36 16 81 - 98 10.8 - 9.0

92 80 45 75 60 45 20 102 - 123 10.8 - 9.0

100 87 49 82 65 49 21 112 - 134 10.8 - 9.0

106 92 52 87 69 52 23 118 - 143 10.8 - 9.0

110 96 54 90 72 54 24 123 - 148 10.7 - 9.0

120 105 59 98 78 59 26 134 - 161 10.7 - 9.0

122 107 60 100 80 60 26 137 - 165 10.7 - 8.9

133 116 65 108 87 65 28 149 - 179 10.7 - 8.9

135 117 66 110 88 66 29 151 - 181 10.7 - 8.9

159 139 78 130 104 78 34 179 - 215 10.7 - 8.9

161 140 79 132 105 79 34 181 - 218 10.7 - 8.9

230 201 113 188 151 113 49 260 - 312 10.7 - 8.9

275 240 135 225 180 135 59 310 - 373 10.7 - 8.9

Screen Size (16:9) Image Size (4:3)

on a (16:9) screen B

inchesinches inches

w ide - tele D

w ide - tele

-2

-3

-4

-9

-4

-5

-8

-5

Note: For screen sizes not indicated on the projection tables, use the formulas on page above.

Input Signal Aspect Ratio 4:3 image on a 16:9 screen

NEC Display Solutions of America, Inc.

NP901W Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com NP901W Page 5 of 6

Projection Distance and Screen Size for Ceiling Mount and Desktop

The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of

installation.

Distances are in inches. For millimeters multiply by 25.4.

Ceiling Mount Installation

Rear Projection Desktop Installation

Lens Ctr

Screen Ctr

Throw Distance

Screen Bottom 2.85"

Lens Ctr

Screen Ctr

Throw Distance

Screen Top

5.63"

6.01"

Lens Offset From

Mount Pipe

3.74

Note: For screen sizes not indicated on the projection tables, use the formulas on page 1.

NEC Display Solutions of America, Inc.

NP901W Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com NP901W Page 6 of 6

Cabinet Dimensions

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

1.98

2.81

12.19

11.38

11.42

2.85

4.92

5.24Lenscenter

Lenscenter

ventilation(exhaust)

NEC Display Solutions of America, Inc.

NP901W Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com NP901W Page 7 of 6

Cabinet Dimensions (continued)

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

4 - M3 * 12 max

5.31

8.77

7.90

3.78

0.77

1.00 8.98

5.09

9.07

for Ceiling Mount

1.50

2.09

Lamp

security slot

Power Switch AC input

ventilation (intake) ventilation (intake)

security bar

Speaker (5W)

AUDIO IN AUDIO IN

AUDIO OUT PC CONTROL

MONITOR OUT

LAN

USB

S-VIDEO

L/MONO R

AUDIO IN

L/MONO R

AUDIO INVIDEO IN

COMPONENT 2 IN

COMPONENT 1 IN

HDMI IN

COMPUTER / COMPUTER /

NEC Display Solutions of America, Inc.

NP901W Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com NP901W Page 8 of 6

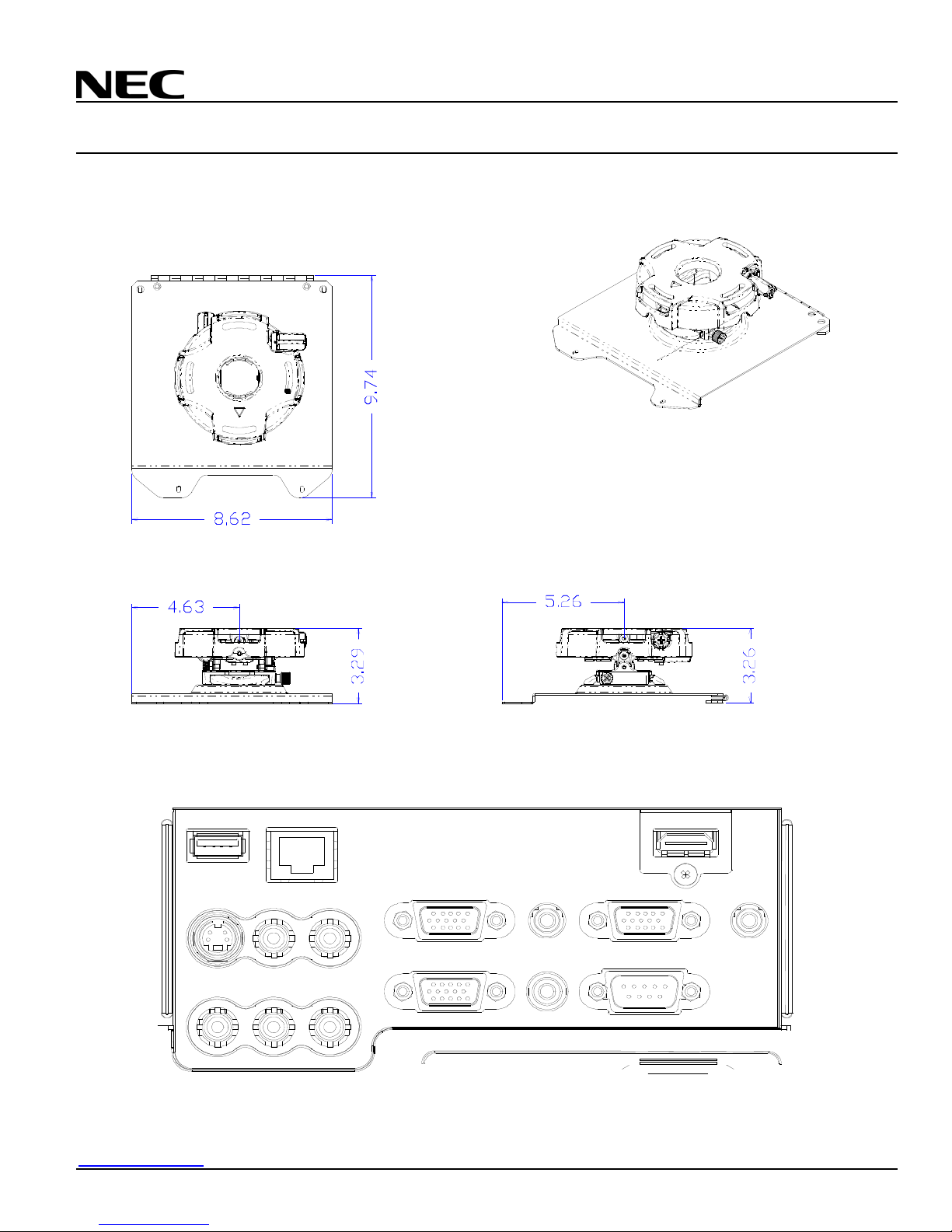

Optional Ceiling Mount Dimensions (Model #: NP900CM)

The following drawings show the ceiling mount dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

Input Panel

AUDIO IN AUDIO IN

AUDIO OUT PC CONTROL

MONITOR OUT

LAN

USB

S-VIDEO

L/MONO R

AUDIO IN

L/MONO R

AUDIO IN

VIDEO IN

COMPONENT 2 IN

COMPONENT 1 IN

HDMI IN

COMPUTER / COMPUTER /

NEC Display Solutions of America, Inc.

NP901W Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com NP901W Page 9 of 6

PC Control Codes

Function CodeData

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT COMPUTER 1 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT COMPUTER 2 02H 03H 00H 00H 02H 01H 02H 0AH

INPUT SELECT HDMI 02H 03H 00H 00H 02H 01H 1AH 22H

INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH

INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H

INPUT SELECT VIEWER 02H 03H 00H 00H 02H 01H 1FH 27H

PICTURE MUTE ON 02H 10H 00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

SOUND MUTE ON 02H 12H 00H 00H 00H 14H

SOUND MUTE OFF 02H 13H 00H 00H 00H 15H

ON SCREEEN MUTE ON 02H 14H 00H 00H 00H 16H

ON SCREEN MUTE OFF 02H 15H 00H 00H 00H 17H

ASPECT RATIO (4:3 Screen)

4:3 03H 10H 00H 00H 05H 18H 00H 00H 00H 00H 30H

LETTERBOX 03H 10H 00H 00H 05H 18H 00H 00H 01H 00H 31H

WIDESCREEN 03H 10H 00H 00H 05H 18H 00H 00H 02H 00H 32H

ZOOM 03H 10H 00H 00H 05H 18H 00H 00H 03H 00H 33H

ASPECT RATIO (16:9 Screen)

4:3 WINDOW 03H 10H 00H 00H 05H 18H 00H 00H 00H 00H 30H

LETTERBOX 03H 10H 00H 00H 05H 18H 00H 00H 01H 00H 31H

WIDESCREEN 03H 10H 00H 00H 05H 18H 00H 00H 02H 00H 32H

4:3 FILL 03H 10H 00H 00H 05H 18H 00H 00H 03H 00H 33H

ASPECT RATIO (RGB)

4:3 03H 10H 00H 00H 05H 18H 00H 00H 00H 00H 30H

16:9 03H 10H 00H 00H 05H 18H 00H 00H 02H 00H 32H

5:4 03H 10H 00H 00H 05H 18H 00H 00H 0BH 00H 3BH

16:9 03H 10H 00H 00H 05H 18H 00H 00H 0CH 00H 3CH

15:9 03H 10H 00H 00H 05H 18H 00H 00H 0DH 00H 3DH

AUTO ADJUST 02H 0FH 00H 00H 02H 05H 00H 18H

Note: Contact your NEC rep for codes not listed.

Cable Connection

Communication Protocol:

Baud Rate: 38400 bps (for cable lengths longer than 20’, it is recommended changing to 9600 bps in setup menu)

Data Length: 8 bits

Parity: No Parity

Stop Bit: One Bit

X on/off: None

Communications: Full duplex

NOTE 1 : Pins 2, 3, 5, and 6 are used inside the projector.

12345

67 8 9

To GND of PC

To RxD of PC

To TxD of PC

To CTS of PC

To RTS of PC

NOTE 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.

Otros manuales para NP901W

Tabla de contenidos

Otros manuales de Proyector de NEC

NEC

NEC NP600 Series Manual de funcionamiento

NEC

NEC NP600 Series Manual de usuario

NEC

NEC ME401X Manual de usuario

NEC

NEC TriDigital HD10K Manual de usuario

NEC

NEC VT695 Manual de usuario

NEC

NEC NP300 Series Manual de usuario

NEC

NEC VT45 Guía de instalación y uso

NEC

NEC VT695 Instrucciones de funcionamiento

NEC

NEC NP-M300WS Manual de usuario

NEC

NEC NP100 - SVGA DLP Projector Manual de usuario

NEC

NEC VT45 Manual de usuario

NEC

NEC M311W Manual de usuario

NEC

NEC U310W Series Manual de usuario

NEC

NEC NP52 Manual de usuario

NEC

NEC Nighthawk XT9000 Guía de instalación y uso

NEC

NEC NP-U300X Series Manual de usuario

NEC

NEC M361X Manual de usuario

NEC

NEC UM351W Manual de usuario

NEC

NEC LT150 - MultiSync XGA DLP Projector Manual de usuario

NEC

NEC DLP Cinema NC3200S Manual de usuario

NEC

NEC NC1201L-A Manual de usuario

NEC

NEC LT75Z - MultiSync SVGA DLP Projector Manual de usuario

NEC

NEC GT5000 Series Manual de usuario

NEC

NEC LT154 - MultiSync UXGA DLP Projector Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario
