NEC NP-P350W Manual de usuario

NEC Display Solutions of America, Inc.

P350W Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com P350W Page 1 of 6

Contents

Product Description, Lens Specs, Notes and Formulas Pg 1

Diagrams & Distance Charts Pg 2

Cabinet Dimensions Pg 3-4

Ceiling Mount Dimensions Pg 5

Input Panel and Control Codes Pg 6

Product Description

Type: 3 panel LCD projector, Dimensions: 15.7” (W) x 4.5” (H) x 11.1” (D)

0.59” p-Si TFT w/MLA Weight: 8.6 lbs

Resolution:1280x800

Fan Noise: 35 dB / 29dB @ 1 meter Brightness: 3500 Lumens

Power Consumption: 311W (max) BTU’s: 1222 BTU/hour

Lens Specifications

Throw Ratio: 1.3 – 2.2:1 (for 100” diagonal) Focal Length: 17.4mm – 29.0mm

Offset Angle: 4.8° - 8.0° (for 100” diagonal) F/#: 1.7 - 2.0

Screen Sizes: 25” - 300” diagonal (4:3) Manual Focus/Manual Zoom

Notes

For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table.

All calculations are based on a 4:3 aspect ratio.

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary 5%.

Formulas

The Projection Formulas use the image width for calculation. For proper projection placement, determine the image width

for the desired screen size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the width for “W” in

the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2:

Definitions: 4:3 Screen Formulas:

W = Image Width W = H x 16/10

H = Image Height (size) H = W x 10/16

B = Vertical distance between lens center and screen center Screen Diagonal = W x 18.868/16

C = Throw distance

D = Vertical distance between lens center and screen top

(screen bottom for desktop application)

Projection Formulas:

B= 0.188W

C(wide) = 1.36W – 1.68

C (tele) = 2.26W – 1.68

D= -0.125W

α(wide) = tan¯¹ (B/C(wide))

α(tele) = tan¯¹ (B/C(tele))

NEC Display Solutions of America, Inc.

P350W Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com P350W Page 2 of 6

Diagrams and Distance Charts

The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of

installation.

Distances are in inches. For millimeters multiply by 25.4.

Le ns Offset From

Mount Pipe

Lens Ctr

Screen Ctr

Throw Distance

Screen Bottom

3.05"

Throw Distance

Screen Top

Lens Ctr

Screen Ctr

6.22

Ceiling Mounted

Desktop

Diagonal Width(W) Height (H)

inches inches inches inches

57 48 30 9 64 - 107 8.1 - 4.8

66 56 35 11 74 - 125 8.0 - 4.8

68 58 36 11 77 - 128 8.0 - 4.8

75 64 40 12 85 - 143 8.0 - 4.8

79 67 42 13 90 - 150 8.0 - 4.8

85 72 45 14 96 - 161 8.0 - 4.8

92 78 49 15 105 - 176 8.0 - 4.8

98 83 52 16 111 - 186 8.0 - 4.8

102 86 54 16 116 - 194 8.0 - 4.8

111 94 59 18 127 - 212 8.0 - 4.8

113 96 60 18 129 - 215 8.0 - 4.8

123 104 65 20 140 - 233 8.0 - 4.8

125 106 66 20 142 - 237 8.0 - 4.8

147 125 78 23 168 - 280 7.9 - 4.8

149 126 79 24 170 - 284 7.9 - 4.8

213 181 113 34 244 - 407 7.9 - 4.8

255 216 135 41 292 - 486 7.9 - 4.8

Screen Size (16:10)

-6

inches

w ide - tele

inches

-16

degrees

Dα

w ide - tele

-7

-8

-9

-10

-11

-16

-23

-27

-12

-13

Distance Chart for popular 16:10 screens

Note: For screen sizes not indicated on the projection

tables, use the formulas on page 1.

NEC Display Solutions of America, Inc.

P350W Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com P350W Page 3 of 6

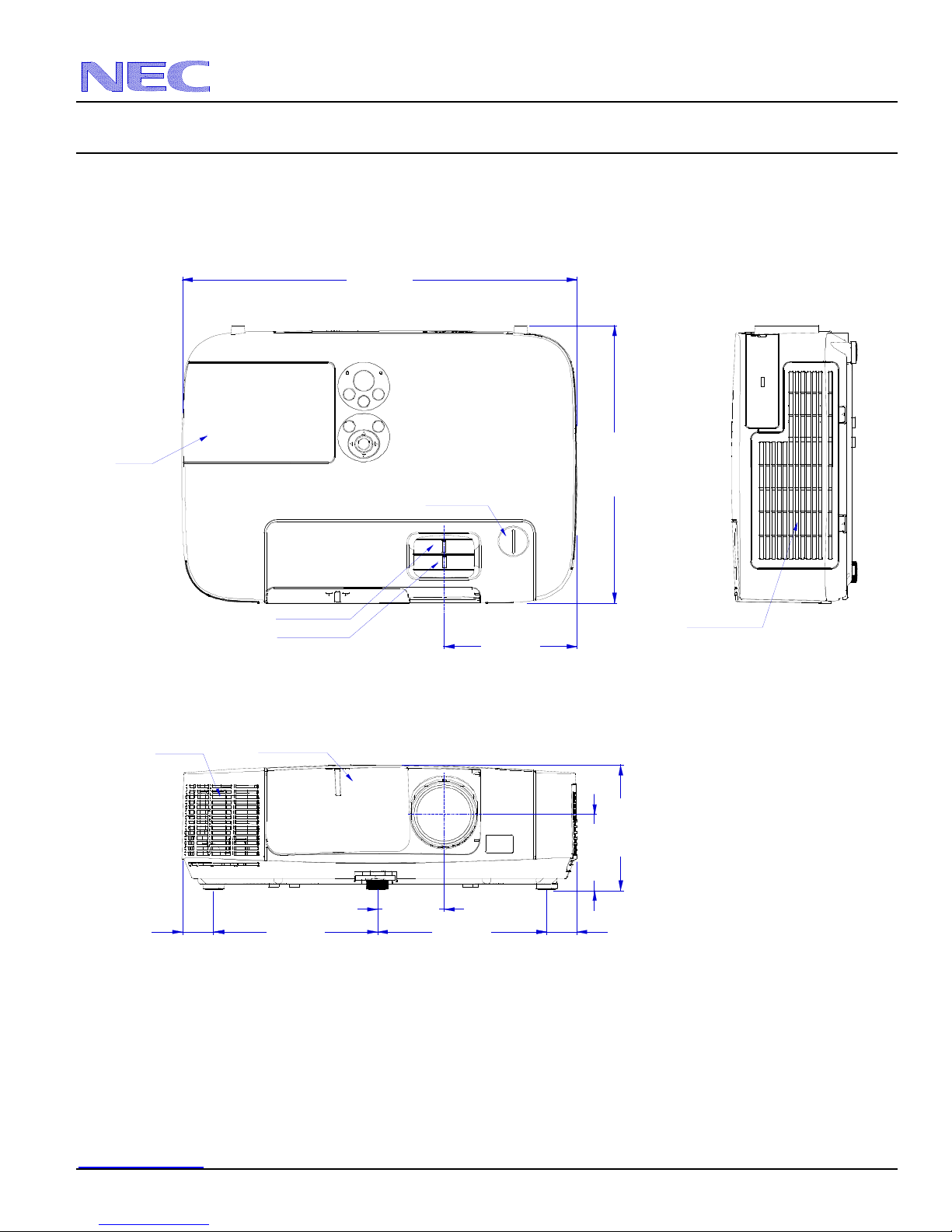

Cabinet Dimensions

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

5.28

15.68

11.09

Lamp

Zoom Lever

Focus Lever

Lens Shi ft

Intake Filter

2.65

1.25 6.50 6.73 1.20

3.05

5.03

Exhaust Lens Cover

NEC Display Solutions of America, Inc.

P350W Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com P350W Page 4 of 6

Cabinet Dimensions (continued)

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

Requires (4) M4x8mm screws for mount attachment.

5.130.80 1.32

6.900.79 0.21

3.67 4.13

1.05 8.78 1.25

IR Receiver

NEC Display Solutions of America, Inc.

P350W Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com P350W Page 5 of 6

Optional Ceiling Mount Dimensions (Model #: MP300CM)

The following drawings show the ceiling mount dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

NEC Display Solutions of America, Inc.

P350W Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com P350W Page 6 of 6

Input / Output Panel

PC Control Codes

Function CodeData

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT COMPUTER1 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT COMPUTER21 02H 03H 00H 00H 02H 01H 02H 0AH

INPUTSELECTHDMI 02H 03H 00H 00H 02H 01H 1AH 22H

INPUTSELECTVIDEO 02H 03H 00H 00H 02H 01H 06H 0EH

INPUTSELECTS-VIDEO 02H 03H

00H 00H 02H 01H 0BH 13H

INPUTSELECTVIEWER 02H 03H

00H 00H 02H 01H 1FH 27H

INPUT SELECT NETWORK 02H 03H 00H 00H 02H 01H 20H 28H

INPUT SELECT USB DISPLAY 02H 03H 00H 00H 02H 01H 22H 2AH

PICTUREMUTEON 02H 10H

00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

SOUND MUTE ON 02H 12H 00H 00H 00H 14H

SOUNDMUTEOFF 02H 13H

00H 00H 00H 15H

PROJECTOR INFORMATION REQUEST 00H BFH 00H 00H 01H 02H C2H

ERROR STATUS REQUEST 00H 88H 00H 00H 00H 88H

INFORMATION REQUEST 03H 8AH 00H 00H 00H 8DH

Note: Contact your NEC rep for codes not listed.

Cable Connection

Communication Protocol:

Baud Rate: 38400 bps

Data Length: 8 bits

Parity: No Parity

Stop Bit: One Bit

X on/off: None

Communications: Full duplex

12345

67 8 9

To GND of PC

To RxD of PC

To TxD of PC

To CTS of PC

To RTS of PC

PC Control Connector (D-Sub 9P)

NOTE 1 : Pins 1, 4, 6, and 9 are used inside the projector.

NOTE 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.

NOTE 3: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.
