Installation Data for

Nighthawk XT4100/5000/5100

V = Screen Height V = Screen Width (H) x 3/4

v 3.5

www.necvisualsystems.com Page 1 of 11

Contents

Product Description, Lens Specs, Notes and Formulas Page 1

Projection Distances and Screen Sizes

Desktop Setup Page 2

Ceiling Mount Installation Page 3

Lens Shift Adjustable Range

TL-1Z, TL-2Z and TL-4Z Lens Page 4

TL-08SF Lens Page 5

Cabinet Dimensions

Front, Bottom & Left Side Page 6

Back, Top & Right Side Page 7

Lens Dimensions Page 8

Ceiling Mount Dimensions Page 9

RS232 Control

Command Codes Page 10

Connection Page 11

Product Description

Type: 3 chip, 0.9" DLP Dimensions: 22.05"(W) x 12.13"(H) x 26.85"(D) w/o lens

Native Resolution: 1024 x 768 Weight: 94.8 lbs

Brightness: XT4100: 3500 ANSI Lumens Power Lens Shift/Power Zoom/Power Focus

XT5000/5100: 4500 ANSI Lumens

Lens Specification

TL-08SF Throw Ratio: 0.84:1 F/#: 3.0 Distortion (full offset): 1% max

Screen Sizes: 80” - 500" Lateral color error: 14 µm max

TL-1Z Throw Ratio: 1.5 - 2.5:1 F/#: 3.0 Distortion (full offset): 2% max

Screen Sizes: 80" - 500" Lateral color error: 14 µm max

TL-2Z Throw Ratio: 2.5 - 4.0:1 F/#: 3.0 Distortion (full offset): 2% max

Screen Sizes: 80" - 500" Lateral color error: 14 µm max

TL-4Z Throw Ratio: 4.0 - 7.0:1 F/#: 3.0 Distortion (full offset): 2% max

Screen Sizes: 80” - 500" Lateral color error: 14 µm max

Notes

• For screen not indicated in the tables, use formulas below.

• If the figures in the tables do not match the results of formulas, use the figures in the tables.

• The ceiling must be strong enough to support the projector and the installation must be in accordance with any local building

codes.

• Distances are in inches, for millimeters multiply by 25.4

• Distances may vary ± 5%.

Formulas

Throw Distance = Screen Width (H) x Lens Magnification H = Screen Width H = Screen Height (V) x 4/3

Screen Diagonal = Screen Height (V) x 5/3

Lens Throw Distance Formula

TL-08SF: H x 0.84

TL-1Z: (Wide) = H x 1.5 (Tele) = H x 2.5

TL-2Z: (Wide) = H x 2.5 (Tele) = H x 4.0

TL-4Z: (Wide) = H x 4.0 (Tele) = H x 7.0

NEC Solutions (America), Inc.

Visual Systems

Installation Data for

Nighthawk XT4100/5000/5100 v 3.5

www.necvisualsystems.com Page 2 of 11

Projection Distance and Screen Size for No Offset Installation

The following shows the proper relative positions of the projector and screen.

Dimensions are in inches. For millimeters multiply by 25.4.

Desktop (no offset/optimum condition)

Throw Distance

Lens Offset from

Projector Ctr

2.87"

6.85"

Screen Ctr

Projection Distance

SF Fixed Lens Zoom Lens

TL-08SF TL-1Z TL-2Z TL-4Z

Diagonal Width (W) Height (V) 0.84:1 1.5 - 2.5 2.5 - 4.0 4.0 - 7.0

80" 64" 48" 53.8" 96" - 160" 160" - 256" 256" - 448"

100" 80" 60" 67.2" 120" - 200" 200" - 320" 320" - 560"

120" 96" 72" 80.6" 144" - 240" 240" - 384" 384" - 672"

150" 120" 90" 100.8" 180" - 300" 300" - 480" 480" - 840"

180" 144" 108" 121.0" 216" - 360" 360" - 576" 576" - 1008"

210" 168" 126" 141.1" 252" - 420" 420" - 672" 672" - 1176"

240" 192" 144" 161.3" 288" - 480" 480" - 768" 768" - 1344"

270" 216" 162" 181.4" 324" - 540" 540" - 864" 864" - 1512"

300" 240" 180" 201.6" 360" - 600" 600" - 960" 960" - 1680"

350" 280" 210" 235.2" 420" - 700" 700" - 1120" 1120" - 1960"

400" 320" 240" 268.8" 480" - 800" 800" - 1280" 1280" - 2240"

450" 360" 270" 302.4" 540" - 900 900" - 1440" 1440" - 2520"

500" 400" 300" 336.0" 600" - 1000" 1000" - 1600" 1600" - 2800"

Image Size (4:3)

Note: For screen sizes not indicated on the table, use formulas on Page 1

NEC Solutions (America), Inc.

Visual Systems

Installation Data for

Nighthawk XT4100/5000/5100 v 3.5

www.necvisualsystems.com Page 3 of 11

Projection Distance and Screen Size for Ceiling Mount/With Offset

The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of

installation.

Dimensions are in inches. For millimeters multiply by 25.4.

Ceiling Mount/With Offset

X5.12"

Throw Distance

Lens Offset from

Ctr of Mount

2.87"

X = TL-08SF: 21.13"

TL-1Z: 17.36"

TL-2Z: 18.80"

TL-4Z: 19.01"

9.75"

Screen Ctr

Vertical Offset

Projection Distance

SF Fixed Lens Zoom Lens

TL-08SF TL-1Z TL-2Z TL-4Z

Diagonal Width (W) Height (V) 0.84:1 1.5 - 2.5 2.5 - 4.0 4.0 - 7.0

80" 64" 48" 53.8" 96" - 160" 160" - 256" 256" - 448"

100" 80" 60" 67.2" 120" - 200" 200" - 320" 320" - 560"

120" 96" 72" 80.6" 144" - 240" 240" - 384" 384" - 672"

150" 120" 90" 100.8" 180" - 300" 300" - 480" 480" - 840"

180" 144" 108" 121.0" 216" - 360" 360" - 576" 576" - 1008"

210" 168" 126" 141.1" 252" - 420" 420" - 672" 672" - 1176"

240" 192" 144" 161.3" 288" - 480" 480" - 768" 768" - 1344"

270" 216" 162" 181.4" 324" - 540" 540" - 864" 864" - 1512"

300" 240" 180" 201.6" 360" - 600" 600" - 960" 960" - 1680"

350" 280" 210" 235.2" 420" - 700" 700" - 1120" 1120" - 1960"

400" 320" 240" 268.8" 480" - 800" 800" - 1280" 1280" - 2240"

450" 360" 270" 302.4" 540" - 900 900" - 1440" 1440" - 2520"

500" 400" 300" 336.0" 600" - 1000" 1000" - 1600" 1600" - 2800"

Image Size (4:3)

Note: For screen sizes not indicated on the table, use formulas on Page 1

NEC Solutions (America), Inc.

Visual Systems

Installation Data for

Nighthawk XT4100/5000/5100 v 3.5

www.necvisualsystems.com Page 4 of 11

Lens Shift Adjustable Range

Lens Shift Adjustable Range for Desktop and Ceiling Mount Application.

The diagram below shows the location of the image position in the lens. The lens can be shifted within the shaded area as shown

using the normal projection position as a starting point.

Maximum Possible Range for TL-1Z, TL-2Z and TL-4Z

Maximum Possible Range:

Up: 0.5V

Down: 0.32V (only if image is shifted right first)

Right: 0.3H

Left: 0.23H (only if image is shifted up first)

Normal Position

0.5V

Desktop/Front

Vertical

Max.

Note: There is a mechanical limitation to shift down without

first shifting right, and left without first shifting up. (Refer to

diagram)

H: width of projected image

V: height of projected image

Normal projection

position

0.23H 0.3H

0.5V

0.32V

Maximum Possible Range:

Up: 0.32V (only of image is shifted left first)

Down: 0.5V

Right: 0.23H (only if image is shifted down first)

Left: 0.3H

0.5V

Normal Position

Ceiling/Front

Vertical

Max.

Note: There is a mechanical limitation to shift up without first

shifting left, and right without first shifting down. (Refer to

diagram)

H: width of projected image

V: height of projected image

0.23H

0.3H

Normal projection

position

0.32V

0.5V

NEC Solutions (America), Inc.

Visual Systems

Installation Data for

Nighthawk XT4100/5000/5100 v 3.5

www.necvisualsystems.com Page 5 of 11

Lens Shift Adjustable Range (Cont.)

Lens Shift Adjustable Range for Desktop and Ceiling Mount Application.

The diagram below shows the location of the image position in the lens. The lens can be shifted within the shaded area as shown

using the normal projection position as a starting point.

Fixed Lens TL-08SF

Maximum Possible Range:

Up: 0.15V

Down: 0.15V

Right: 0.08H

Left: 0.08H

Normal Position

Max. 0.15V

Desktop/Front

Vertical

Note: There is a mechanical limitation to shift down without

first shifting right, and left without first shifting up. (Refer to

diagram)

H: width of projected image

V: height of projected image

0.08H 0.08H

0.15V

Normal Projection

position

Note: To reduce the distortion of an image, it is recommended that the projector is horizontally positioned at a projection

angle of 0 degrees.

NEC Solutions (America), Inc.

Visual Systems

Installation Data for

Nighthawk XT4100/5000/5100

12.83

6.85

12.444.92

1.971.97 4.33 10.08

1.18

12.13

26.85

18.11

5.55

18.11

8 - M5

For Mount

v 3.5

www.necvisualsystems.com Page 6 of 11

Cabinet Dimensions

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

NEC Solutions (America), Inc.

Visual Systems

Installation Data for

Nighthawk XT4100/5000/5100

19.92

1.40 2.13

v 3.5

www.necvisualsystems.com Page 7 of 11

Cabinet Dimensions (continued)

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

NEC Solutions (America), Inc.

Visual Systems

Installation Data for

Nighthawk XT4100/5000/5100

2.95

Ø5.91

4.39

Ø4.67

4.60

Ø4.72

6.72

Ø8.19

v 3.5

www.necvisualsystems.com Page 8 of 11

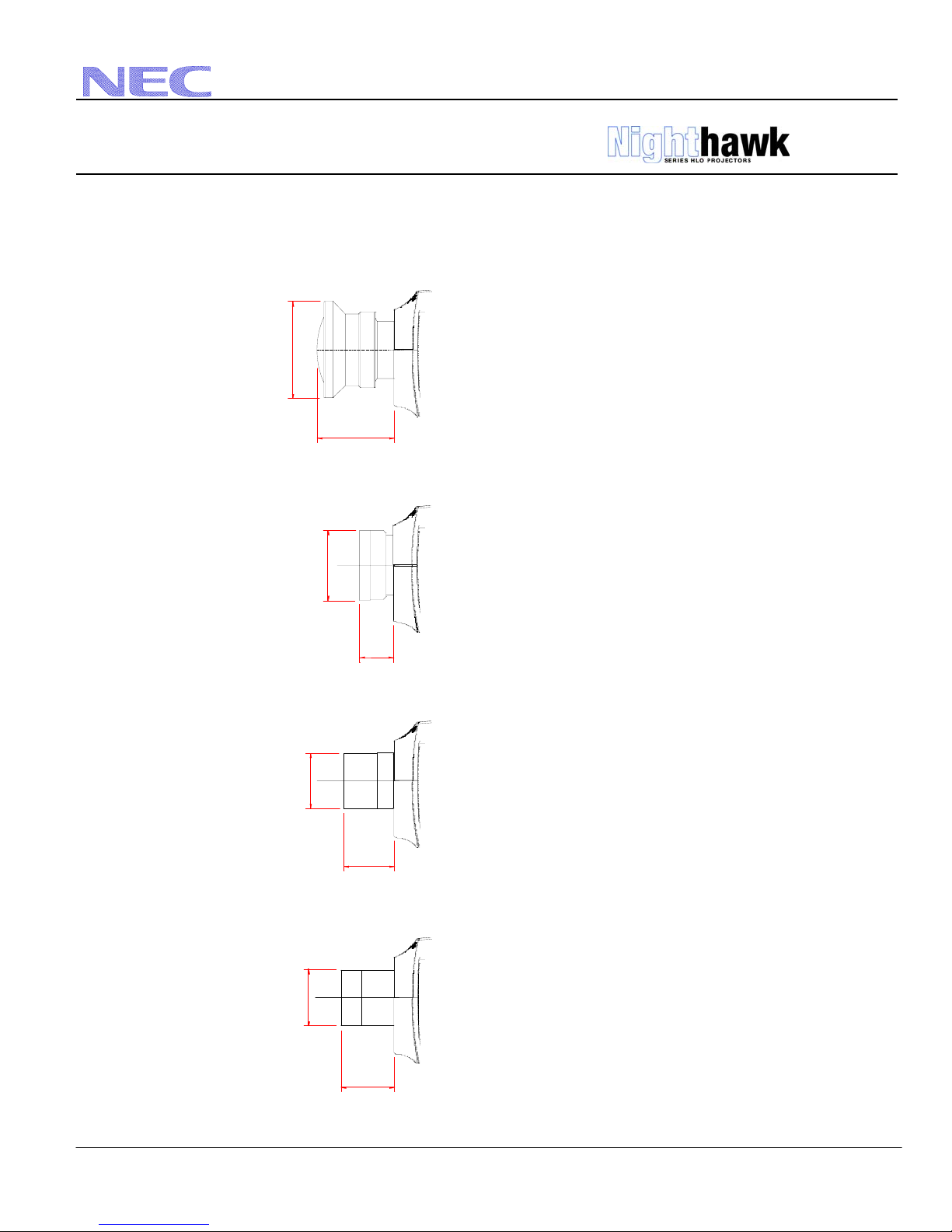

Lens Dimensions

The following drawings show the lenses mounted on the projector.

Dimensions are in inches. For millimeters multiply by 25.4.

TL-1Z 1.5-2.5:1 Zoom Lens

TL-2Z 2.5-4.0:1 Zoom Lens

TL-4Z 4.0-7.0:1 Zoom Lens

TL-08SF 0.84:1 Fixed Lens

NEC Solutions (America), Inc.

Visual Systems

Installation Data for

Nighthawk XT4100/5000/5100 v 3.5

www.necvisualsystems.com Page 9 of 11

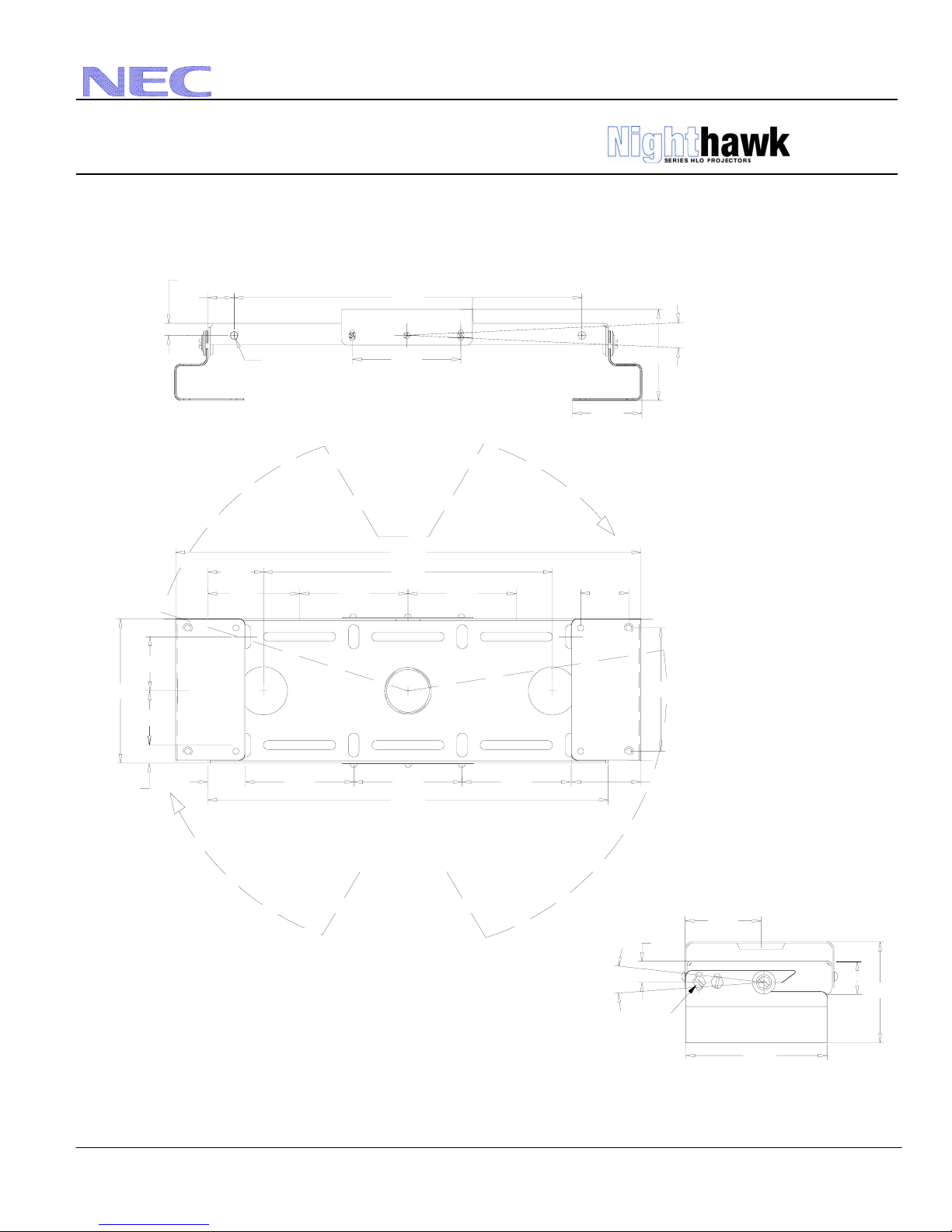

Optional Ceiling Mount Dimensions

The following drawings show the dimensions of the Optional Ceiling Mount (Order Code XT-CMKIT).

Dimensions are in inches. For millimeters multiply by 25.4.

1.09

0.50

0.312 (2x)

∅

1.77

14.44

4.50

2.87

4.12

±3°

19.25

12.00

2.31

3.81 4.50 4.50 2.00

5.12

2.87

4.504.50

4.50

1.56

16.62

15° (360° WITH PIPE) YAW, ±6° TILT

±3° ROLL

0.75

6.00

2.25

M6 (4X)

±6°

0.87

3.12

5.87

1.37

4.12

NEC Solutions (America), Inc.

Visual Systems

Installation Data for

Nighthawk XT4100/5000/5100 v 3.5

www.necvisualsystems.com Page 10 of 11

RS232 Control / Command Codes

Standalone operation HEX CODE

POWER ON: 02 00 00 00 00 02

POWER OFF: 02 01 00 00 00 03

Input 1 RGB 1: 02 03 00 00 02 01 01 09

Input 2 RGB 2: 02 03 00 00 02 01 02 0A

Input 3 RGB 3: 02 03 00 00 02 01 03 0B

Input 4 COMPONENT: 02 03 00 00 02 01 12 1A

Input 5 VIDEO 1: 02 03 00 00 02 01 06 0E

Input 6 VIDEO 2: 02 03 00 00 02 01 07 0F

Input 7 S-VIDEO 1: 02 03 00 00 02 01 0B 13

Input 8 S-VIDEO 2: 02 03 00 00 02 01 0C 14

Input 9 RGB DIGITAL: 02 03 00 00 02 01 1A 22

Input 0 SDI: 02 03 00 00 02 01 1B 23

PICTURE MUTE ON: 02 10 00 00 00 12

PICTURE MUTE OFF: 02 11 00 00 00 13

DISPLAY MUTE ON: 02 14 00 00 00 16

DISPLAY MUTE OFF: 02 15 00 00 00 17

LENS SHUTTER ON: 02 16 00 00 00 18

LENS SHUTTER OFF: 02 17 00 00 00 19

LAMP AUTO: 03 88 00 00 02 0B 00 98

HIGH-BRIGHT: 03 88 00 00 02 0B 01 99

VARIABLE: 03 88 00 00 02 0B 02 9A


BRIGHT 03 10 00 00 05 00 FF 00 Lower Upper CKS

Adustment Value from FFE1(min) to 001F(max).

CONTRAST 03 10 00 00 05 01 FF 00 Lower Upper CKS

Adustment Value from FFE1(min) to 001F(max).

COLOR 03 10 00 00 05 02 FF 00 Value 00 CKS

Adustment Value from 00(min) to 5F(max).

HUE 03 10 00 00 05 03 FF 00 Value 00 CKS

Adustment Value from 00(min) to 3C(max).

SHARPNESS 03 10 00 00 05 04 FF 00 Value 00 CKS

Adustment Value from 00(min) to 0F(max).

V-APERTURE 03 10 00 00 05 1D FF 00 Value 00 CKS

Adustment Value from 00(min) to 0F(max).

Lower : Lower byte of Value, Upper : Upper byte of Value

CKS : Check Sum

Lower eight bits digits of sum total of the first byte to the byte just before the last.

The unit address is not checked when the unit ID has become a general notification.

Please set "0" to the unit ID and set "00" to the unit address when you use the projector under the standalone mode.

Otros manuales para Nighthawk XT4100

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Proyector de NEC

NEC

NEC NP110 - SVGA DLP Projector Manual de usuario

NEC

NEC MultiSync MT 600 Manual de usuario

NEC

NEC MultiSync MT1055 Guía de instalación y uso

NEC

NEC NP-PA500U Manual de usuario

NEC

NEC PX750U Series Manual de usuario

NEC

NEC VT595 Series Manual de usuario

NEC

NEC PX1005QL Series Manual de usuario

NEC

NEC VE281 Manual de usuario

NEC

NEC NP-M271X Manual de usuario

NEC

NEC MT1065 - MultiSync XGA LCD Projector Manual de usuario

NEC

NEC MT1035 - MultiSync XGA LCD Projector Manual de usuario

NEC

NEC L102W Manual de usuario

NEC

NEC NP1000 Manual de usuario

NEC

NEC NP600S Series Manual de usuario

NEC

NEC NP3150 Series Manual de usuario

NEC

NEC NP1150 XGA Manual de usuario

NEC

NEC P401W Manual de usuario

NEC

NEC VT59 Manual de usuario

NEC

NEC M350XS Manual de usuario

NEC

NEC NP-PE401H Manual de usuario

NEC

NEC GT5000 Series Manual de usuario

NEC

NEC NP3250W WXGA Manual de usuario

NEC

NEC MultiSync VT440 Manual de usuario

NEC

NEC NP-PX750U Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario
