NEC Solutions (America), Inc.

Visual Systems Division

LT30/35 Installation Guide

Ceiling Mounted and Desktop Rev 1.0

______________________________________________________________________________________________________________________

www.necvisualsystems.com LT30/35 Page 1 of 6

Contents

Product Description, Lens Specs, Notes and Formulas Pg 1

Diagrams & Distance Charts Pg 2

Cabinet Dimensions_____________ Pg 3

Ceiling Mount Dimensions _________ Pg 4

Input Panel and Control Codes Pg 5

Product Description

Type: .7 DDR DMD™ projector Dimensions: 10.24”(W) x 3.5”(H) x 8.2”(D)

Resolution: 1024x768 Weight: 4.4lbs

Brightness: LT30: 2600 ANSI Lumens

LT35: 3000 ANSI Lumens

Lens Specifications

Throw Ratio: 1.8 – 2.16:1 (for 100” diagonal) Focal Length: 25.7 – 30.8 mm

Offset Angle: 9.8° - 11.7° (for 100” diagonal) F/#: 2.4 – 2.6

Screen Sizes: 30” - 300” diagonal (4:3) Manual Zoom/Power Focus (w/autofocus)

Notes

For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table.

•All calculations are based on 4:3 aspect ratio.

•Distances are in inches, for millimeters multiply by 25.4.

•Distances may vary ±5%.

Formulas

The Projection Formulas use the image width for calculation. For proper projection placement, determine the image width

for the desired screen size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the width for “W” in

the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2:

Definitions: 4:3 Screen Formulas:

W = Image Width W = H x 4/3

H = Image Height (size) H = W x 3/4

B = Vertical distance between lens center and screen center Screen Diagonal = W x 5/4

C = Throw distance

D = Vertical distance between lens center and screen top

(screen bottom for desktop application)

Projection Formulas:

B= 0.375W

C(wide) = 1.831W – 2.076

C (tele) = 2.19W – 2.08

α(wide) = tan¯¹ (B/C(wide))

α(tele) = tan¯¹ (B/C(tele))

NEC Solutions (America), Inc.

Visual Systems Division

LT30/35 Installation Guide

Ceiling Mounted and Desktop Rev 1.0

______________________________________________________________________________________________________________________

www.necvisualsystems.com LT30/35 Page 2 of 6

Diagrams and Distance Charts

The following diagrams show the relationship between projector position and the screen. Refer to the chart below for data.

Distances are in inches. For millimeters multiply by 25.4.

Ceiling Mounted

Lens Ctr

Screen Ctr

Throw Distance

Screen Top

4.75"

Lens Offset From

Mount Pipe

3.35"

Desktop

Lens Ctr

Screen Ctr

Throw Distance

Screen Bottom

2.38"

Distance Chart for popular 4:3

screens

Screen Size (4:3)

Diag W H

B C

wide - tele

D α

wide - tele

inches inches inches inches inches inches degrees

30 24 18 9 42 - 51 - 12.1 -10.0

60 48 36 18 86 - 104 - 11.8 - 9.9

72 57.6 43.2 22 104 - 125 - 11.7 - 9.8

84 67.2 50.4 25 121 - 146 - 11.7 - 9.8

90 72 54 27 130 - 156 - 11.7 - 9.8

100 80 60 30 145 - 174 - 11.7 - 9.8

120 96 72 36 174 - 209 - 11.7 - 9.8

150 120 90 45 218 - 261 - 11.7 - 9.8

180 144 108 54 262 - 314 - 11.7 - 9.8

200 160 120 60 291 - 349 - 11.6 - 9.7

260 200 150 78 379 - 454 - 11.6 - 9.7

300 240 180 90 438 - 524 - 11.6 - 9.7

Note: For screen sizes not indicated on the

projection tables, use the formulas on page 1.

NEC Solutions (America), Inc.

Visual Systems Division

LT30/35 Installation Guide

Ceiling Mounted and Desktop Rev 1.0

______________________________________________________________________________________________________________________

www.necvisualsystems.com LT30/35 Page 3 of 6

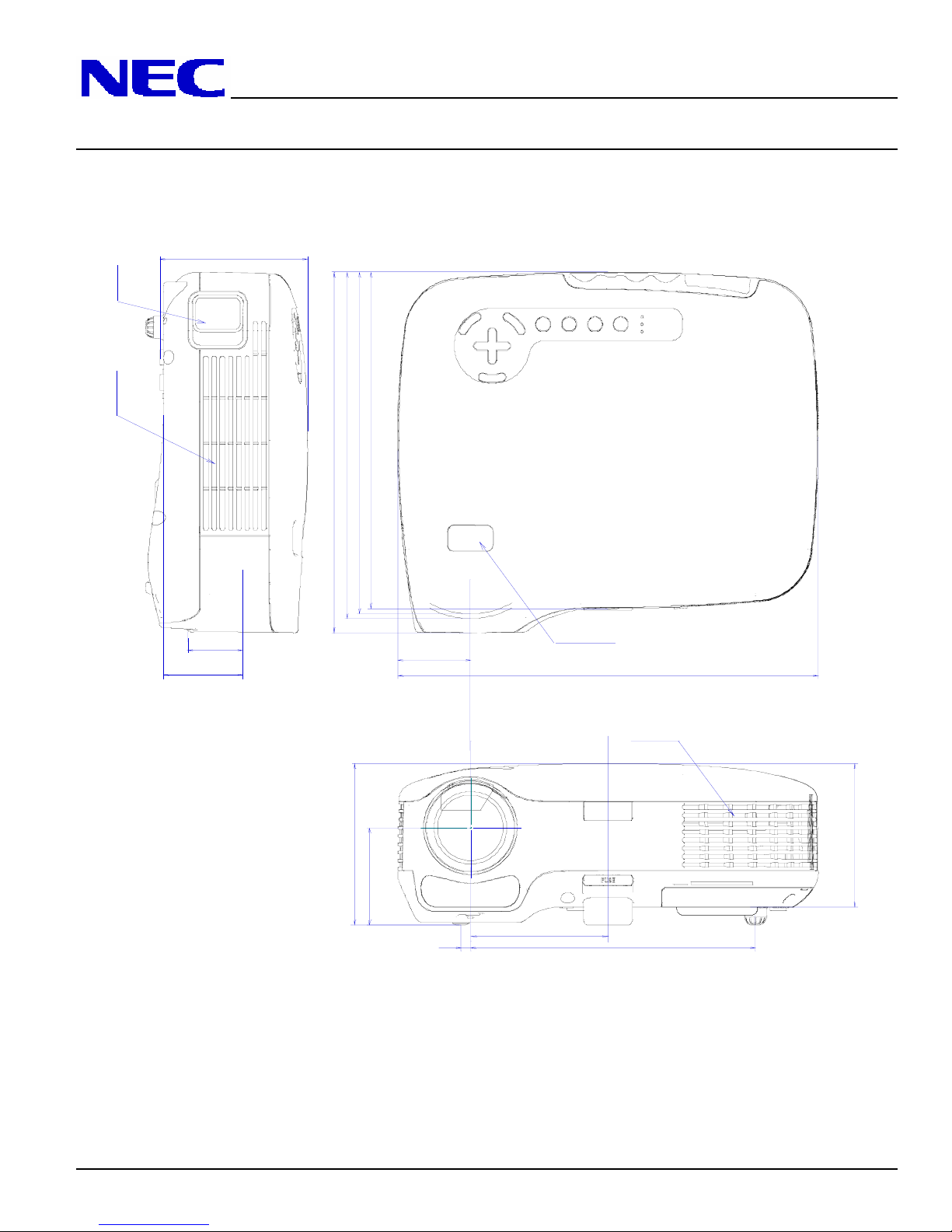

Cabinet Dimensions

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

8.81

8.21

3.50

3.94

2.36

3.35

10.24

8.34 (LENS MIN)

8.46 (LENS MAX)

6.93

0.24

1.77

ventilation

3.6

ventilation AC inlet

Zoom Control

1.35

1.94

NEC Solutions (America), Inc.

Visual Systems Division

LT30/35 Installation Guide

Ceiling Mounted and Desktop Rev 1.0

______________________________________________________________________________________________________________________

www.necvisualsystems.com LT30/35 Page 4 of 6

Cabinet Dimensions (continued)

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

4.552.09

0.63

4.13

0.79

3-M4x8max

for mount

ventilation

security slot

2.09

NEC Solutions (America), Inc.

Visual Systems Division

LT30/35 Installation Guide

Ceiling Mounted and Desktop Rev 1.0

______________________________________________________________________________________________________________________

www.necvisualsystems.com LT30/35 Page 5 of 6

Optional Ceiling Mount Dimensions (Model #: LT30CM )

The following drawings show the ceiling mount dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

1.5 NPT

8.813

6.75

2.95

2.58

NEC Solutions (America), Inc.

Visual Systems Division

LT30/35 Installation Guide

Ceiling Mounted and Desktop Rev 1.0

______________________________________________________________________________________________________________________

www.necvisualsystems.com LT30/35 Page 6 of 6

Input Panel

COMPUTER IN VIDEO IN S-VIDEO IN AUDIO IN PC CONTROL

PC Control Codes

Function CodeData

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT CCOMPUTER 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH

INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H

INPUT SELECT DVI (DIGITAL) 02H 03H 00H 00H 02H 01H 1AH 22H

PICTURE MUTE ON 02H 10H 00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

SOUND MUTE ON 02H 12H 00H 00H 00H 14H

SOUND MUTE OFF 02H 13H 00H 00H 00H 15H

Note: Contact your NEC rep for codes not listed.

Cable Connection

Communication Protocol:

Baud Rate: 38400 bps

Data Length: 8 bits

Parity: No Parity

Stop Bit: One Bit

X on/off: None

Communications: Full duplex

NOTE 1 : Pins 2, 3, 5, and 6 are used inside the projector.

NOTE 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.
