NEC V554Q Manual de usuario

NEC Display Solutions of America, Inc.

V554Q Installation Guide [Ver.1.0]

www.necdisplay.com V554Q Page 1 of 11

Contents:

Product Description and Notes Page 1

Tilt Angle and Rotation Page 1

Ventilation Recommendations Page 2

Display Dimensions Page 3-4

Display Dimensions with stand Page 5

Optional Table Top Stand Dimensions Page 6

Dimensions of Optional Wall Mount (WMK-3255S) Page 7

Compute Module Integration Page 8

Input Panels Page 9

Control Codes Page 10

Browser Control Page 11

Product Description

V554Q

Display Resolution 3840 x 2160 at 60Hz

Power Consumption (Typical) 120W

Power Consumption (Max Brightness) 170W

Power Consumption (Overall Max)* 300W

BTU's (Typical) 409.49 BTU/hr

BTU’s (Max Brightness) 580.11 BTU/hr

BTU’s (Overall Max)* 1023.72 BTU/hr

Net Dimensions 48.8 x 28.1 x 2.7 in. / 1238.4 x 712.8 x 68.9mm

Net Weight 59.1lbs. / 26.8kg

*Overall Max refers to when the unit is at max brightness and the following features are also active: OPS Slot, External Speaker, Raspberry Pi

Compute Module Slot

NOTES:

This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally

to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

Distances are in inches, for millimeters multiply by 25.4.

Tilt Angle and Rotation

Monitor may be angled and rotated from normal landscape and portrait orientation to both face up and face down positioning. Rotate

only clockwise for portrait orientation.

NEC Display Solutions of America, Inc.

www.necdisplay.com V554Q Page 2 of 11

Ventilation Recommendations:

Dimensions below are recommended for proper ventilation when the unit is in a recessed area.

NOTE:

The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be covered, other

means of ventilation will need to be incorporated into the design. Contact NEC for design review and recommendations.

NEC Display Solutions of America, Inc.

www.necdisplay.com V554Q Page 3 of 11

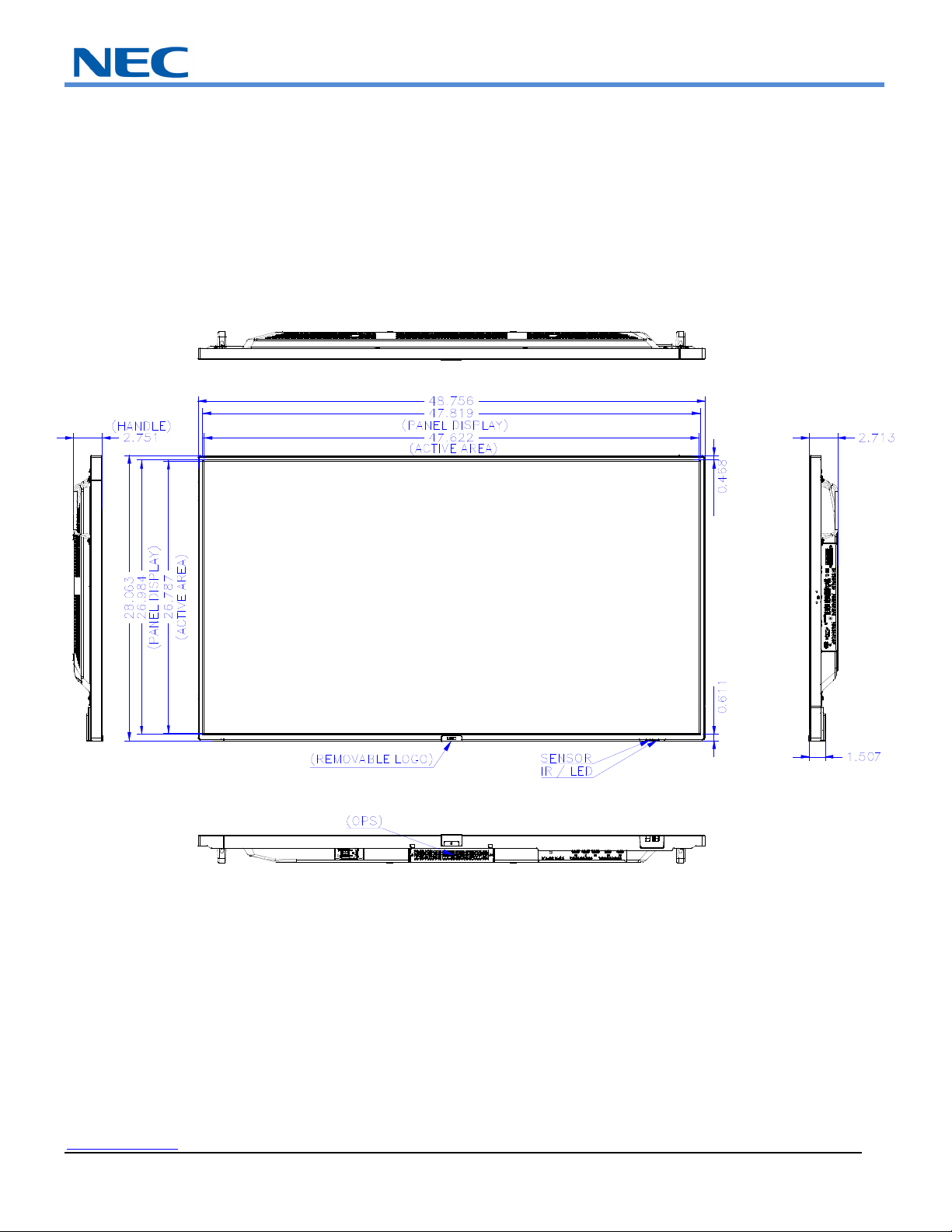

Display dimensions:

NEC Display Solutions of America, Inc.

www.necdisplay.com V554Q Page 4 of 11

Display dimensions (cont.):

NEC Display Solutions of America, Inc.

www.necdisplay.com V554Q Page 5 of 11

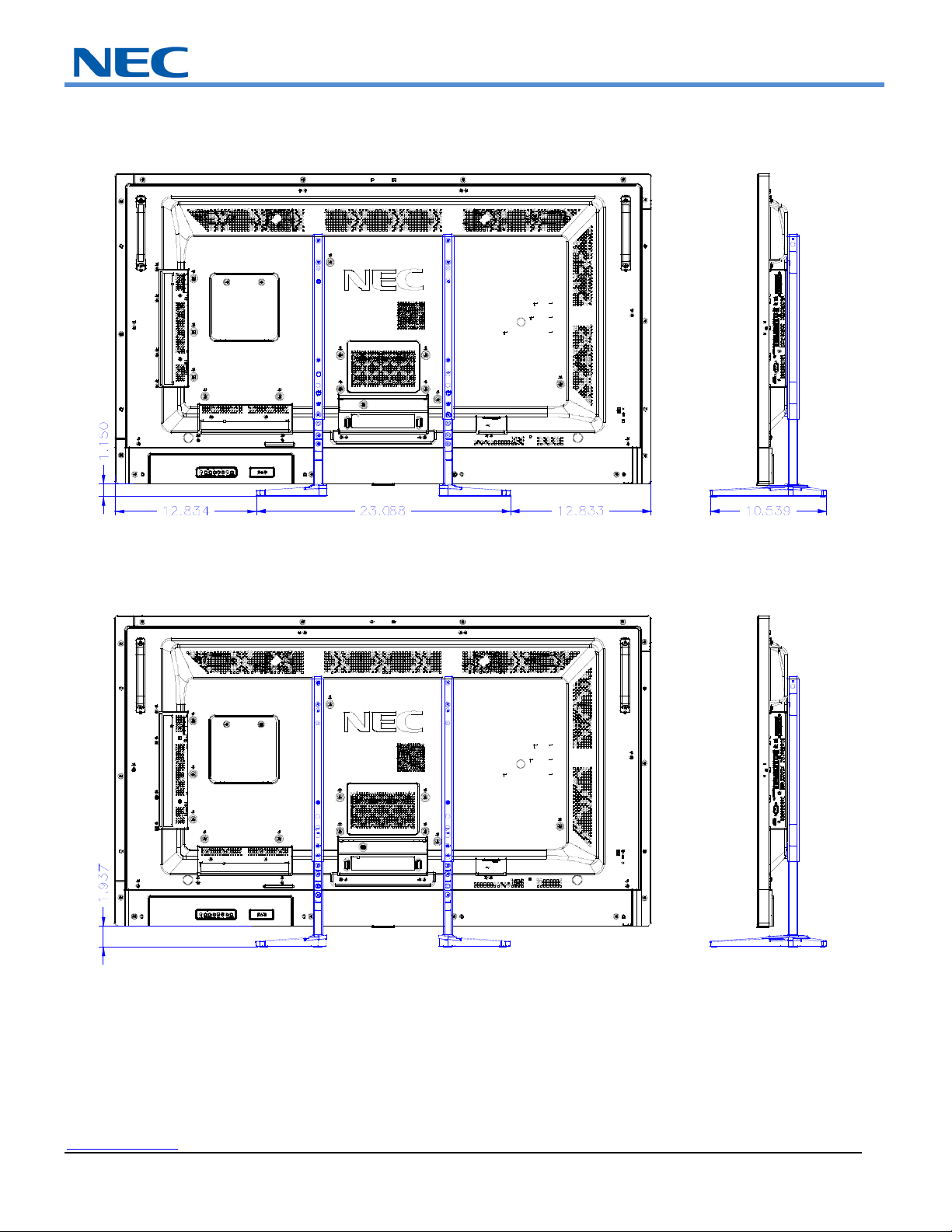

Display Dimensions (with ST-401 stand):

NOTE:

The ST-401 optional stand attaches to the VESA hole pattern on the back of the display and can be set so the display is either ~30mm or ~50mm from

the tabletop

NEC Display Solutions of America, Inc.

www.necdisplay.com V554Q Page 6 of 11

Optional Table Top Stand Dimensions (ST-401):

NOTE:

The pole of the ST-401 stand connects directly to the VESA hole pattern on the back of the display.

NEC Display Solutions of America, Inc.

www.necdisplay.com V554Q Page 7 of 11

Dimensions of Optional Wall Mount Kit (WMK-3255S):

NEC Display Solutions of America, Inc.

www.necdisplay.com V554Q Page 8 of 11

Compute Module Integration:

Door on the back of the display can be opened by loosening captive screws.

Separate IO Board is necessary to accompany RPi Compute Module in unit

NEC Display Solutions of America, Inc.

www.necdisplay.com V554Q Page 9 of 11

InputPanel:

Bottom

Side (Rotated)

ASCIICommonCommands:

This monitor supports common ASCII control commands with many other NEC projectors. For more information on this, please see our

website.

NEC Display Solutions of America, Inc.

www.necdisplay.com V554Q Page 10 of 11

Control Codes:

NOTE: Contact your NEC representative for codes not listed.

CableConnection

Communication Protocol:

Interface: RS-232C

Communication System: Asynchronous

Baud Rate: 9600 bps

Data Length: 8 bits

Parity: None

Stop Bit 1 bit

Communication Code: ASCII

Interface: Ethernet (CSMA/CD

Communication System: TCP/IP (Internet Protocol Suite)

Communication Layer: Transport layer (TCP)

IP Address: 192.168.0.10 (default out of box)

Port Number: 7142 (Fixed)

Transmit Data+

Transmit Data-

Receive Data+

Receive Data-

Not Used
