NEC V221W Manual

LCDs • Projectors • Plasmas • LCDs • Projectors • Plasmas • LCDs • Projectors

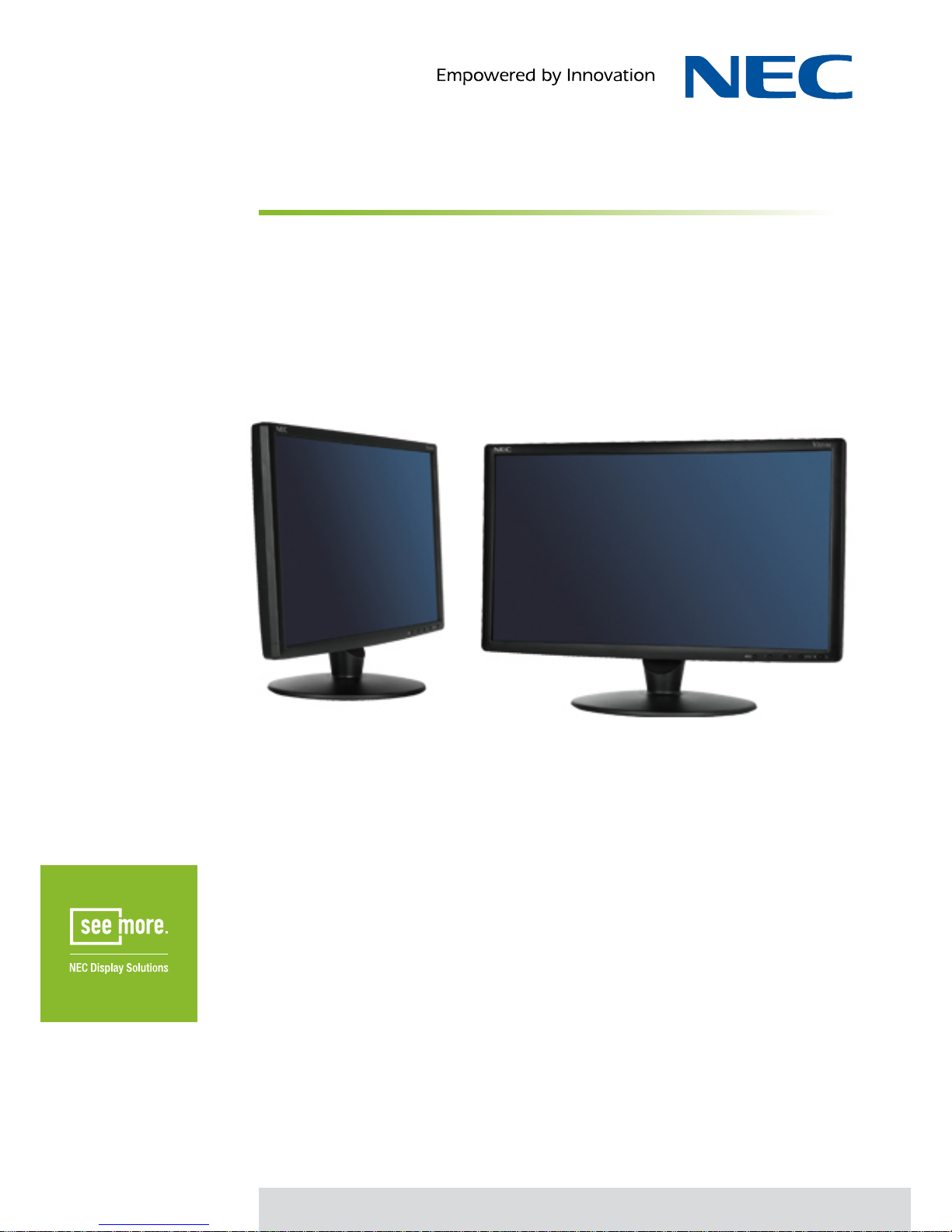

NEC V221W

Full HD 16:9 LCD monitor with TN TFT display for ofﬁce use

Slim bezel design

•

Versatile installation (VESA standard)

•

Low power consumption for reduced Total Cost of Ownership (TCO)

•

Ergonomics and safety complying to the highest industry standards incl. ISO 13406-2

•

LCDs • Projectors • Plasmas • LCDs • Projectors • Plasmas • LCDs • Projectors • Plasmas • LCDs • Projectors • Plasmas • LCDs

NEC V221W

TECHNICAL SPECIFICATIONS

Panel Technology TN TFT

Screen Size [inch/cm] 21.6 / 54.8

Pixel Pitch [mm] 0.248

Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 5:1)

170 horizontal / 160 vertical (typ. at contrast ratio 10:1)

Contrast Ratio (typ.) 800:1

Brightness (typ.) [cd/m²] 300

Response Time (typ.) [ms] 5

Colours [Mio.] 16.77

Horizontal Frequency [kHz] 31.5 - 81.0

Vertical Frequency [Hz] 55.0 - 76.0

Optimum Resolution 1920 x 1080 at 60 Hz

Supported Resolutions 1680 x 1050; 1600 x 1200; 1400 x 1050; 1024 x 768; 832 x 624; 800 x 600; 720 x 400

Connectors Analog: 1 x mini D-sub 15 pin

Plug & Play VESA DDC/CI; DDC2B/2Bi; EDID Standard

Adjust Functions Auto Adjust; Brightness; Contrast; EcoMode; Expansion Mode; Language Select; Monitor Information;

On-Screen-Display (OSD) lock-out

Safety and Ergonomics EPEAT Silver™; CE; ERP; TCO 03; TÜV Ergonomics; TÜV GS; GEEA/Energy Label; Energy Star 5.0;

FCC Class B; PCT/Gost; UL/C-UL or CSA; CCC; ISO 13406-2 (pixel failure class II); MPR II/ MPR III

Power Consumption on Mode [W] 40 (typ.)

Stand-by Mode [W] < 1

Power Supply 100-120 V/220-240 V; 1.2 A/0.6 A; integrated power supply

Ambient Temperature (operating) [°C] +5 to +35

Ambient Humidity (operating) [%] 30 to 80

VESA Mounting [mm] 100 x 100

Screen Tilt / Swivel / Rotate [°] 4 to 18

Dimensions (W x H x D) [mm] 514.5 x 372.5 x 193.6

Bezel Width [mm] 17.5

Weight [kg] 4.2

Kensington security slot yes

Colour Versions Black Front Bezel, Black Back Cabinet

Shipping Content Monitor; Power Cable; Signal Cable VGA - VGA; User Manual

Warranty 3 years warranty incl. backlight

All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All rights reserved. All speciﬁcations are subject to change without notice. 03/10

www.nec-display-solutions.com

NEC Display Solutions Europe GmbH
