61XM3 Installation Guide

61” Plasma Display v1.2

Contents

Product Description and Notes Page 1

Ventilation Requirements Page 2

www.necvisualsystems.com 61XM3 Page 1 of 11

Display Dimensions

Front,Top&Bottom Page 3

Rear, Left & Right Side Page 4

Display Dimensions w/Optional Speakers and Stand Page 5

Dimensions w/Optional Flat Wall Mount Page 6

Dimensions w/Optional Tilt Wall Mount Page 7

Dimensions w/Optional Ceiling Mount Page 8

PortraitMode Page 9

Connections Page 10

Control Codes Page 11

ProductDescription

Type: Plasma Display Screen Surface: Anti-Reflective

Resolution: 1365x768 Dimensions: 57.9”(W) x 34.7”(H) x 4.7”(D)

Aspect Ratio: 16:9 Weight: 134.5 lbs

Color Correction: NEC CCF (Capsulated Color Filter, in panel)

and AccuCrimson (in front filter)

Notes

This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

Any ceilings or walls must be strong enough to support the display and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched

horizontally to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary ±5%.

MaximumTiltAngles

Below are the maximum angles that the display can be tilted in both landscape and portrait mode

Max Tilt

Landscape 30°

Portrait 10°

Ventilation Requirements

Dimensions below are minimum required for proper ventilation.

WALL

NOTE: The ventilation space should not be covered or closed off at the front of the opening. If for some reason the

opening needs to be covered, other means of ventilation will need to be incorporated into the design. Contact NEC for

design review and recommendations.

www.necvisualsystems.com 61XM3 Page 2 of 11

Display dimensions

0.177

Filter Surface

57.87

1.93 54.02 1.93

23.33

53.19 (Screen area)

29.92 (Screen area)

34.65

1.93 30.79 1.93

61.02

LED&IR

16.7316.73 2.762.76

7.89

21.0419.88

0.79

5.12

Local Control

AC Inlet Speaker Terminal

PowerButton

1.04

4.69

www.necvisualsystems.com 61XM3 Page 3 of 11

Display dimensions (cont.)

www.necvisualsystems.com 61XM3 Page 4 of 11

4.69

3.19

0.177

1.10

16.5416.54

8°

4.68

34.65

6.40 20.28 (for speaker option)

4.69

1.77 2.91

3.19

2.16

0.205

0.039

Power Button

3.19

4.06

0.79

0.039

FFF

6.90 10.43 7.91

4.29 57.87

34.65

6.40 20.28 (for speaker option M4*4)

19.69

33.46

9.84

17.52

4.88 4.02 8.43

1.38

33.46

6-M8*20 MAX

for mount option

4-M4*20 MAX

for PC option

Dimensions with optional speakers and stand

www.necvisualsystems.com 61XM3 Page 5 of 11

53.19 (Screen Area)

29.92 (Screen Area)

61.02

65.00

1.77

3.78

34.65

37.01

44.29

16.93

6.97

4.45

2.32

6.38 6.38

4.69

5.28

Dimensions with optional Flat Wall Mount Kit (61FWMK)

www.necvisualsystems.com 61XM3 Page 6 of 11

FFF

10.9

10.0

13.7

16.0 4.04.0

24.0 16.916.9

3.0 4.7

Dimensions with optional Tilt Wall Mount Kit (61TWMK)

FFF

Depth at 15° Tilt

4.4 4.7

14.3

9.0

4.0 16.0 4.0

24.0 16.917.0

9.815.09.9

www.necvisualsystems.com 61XM3 Page 7 of 11

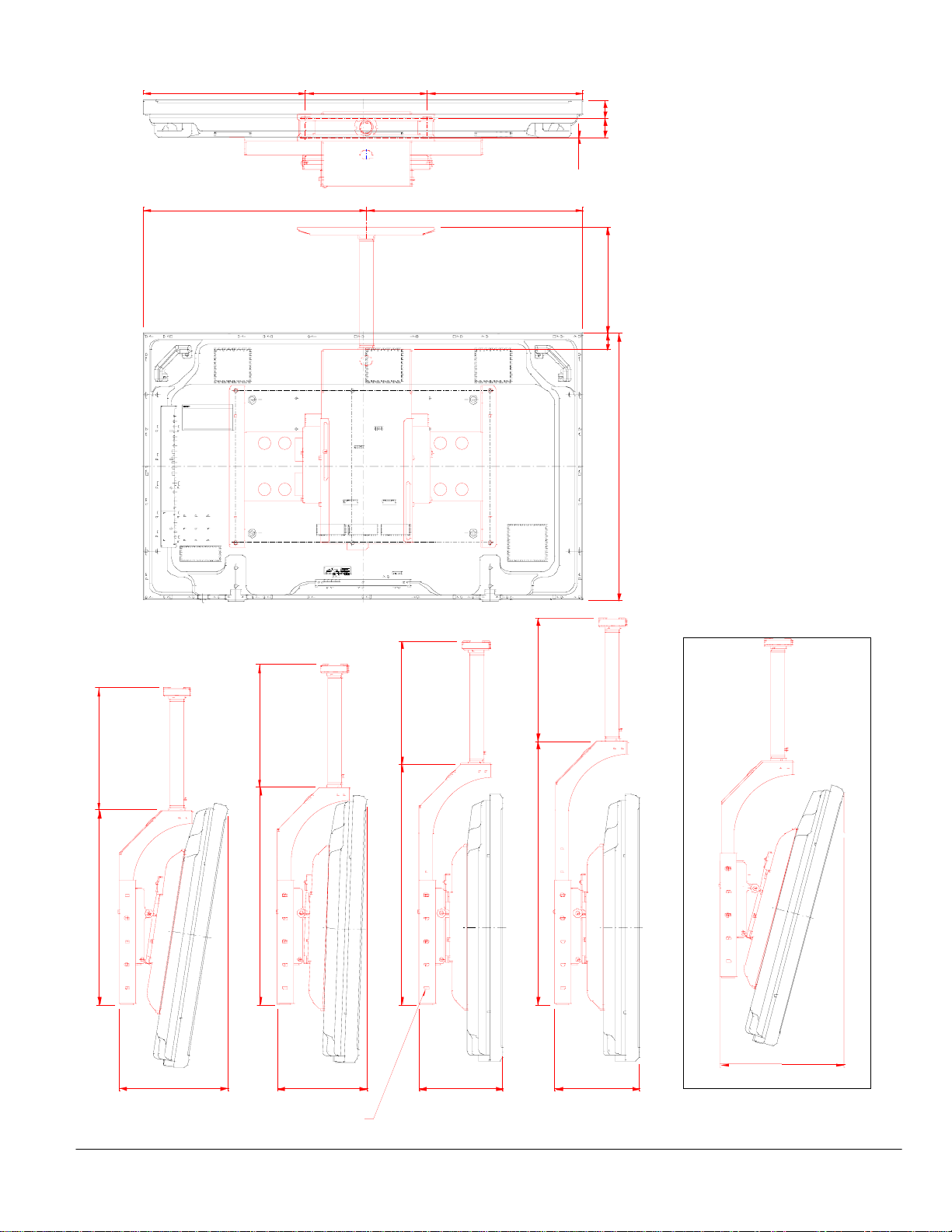

Dimensions with optional Ceiling Mount Kit (61CMK)

2.2

29.4 28.5

0.06

2.5

34.6

2.2

13.7

16.0 20.521.4

25.215.8

28.215.8

31.215.9

34.215.9

Tilt: 9°-15° Tilt: 2°-15° Tilt: 0°-15° Tilt: 0°-15°

16.2

11.1-16.2 11.1-16.211.8-16.214.2-16.2

Height adjustable every 3"

from 25.2"-34.2"

Tilt: 15°

Shown at 15°

www.necvisualsystems.com 61XM3 Page 8 of 11

Portrait Mode

Rotating the Display

The display must be rotated clockwise so the input panel is at the bottom and vents are at the top.

Rotating the display counter-clockwise will not allow the unit to cool properly and will void the warranty.

Inputs

Vents

Clockwise

Power

Rotate

Rotating Source Content

Note: The display is not capable of rotating any source content.

Pivot® software from Portrait Displays, Inc. (www.portrait.com) allows you to rotate the Windows operating system 90 degrees. This

software installs in Windows on the PC and allows you to select landscape or rotate 90 degrees to portrait mode. Everything

running in the Windows environment is also rotated.

Note: All displays connected to the PC will have to support rotating to portrait mode.

NTSC Video

NTSC Video has to be brought into a PC with the appropriate hardware and software, and sent back out through the PC graphics

output. The method to rotate the video would then be the same as above and done within the PC Windows environment.

www.necvisualsystems.com 61XM3 Page 9 of 11

Connections

EXT. SPEAKERS

LOCATED AT BOTTOM OF DISPLAY

POWER

VIDEO

(MONO)

AUDIO1

VIDEO2

VIDEO1

(IN/OUT)

VIDEO3

DVD1/HD1

YCb/Pb Cr/Pr

(MONO)

AUDIO2 RGB2/DVD2/HD2

R/Cr/Pr G/Y B/Cb/Pb HD VD RGB1

(IN/OUT)

(MONO)

RAUDIO3

DVI (Digital RGB)

RGB3

External Control REMOTE

IN OUT

www.necvisualsystems.com 61XM3 Page 10 of 11
