NEC P703 Manual de usuario

NEC Display Solutions of America, Inc.

P703 Installation Guide

70” LCD Display Rev 1.0

www.necdisplay.com P703 Page 1 of 9

Contents:

Product Description and Notes Page 1

Tilt Angle and Rotation Page 1

Ventilation Recommendations Page 2

Display Dimensions Page 3

Display Dimensions with stand Page 4

Optional Table Top Stand Dimensions Page 6

Dimensions of Optional Wall Mount (WMK-3257) Page 7

Input Terminals Page 8

Control Codes Page 8

Browser Control Page 9

Product Description

Type: LCD Display Screen Surface: Anti-Reflective

Resolution: 1920 x 1080 Dimensions without stand: 62.5”(W) x 36.2”(H) x 3.4”(D)

Aspect Ratio: 16:9 Dimensions with stand: 62.5”(W) x 37.7”(H) x 23.9” (D)

FCC: Class B Weight without stand: 103.6 lbs / 47.0 kg

Power Consumption: 150W (typ) Weight with stand: 113.8 lbs / 51.6 kg

BTU’s: 511.82 BTU/hour Current Rating: 3.6A-100-120V,1.5A-220-240V

NOTES:

This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally

to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

Distances are in inches, for millimeters multiply by 25.4.

Tilt Angle and Rotation

Monitor may be angled and rotated from normal landscape and portrait orientation to both face up and face down positioning. When

orientated in face up or face down position, operating temperature for the unit changes. Rotate only clockwise for portrait orientation.

Operating Temperatures:

oLandscape: 5-40° Celsius; 41-104° Fahrenheit Face Up: 5-35° Celsius; 41-95° Fahrenheit

oPortrait: 5-40° Celsius; 41-104° Fahrenheit Face Down: 5-35° Celsius; 41-95° Fahrenheit

NEC Display Solutions of America, Inc.

P703 Installation Guide

70” LCD Display Rev 1.0

www.necdisplay.com P703 Page 2 of 9

Ventilation Recommendations:

Dimensions below are minimum recommended for proper ventilation when the unit is in a recessed area.

NOTE:

The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be covered, other

means of ventilation will need to be incorporated into the design. Contact NEC for design review and recommendations.

NEC Display Solutions of America, Inc.

P703 Installation Guide

70” LCD Display Rev 1.0

www.necdisplay.com P703 Page 3 of 9

Display dimensions:

NEC Display Solutions of America, Inc.

P703 Installation Guide

70” LCD Display Rev 1.0

www.necdisplay.com P703 Page 4 of 9

Display dimensions (cont.):

NEC Display Solutions of America, Inc.

P703 Installation Guide

70” LCD Display Rev 1.0

www.necdisplay.com P703 Page 5 of 9

Display Dimensions (with ST-801 stand):

NEC Display Solutions of America, Inc.

P703 Installation Guide

70” LCD Display Rev 1.0

www.necdisplay.com P703 Page 6 of 9

Optional Table Top Stand Dimensions (ST-801):

NEC Display Solutions of America, Inc.

P703 Installation Guide

70” LCD Display Rev 1.0

www.necdisplay.com P703 Page 7 of 9

Dimensions of Optional Wall Mount Kit (WMK-3257):

NEC Display Solutions of America, Inc.

P703 Installation Guide

70” LCD Display Rev 1.0

www.necdisplay.com P703 Page 8 of 9

Input Panels:

Bottom:

Control Codes:

NOTE: Contact your NEC rep for codes not listed.

NOTE: Use a cross/reverse/null modem cable.

Cable Connection:

Communication Protocol:

Interface: RS-232C

Communication System: Asynchronous

Baud Rate: 9600 bps

Data Length: 8 bits

Parity: None

Stop Bit 1 bit

Communication Code: ASCII

Interface: Ethernet (CSMA/CD

Communication System: TCP/IP (Internet Protocol Suite)

Communication Layer: Transport layer (TCP)

IP Address: 192.168.0.10 (default out of box)

Port Number: 7142 (Fixed)

NOTE: If so desired, jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection.

These connections are not required. The only connections required are pins 2 (TxD), 3 (RxD) and 5 (GND).

Transmit Data+

Transmit Data-

Receive Data+

Receive Data-

Not Used

NEC Display Solutions of America, Inc.

P703 Installation Guide

70” LCD Display Rev 1.0

www.necdisplay.com P703 Page 9 of 9

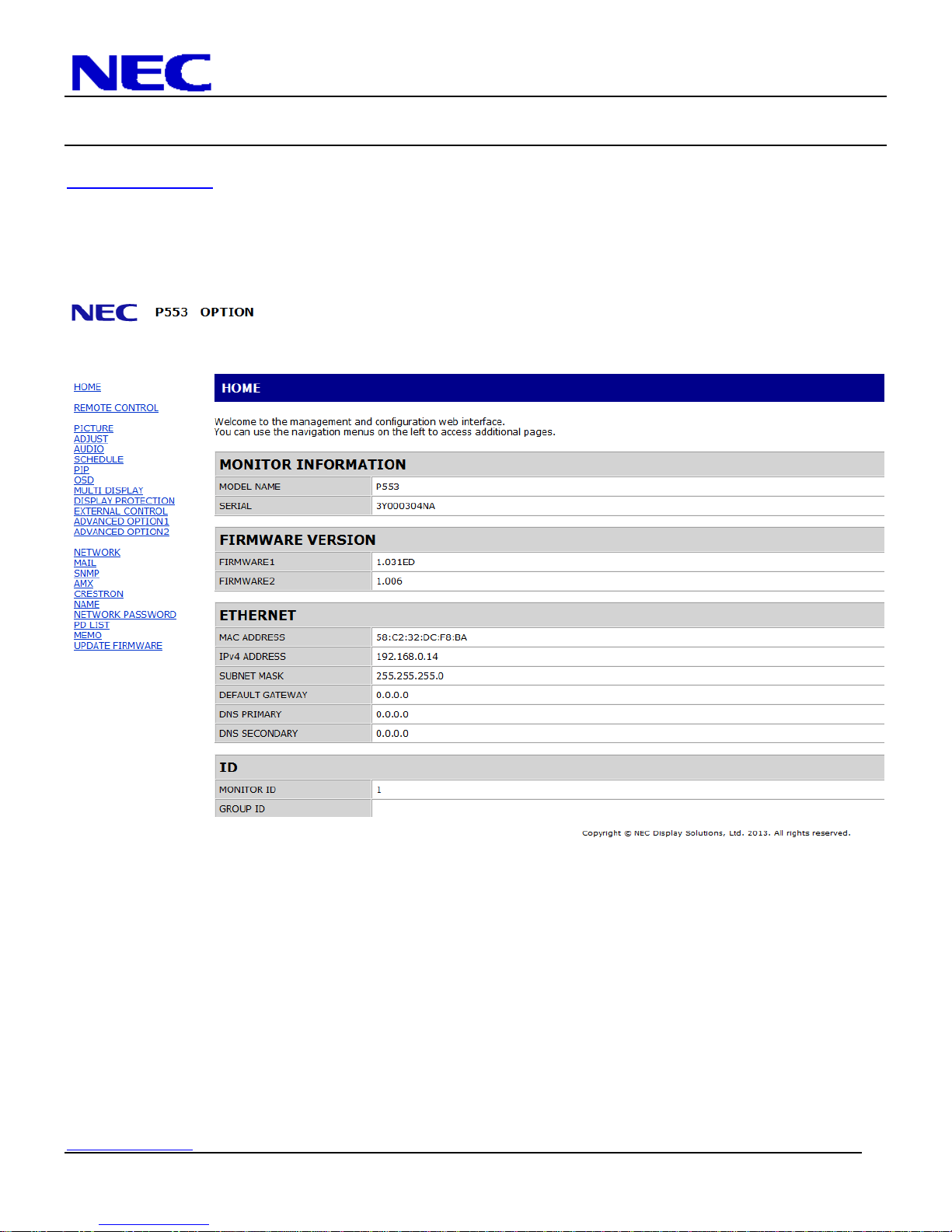

Browser Control

Information and control can also be available through the HTTP browser control menu.

In order to accomplish this, type: http://<the Monitor’s IP address>/pd_index.html

Note that the LAN Power needs to be turned on in order for the display to be controlled while the units are off.

All displays are set to the IP address 192.168.0.10 out of the box

Communicating network PC needs to be on the same subnet as display that is being communicated with

NOTE:

Menus on the left side of the above screenshot can be altered to control the display

Menu above is consistent with the P703 even though it states P553 on top
