NEC MultiSync V484 Manual de usuario

NEC Display Solutions of America, Inc.

V484/P484 Installation Guide

48” LCD Display

Rev 1.0

www.necdisplay.com V484/P484 Page 1 of 10

Contents:

Product Description and Notes Page 1

Tilt Angle and Rotation Page 1

Ventilation Recommendations Page 2

Display Dimensions Page 3-4

Display Dimensions with stand Page 5

Optional Table Top Stand Dimensions Page 6

Dimensions of Optional Wall Mount (WMK-3255S) Page 7

Compute Module Integration Page 8

Control Codes Page 9

Input Terminals Page 10

Browser Control Page 10

Product Description

V484 P464

Display Resolution 1920 x 1080 at 60Hz

Maximum Supported Resolution 3840 x 2160 at 30Hz

Power Consumption (Typical) 85W 115W

Power Consumption (Max rightness) 105W 140W

Power Consumption (Overall Max)* 245W 280W

TU's (Typical) 290.03 BTU/hr 392.40 BTU/hr

TU’s (Max rightness) 358.27 BTU/hr 477.70 BTU/hr

TU’s (Overall Max)* 835.97 BTU/hr 955.40 BTU/hr

Net Dimensions 42.8 x 24.6 x 2.2 in. / 1086.5 x 625.3 x 54.7mm

Net Weight 54.7lbs. / 24.8lbsk

*Overall Max refers to when the unit is at max brightness and the following features are also active: OPS Slot, External Speaker, Raspberry Pi

Compute Module Slot

NOTES:

•This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

•Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

•4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally

to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

•Distances are in inches, for millimeters multiply by 25.4.

Tilt Angle and Rotation

Monitor may be angled and rotated from normal landscape and portrait orientation to both face up and face down positioning. Rotate

only clockwise for portrait orientation.

NEC Display Solutions of America, Inc.

V484/P484 Installation Guide

48” LCD Display

Rev 1.0

www.necdisplay.com V484/P484 Page 2 of 10

Ventilation Recommendations:

Dimensions below are recommended for proper ventilation when the unit is in a recessed area.

NOTE:

The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be covered, other

means of ventilation will need to be incorporated into the design. Contact NEC for design review and recommendations.

NEC Display Solutions of America, Inc.

V484/P484 Installation Guide

48” LCD Display

Rev 1.0

www.necdisplay.com V484/P484 Page 3 of 10

Display dimensions:

NEC Display Solutions of America, Inc.

V484/P484 Installation Guide

48” LCD Display

Rev 1.0

www.necdisplay.com V484/P484 Page 4 of 10

Display dimensions (cont.):

NEC Display Solutions of America, Inc.

V484/P484 Installation Guide

48” LCD Display

Rev 1.0

www.necdisplay.com V484/P484 Page 5 of 10

Display Dimensions (with ST-4 1 stand):

NOTE:

The ST-401 optional stand attaches to the VESA hole pattern on the back of the display and can be set so the display is either 30mm or 50mm from the

tabletop

NEC Display Solutions of America, Inc.

V484/P484 Installation Guide

48” LCD Display

Rev 1.0

www.necdisplay.com V484/P484 Page 6 of 10

Optional Table Top Stand Dimensions (ST-322):

NOTE:

The Pole of the ST-401 stand connects directly to the VESA hole pattern on the back of the display.

NEC Display Solutions of America, Inc.

V484/P484 Installation Guide

48” LCD Display

Rev 1.0

www.necdisplay.com V484/P484 Page 7 of 10

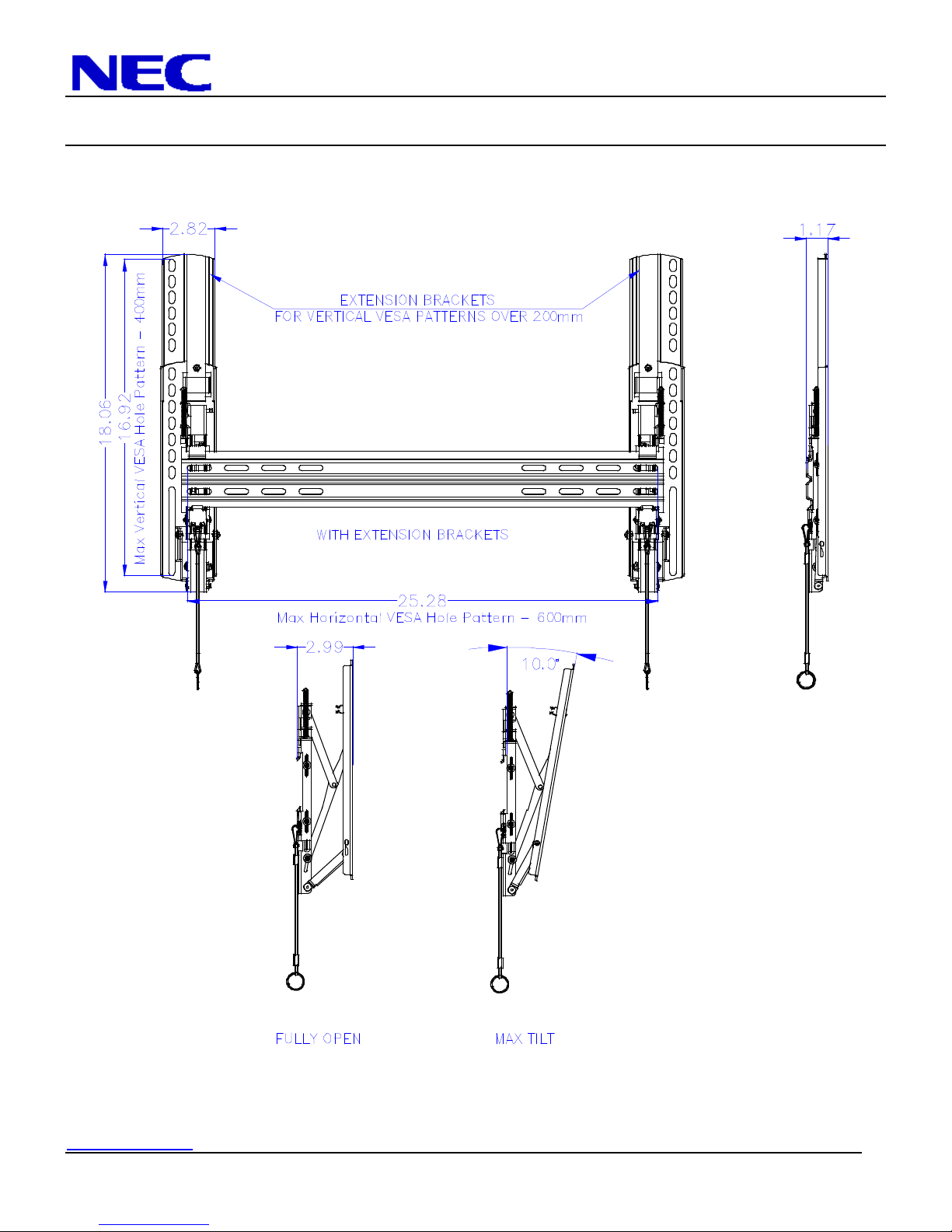

Dimensions of Optional Wall Mount Kit (WMK-4655S):

NEC Display Solutions of America, Inc.

V484/P484 Installation Guide

48” LCD Display

Rev 1.0

www.necdisplay.com V484/P484 Page 8 of 10

Compute Module Integration:

•Door on the back of the display can be opened by loosening captive screws.

•Separate IO Board is necessary to accompany RPi Compute Module in unit

NEC Display Solutions of America, Inc.

V484/P484 Installation Guide

48” LCD Display

Rev 1.0

www.necdisplay.com V484/P484 Page 9 of 10

Control Codes:

NOTE: Contact your NEC rep for codes not listed.

Cable Connection:

Communication Protocol:

Interface: RS-232C

Communication System: Asynchronous

Baud Rate: 9600 bps

Data Length: 8 bits

Parity: None

Stop Bit 1 bit

Communication Code: ASCII

Interface: Ethernet (CSMA/CD

Communication System: TCP/IP (Internet Protocol Suite)

Communication Layer: Transport layer (TCP)

IP Address: 192.168.0.10 (default out of box)

Port Number: 7142 (Fixed)

NOTE: If so desired, jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection.

These connections are not required. The only connections required are pins 2 (TxD), 3 (RxD) and 5 (GND).

Transmit Data+

Transmit Data-

Receive Data+

Receive Data-

Not Used

NEC Display Solutions of America, Inc.

V484/P484 Installation Guide

48” LCD Display

Rev 1.0

www.necdisplay.com V484/P484 Page 10 of 10

Input Panel (Bottom)

Input Panel (Side - Rotated)

Browser Control

Information and control can also be available through the HTTP browser control menu.

In order to accomplish this, type: http://<the Monitor’s IP address>/pd_index.html

Note that the LAN Power needs to be turned on in order for the display to be controlled while the units are off.

All displays are set to the IP address 192.168.0.10 as default. Note that Media Player has separate IP Address menu that can be

accessed from the Monitor’s menu or directly using separate IP Address. IP Address for Media Player is set to 192.168.0.110 for

default configuration

Communicating network PC needs to be on the same subnet as display that is being communicated with
