NEC MultiSync P552 Manual de usuario

NEC Display Solutions of America, Inc.

P552 Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com P552 Page 1 of 9

Contents:

Product Description and Notes Page 1

Tilt Angle and Rotation Page 1

Ventilation Recommendations Page 2

Display Dimensions

Front, Top, Right and Left Side Page 3

Rear & Bottom Page 4

Display Dimensions w/Optional Stand Page 5

Optional Table Top Stand Dimensions Page 6

Optional Speaker Dimensions Page 7

Dimensions with Optional Wall Mount (WMK-3257) Page 8

Input Panels Page 9

Control Codes Page 9

Product Description

Type: LCD Display Screen Surface: Anti-Reflective

Resolution: 1920 x 1080 Dimensions without stand: 49.2”(W) x 28.4”(H) x 4.94.1”(D)

Aspect Ratio: 16:9 Dimensions with stand: 49.2”(W) x 29.9”(H) x 15.7” (D)

FCC: Class B Weight without stand: 88.2 lbs / 40.0 kg

Power Consumption: 255W (max) Weight with stand: 93.0 lbs / 42.2 kg

BTU’s: 870.10 BTU/hour

NOTES:

This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally

to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

Distances are in inches, for millimeters multiply by 25.4.

Tilt Angle and Rotation

Below are the maximum angles that the monitor can be tilted in the landscape position only.

Landscape/Portrait: 20deg

CLOCKWISE ROTATION ONLY MAXIMUM TILT ANGLE

NEC Display Solutions of America, Inc.

P552 Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com P552 Page 2 of 9

Ventilation Recommendations (all models):

Dimensions below are minimum recommended for proper ventilation.

NOTE:

The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be

covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and

recommendations.

NEC Display Solutions of America, Inc.

P552 Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com P552 Page 3 of 9

Display dimensions:

7.91

7.91 33.41

49.22

47.76

(Panel Display)

28.39

26.93

(Panel Display)

3.684.82 19.88

4.94

3.54

2.64

14.12

2.95 3.55

Power Supply

AC Inlet

SPEAKER

OPS/NEC OPTION SLOT

NEC Display Solutions of America, Inc.

P552 Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com P552 Page 4 of 9

Display dimensions (cont.):

16.74 16.7415.75

6.326.32 15.75

8.398.39

32.44

4.76

400mm MOUNTING HOLE PATTERN

FOR MOUNT UNIT (M6 Depth 12mm)

NEC Display Solutions of America, Inc.

P552 Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com P552 Page 5 of 9

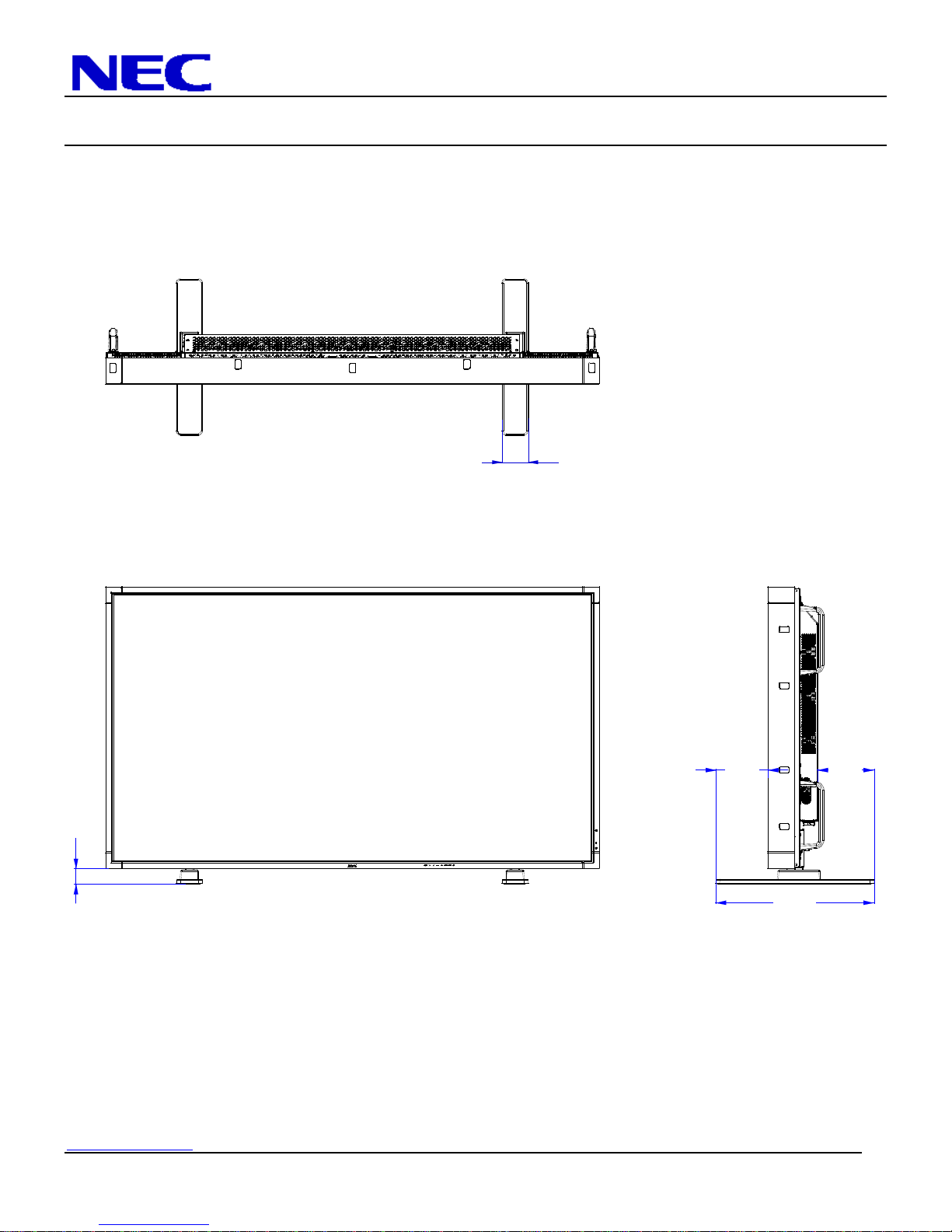

Dimensions with optional stand:

2.60

1.55

15.75

5.615.20

NEC Display Solutions of America, Inc.

P552 Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com P552 Page 6 of 9

Optional Table Top Stand Dimensions (ST-5220):

NEC Display Solutions of America, Inc.

P552 Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com P552 Page 7 of 9

Optional Speaker Dimensions (SP-RM1):

NEC Display Solutions of America, Inc.

P552 Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com P552 Page 8 of 9

Dimensions with Optional Wall Mount Kit (WMK-3257):

NOTE: Vertical rails on WMK-3257 are shown with 400mm extension rail attached. Extension rails included with mount.

8.42

3.42

16.74 16.7415.75

9.42

16.62

10.51

15.52

NEC Display Solutions of America, Inc.

P552 Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com P552 Page 9 of 9

Input Panels:

Bottom:

Control Codes:

Function Code Data

POWER ON 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 31 03 73 0D

OFF 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 34 03 76 0D

INPUT SWITCH VGA (15pin HD) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 31 03 73 0D

RGBHV 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 32 03 70 0D

DVI 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 33 03 71 0D

HDMI__________ 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 34 03 76 0D

VIDEO (Composite) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 35 03 77 0D

DVD/HD 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 43 03 01 0D

S-Video 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 37 03 75 0D

DisplayPort 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 46 03 04 0D

AUDIO MUTE ON 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 31 03 09 0D

OFF 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 32 03 0A 0D

PICTURE MODE sRGB 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 31 03 07 0D

HIBRIGHT 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 33 03 05 0D

STANDARD 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 34 03 02 0D

CINEMA 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 35 03 03 0D

SCREEN MODE: NORMAL 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 31 03 70 0D

FULL 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 32 03 73 0D

WIDE 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 33 03 72 0D

ZOOM 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 34 03 75 0D

AUTO SETUP EXECUTE 01 30 41 30 45 30 41 02 30 30 31 45 30 30 30 31 03 01 0D

NOTE: Contact your NEC rep for codes not listed.

NOTE: Use a cross/reverse/null modem cable.

Cable Connection:

Communication Protocol: PC Control Connector (D-Sub 9-Pin)

Interface: RS-232C

Communication: Asynchronous

Baud Rate: 9600 bps

Data Length: 8 bits

Parity: None

Stop Bit: 1 bit

Communication Code: Hex

NOTE: If so desired, jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection.

These connections are not required. The only connections required are pins 2 (TxD), 3 (RxD) and 5 (GND)
