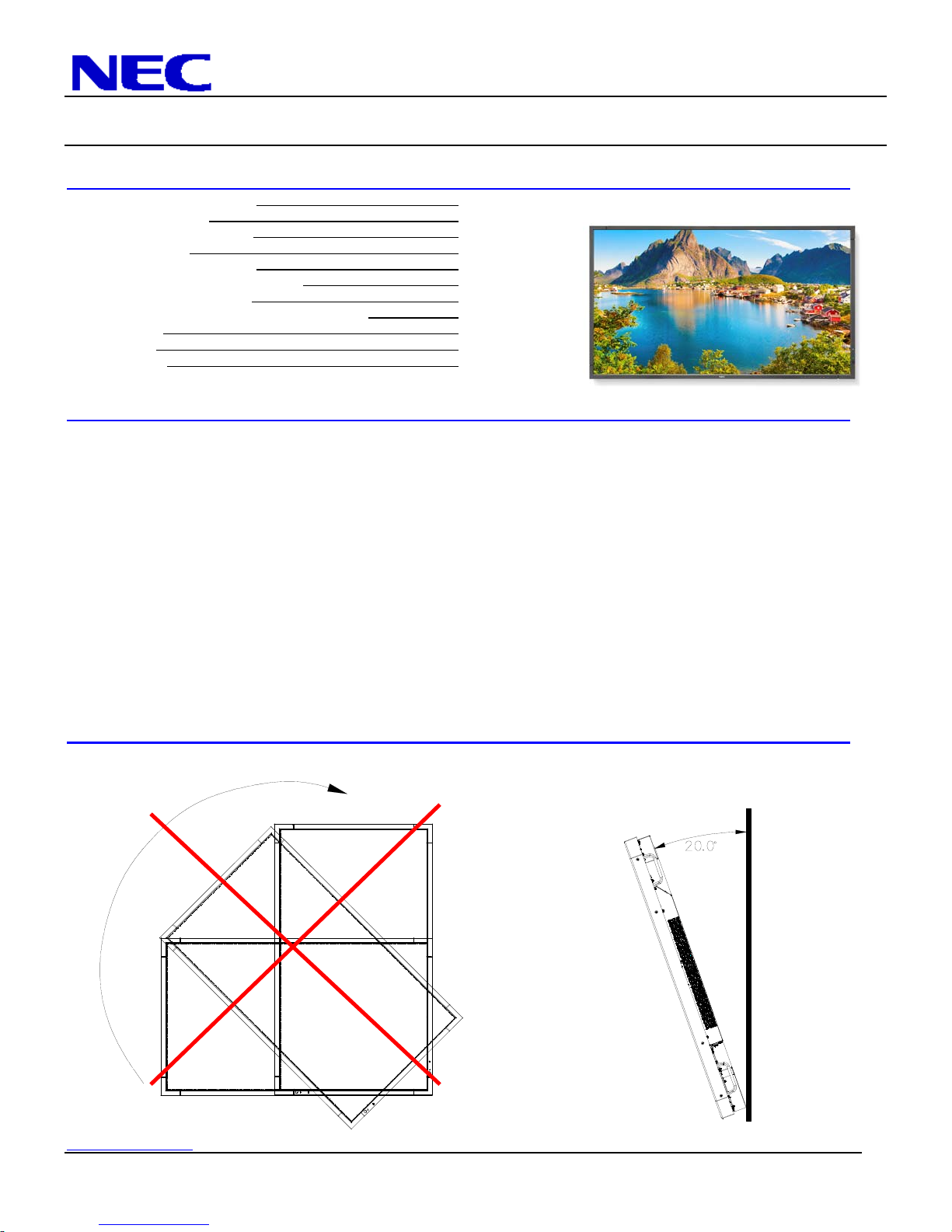

NEC E805 Manual de usuario

NEC Display Solutions of America, Inc.

E805 Installation Guide

80” LCD Display Rev 1.0

www.necdisplay.com E805 Page 1 of 11

Contents:

Product Description and Notes Page 1

Tilt Angle and Rotation Page 1

Ventilation Recommendations Page 2

Display Dimensions Page 3-4

Display Dimensions with stand Page 5

Optional Table Top Stand Dimensions Page 6

Optional Speaker Dimensions Page 7-8

Dimensions of Optional Wall Mount (WMK-3257) Page 9

Input Terminals Page 10

Control Codes Page 10

Browser Control Page 11

Product Description:

Type: LCD Display

Resolution: 1920 x 1080 Dimensions without stand: 72.3” (W) x 41.8” (H) x 3.4” (D)

Aspect Ratio: 16:9 Dimensions with stand: 72.3”(W) x 43.3”(H) x 23.9”(D)

FCC: Class B Weight without stand: 132.3 lbs

Power Consumption: 230W (typ) Weight with stand: 142.5 lbs

BTU’s: 784.79 BTU/hour

NOTES:

This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally

to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary ±5%.

TiltAngleandRotation:

Below is the maximum angle the monitor can be tilted. Note that the monitor can only be tilted in the landscape position.

MAXIMUM TILT ANGLE

NEC Display Solutions of America, Inc.

E805 Installation Guide

80” LCD Display Rev 1.0

www.necdisplay.com E805 Page 2 of 11

VentilationRecommendations:

Dimensions below are minimum required for proper ventilation.

NOTE:

The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be covered, other

means of ventilation will need to be incorporated into the design. Contact NEC for design review and recommendations.

NEC Display Solutions of America, Inc.

E805 Installation Guide

80” LCD Display Rev 1.0

www.necdisplay.com E805 Page 3 of 11

Display dimensions:

NEC Display Solutions of America, Inc.

E805 Installation Guide

80” LCD Display Rev 1.0

www.necdisplay.com E805 Page 4 of 11

Display dimensions (cont.):

NEC Display Solutions of America, Inc.

E805 Installation Guide

80” LCD Display Rev 1.0

www.necdisplay.com E805 Page 5 of 11

Display Dimensions (with ST-801 stand):

NEC Display Solutions of America, Inc.

E805 Installation Guide

80” LCD Display Rev 1.0

www.necdisplay.com E805 Page 6 of 11

Table Top Stand Dimensions (ST-801):

NEC Display Solutions of America, Inc.

E805 Installation Guide

80” LCD Display Rev 1.0

www.necdisplay.com E805 Page 7 of 11

Dimensions of Optional Front-Firing Speaker (SP-TF1)

NEC Display Solutions of America, Inc.

E805 Installation Guide

80” LCD Display Rev 1.0

www.necdisplay.com E805 Page 8 of 11

Optional Side-Firing Speaker Dimensions including holder (SP-RM1):

NEC Display Solutions of America, Inc.

E805 Installation Guide

80” LCD Display Rev 1.0

www.necdisplay.com E805 Page 9 of 11

Dimensions with Optional Wall Mount Kit (WMK-3257):

NEC Display Solutions of America, Inc.

E805 Installation Guide

80” LCD Display Rev 1.0

www.necdisplay.com E805 Page 10 of 11

InputPanels:

Bottom:

ControlCodes:

NOTE: Contact your NEC rep for codes not listed.

NOTE: Use a cross/reverse/null modem cable.

CableConnection:

Communication Protocol:

Interface: RS-232C

Communication System: Asynchronous

Baud Rate: 9600 bps

Data Length: 8 bits

Parity: None

Stop Bit 1 bit

Communication Code: ASCII

Interface: Ethernet (CSMA/CD

Communication System: TCP/IP (Internet Protocol Suite)

Communication Layer: Transport layer (TCP)

IP Address: 192.168.0.10 (default out of box)

Port Number: 7142 (Fixed)

NOTE: If so desired, jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection.

These connections are not required. The only connections required are pins 2 (TxD), 3 (RxD) and 5 (GND).

Transmit Data+

Transmit Data-

Receive Data+

Receive Data-

Not Used
