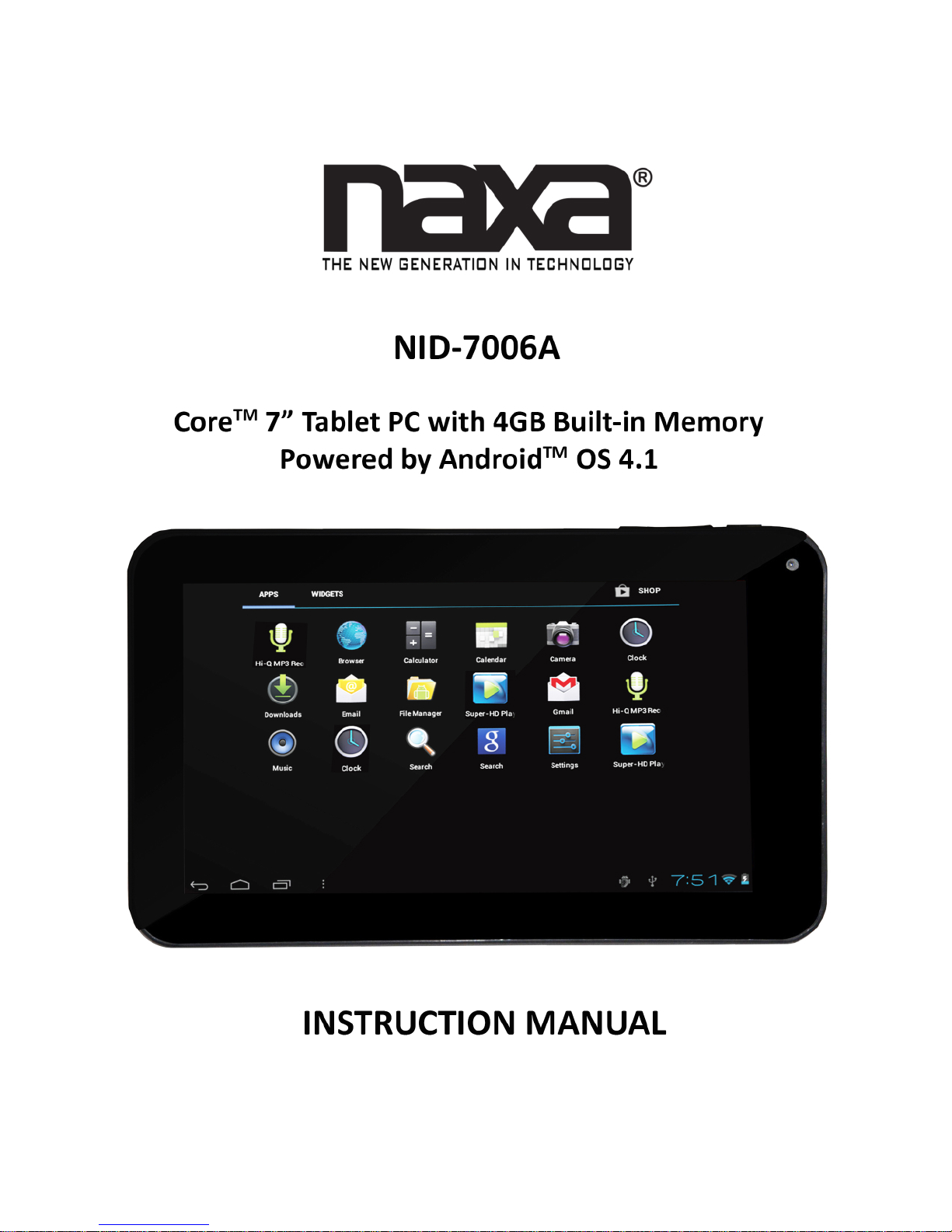

Naxa NID-7006A Manual de usuario
Table of Contents
Basic&Introduction&........................................................................................................................................&1&
Quick&Start&.......................................................................................................................................................&1&
Battery'management'and'charging'............................................................................................................................'1'
Boot'and'Shutdown'............................................................................................................................................................'1'
Connect'with'PC'...................................................................................................................................................................'2'
Interface&Introduction&.................................................................................................................................&3&
Bottom'Bar'of'the'Interface'............................................................................................................................................'3'
The'HOME'Screen'Menu'...................................................................................................................................................'3'
Desktop'....................................................................................................................................................................................'3!
Basic&Operation&.............................................................................................................................................&3&
Date'and'Time'Settings'.....................................................................................................................................................'4'
Display'Settings'....................................................................................................................................................................'4'
Wireless'Connection'...........................................................................................................................................................'5'
Install'and'Uninstall'Applications'................................................................................................................................'5'
Browser'....................................................................................................................................................................................'6'
Video'Player'...........................................................................................................................................................................'6'
Music'Player'...........................................................................................................................................................................'6'
Photo'Browser'......................................................................................................................................................................'7'
Camera'.....................................................................................................................................................................................'7'
Sound'Recorder'....................................................................................................................................................................'8'
Play'Store'................................................................................................................................................................................'8'
Frequently&Asked&Questions&.....................................................................................................................&9&
Important&Safety&Precautions&...................................................................................................................&9&
System: Android 4.1
Processor: Boxchip A13
Edition: V01
DA46
Page-1
Basic Introduction
CPU: Boxchip A13 Cortex A8 1.0Ghz
LCD Screen:7 " 800 * 480 TFT LCD
Camera: Build-in 0.3/0.3M pixel camera
Operating System: Google Android 4.1
Network Connection: Built-in 802.11b/g/n wireless
Audio format: MP3,WMA,MP2,OGG,AAC,M4A ,FLAC,APE, WAV
Video format: max 2160p full HD video （AVI,3GP,MP4,MPG,RM,RMVB,MOV,FLV,WMV,MKV)
TOUCH PANEL: Multi-touch Capacitive screen
Language: supporting multiple languages
Ports: mini USB*1(OTG) , Earphone * 1, TF card slot * 1,DC IN*1,MIC*1
Buttons: Power /Vol+/Vol-
Quick Start
Battery management and charging
Before using this device, please charge it fully. Put the charger adapter into the DC jack, the device will start to charge.
【TIPS】:
This device adopts built-in polymer battery. Only the specified charger should be used.
When it is charging, the icon of battery will be rolling.
When the charging finishes, the battery icon will turn green and stop rolling.
If you do not use this device for a long time, please charge/release it once one month to avoid deep discharge.
When it is power off because of low battery, connect to the charger, the device will indicate “low power” or “charging”, please wait for a
second until the machine can turn to the main interface once the power is enough.
The built-in polymer battery should be charged regularly. The damage caused by battery over-consuming is not included in the warranty.
Boot and Shutdown
Boot: Press and hold the power button, the system will enter the boot process.
Page-2
System has been started, entering the Android system:
The system enters the default home interface.
Shutdown: Press the power button, the device options will pop up; select power off. Click OK and safely shut down
Connect with PC
You can connect with PC by mini USB (OTG) cable attached with the device. USB Data transferring is available. You can operate the files
through the PC.
When your device is connected successfully, to pull up the notification area of the status bar, you can see the following icon:
Then click to enter the next page.
Click , then the device can start data transmission with PC.
Page-3
Note: The device also supports the FAT32 format for external devices, for example U disk or Micro SD cards to Transfer data.
Interface Introduction
Bottom bar of the Interface
A. WIFI signal status icon: If it’s connected to the WIFI wireless network, the icon will be displayed.
B. OTG connect icon: If the device is connected to the PC, it will show the OTG connected icon.
C. Time display: Display the time of the current system which has been set.
D. Battery status icon: Displays the current battery level and the charging status.
E. Menu, Home, Back, virtual buttons
The HOME Screen menu
Press the menu icon on the device; it will display a home screen menu as following:
Wallpaper: Users can replace the wallpaper with their wishes.
Manage apps: It can quickly open a list of all applications.
System Settings: Fast access to system settings, user can choose “Wireless & networks”, “Display”, “Date & time” etc, for personalized settings.
Desktop
When sliding around with your finger to switch the main screen, the desktop fixed on the main screen, will not move. User can drag the application
icon placed on the desktop area in the main screen.
Basic Operation
Click the "Settings" icon in the main applications area; the system settings interface will open as shown below:
Page-4
Select the appropriate operation of the relevant items, such as: Wireless and network, Display, Date and time settings, About Device, etc.
Date and time settings:
Click "Date & time" to enter the Date and time settings interface:
Select to set the date, select the time zone, set the time, time format, date format and other information.
For example, choose to set the date, as follows:
Display settings
In the setting interface choose “Display” to enter the display settings interface, select “Brightness”, drag the progress bar to adjust the brightness,
as below interface:
Click Sleep, Adjust the inactivity time of the device. You can press power key to activate the device. When it shows "Screen locked" interface,
follow the prompts to unlock it.
Page-5
Wireless Connection:
Click the main menu “Settings” icon, go to “Settings” screen, click on “Wireless and networks” into the “Wireless and networks settings”
interface. Turn on Wi-Fi switch, the Wi-Fi module built in the device will search AP lists automatically.
Click the searched AP, the settings will pop up; please follow the prompts to complete the WIFI network links. Some encrypted network, need to
enter a valid key. As shown below:
Install and Uninstall Applications
Install applications
1. First you should select the unknown sources which allow installation of non-Market apps.
2. Copy the APK installer software to Micro SD or NAND Flash.
3. Click File Manage to find the app directory, and then select applications to install.
Page-6
Users can go to "Android market" for online installation, download via the computer, or online through the machine built-in browser to download
and install.
Uninstall applications
Pitch on the item "Settings - Apps –Download ", select the appropriate application that has been installed, choose the applications which you need
to uninstall.
Browser
When the network is connected, open the web browser and enter the URL, you can quickly browse the web or through the main desktop search
bar. Enter the URL and open the web page.
Video Player:
Online video: The product supports HTML5 online video playback.
Local video: Click the Super-HD Player icon , the player can load new albums and photos automatically which are stored in local disk or
micro SD card, then select the videos to playback.
Music player:
Click the music icon , you will enter the music player interface.
Click the music files to play them.
Click “ ” to play the previous song, press and hold to fast reverse.
Page-7
Click “ ” to pause the player, the icon turns to “ ” , click it once again to resume normal playing.
Click “ ” to play the next song, press and hold to do fast forward.
Click “ ” to display the present playing list.
Click “ ” to select the random playing mode.
Click “ ” to select the repeat playing mode.
Photo Browser
Click to get into Photo Browser directly. There will be the list of all the picture files and video files as shown below:
Select a picture file; enter the picture playback interface, as shown below. User can select "Slideshow", ”Edit”, ”Rotate left”, ”Rotate
right”, ”Crop”, ”Set picture as” and "Details" etc. operations.
Camera
Click the Camera icon in the applications menu.
1. Click switch to camera, and you can take picture.
2. Click conversion lens.
3. Click the camera shutter to take photos.
Page-8
Video mode:
1. Click switch to video, and you can take videos.
2. Click conversion lens.
3. Click to begin and tap to stop.
Sound Recorder
Click the recorder icon in the applications menu to enter the Sound Recorder interface as shown below:
Note: Select “Record” button to record, when it is completed, select “Stop” button . At this point you can find the recordings
folder in the file browser, which all the saved recordings are there.
Play Store
Click the icon to enter the "Play Store" interface. If you have no Gmail account, you should create one.
Select “Accept” to enter market, as shown below:
