Naxa NCA-611 Manual de usuario

In-Dash MP3 Player and Receiver with

Flip-Down Faceplate

NCA-611

Instruction Manual

Please read carefully before use and keep for future reference.

Page 2 Naxa Electronics

Important Safety Information

READ THIS MANUAL THOROUGHLY BEFORE USING

THIS UNIT. KEEP THIS MANUAL FOR FUTURE REF-

ERENCE.

Precautions & Warnings

• Toreducetheriskofre,electricshock,andinterfer-

ence,donotattempttorepairthisunityourself.Refer

allservicetoaqualiedtechnician.

• SomeMP3/WMAlesmaynotbeplayable.

• Keepthevolumeatareasonableleveltoavoiddistract-

eddriving.Highvolumelevelsmaymakeitdifcultto

concentrateontrafcandroadconditionswhiledriving.

• Ifthecarhasbeenindirectsunlightforanextended

period,youmayneedtoreducethetemperatureinside

thecarbeforeturningonandusingtheunit.

• Ifthebatteryisdisconnected,discharged,orchanged,

thepresetmemoryoftheunitwillbelostandrequire

reprogramming.

• Theunitisdesignedtobeinstalledinalevel,horizontal

position.Foroptimalperformance,avoidinstallingthe

unitatanangle.

• Neveruseexcessiveforcewhenremovingorattaching

thefaceplate.Donottightlygripthedisplayandbut-

tonstoavoiddamage.

• ALWAYSLOWERTHEVOLUMEBEFORETURNINGOFFTHEUNIT

ORSWITCHINGTHEIGNITIONOFF.

www.naxa.com Page 3

Table of Contents

Important Safety Information ...................... 2

Thank You ........................................................ 4

In the Box ......................................................... 4

At a Glance ....................................................... 5

Electrical Connections.....................................7

Installation Guide ........................................... 8

InstallationProcedures..................................................... 8

InstallationOpening................................................... 8

AttachingtheFaceplatetotheChassis..........................9

Todetachthefaceplate:..................................................10

Remote Control .............................................. 11

Troubleshooting .............................................12

Warnings and Precautions.............................13

Specications .................................................15

Support ...........................................................15

Page 4 Naxa Electronics

Thank You

We know you have many choices when it comes to

technology; thank you for choosing us here at Naxa

Electronics. Established in 2001 in Los Angeles, Califor-

nia, we are dedicated to delivering products that en-

tertain and delight.

We trust that you will be happy with your purchase.

Please read this manual carefully and save it for refer-

ence. You may also the latest FAQ, documentation,

and other product material at our website. Come visit

us on the web at www.naxa.com and see all that we

have to offer!

In the Box

Please take a moment to make sure that you have ev-

erything in the list below. Although we make every ef-

fort to ensure that each Naxa device is securely packed

and sealed, we know a lot can happen in between us

and you. If anything is missing, check back with your

local retailer to get immediate assistance. If they can-

not help you, please contact our Naxa Support team at

www.naxa.com/naxa_support.

•NCA-611 main unit & faceplate

•Faceplate case

•Remote control

•Installation kit

www.naxa.com Page 5

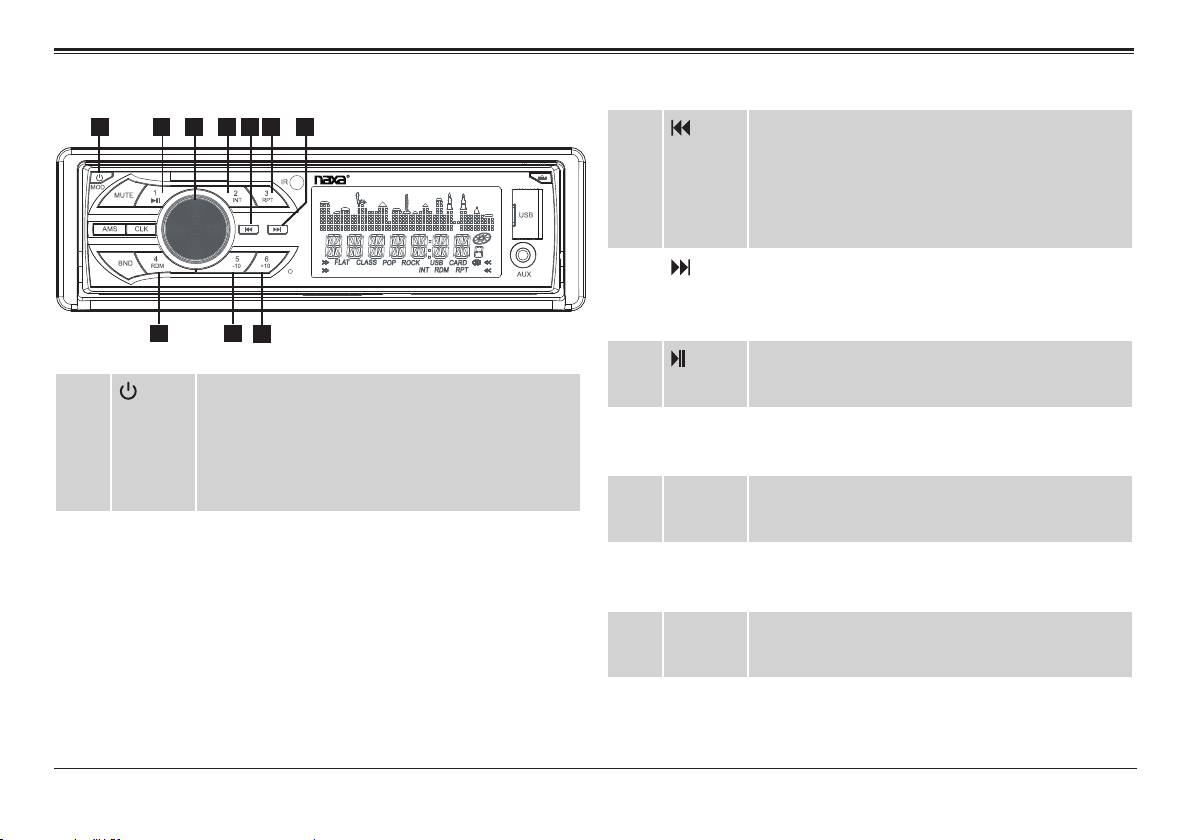

At a Glance

MODE

Power. Press to turn the unit on and to change

the active source mode: Radio, USB, CARD,

AUX IN. (USB & CARD modes are only available

when media is detected by the player.)

Press and hold to turn the unit off.

2 Volume/

Options

Rotate to adjust the volume level.

Press to cycle through the options menu and

rotate the dial to adjust the options: Bass,

Treble, Balance, Fader, EQ off, Loud, Loc,

Stereo, Vol.

3 USB/CARD: Press to skip to the previous

track.

RADIO: Press to auto scan down to the next

station. Press and hold to tune to a lower

frequency.

4 USB/CARD: Press to skip to the next track.

RADIO: Press to auto scan up to the next station.

Press and hold to tuneto a higherfrequency.

5/1 USB/CARD: Press to start/pause/resume play.

RADIO: Preset station 1.

6 INT/2 USB/CARD: Press to change the intro mode.

RADIO: Preset station 2.

7 RPT/3 USB/CARD: Press to change the repeat mode.

RADIO: Preset station 3.

8 RDM/4 USB/CARD: Press to change the random mode.

RADIO: Preset station 4.

9 –10/5 USB/CARD: Press to skip back 10 tracks.

RADIO: Preset station 5.

10 +10/6 Press to skip forward 10 tracks.

RADIO: Preset station 6.

NCA-611

21 5

8 9 10

6 73 4

Page 6 Naxa Electronics

11 MUTE Press to temporarily disable/restore the

sound.

12 AMS USB/CARD: Press to enter track search

mode, then rotate the volume dial to scan

through the track.

Radio: Automatic Memory Save. Press

to scan for the strongest radio station

signals and automatically save them to

preset memory. The radio can save up to

6 stations.

13 BAND Press to change the radio band (FM1, FM2,

FM3, AM1, AM2).

14 CLK Clock. Press once to display the time.

Press and hold to set the time.

15 IR Remote sensor.

16 AUX

connector

AUX mode. 3.5mm stereo connection for

devices with 3.5mm line-out or head-

phone output.

17 USB port USB mode. Load USB memory sticks here.

The USB port is designed for media play-

back from memory devices. It is not

designed to charge high-power devices.

18 Release Press to down the front panel in order

to access the SD slot, reset the unit, or to

remove the faceplate.

NCA-611

11 15 17 18

13 14 16

www.naxa.com Page 7

19 20

19 SDcardslot SDmode.LoadanSDmemorycardhere.

20RESET Presstoresetthesystem.Alloptionswill

returntotheirfactorydefaultsettings.

PressRESETifthedisplayisfrozenorthe

systemisotherwiseunresponsive.

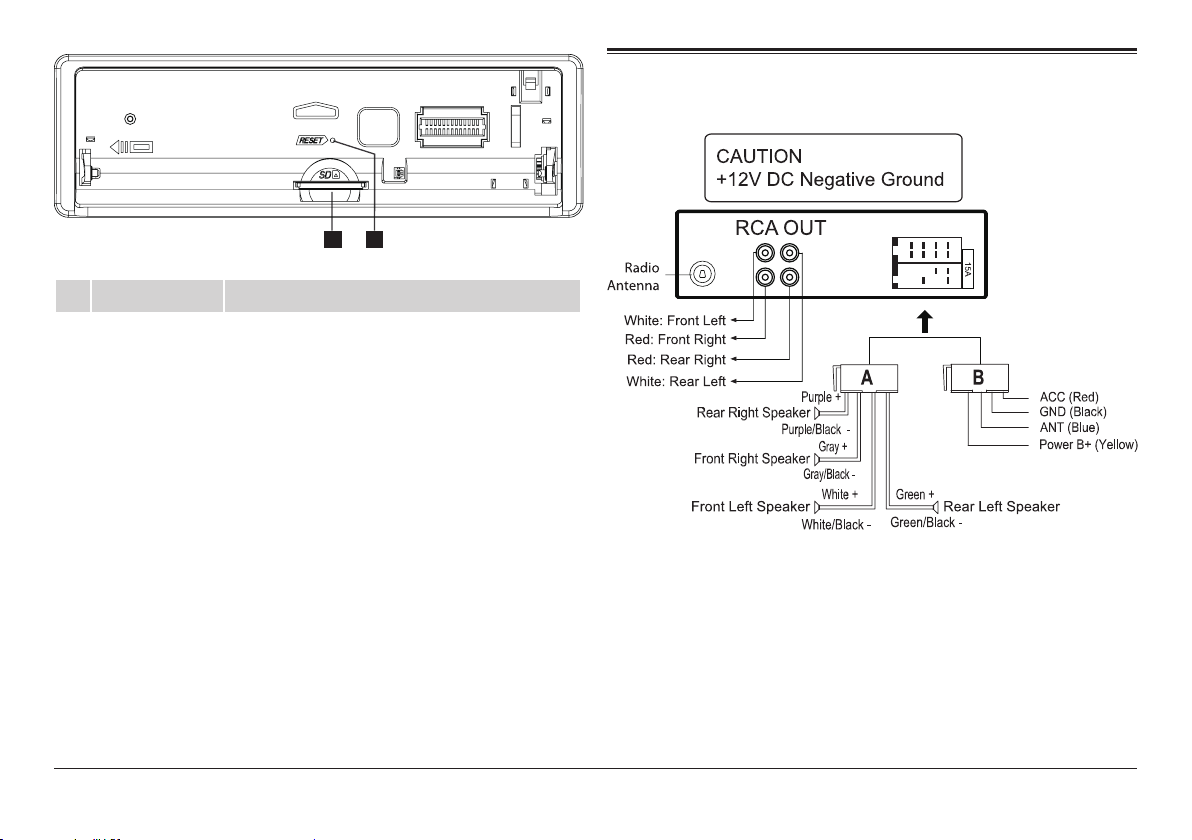

Electrical Connections

Page 8 Naxa Electronics

Installation Guide

Installation Procedures

First complete the electrical connections, and then

checktomakesureeverythingissecureandcorrect.

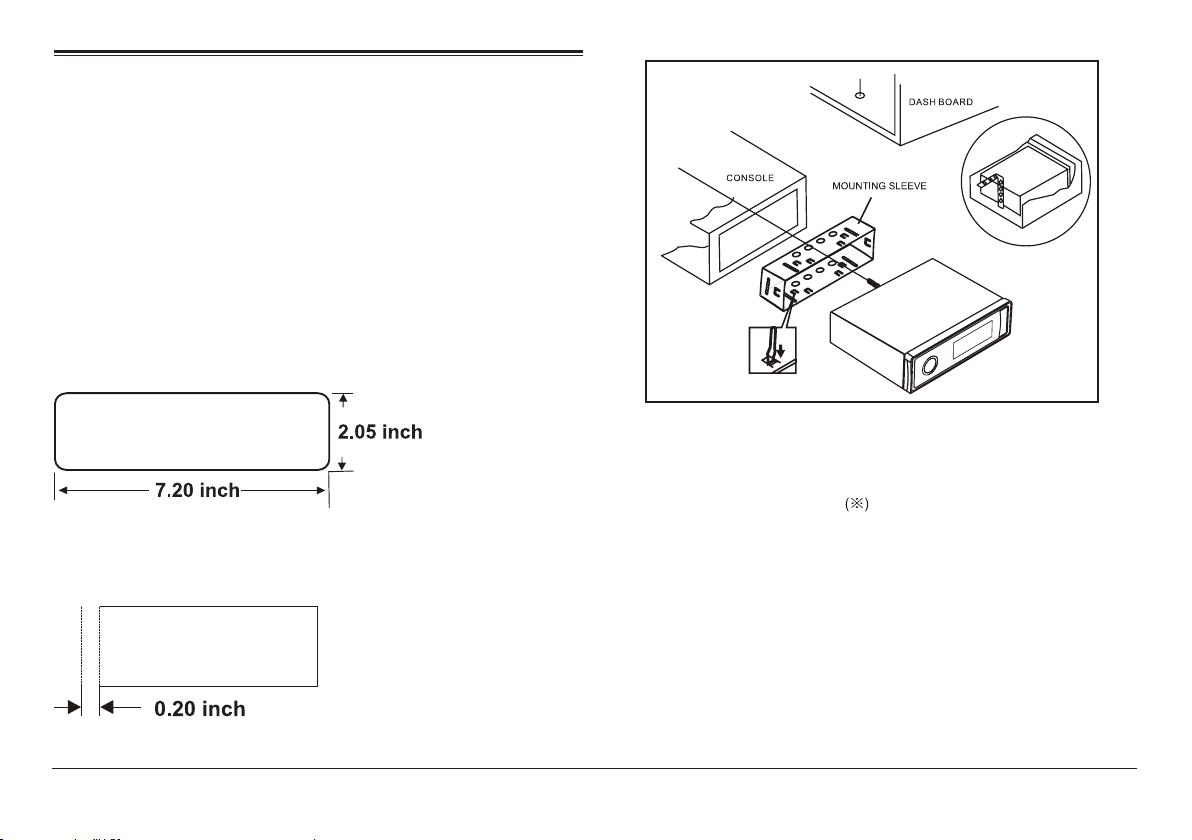

Installation Opening

Thisunitcanbeinstalledinanydashboardhavingan

openingasshownbelow.

The dashboard must be 4.75–5.56mm thick in order

to be able to support the unit.

Insert the mounting sleeve into the dashboard and

bendthemountingtabsoutwithascrewdriver.Make

surethatthelocklever isushwiththemounting

collarandisnotprojectingbeyond.

www.naxa.com Page 9

Attaching the Faceplate to the

Chassis

1. Aligntheindentationontherightofthefaceplate

withtheright“bulge”ofthechassis.

2. Slidethefaceplateinandholdittotheleft;atthe

sametime,bringtheotherendofthefaceplateto-

wardsthechassis,makingsuretoaligntheinden-

tationwiththe“bulge.”

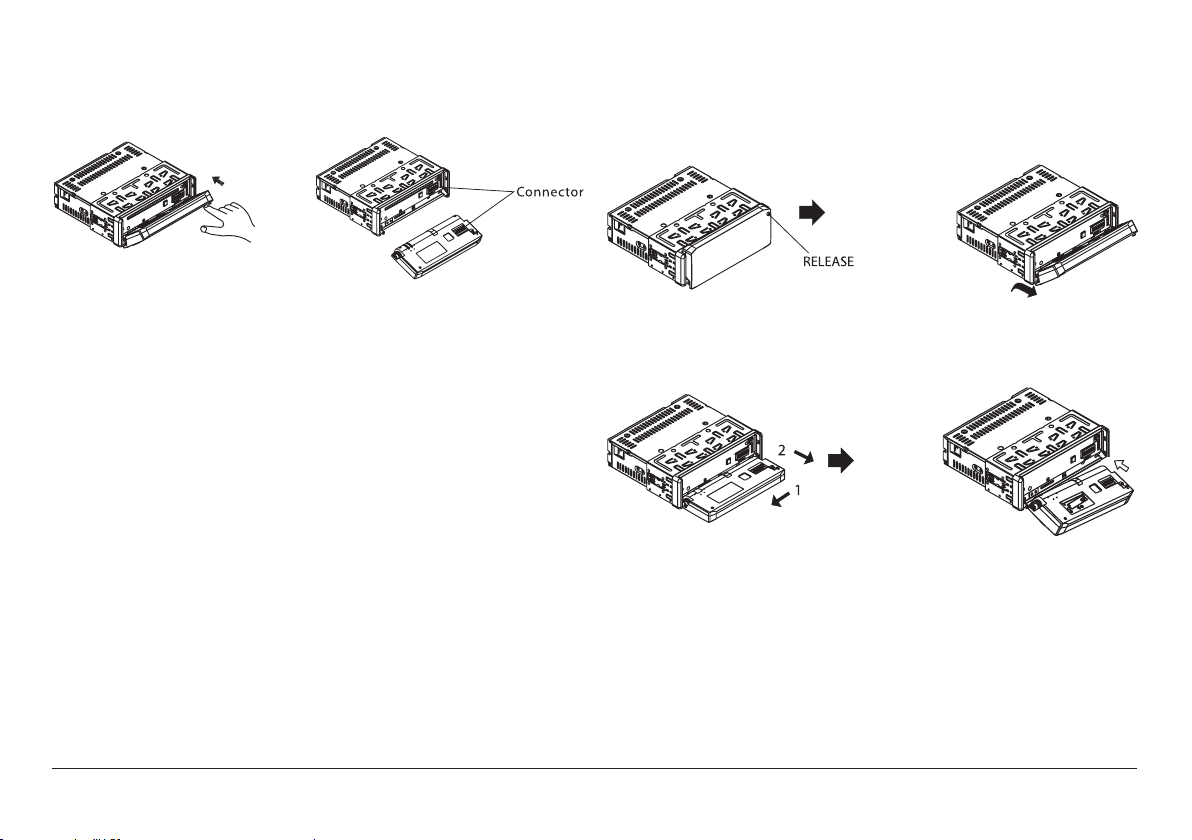

Page 10 Naxa Electronics

3. Flipthefaceplateupuntilitclicksintoplaceand

attachestothechassis. To detach the faceplate:

1. Press the RELEASE button to ip the faceplate

down.

2. Gently push the faceplate to the left to release it

fromthechassis,thenpullitawayfromthechassis.
