Napoleon HDX52 Manual de usuario

W415-1632 / A / 05.02.16

INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.

CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.

INSTALLATION AND

OPERATING INSTRUCTIONS

1.22D

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /

103 Miller Drive, Crittenden, Kentucky, USA, 41030

Phone (705)721-1212 • Fax (705)722-9081 • www.napoleonﬁreplaces.com • hearth@napoleonproducts.com

SAFETY INFORMATION

!WARNING

If the information in these instructions are

not followed exactly, a ﬁre or explosion

may result causing property damage,

personal injury or loss of life.

- Do not store or use gasoline or other ﬂammable

vapors and liquids in the vicinity of this or any

other appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use

any phone in your building.

• Immediately call your gas supplier from a

neighbour’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call the

ﬁre department.

- Installation and service must be performed by a

qualiﬁed installer, service agency or the supplier.

CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.

$10.00

HOT GLASS WILL CAUSE

BURNS.

DO NOT TOUCH GLASS UNTIL

COOLED.

NEVER ALLOW CHILDREN TO

TOUCH GLASS.

DANGER

A barrier designed to reduce the risk of burns from

the hot viewing glass is provided with this appliance

and shall be installed for the protection of children

and other at-risk individuals.

This appliance may be installed in an aftermarket,

permanently located, manufactured home (USA

only) or mobile home, where not prohibited by

local codes.

This appliance is only for use with the type of gas

indicated on the rating plate. This appliance is

not convertible for use with other gases, unless

a certiﬁed kit is used.

Decorative Product: Not for use as a heating appliance.

CONFORMS TO AMERICAN NATIONAL STANDARDS: ANSI Z21.50, CERTIFIED TO CANADIAN CSA 2.22 FOR VENTED GAS FIREPLACES.

HDX52

LOG BURNER

ASSEMBLY

B52NTL

NATURAL GAS

B52PTL

PROPANE

A. Remove the door,

refer to installation

instructions. Remove

the 8 securing screws

and lift the plate

up and out of the

appliance. Gasket will

need to be replaced if

damaged.

A. Attach the burner assembly to the ﬁrebox

base with the 2 screws supplied.

This burner and log assembly are approved for use in the HDX52 gas ﬁreplace only. They are not approved for

use as a stand alone appliance or in conjunction with any other appliance.

1.0 GENERAL INFORMATION

2.0 INSTALLATION

2.1 ACCESS PANEL

2.2 BURNER ASSEMBLY

1.0 GENERAL INFORMATION 2

2.0 INSTALLATION 2

2.1 ACCESS PANEL 2

2.2 BURNER ASSEMBLY 2

2.3 BULKHEADS 3

2.4 HEARTH PANEL INSTALLATION 4

2.5 HEARTH LOG & LOG PLACEMENT 5

2.6 CHARCOAL LUMPS 7

2.7 CHARCOAL EMBERS 7

2.8 VERMICULITE 8

2.9 GLOWING EMBERS 8

3.0 ADJUSTMENT 8

3.1 FLAME CHARACTERISTICS 8

3.2 VENTURI ADJUSTMENT 8

4.0 REPLACEMENTS 9

5.0 HDX52 LOG BURNER ASSEMBLY(NG) 10

6.0 HDX52 LOG BURNER ASSEMBLY(LP) 11

INSIDE UNIT OUTSIDE UNIT

W415-1632 / A / 05.02.16

NOTE: Changes, other than editorial, are denoted by a line in the margin.

TABLE OF CONTENTS

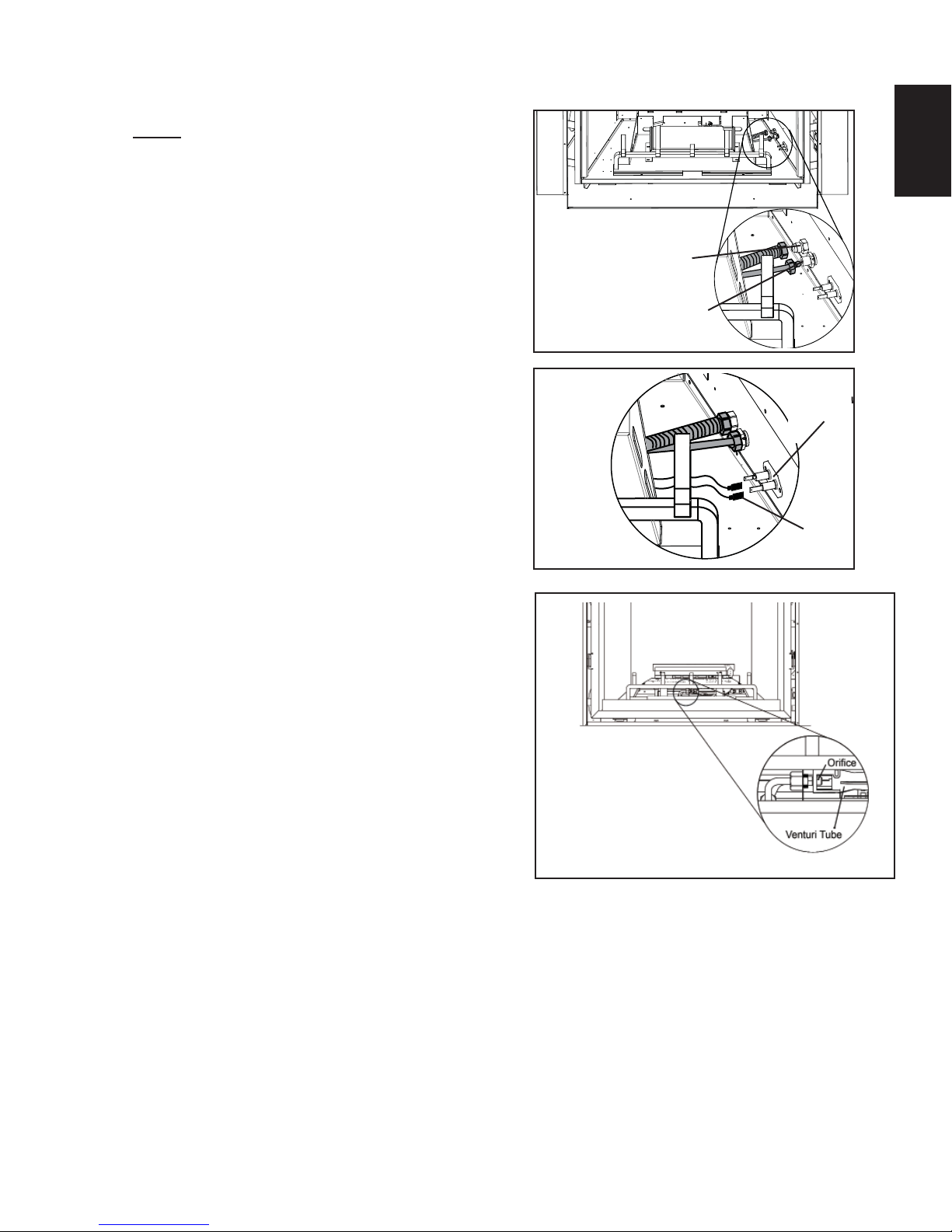

NOTE: Bulkhead covers need to be removed.

A. Connect the main burner gas ﬂex line

and the pilot line to the gas ﬁttings on the

bulkheads located under the valve access

opening.Care must be taken to ensure the

pilot line isn’t damaged and ensuring gas

tight connections are made.

Main

Burner Gas

Connection

Pilot Tube

Gas Connection

Pilot

Electrode

Lead

Bulkhead

2.3 BULKHEADS

B. Connect the pilot electrode lead to the

bulkhead matching the 3/16" ﬂag with the

3/16" bulkhead spade. Do the same with the

1/4” spark lead to the 1/4” bulkhead spade.

C. Ensure the venturi tubes are over the oriﬁce

before lighting.

D. Check for gas leaks by brushing on a soap

and water solution. Do not use open ﬂame.

E. After leak test has been performed re-install

access panel with gasket.

W415-1632 / A / 05.02.16

Hearth ﬂoor panels are shipped separate from unit and are included with the mandatory brick panel kits. Due to

the brittle material of the panels, care must be taken not to bend or force them into place.

When shipped, the hearth panels range in varying shades of Sandstone / New Port. During initial use, the panels

will darken temporarily. The appearance of the panels will permanently lighten in color with use.

INSTALL HEARTH FLOOR PANELS ACCORDING TO THE INSTALLATION LEAFLET.

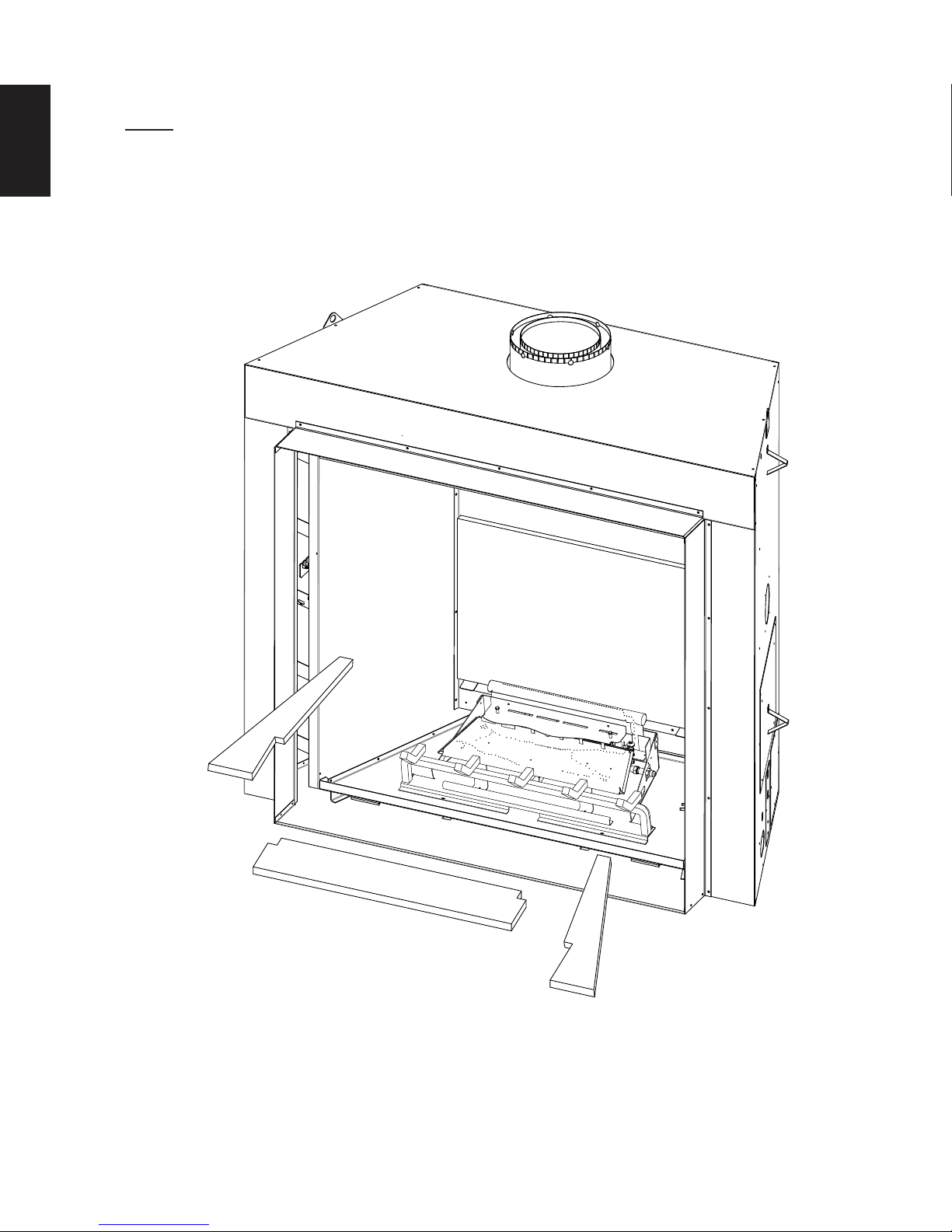

2.4 HEARTH PANEL INSTALLATION

NOTE: It is recommended to remove the grate assembly prior to panel installation.

W415-1632 / A / 05.02.16

2.5 HEARTH LOG & LOG PLACEMENT

NOTE: All logs are stamped with a part number.

A. Align the 2 holes in the bottom of the

bottom rear log with the studs located

on the rear log support.

B. Align the 2 pins in the bottom of the top

rear log with the holes in the top of the

bottom rear log.

C. Align the 2 holes in the bottom in the

middle log with the studs located on the

front log support.

D. Align the hole in the rear left log with the

left pin of the top rear log.

E. Line the notches in the bottom of the

front right log with the 4th and 5th grate

posts. Make sure not to cover ports.

F. Line the notch in the front left log with

the front left corner of the burner.

W415-1632 / A / 05.02.16

G. Align the 2 holes located in the bottom

of the front left crossover log with the

2 studs on the left hand side of the

burner.

H. Align the 2 holes in the bottom of the

right middle log with the 2 studs on the

right hand side of the burner.

I. Place the top right log on the notches

in the bottom rear log and the front right

log pushing back against the rear panel.

J. Align the hole and the pin in the right

crossover log with the pin in the top rear

log and the hole in the top right log.

K. Place the notch in the front charcoal log

over the second grate post. Make sure

not to cover any ports.

L. Align the pin in the bottom of the middle

crossover with the hole in the middle of

the middle log resting it on the front left

crossover log.

W415-1632 / A / 05.02.16

2.6 CHARCOAL LUMPS

34.1

Place the lumps in front of the logs in a realistic manner taking care not to block any of the burner ports.

WARNING

CHARCOAL EMBERS, VERMICULITE AND CHARCOAL LUMPS ARE NOT TO BE PLACED ON THE

BURNER.

2.7 CHARCOAL EMBERS

32.1

Randomly place the charcoal embers along the

ront and sides o

the log support tray in a realistic manner.

Fine dust found in the bottom of the bag should not be used.

NOTE: Charcoal embers are not to be placed on the burner.

W415-1632 / A / 05.02.16

Air Shutter Openings both Burners

LP F 7/16" R 1/4”

NG F 1/16" R 1/16”

2.8 VERMICULITE

33.1

Sprinkle vermiculite around the charcoal embers.

NOTE: Vermiculite is not to be placed on the burner.

2.9 GLOWING EMBERS

Tear the embers into pieces and place along the front row of ports covering all of the burner area. Care should

be taken to shred the embers into thin, small irregular pieces as only the exposed edges of the ﬁbre hairs will

glow. The ember material will only glow when exposed to direct ﬂame; however, care should be taken to not

block the burner ports.

Blocked burner ports can cause an incorrect ﬂame pattern, carbon deposits and delayed ignition. Phazer™

logs glow when exposed to direct ﬂame. Use only certiﬁed “glowing embers” and Phazer™ logs available from

your Authorized dealer.

3.0 ADJUSTMENT

3.1 FLAME CHARACTERISTICS

3.2 VENTURI ADJUSTMENT

This appliance has air shutters that have been factory set open according to

the chart below:

Regardless of venturi orientation, closing the air shutter will cause a more

yellow flame, but can lead to carbonization. Opening the air shutter will

cause a more blue flame, but can cause flame lifting from the burner ports.

The flame may not appear yellow immediately; allow 15 to 30 minutes for

the final flame colour to be established.

AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED

INSTALLER!

AIR

SHUTTER

OPENING

VENTURI

BURNER

ORIFICE

49.2

It’s important to periodically perform a visual check of the pilot and burner ﬂames. Compare them to the

illustration provided. If any ﬂames appear abnormal call a service person.

FLAME MUST ENVELOP

UPPER 3/8” (9.5mm) TO 1/2”

(12.7mm) OF FLAME SENSOR

PILOT

BURNER

ELECTRODE

FLAME

SENSOR

3/8” - 1/2”

(9.5mm - 12.7mm)

54.1B

W415-1632 / A / 05.02.16

4.0 REPLACEMENTS

Contact your dealer or the factory for questions concerning prices and

policies on replacement parts. Normally all parts can be ordered through

your Authorized dealer / distributor.

FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY OF THE

ORIGINAL INVOICE WILL BE REQUIRED TO HONOUR THE CLAIM.

When ordering replacement parts always give the following information:

• Model and serial number of appliance

• Installation date of appliance

• Part number

• Description of part

• Finish

FOR FURTHER INFORMATION, CONTACT YOUR AUTHORIZED DEALER.

FAILURE TO POSITION THE PARTS

IN ACCORDANCE WITH THIS

MANUAL OR FAILURE TO USE ONLY

PARTS SPECIFICALLY APPROVED

WITH THIS APPLIANCE MAY

RESULT IN PROPERTY DAMAGE OR

PERSONAL INJURY.

WARNING

ITEMS MAY NOTAPPEAR EXACTLY AS ILLUSTRATED

REF. NO. PART NUMBER DESCRIPTION

W010-3821

W010-3858

W135-0630

W135-0631

W135-0634

W135-0635

W135-0632

W135-0633

FOR REPLACEMENT

PARTS REFER TO:

LOG, REAR TOP

LOG, MIDDLE

LOG, FRONT RIGHT

LOG, FRONT LEFT

LOG, FRONT LEFT CROSSOVER

311

LOG, REAR LEFT

W135-0636 LOG, RIGHT MIDDLE

W135-0638

W135-0639

W135-0637 LOG, TOP RIGH

LOG, RIGHT CROSSOVER

LOG, FRONT CHARCOAL

W135-0640 LOG, MIDDLE CROSSOVER

911

W135-0629 LOG, REAR BOTTOM

“HDX52NT LOG

BURNER ASSEMBLY”

1LOG BURNER ASSEMBLY - NG

LOG BURNER ASSEMBLY - LP

W415-1632 / A / 05.02.16

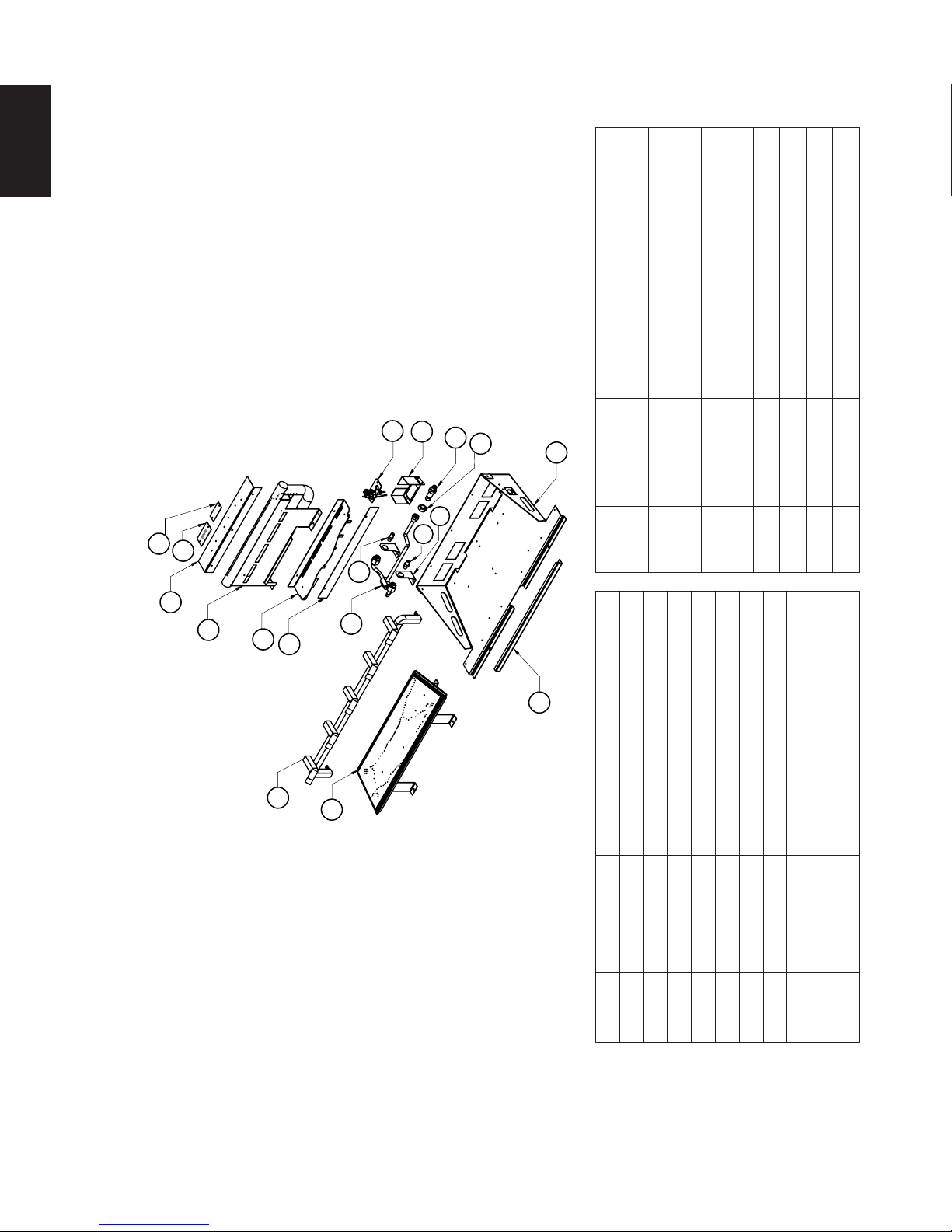

5.0 HDX52 LOG BURNER ASSEMBLY(NG)

W080-1375

BRACKET, BRICK SUPPORT BASE

W010-3822

ASSY, GRATE

W655-0768

SUPPORT, LOG

W100-0205

BURNER, COMPLETE

W215-0217

DEFLECTOR, AIR

W010-3818

ASSY, PILOT HIGH TEMP 3-WAY

W655-0772

SUPPORT, LOG

W010-3823

ASSY, LOG SUPPORT

W080-1645

BRACKET, PILOT SHIELD

W010-3849

ASSY, TUBE BURNER WELDMENT

W080-1646

BRACKET, VENTURI

N255-0002

FITTING, UNION BULKHEAD

3/8 MF TO 3/8MF

W432-0540

MANIFOLD

W385-1908

LABEL, MEDIA WARNING

W665-0029

TAG, BURNER ASSEMBLY (B52)

W456-0031

60° BURNER ORIFICE #31

W456-0026

60° BURNER ORIFICE #26

W450-0050

NUT, 5/8"-18 UNF JAM NUT

REF. NO.

PART NUMBER DESCRIPTION

REF. NO. PART NUMBER DESCRIPTION

714

1611

B52NTL LOG BURNER (NATURAL GAS)

Otros manuales para HDX52

Tabla de contenidos

Idiomas:

Otros manuales de Chimenea de interior de Napoleon

Napoleon

Napoleon BGD40-N Manual de usuario

Napoleon

Napoleon GD36NTR Manual de usuario

Napoleon

Napoleon B46NTRE Manual de usuario

Napoleon

Napoleon Bayfield GDS25P Manual de usuario

Napoleon

Napoleon EF39S Manual de usuario

Napoleon

Napoleon CLEARion NEFBD50H Manual de usuario

Napoleon

Napoleon NEFE29-1415E Manual de usuario

Napoleon

Napoleon Ascent 36-1 Manual de usuario

Napoleon

Napoleon XIR3N Manual de usuario

Napoleon

Napoleon ASCENT B42NTR Manual de usuario

Napoleon

Napoleon Altitude AX36NTE Manual de usuario

Napoleon

Napoleon GD34-1NT Manual de usuario

Napoleon

Napoleon High Country NZ5000 Manual de usuario

Napoleon

Napoleon HD35NT Manual de usuario

Napoleon

Napoleon High Country NZ5000 Manual de usuario

Napoleon

Napoleon Astound-Built In Series Manual de usuario

Napoleon

Napoleon Ascent 46 B46NTR Manual de usuario

Napoleon

Napoleon Vector Series Manual de usuario

Napoleon

Napoleon GD19-1N Manual de usuario

Napoleon

Napoleon VECTOR LHD45 Manual de usuario

Napoleon

Napoleon Ascent BHD4PNA Manual de usuario

Napoleon

Napoleon XIR4N Manual de usuario

Napoleon

Napoleon GD34-1NT Manual de usuario

Napoleon

Napoleon GDS 50-N Manual de usuario

Manuales populares de Chimenea de interior de otras marcas

Brigantia

Brigantia 35-DVRS31N-2 Manual del propietario

Nordpeis

Nordpeis Bergen Manual de usuario

Superior

Superior BCT2536TMN Manual de usuario

Quadra-Fire

Quadra-Fire 5100I-GD-B Manual de usuario

Renaissance

Renaissance RUMFORD 1000 Manual de usuario

Lacunza

Lacunza IV-800 Manual de usuario

Baxi

Baxi 940 Instrucciones de uso

Dru

Dru Maestro 60/2 Tall RCH Manual de usuario

Diamond Fireglass

Diamond Fireglass SS-O22 Manual de usuario

HearthStone

HearthStone Windsor Bay 8830 Manual de programación

Enviro

Enviro E33GI Manual de usuario

Smeg

Smeg L30 FABE Instrucciones de montaje

KEDDY

KEDDY K700 Manual de usuario

Godin

Godin 3451 Manual de usuario

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manual de usuario

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manual de usuario

Desa

Desa CCFPDFT Manual de operación

Miles Industries

Miles Industries Vogue 1300IRN Manual
