NAIM ND5 XS 2 Manual de usuario

Quick Start uide

ND5 XS 2

NDX 2

Quick start guide

1What’s in the box

1x 1x

1x 2x

Power lead

BNC to RCA adaptor

Burndy link plug

(NDX 2 only)

Interconnect lead

(5-5pin DIN)

Bluetooth

antenna

Wi-Fi

antenna

Cleaning cloth

(NDX 2 only)

ND5 XS 2

NDX 2

Document pack

AAA batteries

(NDX 2 only)

Remote handset

(NDX 2 only)

USB

Power

Bluetooth

antenna

socket

Back

Front

USB

USB Digital

inputs

Digital

output

Network

Power

2et to know your ND5 XS 2

These front and back diagrams show the operational features and

sockets of your new ND5 XS 2.

Bluetooth

antenna

socket

Wi-Fi

antenna

sockets

Power/

Standby

Digital

inputs

Power/

Standby

Network

status

indicator

Remote

output

Reset

switch

round

switch

Analogue

output

(phono)

Analogue

output

(DIN)

Bluetooth

antenna

socket

Back

Front

USB

USB Digital

inputs

Digital

output

Network

Power

Wi-Fi

antenna

sockets

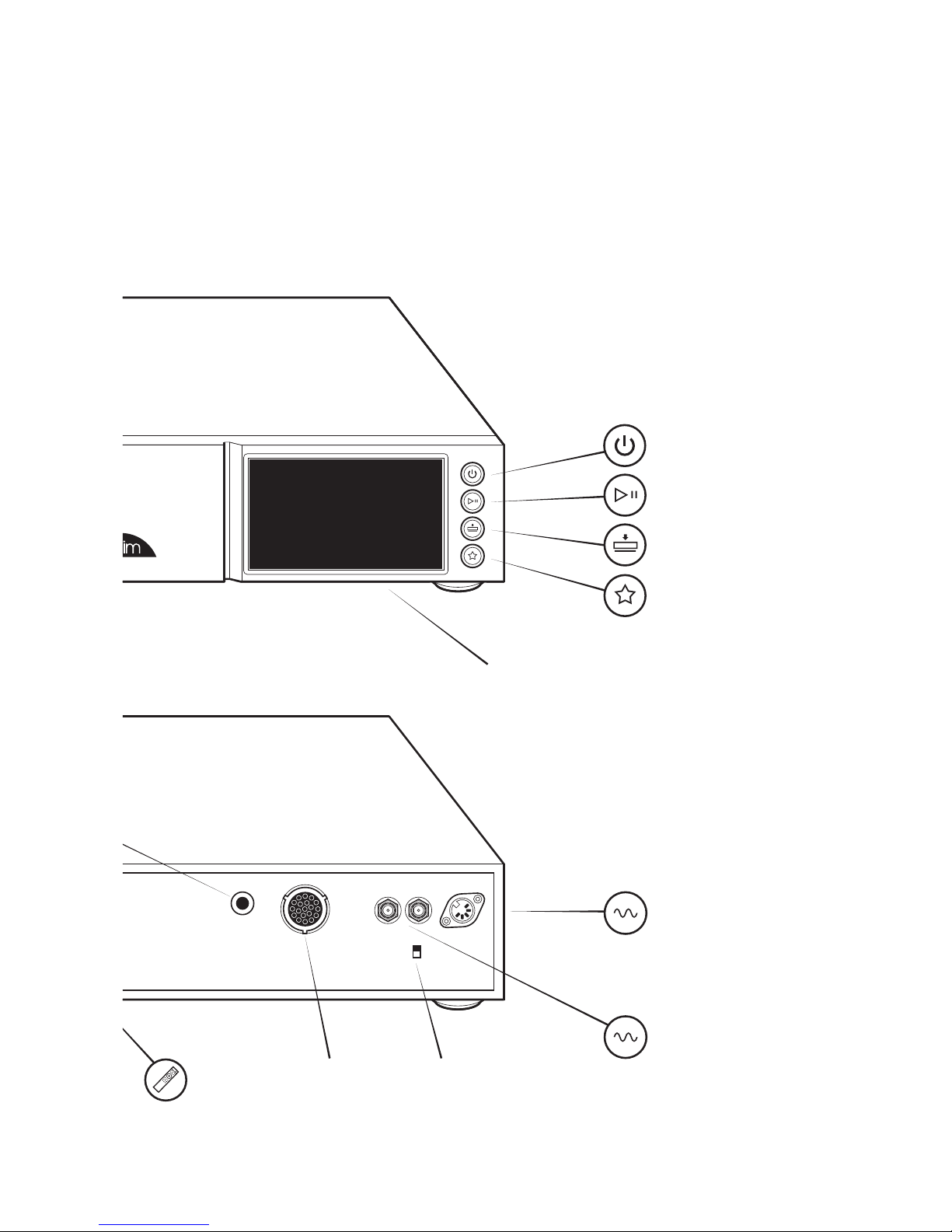

These front and back diagrams show the operational features and

sockets of your new NDX 2.

et to know your NDX 2

Digital

inputs

Display

round

switch

External

power supply

socket

Analogue

output

(phono)

Analogue

output

(DIN)

Power/

Standby

Play/Pause

Input selection

Favourites

Remote

output

3The remote

Navigation

Favourites Inputs

Multiroom

Battery

compartment

on reverse

Power/Standby

Volume

Mute

Skip forward

Skip back

Back

Home

Play/Pause

Now playing

Display on/off

Clock

Options

(NDX 2 only)

4Simple set up

You will need a hi-fi system, a network cable, a router with Wi-Fi connected

to the internet and a smart phone or tablet.

www

Router

Tablet or

smart phone

Network cable

Wi-Fi

Hi-fi system

5ND5 XS 2 Connection and power

(A) Firstly turn off your hi-fi system. (B) Connect the Ethernet network cable

from router to streamer (if unavailable connect 2 x Wi-Fi antennae instead)

and 1 x Bluetooth antenna to the rear of the unit. (C) Use the interconnect

lead (5-5pin DIN) to connect to the integrated amplifier of your Hi-fi system.

(D) connect the power lead to the unit’s power socket and to the mains.

(E) Then switch on the streamer by pressing the front power button.

(F) Turn your hi-fi system back on.

Power

connection Router

Power off your

hi-fi system

To integrated

amplifier

Switch on

streamer

Power on

your system
