N-Com B901L Manual de usuario

B901L “R” - Fw 1.1x-1 - 06/10/2017

USER INSTRUCTIONS AND SAFETY

Congratulations on your purchase of an N-Com product.

N-Com B901L was made using the most advanced technologies and the best

materials. Long-running tests and thorough system development have allowed

the highest audio quality to be achieved.

For additional information about B901L, and to download high-definition

instructions as well as the latest Firmware version, visit the website www.n-com.it

Firmware version: 1.1

REFERENCE STANDARDS

The products of the N-Com line are in compliance with standards as per the table below:

B901L

The Bluetooth system complies with the main safety requirements and

other applicable provisions of Directive 99/5/CE, Directive 2009/65/EC,

Directive 2011/65/CE, Directive 2012/19/EU

Battery

charger

Directive 2006/95, 2004/108,

2009/65/EC

2011/65/E

2012/19/EU

2009/125/CE

Battery

Directive 2006/66

/CE

The Declarations of Compliance can be downloaded from the website www.n-com.it (Download

section).

FCC ID: Y6MNCOM15 IC: 9455A-NCOM15

R-NZ

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth

SIG, Inc. and any use of such marks by N-Com is under license. Other trademarks and

trade names are those of their respective owners.

Contents

1. WARNINGS AND SAFETY ................................................................................................................... 3

1.1.Road safety.................................................................................................................................................................................................3

1.2.Switching on the system in safe environments........................................................................................................................3

1.3.Interferences..............................................................................................................................................................................................3

1.4.Appropriate use .......................................................................................................................................................................................3

1.5.Qualified personnel................................................................................................................................................................................4

1.6.Accessories and batteries....................................................................................................................................................................4

1.7. Disposal..................................................................................................................................................................................................4

2. CONTENT OF THE PACKAGING ........................................................................................................ 5

3. INSTALLATION ON THE HELMET...................................................................................................... 6

3.1.Preparing the ESS system....................................................................................................................................................................7

3.2.Installing the B901L system on the helmet ................................................................................................................................8

3.3.Positioning the ESS system on the helmet.............................................................................................................................. 12

3.4.Removing the B901L system from the helmet ...................................................................................................................... 12

4. BASIC FUNCTIONS.............................................................................................................................14

4.1.Volume adjustment............................................................................................................................................................................. 14

4.2.Auto On / Off function ...................................................................................................................................................................... 14

4.3.N-Com EASYSET ................................................................................................................................................................................... 14

5. CONFIGURATION MENU..................................................................................................................15

6. PAIRING UP WITH MOBILE PHONES OR OTHER BLUETOOTH DEVICES................................ 16

7. MOBILE PHONE..................................................................................................................................16

7.1. Speed dial............................................................................................................................................................................................... 16

7.2.Conference call function................................................................................................................................................................... 17

8. MANAGING TWO MOBILE PHONES (OR BLUETOOTH DEVICES) ............................................ 18

9. MUSIC VIA BLUETOOTH...................................................................................................................18

9.1.Sharing music via Bluetooth (

A2DP Sharing

) ......................................................................................................................... 18

10. MUSIC VIA CABLE ..............................................................................................................................19

11. SATELLITE NAVIGATOR FOR MOTORCYCLES ..............................................................................19

12. FM RADIO............................................................................................................................................19

13. LED SIGNALLING LIGHTS..................................................................................................................20

13.1.Emergency Stop Signal ESS (mode 1) ..................................................................................................................................... 20

13.2.Rear Light (mode 2).......................................................................................................................................................................... 20

13.3.Poor visibility light (mode 3)....................................................................................................................................................... 20

14. INTERCOM...........................................................................................................................................21

14.1.N-Com “900” Series Intercom pairing up..............................................................................................................................21

14.2.Pairing up other N-Com intercoms .......................................................................................................................................... 21

14.3.Intercom function (one-to-one connection)........................................................................................................................ 22

14.4.

Smart Conference

(Group Intercom) ....................................................................................................................................... 23

15. “UNIVERSAL INTERCOM” INTERCOM............................................................................................24

15.1.Pairing up the UNIVERSAL INTERCOM................................................................................................................................... 24

15.2.Universal Intercom Function ........................................................................................................................................................ 24

15.3.

Universal Conference

(chain intercom)................................................................................................................................... 25

16. REMOTE CONTROL............................................................................................................................26

17. BATTERY AND RECHARGE................................................................................................................27

17.1.Low battery signal ............................................................................................................................................................................. 27

17.2.Checking the Battery Level ........................................................................................................................................................... 27

17.3.Charging the system ........................................................................................................................................................................ 27

18. SUMMARY TABLE OF CONTROLS ..................................................................................................28

19. LIMITED WARRANTY .........................................................................................................................30

19.1.Warranty coverage............................................................................................................................................................................ 30

19.2.Exclusions and limitations of the coverage .......................................................................................................................... 30

19.3.Validity of this limited warranty.................................................................................................................................................. 31

19.4.Procedure for the forwarding of claims ................................................................................................................................. 31

19.5.Product identification...................................................................................................................................................................... 31

20. WARRANTY REGISTRATION FORM ................................................................................................32

1. WARNINGS AND SAFETY

Read this User Manual carefully, as well as the simple rules listed below. Failure to comply with these rules may lead

to dangerous situations.

Caution: The product cannot be used in official or non-official competitions, motordromes, circuits, racing tracks and

the like.

Caution: Installation of the N-Com B901L system results in a weight increase of approximately 120g, which is added

to the weight of the helmet and of the other accessories.

Warning: The electronic components of the N-Com system mounted inside the helmet are not waterproof.

Consequently, make sure the inside of the helmet, including the comfort padding, does not get wet in order to

avoid damage to the system. If it does, remove the N-Com system and the helmet comfort padding and let it

air dry. Remove the battery from its housing and let it dry.

1.1. Road safety

Always obey all Traffic Regulations in force. While riding the motorcycle, your hands should always be engaged in

actually riding the vehicle. Any operation to the N-Com system must be carried out with the vehicle stopped.

Specifically:

Set your cell phone on automatic answer (see the cell phone instructions to do this).

If your cell phone is not equipped with this function, first stop your vehicle in a safe area, in compliance with

Traffic Regulations and then answer the call.

Do not make any calls while riding. Stop your vehicle in a safe place in compliance with Traffic Regulations, and

then make the call.

Adjust the volume so that it does not cause a disturbance or distraction while riding and at the same time allows

you to distinctively hear background noises.

Do not operate your cell phone or other devices connected to N-Com while riding your motorcycle.

In all cases, obey the Traffic Regulations and remember that riding the motorcycle has absolute priority over any

other manoeuvre.

The B901L system is equipped with an emergency brake light (ESS – Emergency Stop Signal). The ESS system IS

NOT intended to replace the stop or brake lights fitted on the motorcycle, consequently its operation alone is not

enough for proper brake signaling.

Make sure that the use of the emergency brake light (ESS – Emergency Stop Signal) is not in conflict with the

regulations in force in the country where you will be travelling.

1.2. Switching on the system in safe environments

When using the N-Com system, comply with all limitations and instructions related to the use of cell phones.

Do not turn on your cell phone or the N-Com system whenever their use is forbidden or when the devices can

cause interference or dangerous situations.

Turn off while refuelling. Do not use the N-Com system in filling stations. Do not use the device near combustible

materials or chemical products.

Turn off in proximity to explosive materials.

1.3. Interferences

All phones and devices with wireless signal transmission are subject to interferences that may affect the

performance of the device connected to them. These interferences are not ascribable to a defect of the N-Com

system.

1.4. Appropriate use

Use the device only in the normal position, as described in the product documentation. Do not attempt to

disassemble, tamper with or modify any part of the N-Com system.

Caution: Adjust the volume of the N-Com system (where provided) and of the audio sources connected to it before

you use the system on the road.

Caution: Adjusting the volume to very high levels may cause damage to your hearing.

Caution: Adjust the volume of the N-Com system (where provided) and of the audio sources connected to it so as to

avoid audio reproduction at high volumes. Constant exposure to high audio volumes may damage your

hearing.

Caution: An incorrect installation of the system in the helmet may alter the aerodynamic and safety characteristics of

the helmet itself, thus creating dangerous conditions. Install the N-Com system according to the instructions

provided in the product documentation. In case of doubt, please contact your local N-Com dealer.

Warning: Listening to other equipment should not interfere with driving the vehicle, which must be the top priority

at all times. Carry out all operations on the electronic equipment and on the N-Com system with the vehicle

stopped, in compliance with Traffic Regulations.

Caution: The N-Com system allows reception of the FM radio signal. Any radio licence fees are to the user’s charge.

1.5. Qualified personnel

Only qualified personnel can carry out technical assistance on this product. In case of any malfunction, always

turn to your local dealer.

The helmet is a safety device. Tampering with it and/or with the electronic system inside the helmet, in addition

to invalidating the product warranty, can also lead to dangerous situations.

1.6. Accessories and batteries

Only use the type of batteries, battery chargers and accessories approved by Nolan for the specific model.

The use of a battery type different from the recommended one may lead to dangerous situations and invalidate

the warranty.

Contact your local dealer to see about the availability of approved accessories.

When disconnecting the power supply cable of any accessory or of the battery charger, always grab and pull the

plug not the cable.

Do not use batteries for purposes other than the prescribed ones.

Never use batteries or battery chargers that turn out to be damaged.

Do not short-circuit the battery.

Keep the battery at a temperature between 0° / +32°C (charging): -20° / +55°C (in use).

Danger of fire or explosion: do not throw the batteries into a fire nor expose them to high temperatures!

Do not throw out batteries together with household refuse. The batteries should be disposed of in compliance

with local regulations

Do not wear the helmet while the battery is recharging.

The helmet should never be left within the reach of unsupervised children in order to prevent damage to their

health caused by access to the batteries.

Battery

Po 523450P

Lithium

3,7V

–

1000 mAh

Battery charger

009L

100/24

–

50/60 Hz

0.5 A

1.7. Disposal

Refer to this user manual and to manuals related to other parts of the N-Com system in order to disassemble the

system from the helmet. Once the system has been disassembled, dispose of it according to the following

instructions:

The presence of a crossed-out wheelie bin indicates that in the European Union the product is

subject to separate collection at the end of its useful life.

Do not dispose of these products together with undifferentiated urban waste.

The proper disposal of obsolete equipment contributes to preventing possible negative consequences on

people’s health and on the environment.

For more detailed information on the disposal of obsolete equipment, contact your municipality, a waste disposal

service or the store where the product was purchased.

2. CONTENT OF THE PACKAGING

The N-Com B901L package contains:

Com B

901

L system

Mini

USB

wire

Battery charger

Helmet adapters

Helmet adapter double

sided adhesive tape

Keypad adapters for

N87, N100-5

ESS

double

sided adhesive tape

Key

Microphone foam

3. INSTALLATION ON THE HELMET

Important: Prior to installing the N-Com system, it is recommended to write down the identification

code affixed to the product (see chapter 19.5).

You can download the installation video from www.n-com.it N-Com / Download section.

Before you install the B901L system on the helmet, make sure it turns on properly. Press the “ON”

key for about 2 seconds, until the blue LED on the key pad lights up and you hear a beep in the

headset. Proceed with the installation.

Remove the cheek padding (see helmet instructions).

Remove the helmet edge gasket using the special tool (Fig. 1).

Completely remove the gasket as shown in Fig. 1; by doing so you also remove the padding.

Remove the “N-Com” plugs found at the back of the shell gasket and on the left side of the

helmet.

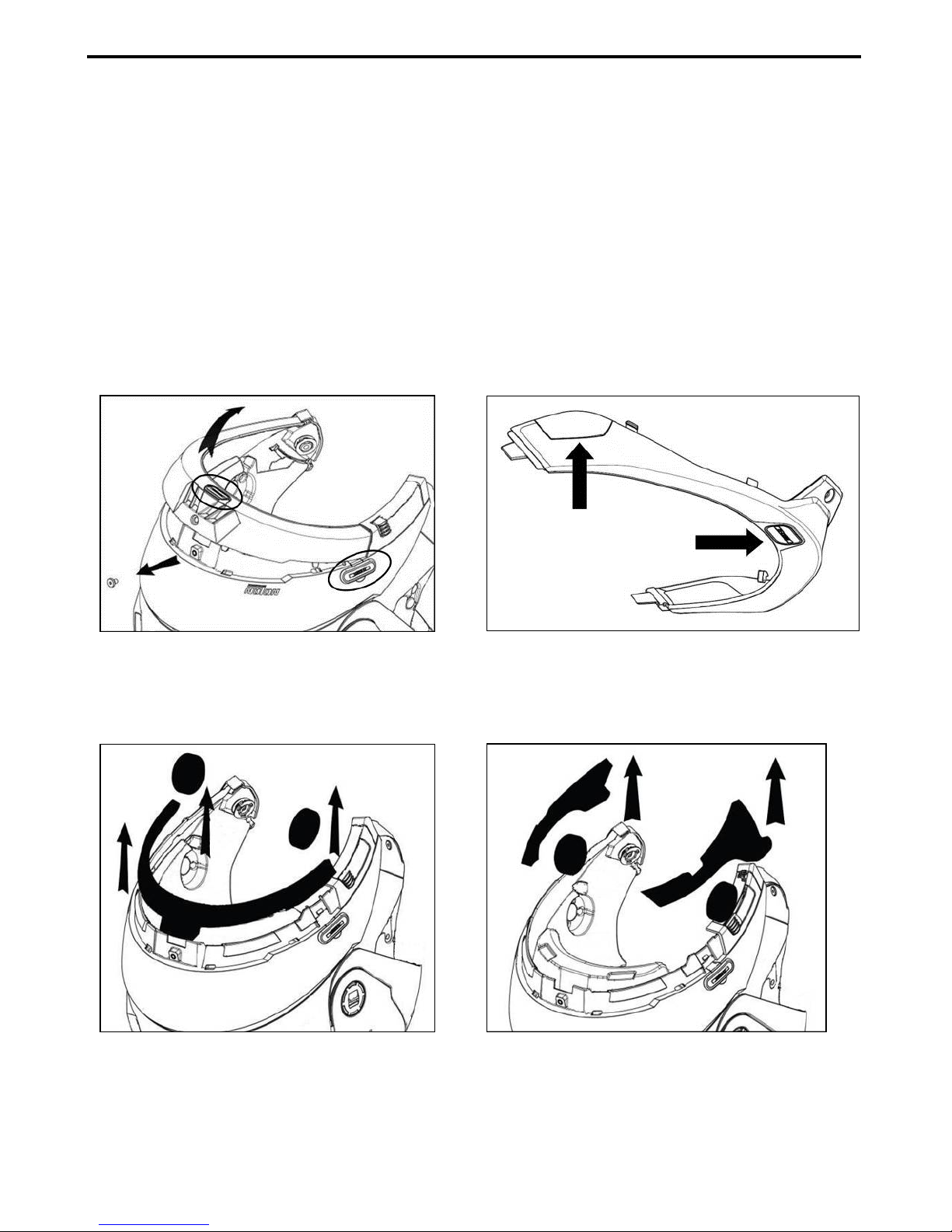

Fig. 1

Fig. 1 – ONLY FOR N87 – N100-5 HELMET

Prior to installing the N-Com system, remove any filling foam material, if present, from the

helmet (refer to the user manual for your specific helmet).

Option 1

Option 2

N.B.: Keep the filling material in case you wish to use the helmet without the N-Com system in the

future.

3.1. Preparing the ESS system

Fig. 2

Select the specific adapter for your helmet

(the compatible helmet model is shown on

the back of the support).

N.B.: The installation of the ESS system on N87

and N100-5 helmets requires no adapter.

Remove the protective film from the double-

sided adhesive tape located in the rear of the

system ESS (Fig. 2)

Fig. 3

Apply the double-sided adhesive tape

supplied as standard equipment to the

selected plastic adaptor (Fig. 3).

Fig. 4

Insert the FLEX cable of the ESS system in the

hole of the selected adapter as illustrated, in

the direction shown in the image (Fig. 4);

Fig. 5

Rotate the adapter until it is in a horizontal

position like the ESS system, then press the

two components together until they stick

one onto the other (Fig. 5);

3.2. Installing the B901L system on the helmet

Fig. 6

Place the system in the special housing in the

back of the helmet, pushing it all the way

into the groove (Fig. 6).

Important: Make sure the Flex cable of ESS

system is not pulled too tightly.

Fold the antenna back inside the shell.

Fig. 7

N.B.: For positioning of the wiring and of the

microphone in the N100-5 helmet, follow the

instructions provided in the dedicated box.

Fix the cable inside the helmet and make

sure the right fixing clip snaps into its

housing (Fig. 7)

Fig. 8



Position the microphone in the h

ousing on

the left of the helmet, inserting the metal

boom in the groove found in the chin guard

coupling frame (Fig. 8).

Caution: make sure that the side of the

microphone support with the writing “N-

Com” is facing inward.

Fig. 9



Fix the cable inside

the helmet and make

sure the left fixing clip snaps into its housing.

Hook up the keypad to the helmet by

clicking in the relevant hooks.

N.B.: For positioning of the keypad in helmets

N87 and N100-5, follow the instructions provided

in the dedicated box.

Open the rubber cap of the B901L system.

Reassemble the gasket and secure it with the

specific screw.

ONLY FOR HELMET N100-5 – positioning of wiring and microphone

Positioning the right side wiring and the microphone:

Lift up the plastic lining of the cheek padding (Fig. 10)

Insert the microphone into the eyelet (Fig. 11) and position it in the special housing, then

inserting the metal boom in the groove found in the chin guard coupling frame (Fig. 12)

Caution: make sure that the side of the microphone support with the writing “N-Com” is facing

inward.

Fix the cable inside the helmet and make sure the right fixing clip snaps into its housing (Fig.

13)

Reposition the plastic lining of the cheek padding, arranging it behind the two small stop hooks

(Fig. 14)

Fig. 10

Fig. 11

Fig. 12

Fig. 13

Fig. 14

ONLY FOR HELMET N100-5 – positioning of wiring and microphone

Positioning the left side wiring:

Lift up the plastic lining of the cheek padding (Fig. 15)

Fix the cable inside the helmet and make sure the left fixing clip snaps into its housing (Fig. 16)

Reposition the plastic lining of the cheek padding, arranging it behind the two small stop hooks

(Fig. 17)

Fig. 15

Fig. 16

Fig. 17

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Teléfono móvil de N-Com

N-Com

N-Com B901 Manual de usuario

N-Com

N-Com B4 Manual de usuario

Manuales populares de Teléfono móvil de otras marcas

Zte

Zte BLADE A520 Manual de usuario

Nokia

Nokia Lumia 620 Manual de usuario

Blackbe;rry

Blackbe;rry KEYone Manual de usuario

Bea-fon

Bea-fon X5 Premium Manual de usuario

Blackbe;rry

Blackbe;rry 8707 Series Manual de usuario

Blackbe;rry

Blackbe;rry Storm Instrucciones de funcionamiento

LG LM-X420QN Manual de usuario

LifeWatch

LifeWatch V Manual de usuario

Bea-fon

Bea-fon SILVER LINE SL860 Manual de usuario

IKI Mobile

IKI Mobile KF4.5i Manual de usuario

Hitech

Hitech HT-850 Manual de usuario

Yezz

Yezz Fashion F10 Manual de usuario

Point Mobile

Point Mobile PM60 Manual de usuario

Blackbe;rry

Blackbe;rry Q10 Manual de usuario

Blackbe;rry

Blackbe;rry Bold 9900 Manual de usuario

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manual de usuario

LG LM-K420EMW Manual de usuario

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manual de usuario
