myPhone 3300 Manual de usuario
© myPhone 2014. All rights reserved. myPhone 3300
Cellphone manual
myPhone 3300
© myPhone 2014. All rights reserved. myPhone 3300
Table of contents
Contents …………………………………...2
Box Contains……………………………... 4
Technical parameters……………..………5
1. Introduction…………………………….7
Appearance of phone…………..………….. 7
Turning on and off………………………….9
Installation SIM cards, memory cards and
battery……………………………………... 9
Charging phone……………………………
2. Using basic unctions………………….11
Phone's keypad block……………………...
Access to the phone's menu………………. 2
Telephone customization…………………. 3
Connectivity………………………………. 8
Text messages…………………………….. 9
Contacts……………………………………2
3. Advanced eatures…………………….24
Connecting number from the phone book
(contacts)…………………………………..24
2
© myPhone 2014. All rights reserved. myPhone 3300
Missed calls / messages…………………...25
Connecting your phone with computer…...26
4. Other unctions………………………..28
Date and time settings…………………….28
Setting the menu language………………..29
Connection settings……………………….29
Configure alarm / alarms………………….29
Factory settings……………………………3
Calls list………….……………………….. 3
Calendar…………………………………...32
Bluetooth…………………………………..33
Camera…………………………………….36
Phone icons………………………………..38
Phone Tracking……………………………39
The declaration of conformity with European
Union Directives…………………………..40
3
© myPhone 2014. All rights reserved. myPhone 3300
Contents of the set
Before using the phone make sure, that
the following elements are in the box:
myPhone 3300 cellphone,
Li-Ion 00 mAh battery,
network adapter,
headset,
user manual,
warranty card.
Technical parameters
Dual SIM GSM 900/1 00 MHz
Clear 1.77" color display
Audio player, FM radio
Flashlight
4
© myPhone 2014. All rights reserved. myPhone 3300
Bluetooth
Camera
microSD reader compatible with cards
to up to 16GB
5
© myPhone 2014. All rights reserved. myPhone 3300
1. Introductions

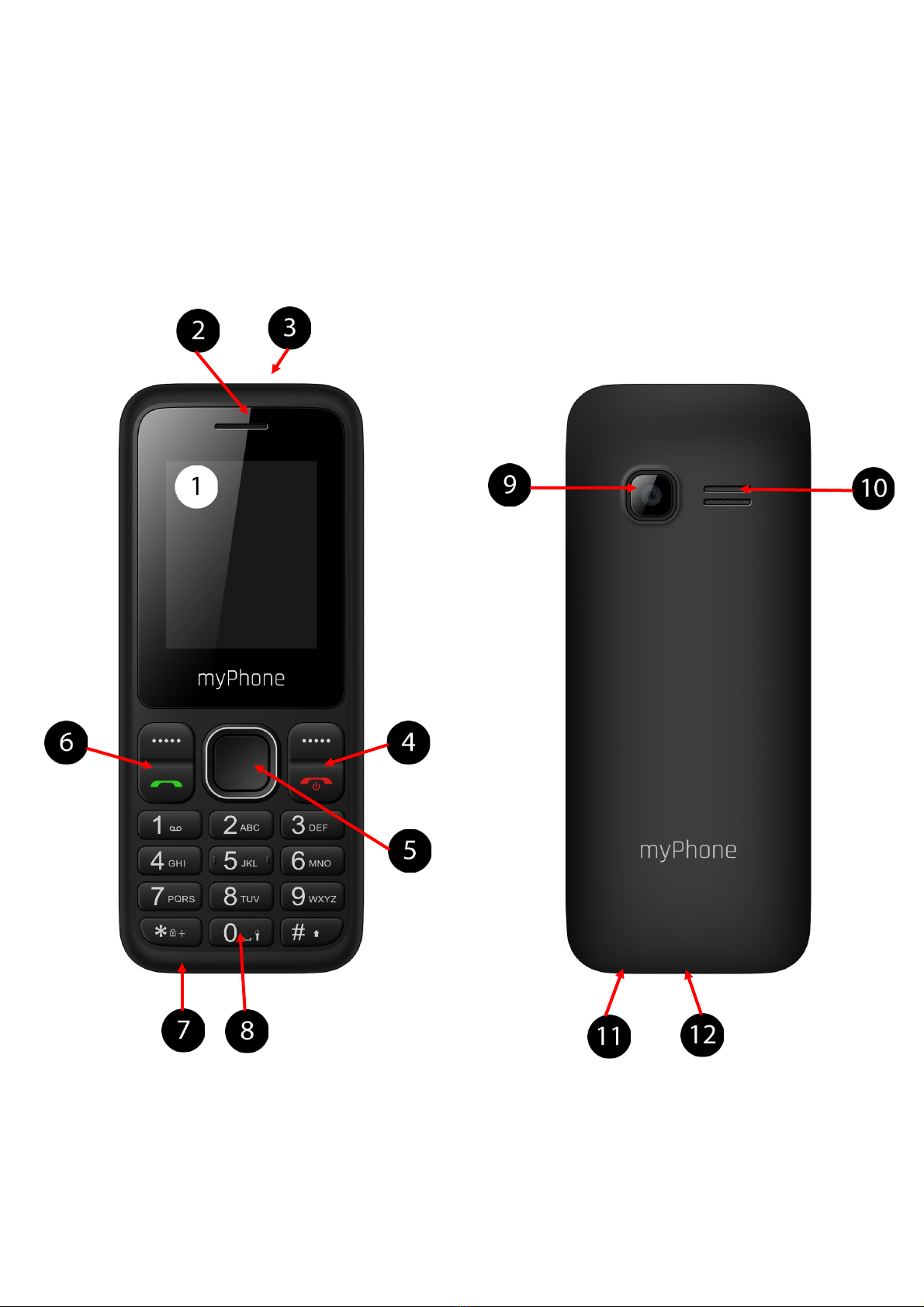

Cellphone appearance
6
© myPhone 2014. All rights reserved. myPhone 3300
1. Display.
2. Receiver speaker.
3. Flashlight indicator.
4. <Red button>.
5. Navigation buttons: <up>,
<do n>, <left>, <right>. and <OK>
button.
6. <Green button>.
7. Microphone.
8. <0> button turns on the flashlight.
9. Camera lens.
10. Buzzer.
11. microUSB port.
12. Audio socket.
7
© myPhone 2014. All rights reserved. myPhone 3300
Turning the phone on/off
In order to turn the phone on or off, press
and hold the <red button>.
If, after turning on the phone you see a
PIN prompt,
enter the code (it will be displayed as
asterisks: ****) and press <OK>.
Installing the SIM card, memory card
and the battery

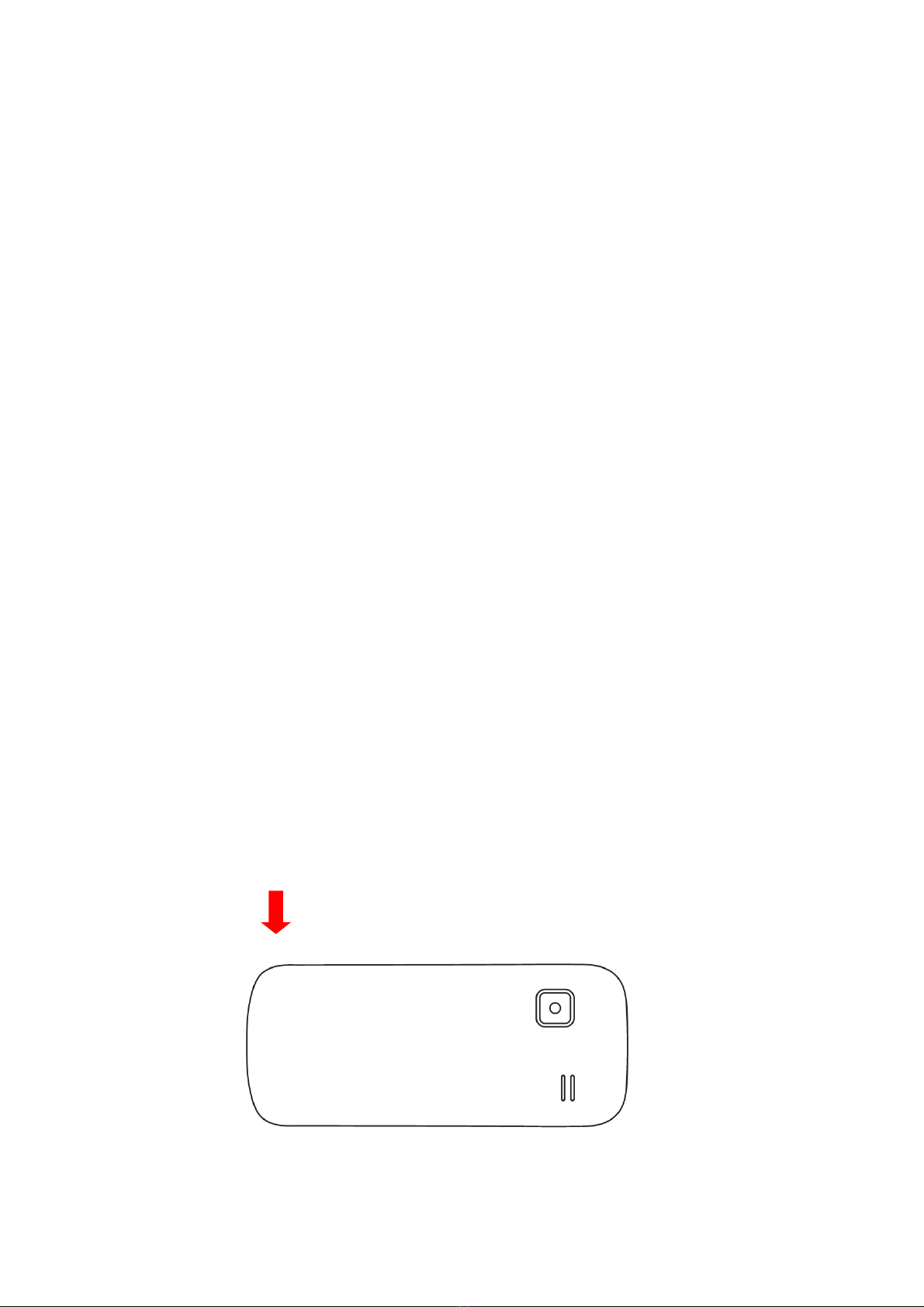

If the phone is on - turn it off. Remove the
back cover by pressing your finger in the
crevice (marked with an arrow on the
picture below).
Insert SIM1 card
- SIM1 has to be
8
© myPhone 2014. All rights reserved. myPhone 3300
placed in the recess according to the
illustration inside the phone.
Insert SIM2 card - SIM2 has to be placed
in the removable tray under the SIM1
card according to the illustration inside
the phone.
microSD card has to be placed with
golden contacts directed downward and
fitted inside the recess. The reader
supports cards to up to 16 GB.
Insert the battery - the battery has to be
placed with gold contacts connecting with
the contacts inside the phone. Place the
battery cover (by pressing it into place).
Charging the phone
Connect the microUSB-B cable to the
microUSB socket in the phone, then
connect the adapter to the low voltage
socket.
9
© myPhone 2014. All rights reserved. myPhone 3300
During charging, the battery icon ,
located in the
top right corner will be animated. After the
battery has been charged, disconnect the
adapter from the socket.
Disconnect the cable from the phone
socket.
2. Using the basic functions
Locking the phone keyboard
In order to to unlock the phone keyboard,
press the left "Unlock" button (located in
the bottom left corner) and then the <*>
button. The keyboard will be unlocked. If
the screen is turned off, press any key
before trying to unlock the keyboard.
0
