MUTOH ValueJet VJ-1604 Instrucciones de funcionamiento

VJ-1604

User

Maintenance

and Cleaning

Guide

Page 1 of 7

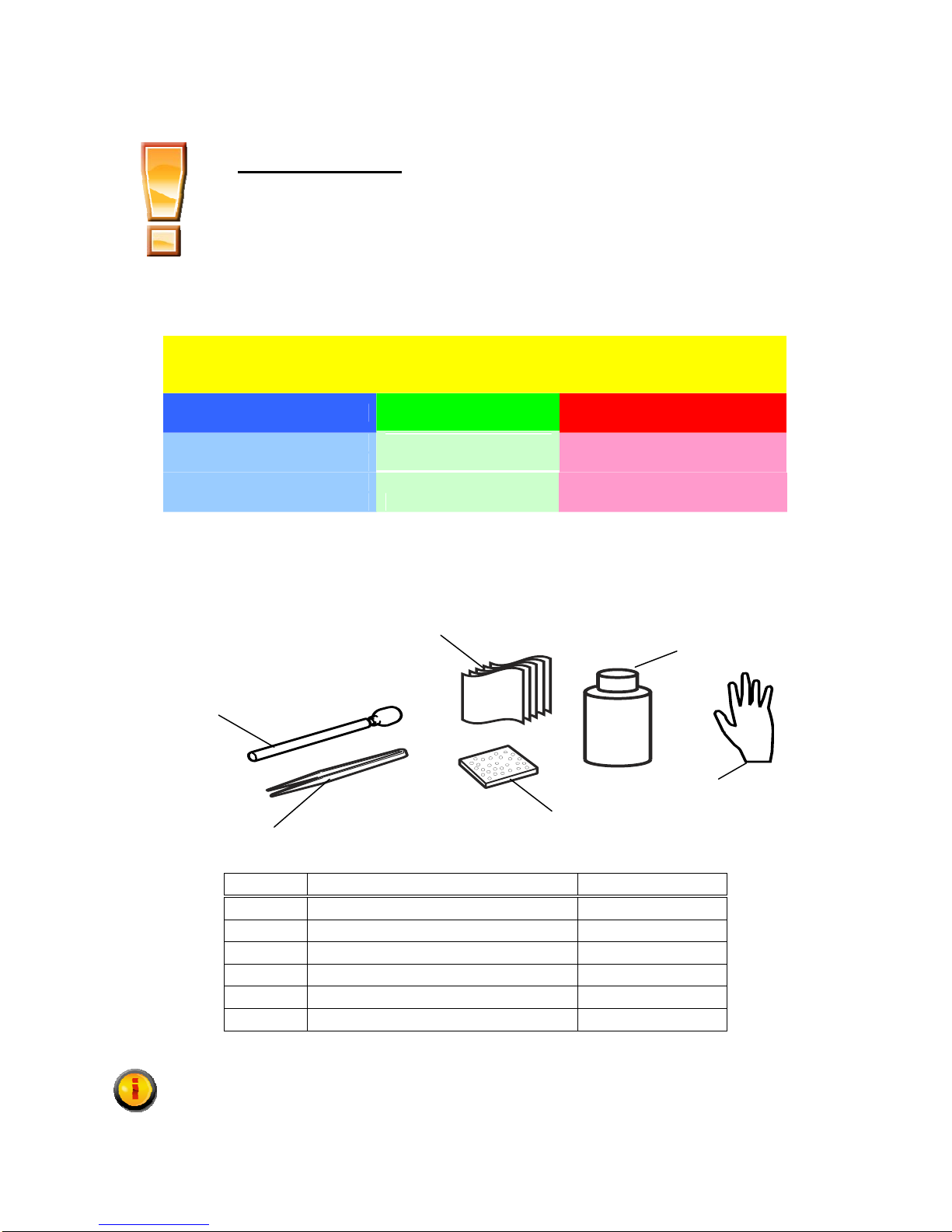

ATTENTION: This is a supplementary document and is to be

used in conjunction with the ValueJet 1604 User Operations Manual.

Please refer to Section 4: Daily Maintenance of the Quick Reference

Guide or Section 6: Maintenance of the Operation Manual CD, for

complete step by step instructions for performing these items.

Section 1: Intervals

User Level Maintenance Intervals VJ-1604

1-2 times per week Once a week Every 1-2 Months

□Clean Wiper

□Clean around cap

□Clean Around

PrintHead base

□Replace Flushing Box

Mesh

□Clean Flushing mesh

Section 2: Supplies

1. Supplies for cleaning the VJ-1604 can be purchased as a kit P/N: 11606-0001

Item #Description Qty

2Foam Swabs 25

3Tweezers 1

4Lint Free Cloth 30

5Flushing Box FoamMesh 1 box of 5

6250ml bottle eco-cleaning1

Rubber Gloves 5 pair

Please Note: If item #5is not present please use Isopropyl Alcohol only.

Page 2 of 7

Section 3: Cleaning Procedures

** Clean Wiper

Do not touch Wiper. Oil from your hands may prevent the wiper from cleaning the

head properly.

1. The wiper can be cleaned using either the foam swabs or the lint free cloth. Either Eco-

cleaning solution or Isopropyl Alcohol may be used in conjunction with the cleaning

utensil of choice..

2. Wipe the front of the wiper in a horizontal motion.

Foam Swab

Lint Free

Wipe

Page 3 of 7

3. Wipe the back of the wiper in a vertical motion.

Foam Swab

Lint Free

Wipe

Page 4 of 7

** Clean around cap

Do not touch the Rubber Cap. Oil from your hands may prevent the cap from

sealing properly.

1. Using either a foam swab or a lint free cloth soaked in Eco-cleaning solution or Isopropyl

Alcohol, wipe around the edges of the rubber cap. This ensures a good seal is maintained

during head cleaning process.

Foam Swab

Lint Free

Wipe

Page 5 of 7

** Clean around Print Head

CAUTION

•When cleaning around Print Heads

Do Not Touch the Bottom of the heads.

Do Not Clean the Nozzle Surface with the cleaning device.

Do not use water to clean the head. Nozzle clogging may occur

Do Not Re-use dirty foam swabs or lint free cloths

1. Using a foam swab or lint free cloth clean the following areas under the carriage.

•Stainless steel ring around the head

•Space between the print head and the guide ramps

•Bottom sides of the guide ramps

•Any other areas under the print head carriage that appears to have ink or dirt build-up.

Page 6 of 7

2. Pay special attention to the areas on either side of the print head. The small gap between

the print head and the guide ramps can build up large amounts of ink and dust.

* Replace Flush Box Mesh

1. Open the front cover. e flush box mesh using a pair of tweezers.

2. Remove and replace th

lease Note: Replace the mesh on the left hand side of the printer as need, if the left

side flush box is not used often and the mesh appears clean it does not need changed.

Page 7 of 7
